IGCSE Computer Science

A computer can only work with two states: on and off. You write these as 1 and 0. A system that uses only two digits 数字 is called binary 二进制 (base 2).

Computers represent all data — numbers, text, sound and images — as binary strings of 0s and 1s

Every kind of data 数据 — numbers, text, sound and images — must be changed into binary before a computer can use it. The computer processes this binary using logic gates 逻辑门, and stores it in registers 寄存器 (small, fast stores inside the processor 处理器).

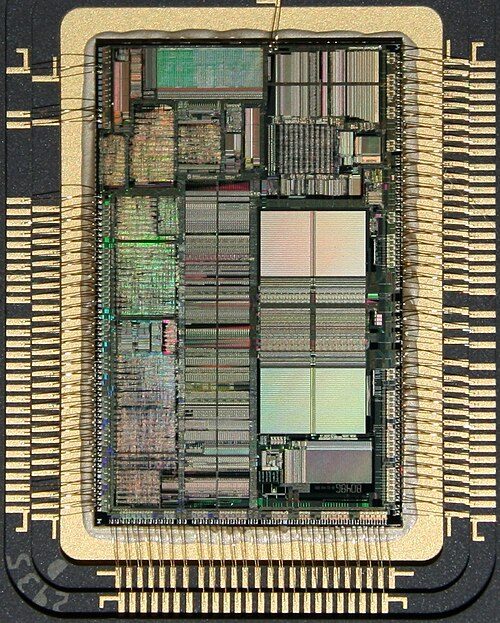

A microprocessor holds millions of tiny transistors, each a switch that is on (1) or off (0) — the physical basis of binary

A number system 数制 is a way of writing numbers using a fixed set of digits. You need three of them.

• denary 十进制 is the normal counting system (also called decimal).
• binary uses only 0 and 1.
• hexadecimal 十六进制 (hex) uses sixteen digits: 0–9, then A, B, C, D, E, F stand for 10, 11, 12, 13, 14, 15.

The base 基数 tells you how many different digits a system uses.

Place value

Each column in a number has a place value 位值. In binary the place values double from right to left. For an 8-bit number they are:

128  64  32  16  8  4  2  1

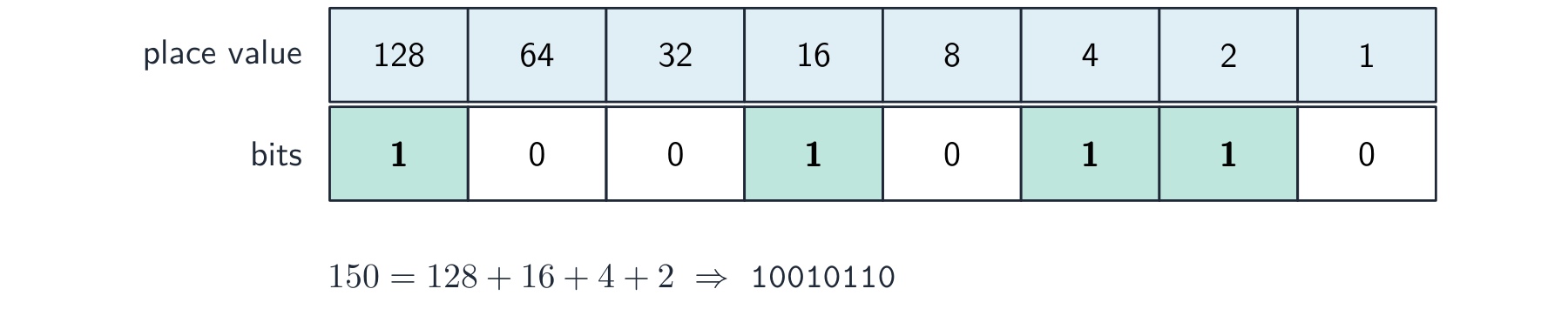

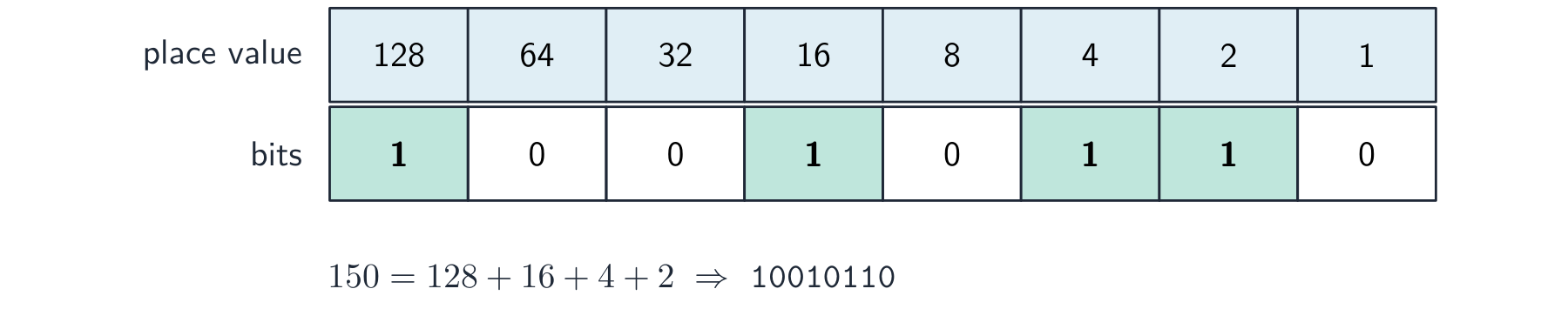

An 8-bit place-value chart: the 1s sit under the values that add up to 150

One bit 位 is a single 0 or 1. Eight bits make one byte 字节. Four bits (half a byte) is a nibble 半字节.

Converting between number systems

Denary → binary. Write the place values. Put a 1 under each value you need so they add up to your number; put 0 under the rest.

Example: change denary 150 to binary. $150 = 128 + 16 + 4 + 2$.

128 64 32 16 8 4 2 1
  1  0  0  1 0 1 1 0

So $150$ = 10010110.

Binary → denary. Add the place values where there is a 1. 10010110 $= 128 + 16 + 4 + 2 = 150$.

Hexadecimal → binary. Change each hex digit into its own 4-bit group (a nibble).

Example: hex F08. $F = 1111$, $0 = 0000$, $8 = 1000$, so F08 = 1111 0000 1000.

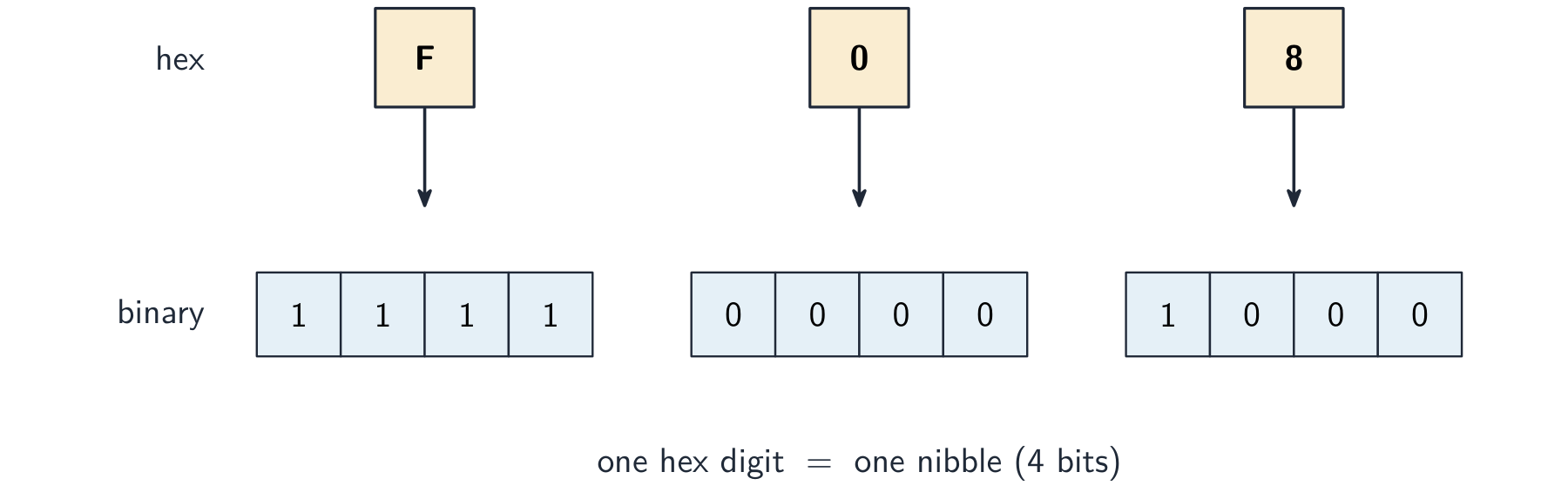

Each hex digit maps to its own 4-bit nibble — F08 = 1111 0000 1000

Binary → hexadecimal. Group the bits into nibbles of 4, starting from the right. Change each nibble to one hex digit.

Denary → hexadecimal. The easy way is to change to binary first, then binary to hex.

This table helps with the hex letters:

Cambridge questions use binary numbers up to 16 bits long.

Why hexadecimal is used

Hex is shorter than binary and easier for people to read and write. One hex digit replaces 4 binary digits, so you make fewer mistakes. The value does not change — hex is just a shorter way to show the same binary.

Computer scientists use hex for:

• MAC addresses and IPv6 addresses
• colour codes in HTML (for example #FF0000 is red)
• memory addresses 内存地址 and error codes
• showing the contents of memory (a "memory dump")

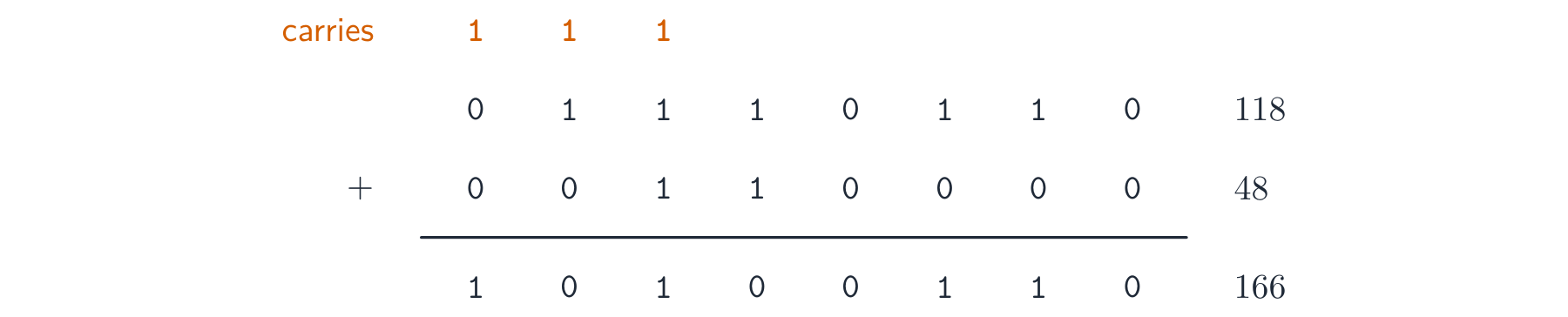

You can add two 8-bit binary numbers, column by column from the right, just like denary. The rules for one column are:

When a carry also comes in, $1 + 1 + 1 = 1$ with a carry of 1.

Example: add 01110110 (118) and 00110000 (48).

  0 1 1 1 0 1 1 0    (118)
+ 0 0 1 1 0 0 0 0    (48)
-------------------
  1 0 1 0 0 1 1 0    (166)

Adding column by column; the carries ripple to the left. 118 + 48 = 166

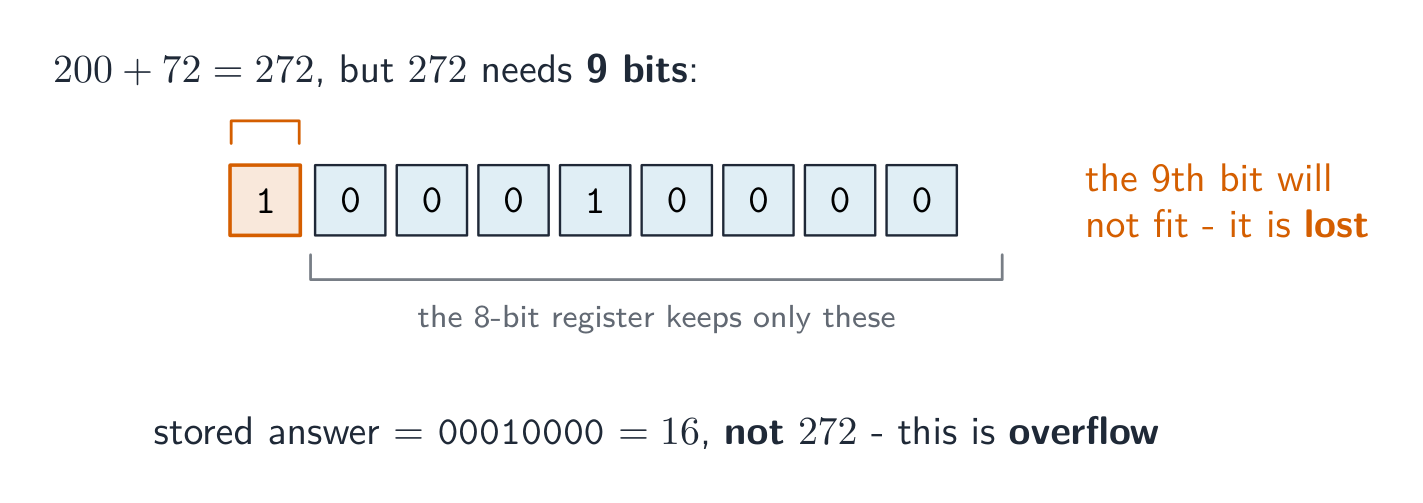

Overflow

An 8-bit register can hold denary values from 0 to 255 only. If an addition gives a result above 255, the answer needs a 9th bit. The register cannot hold this extra bit, so it is lost. This is called overflow 溢出 (an overflow error). It happens when a value goes outside the limit the register can store.

Example: 11001000 (200) $+$ 01001000 (72) $= 272$. In binary that is 1 00010000, which needs 9 bits. The leading 1 will not fit in 8 bits, so the stored answer is wrong.

A logical binary shift 逻辑二进制移位 moves all the bits left or right by a number of places.

• Bits that move off the end of the register are lost.
• Zeros are added at the empty end.

A left shift multiplies the number by 2 for each place moved. A right shift divides it by 2 for each place; the right-most bits (the least significant bit(s) 最低有效位) are lost.

Example: left shift 00110101 (53) by 2 places.

start:         0 0 1 1 0 1 0 1
left shift 2:  1 1 0 1 0 1 0 0

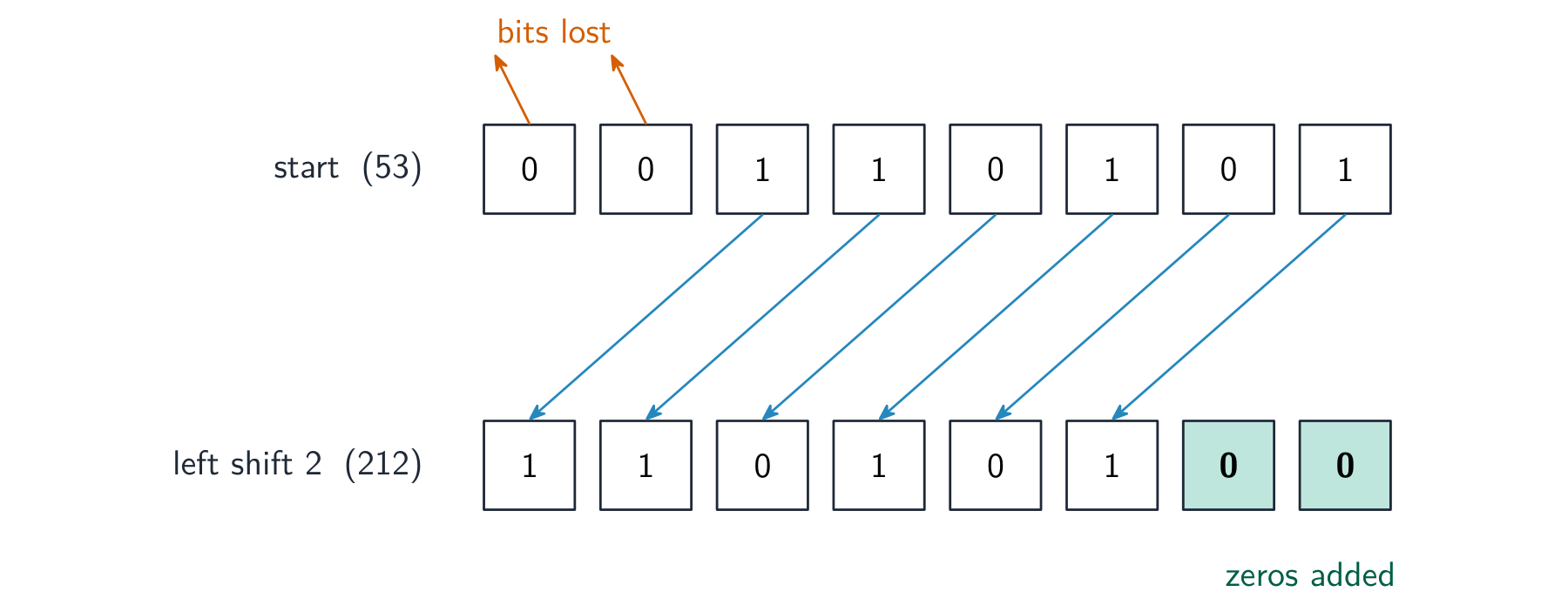

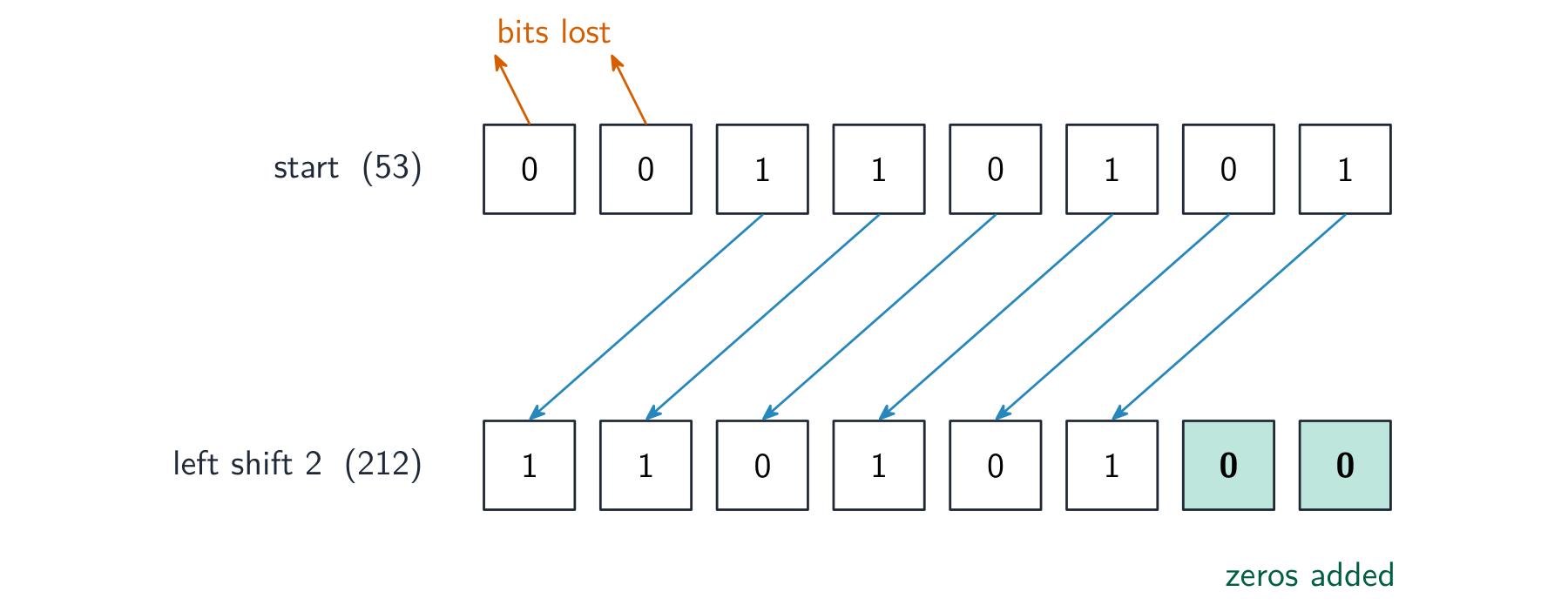

A left shift of 2: every bit moves 2 places left, the top bits are lost and zeros fill the right

The result is 11010100 (212), which is $53 \times 4$. The two left-most bits were lost and two zeros came in on the right. If a 1 is pushed off the end, that information is gone for good.

So far the numbers were positive. Two's complement 补码 lets an 8-bit register hold negative numbers too.

In two's complement, the left-most bit (the most significant bit 最高有效位, or MSB) has a negative place value:

-128  64  32  16  8  4  2  1

• If the MSB is 0, the number is positive.
• If the MSB is 1, the number is negative.

To make a positive number negative: write the positive binary, flip every bit (0↔1), then add 1.

Example: make $-40$.

• $+40$ = 00101000
• flip the bits = 11010111
• add 1 = 11011000

So $-40$ = 11011000. Check by adding the place values: $-128 + 64 + 16 + 8 = -40$.

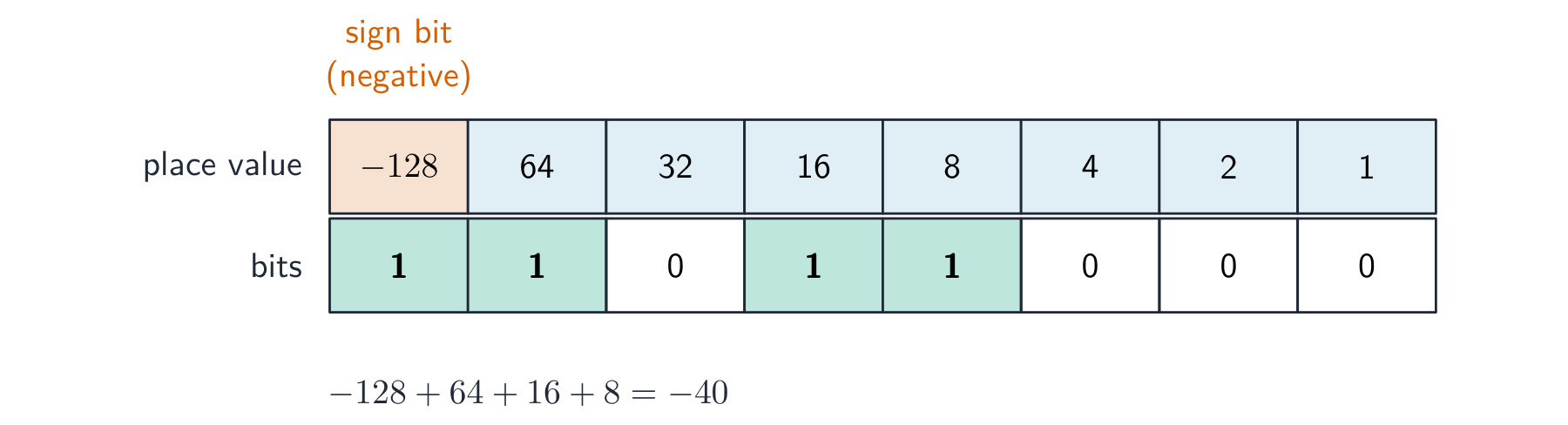

The most significant bit is worth −128, so 11011000 = −128 + 64 + 16 + 8 = −40

To read a negative two's complement number, just add the place values (the MSB counts as $-128$). The range of an 8-bit two's complement number is $-128$ to $+127$.

Computers store text by giving every character a number, then storing that number in binary. The set of characters a computer can use, together with their numbers, is a character set 字符集.

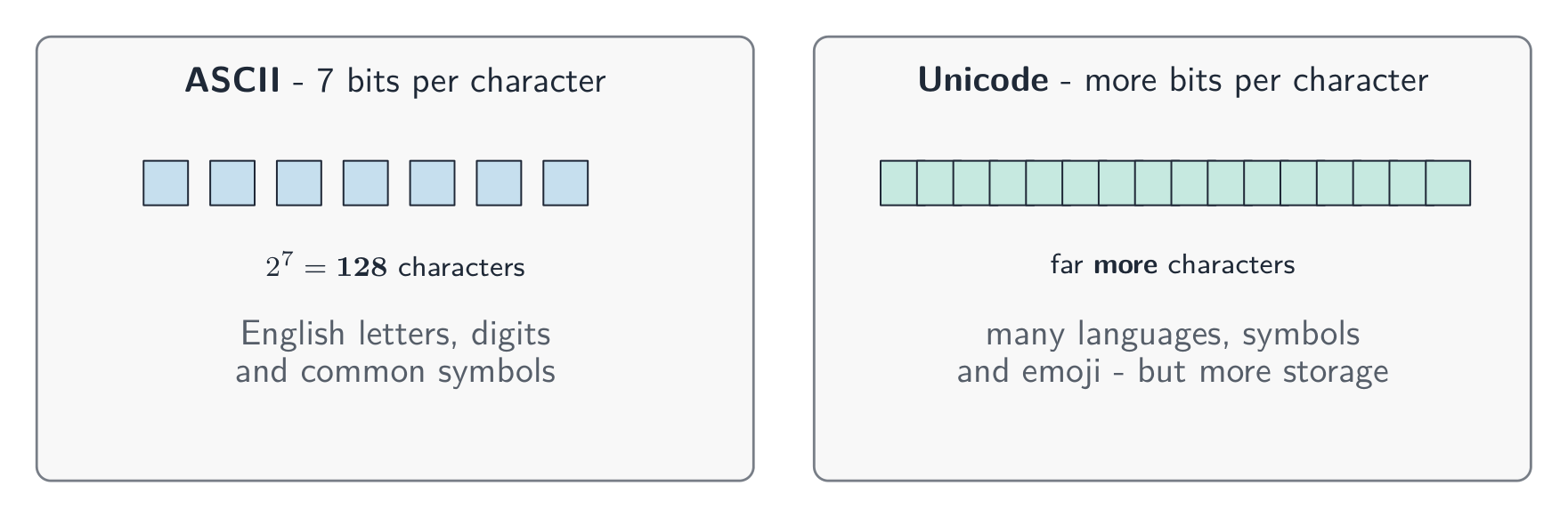

• ASCII uses 7 bits per character, so it has 128 different characters. This is enough for English letters, digits and common symbols.
• Unicode uses more bits per character. It can represent far more characters — many languages, plus symbols and emoji 表情符号.

Because Unicode has more characters, it needs more bits per character than ASCII, so the same text takes more storage 存储.

A sound wave 声波 is smooth and always changing. To store it, the computer measures the height of the wave at regular moments. This is called sampling 采样, and each measurement is a sample.

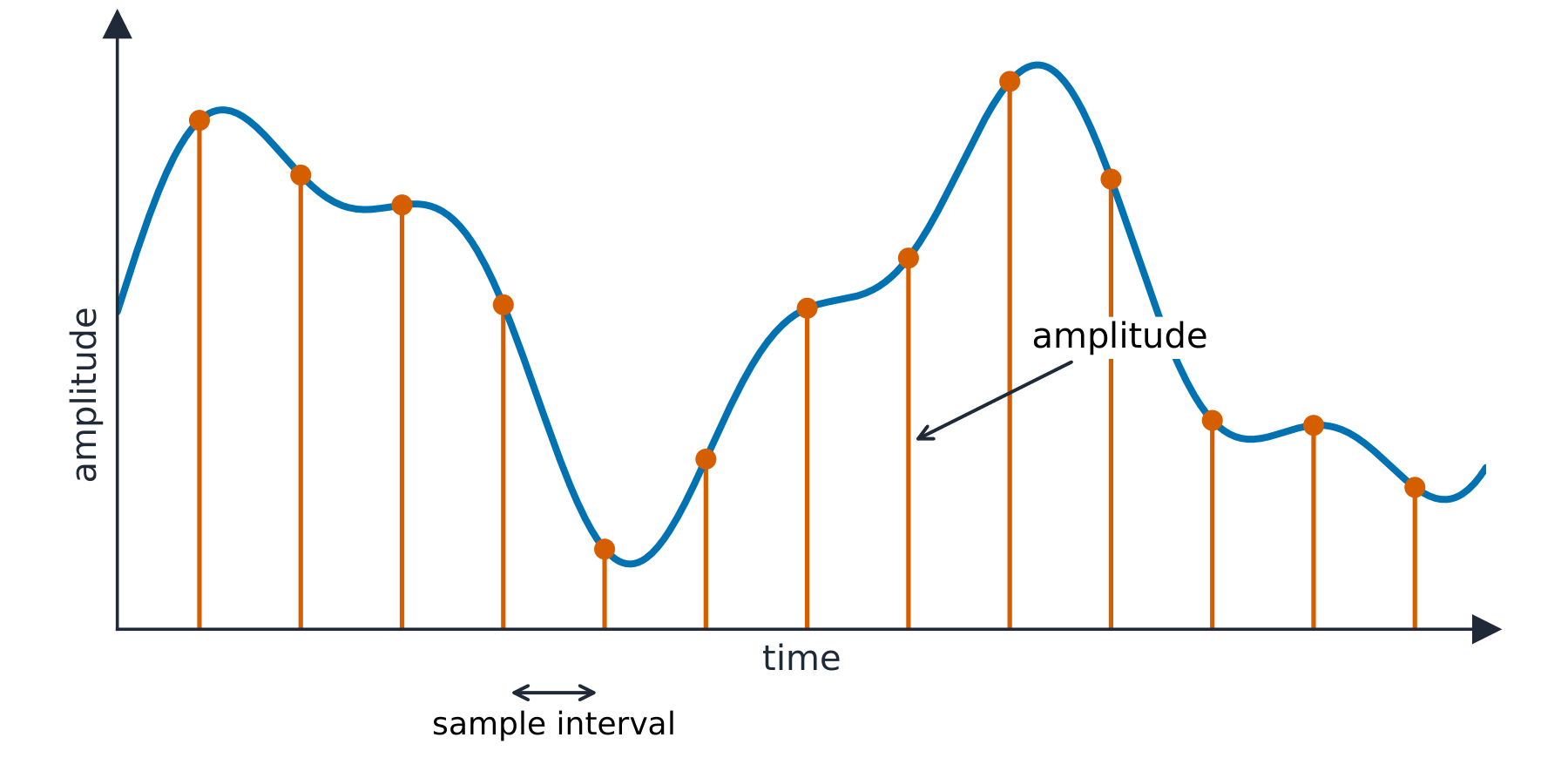

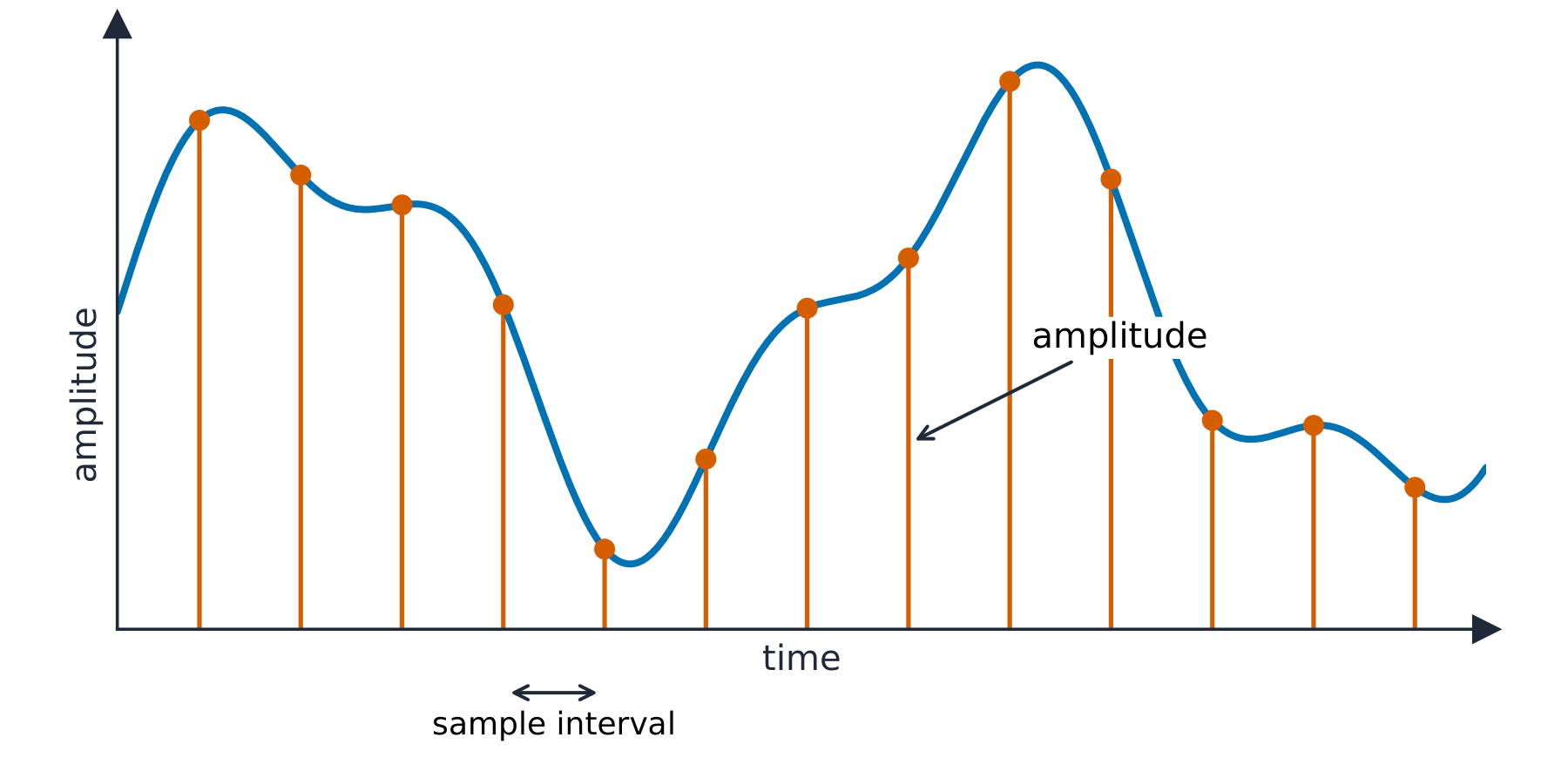

Sampling records the wave's height (amplitude) at regular moments

• sample rate 采样率 is the number of samples taken each second (measured in Hz).
• sample resolution 采样分辨率 is the number of bits used for each sample. The height of the wave at a sample point is its amplitude 振幅.

A higher sample rate and a higher sample resolution give a more accurate recording, but a larger file.

A computer image is made of a grid of small dots called pixels 像素.

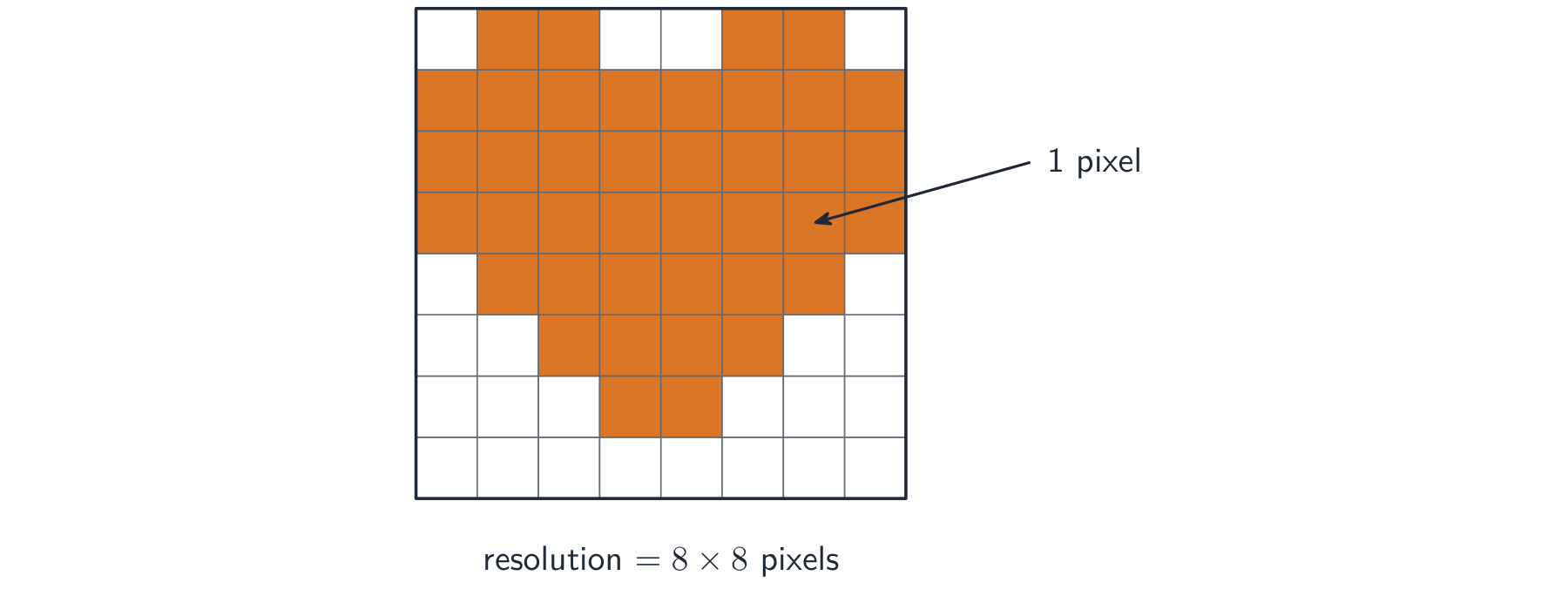

A bitmap is a grid of pixels; the resolution is how many pixels it has

• resolution 分辨率 is the number of pixels in the image (for example $1920 \times 1080$).
• colour depth 颜色深度 is the number of bits used to store the colour of each pixel.

A higher resolution and a higher colour depth give a better-quality image, but a larger file.

Data storage is measured in the units below. Each unit is 1024 times the one before it (because $1024 = 2^{10}$, which fits binary).

Image file size (in bits) $=$ resolution $\times$ colour depth $=$ width $\times$ height $\times$ colour depth.

Example: an image is $1024 \times 1024$ pixels with a colour depth of 2 bytes ($= 16$ bits).

• bits $= 1024 \times 1024 \times 16 = 16\,777\,216$ bits
• bytes $= \div 8 = 2\,097\,152$ bytes
• KiB $= \div 1024 = 2048$ KiB
• MiB $= \div 1024 = 2$ MiB

Sound file size (in bits) $=$ sample rate $\times$ sample resolution $\times$ length in seconds.

Always divide by 1024 (not 1000) to change to KiB, MiB and so on. Give your answer in the unit the question asks for.

Compression 压缩 makes a file smaller. A smaller file:

• uses less storage space,
• needs less bandwidth 带宽 (the amount of data a connection can carry),
• takes a shorter time to send (a shorter transmission 传输 time).

There are two types.

Lossless compression

Lossless 无损 compression makes the file smaller with no permanent loss of data. The original file can be rebuilt exactly.

One method is run-length encoding 行程编码 (RLE). It replaces a run of repeated values with one copy of the value and a count of how many times it repeats. For example WWWWWWWW (8 whites) is stored as "8 W". This works well when data has many repeats.

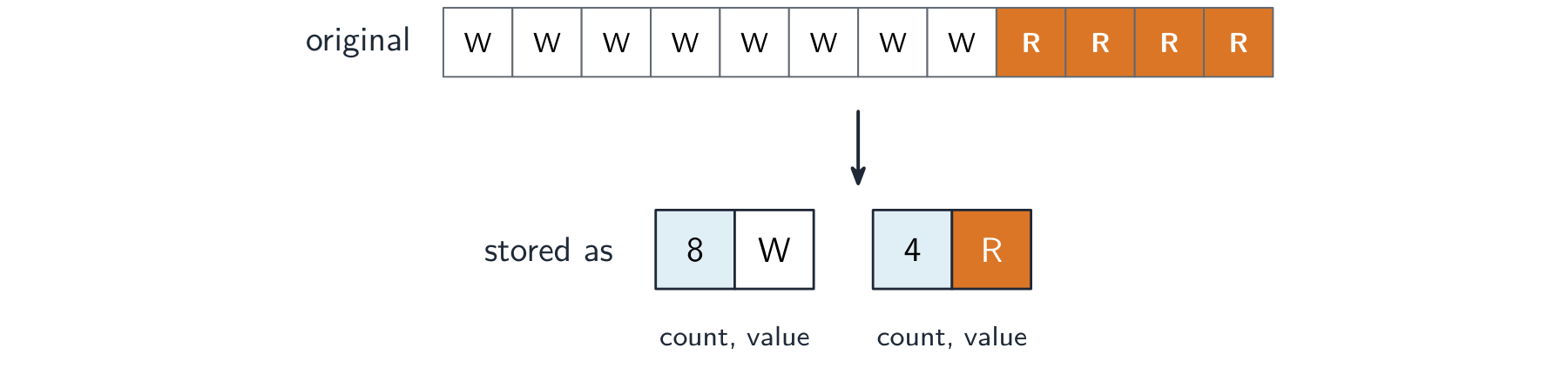

Run-length encoding stores each run once as a count and a value

Lossy compression

Lossy 有损 compression makes the file much smaller by permanently removing some data. The removed data cannot be got back. For example:

• reducing the resolution or colour depth of an image,
• reducing the sample rate or sample resolution of a sound.

Use lossless when you must keep every detail (text and program files). Use lossy for photos, music and video, where a small loss of quality is worth a much smaller file.

Data transmission 数据传输 means moving data from one place to another — for example from your computer to a website, or from a phone to a printer.

Data often travels along a cable. Two common ones are shown below.

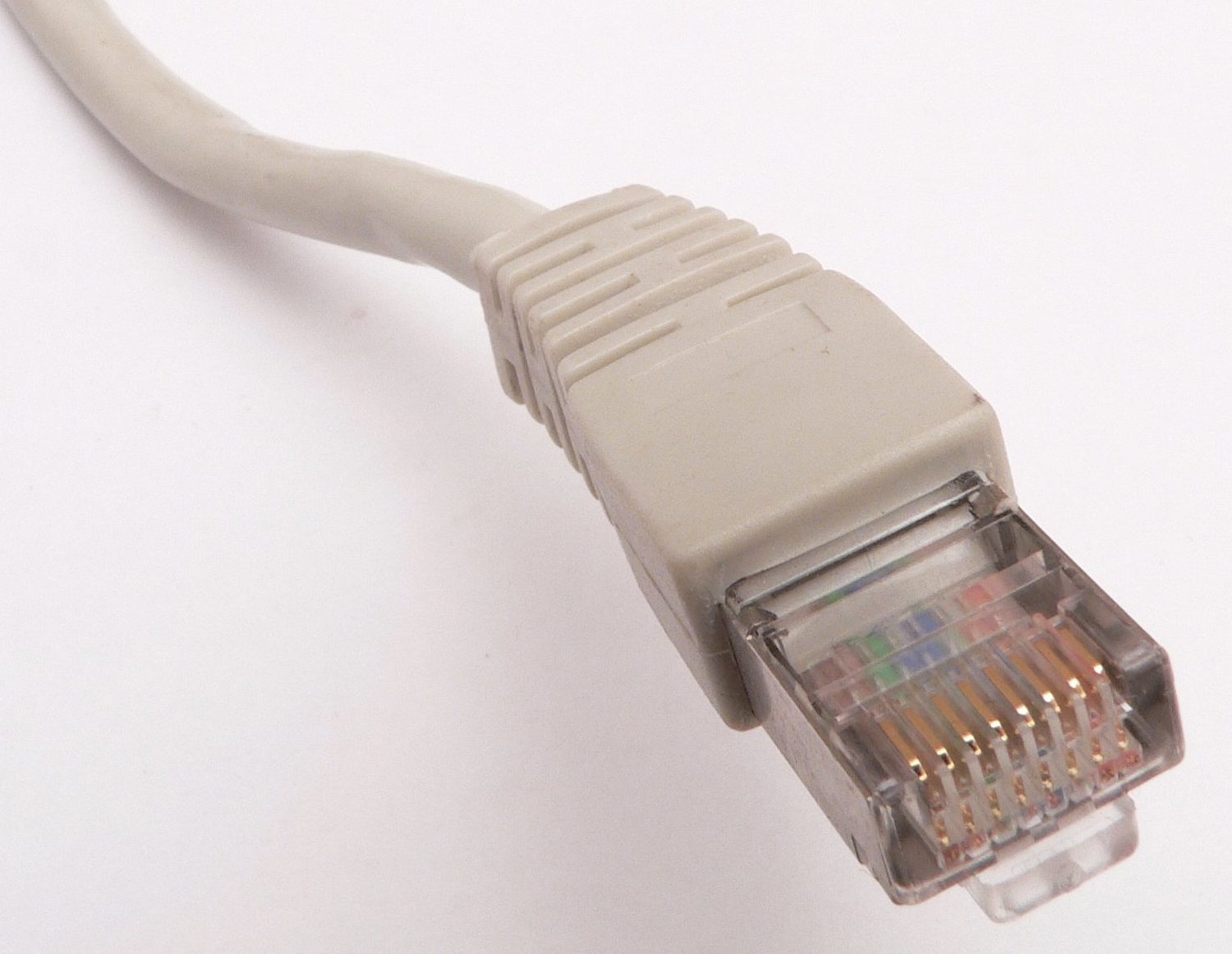

An Ethernet cable with an RJ45 plug, often used to carry data on a wired network

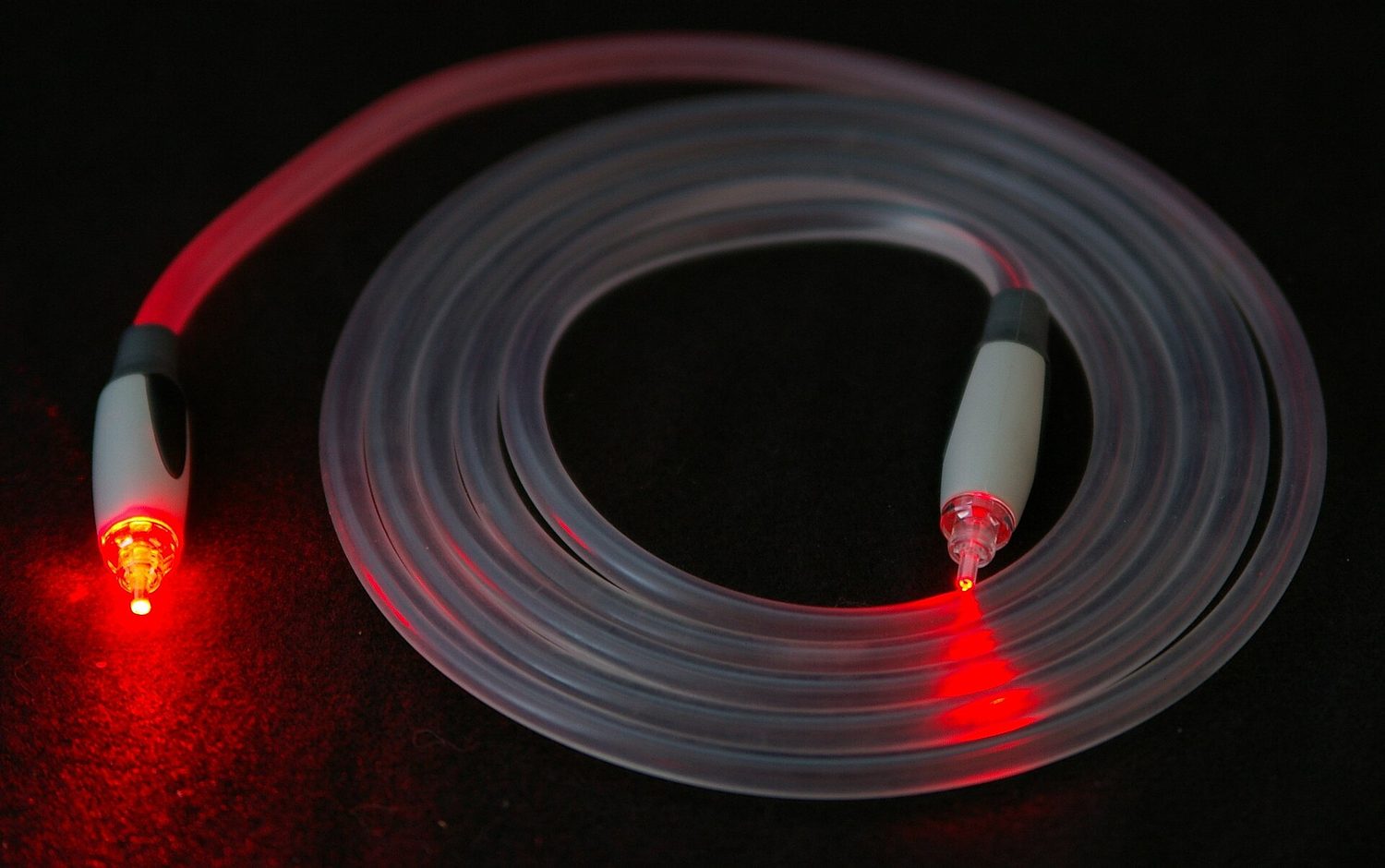

A fibre-optic cable carries data as pulses of light along thin glass fibres

Before it is sent, the data is broken down into small, equal-sized pieces called packets 数据包. Each packet travels separately and they are put back together at the other end.

Using packets has benefits:

• if one packet is lost or damaged, only that packet is sent again, not the whole file;
• packets can take different routes, so a busy or broken route can be avoided;
• many users can share the same connection at the same time.

Every packet has three parts.

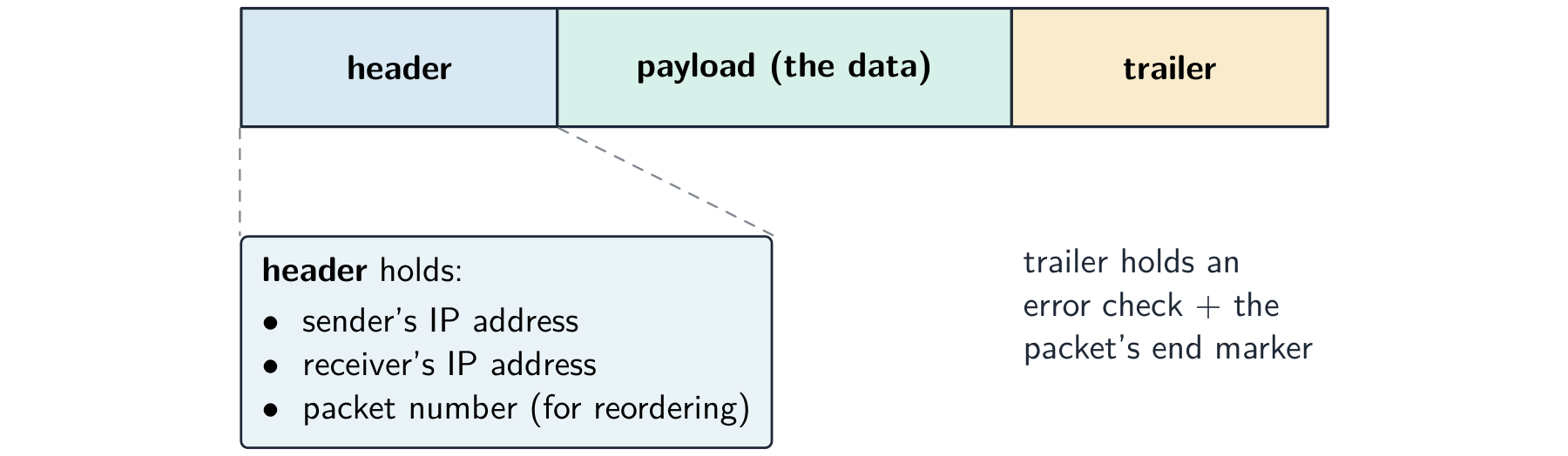

A packet has a header, a payload (the data) and a trailer; the header carries the addresses and packet number

The packet header holds:

• the sender's IP address 地址 (where the packet came from),
• the receiver's IP address (where it is going),
• the packet number (so the packets can be put back in the right order).

Packet switching 数据包交换 is the way packets are sent across a network.

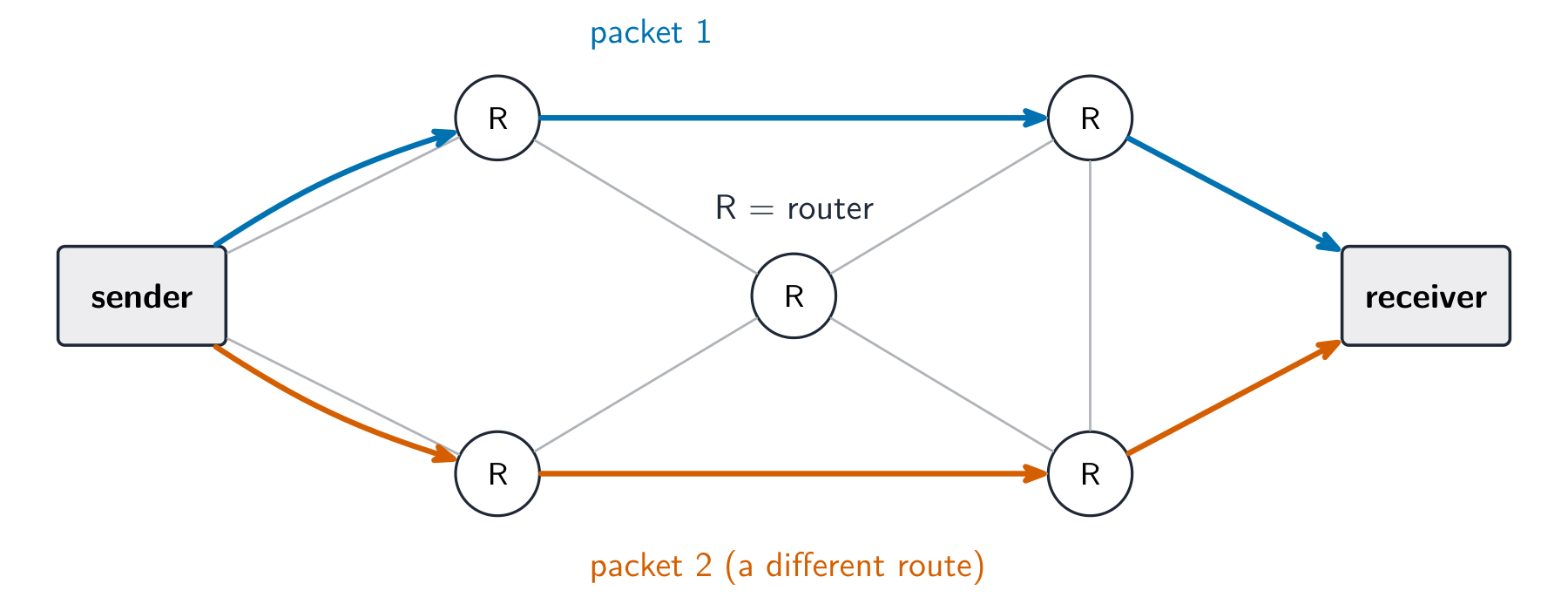

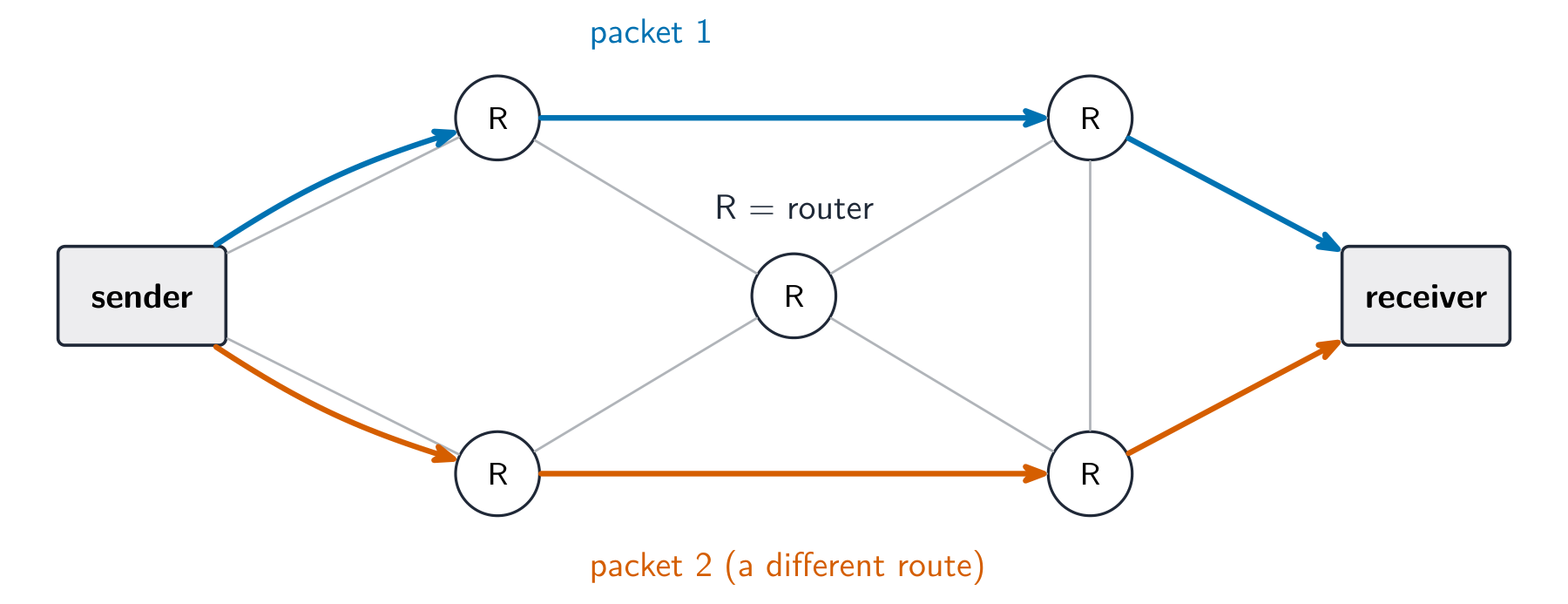

Routers forward packets, and different packets can take different routes to the same receiver

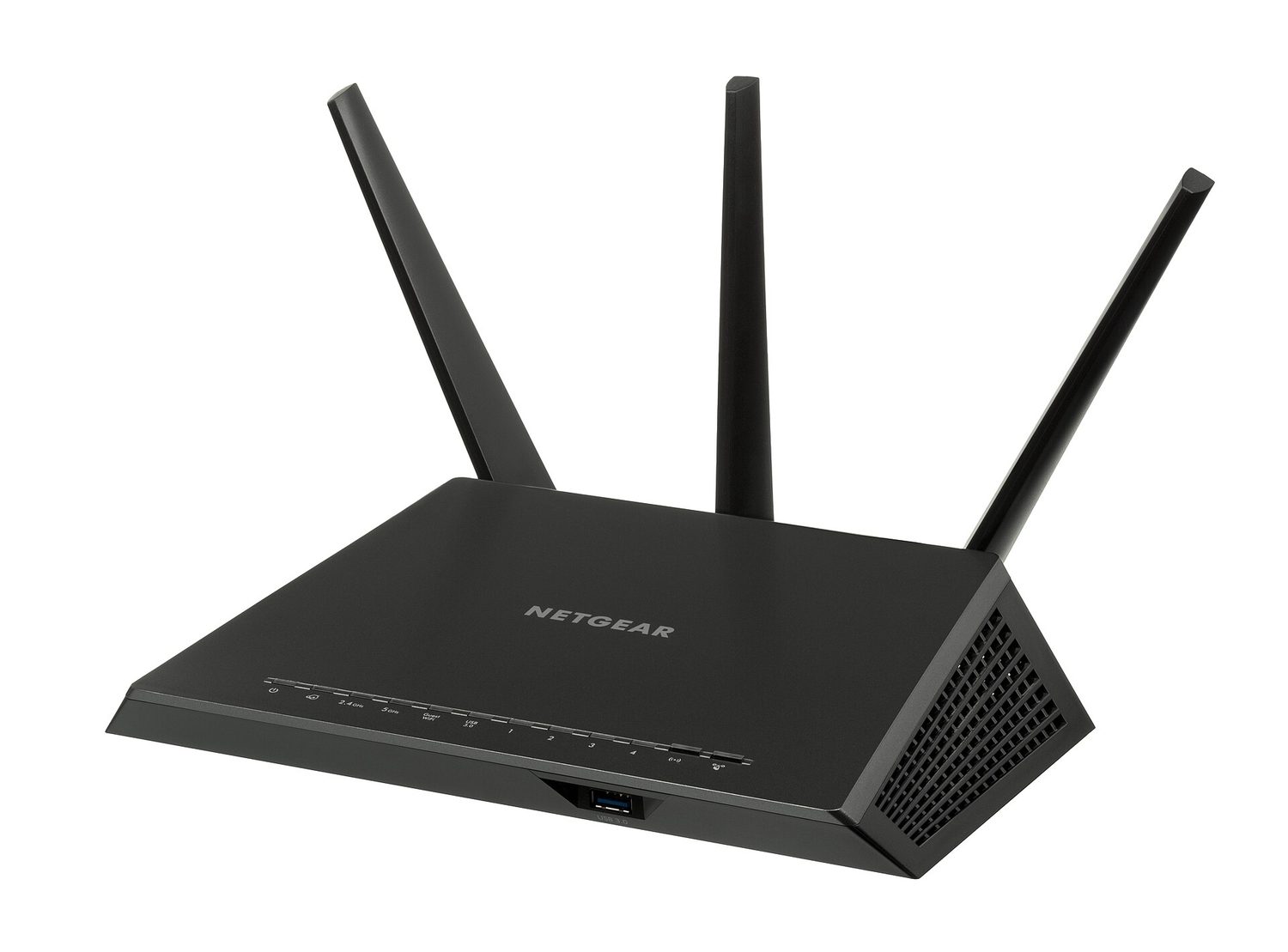

• Special devices called routers 路由器 read each packet's header and choose the best route for it.
• Each packet may take its own path, so packets can travel different ways.
• Packets may arrive out of order.
• When the last packet has arrived, the packets are reordered using their packet numbers.

Serial and parallel

Serial sends one bit after another along a single wire. Parallel sends several bits at the same time along several wires, so it is faster over short distances.

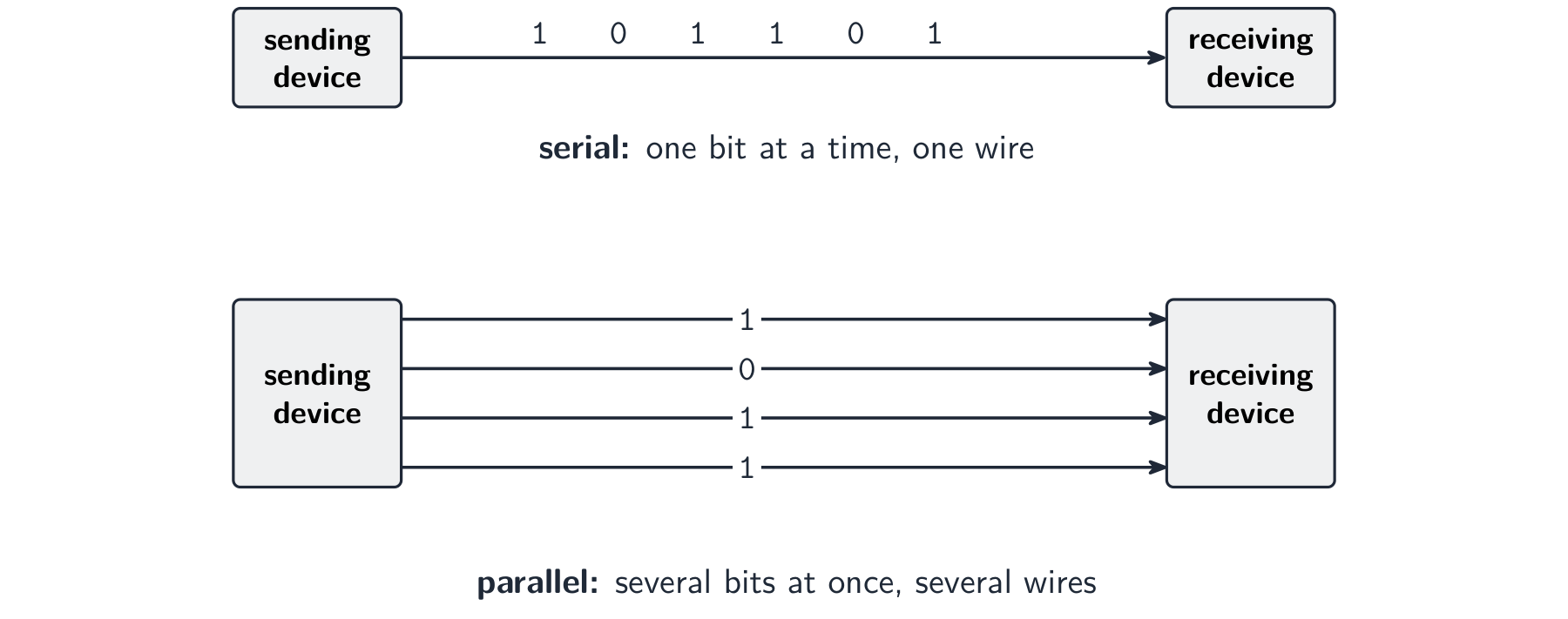

Serial sends one bit at a time down one wire; parallel sends several bits at once down several wires

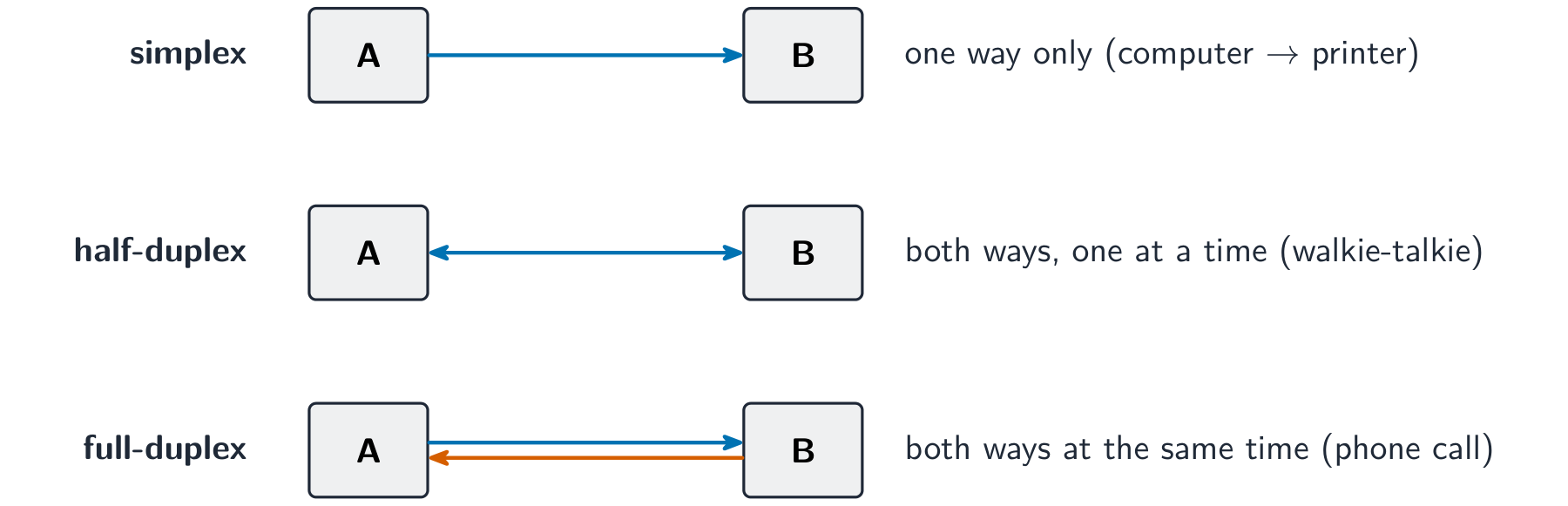

Simplex, half-duplex and full-duplex

These describe the direction data can travel.

Simplex is one way only; half-duplex is both ways but one at a time; full-duplex is both ways at once

Choosing a method

The choice depends on the distance, the speed needed, the cost, and whether data must travel both ways at once.

The universal serial bus 通用串行总线 (USB) is a common interface 接口 (a connection point) for joining devices to a computer.

Benefits:

• the same connector is used by many devices (one standard);
• the device is detected automatically and the correct driver is loaded;
• it carries power, so it can charge or run a device;
• the connector only fits one way, so it is hard to plug in wrongly.

Drawbacks:

• the cable can only be a limited length (a few metres);
• older USB versions are slower than newer ones;
• transfer speeds can be lower than some other connection types.

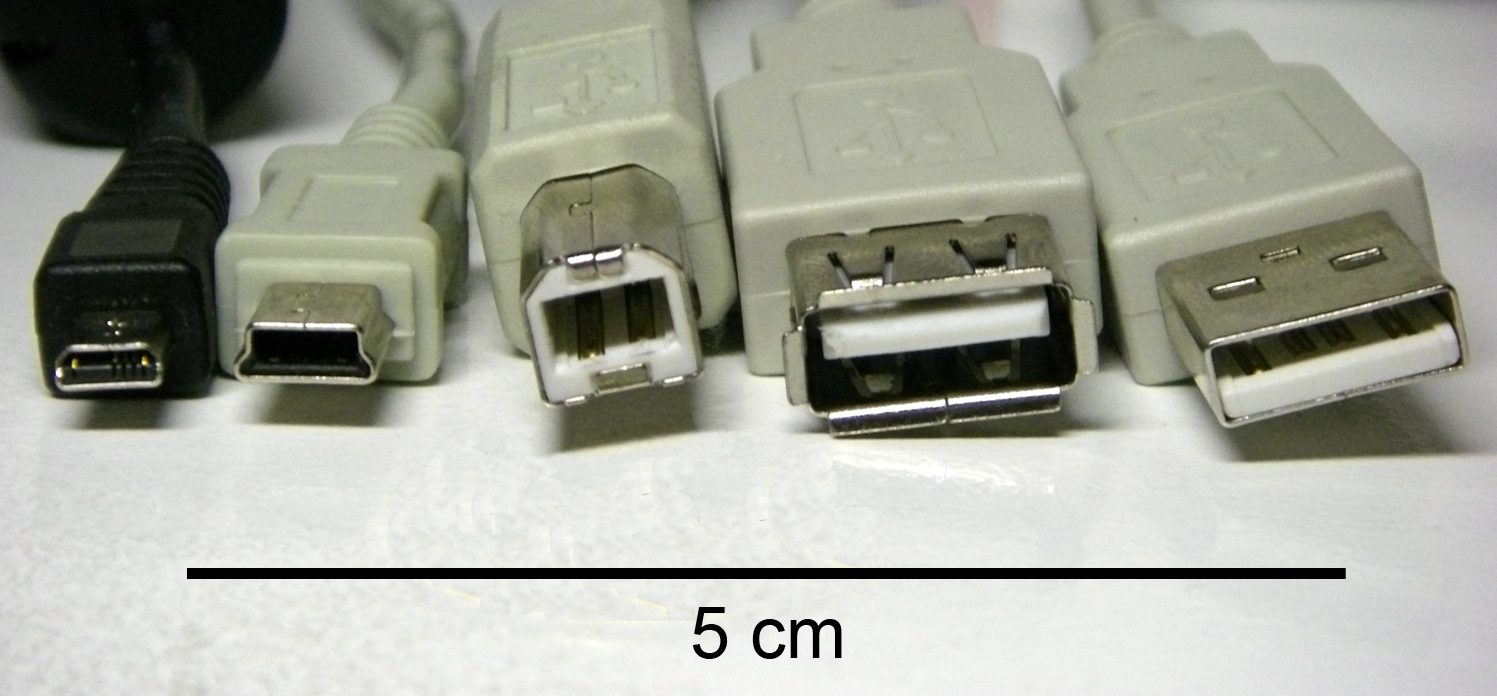

A few of the USB connector shapes. All use the same USB standard, so devices are detected automatically.

While data travels, interference 干扰 can change it. Three things can go wrong:

• data loss — some bits do not arrive;
• data gain — extra bits are added;
• data change — some bits are flipped.

So the receiver checks whether the data arrived correctly.

Parity check

A parity check 奇偶校验 adds one extra bit, the parity bit 奇偶校验位, to each byte. There are two types:

• even parity — the total number of 1s in the byte (including the parity bit) must be even;
• odd parity — the total number of 1s must be odd.

Example (even parity): the data 1011001 has four 1s, which is already even, so the parity bit is 0:

parity bit + data
    0        1011001

To find an error: the receiver counts the 1s. If even parity was agreed but a byte arrives with an odd number of 1s, an error has happened during transmission.

A parity check cannot find every error. If two bits flip, the count may still look correct.

Checksum

A checksum 校验和 is a value worked out from all the data before sending. The receiver works out the checksum again from the data it received. If the two values do not match, an error has occurred and the data is resent.

Echo check

In an echo check 回送校验, the receiver sends the data back to the sender. The sender compares it with the original. If they differ, an error happened. (This needs the data to be sent twice, so it is slow.)

Automatic Repeat reQuest (ARQ)

Automatic Repeat reQuest 自动重传请求 (ARQ) uses messages called acknowledgements 确认.

• The receiver sends a positive acknowledgement if a packet arrived correctly, or a negative acknowledgement if it did not.
• The sender starts a timeout 超时 timer. If no positive acknowledgement comes back in time, the sender sends the packet again.

Check digit

A check digit 校验码 is an extra digit placed at the end of a number, worked out from the other digits. It is used to find mistakes when a number is typed in.

When the number is entered, the check digit is calculated again and compared. It can catch:

• an incorrect digit entered,
• a transposition error 换位错误 (two digits swapped, e.g. 21 typed as 12),
• a digit left out or an extra digit added,
• a phonetic error (a digit that sounds similar, e.g. 13 and 30).

Check digits are used in barcodes 条形码 and ISBNs (book numbers).

Why we need encryption

Encryption 加密 scrambles data so that it cannot be understood if it is intercepted 拦截 (caught) by the wrong person. The readable data is called plaintext 明文; after encryption it becomes ciphertext 密文.

Encryption does not stop data from being intercepted. It only stops the data from being understood.

Symmetric encryption

Symmetric encryption 对称加密 uses a single key 密钥 to both encrypt and decrypt the data. The sender and receiver must share this same secret key. The risk is that the key itself could be stolen while being shared.

Asymmetric encryption

Asymmetric encryption 非对称加密 uses two different keys:

• a public key 公钥 that anyone can have, used to encrypt;
• a private key 私钥 that is kept secret, used to decrypt.

Data encrypted with the public key can only be decrypted with the matching private key, so the key never has to be shared. This is safer than sharing one secret key.

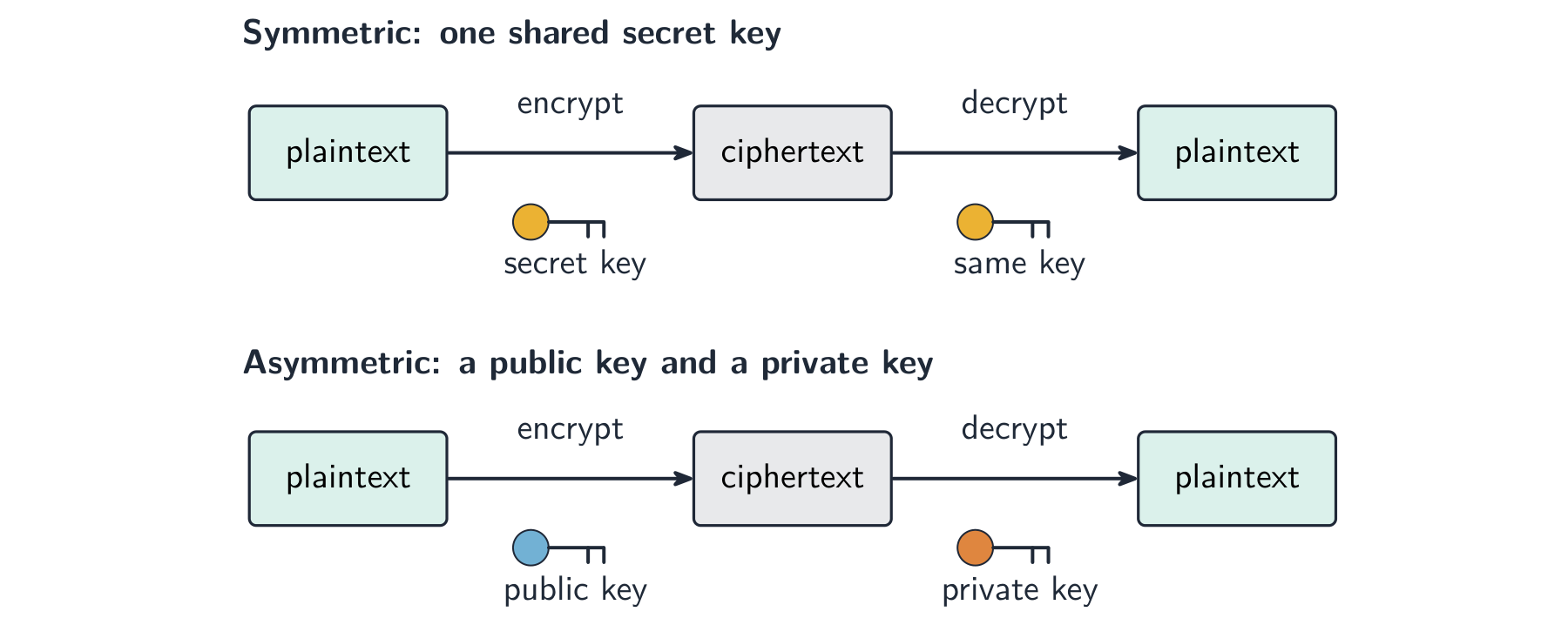

Symmetric uses one shared key; asymmetric uses a public key to encrypt and a private key to decrypt

The central processing unit 中央处理器 (CPU) is the part of the computer that processes data and carries out instructions 指令. It runs programs by repeating a cycle, millions of times each second.

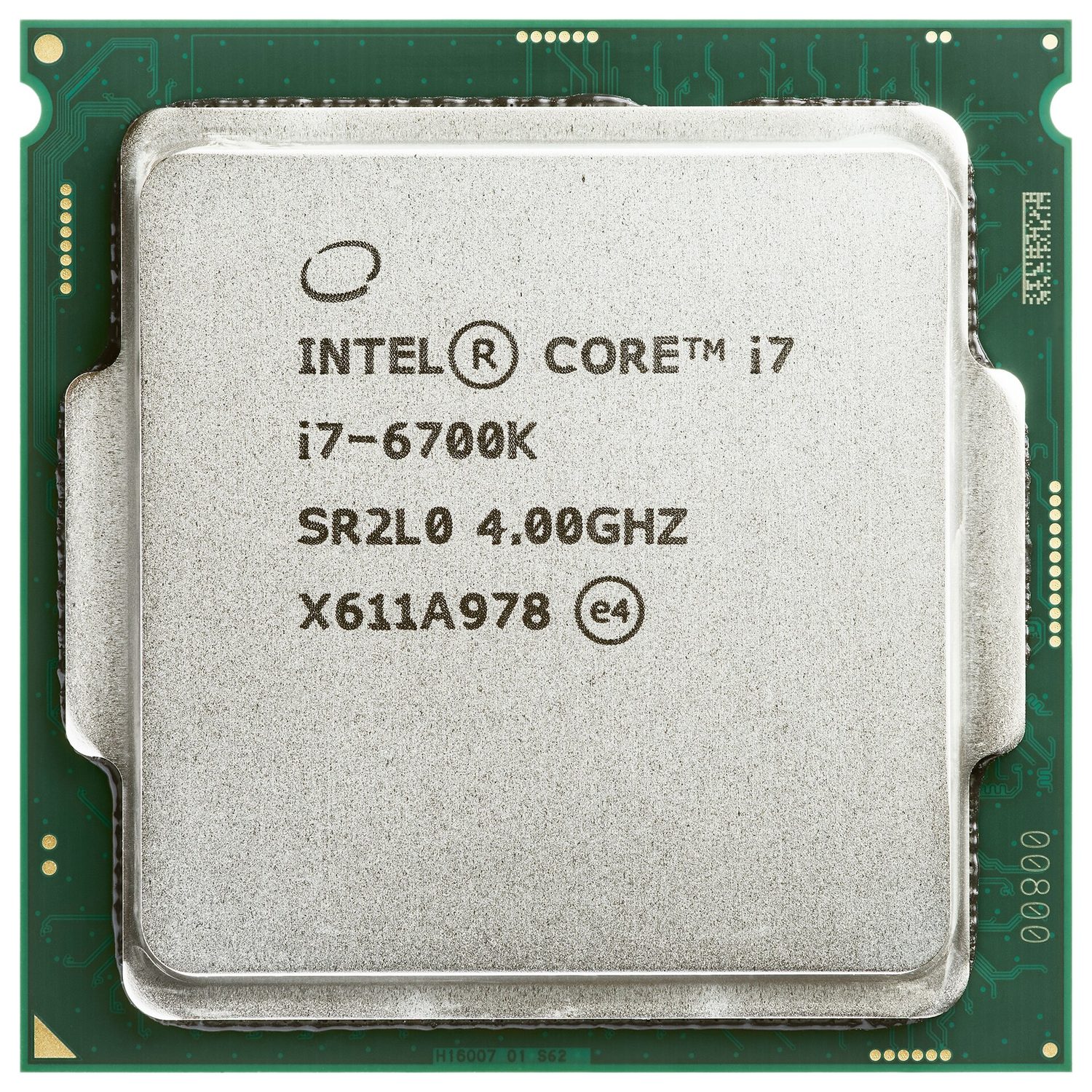

A central processing unit (CPU): the chip that processes data and runs the instructions

Parts of the CPU

The parts are joined by buses 总线 — sets of wires that carry information:

• the address bus 地址总线 carries memory addresses (one direction);
• the data bus 数据总线 carries data and instructions (both directions);
• the control bus 控制总线 carries control signals.

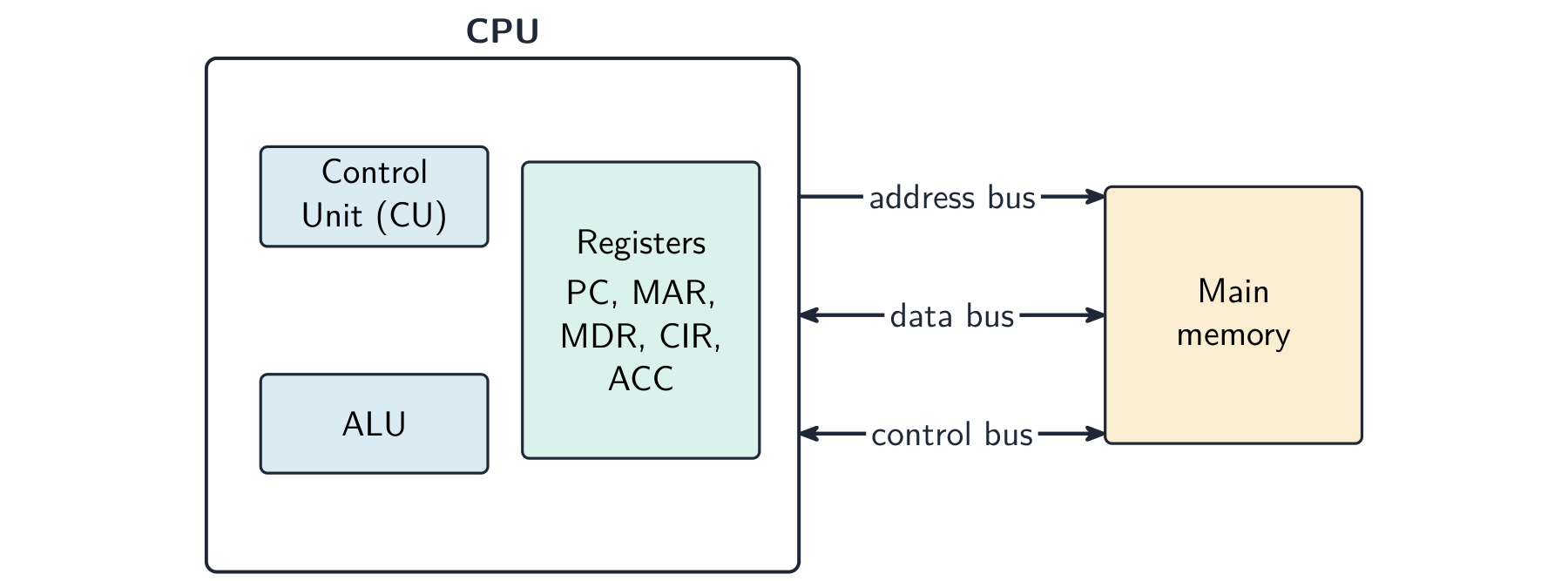

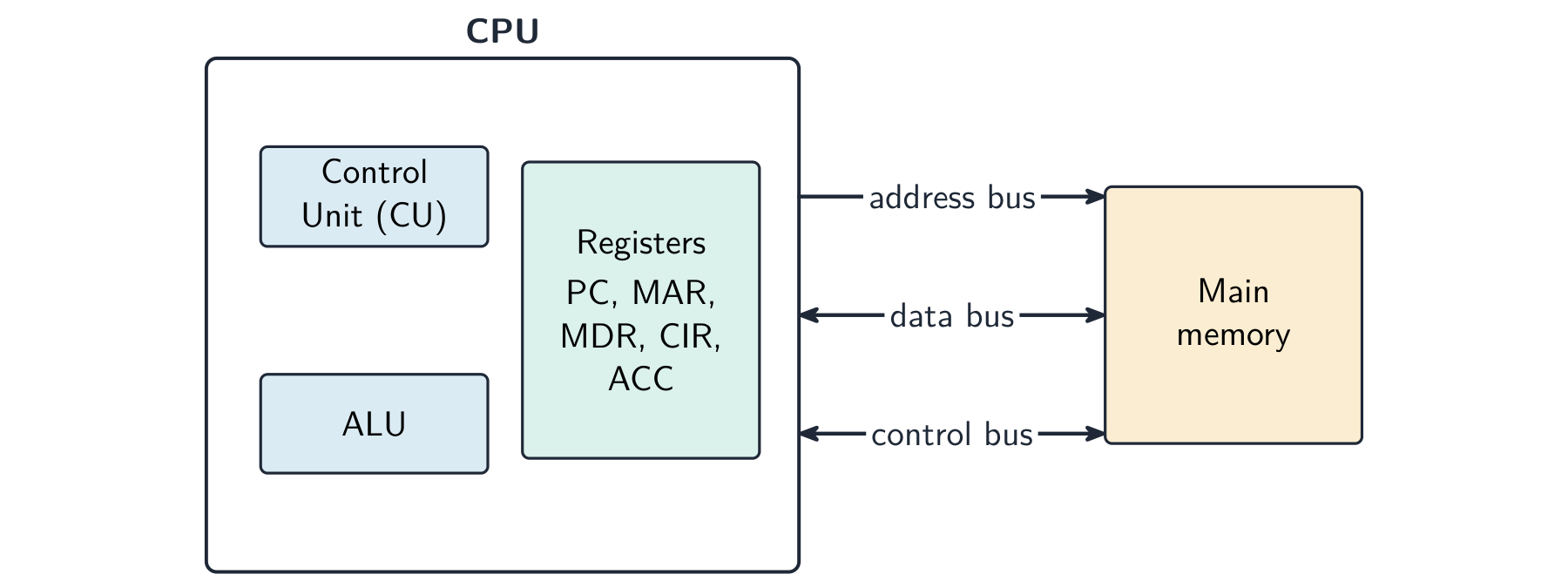

The CPU holds the control unit, the ALU and the registers; three buses link it to main memory

Special registers

These registers are used during the fetch–execute cycle.

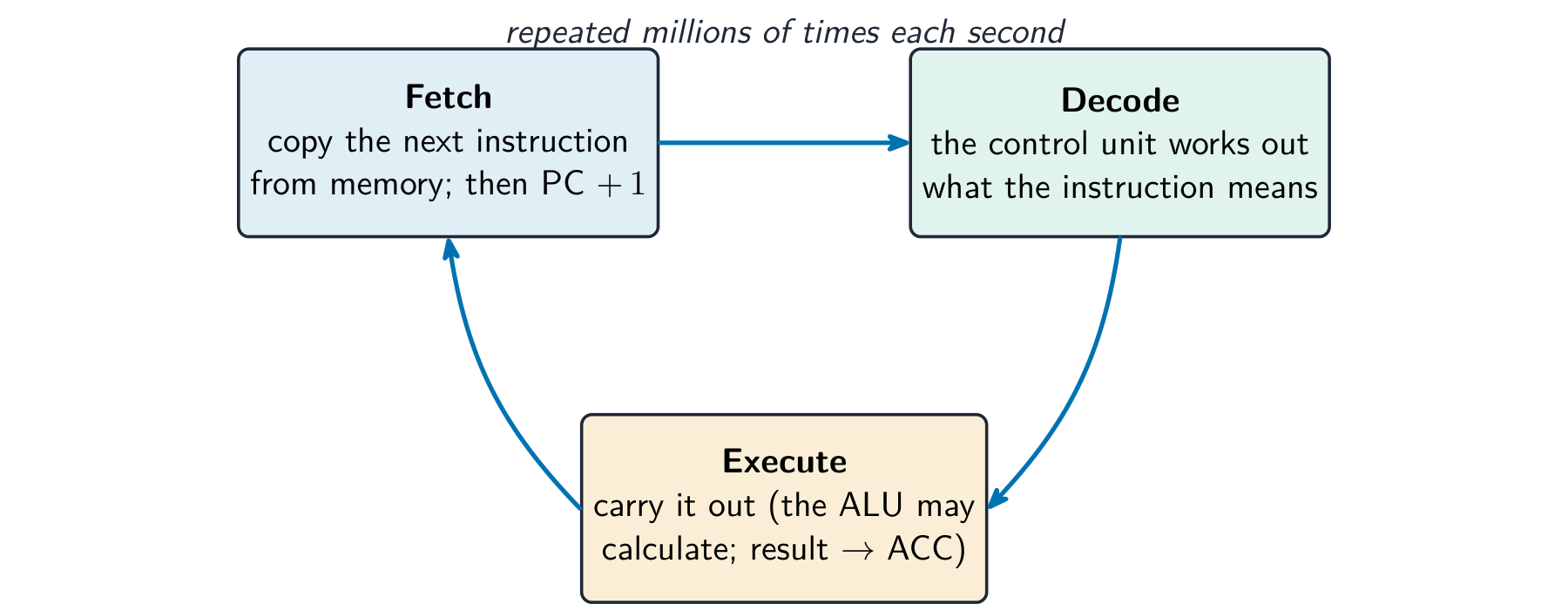

The fetch–execute cycle

The fetch–execute cycle 取指执行周期 has three stages, repeated again and again:

1. Fetch — the instruction is copied from memory 内存 into the CPU (using the PC, MAR and MDR). The PC then increases by 1.
2. Decode — the control unit works out what the instruction means.
3. Execute — the instruction is carried out (the ALU may do a calculation, with the result going to the accumulator).

The processor repeats three stages: fetch the instruction, decode it, then execute it

Cache memory

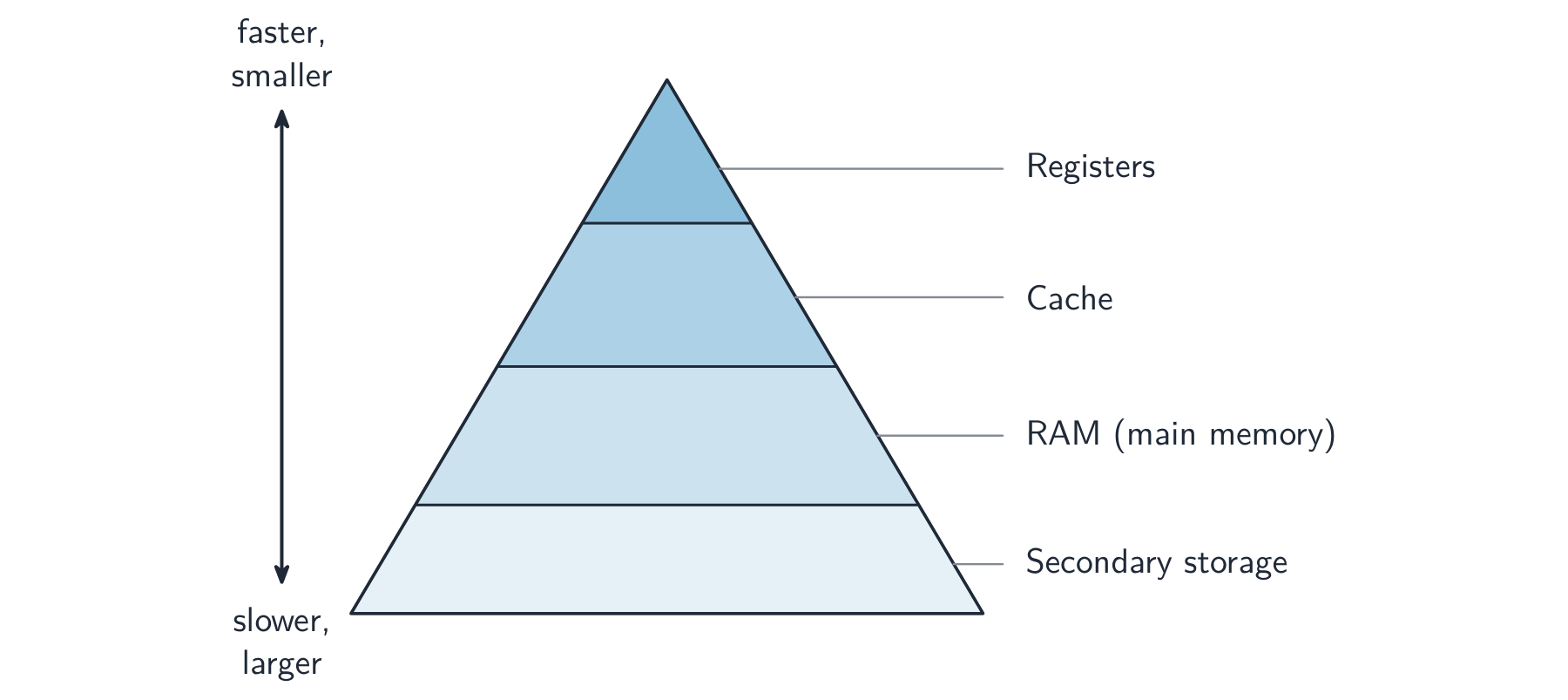

Cache 高速缓存 is a small amount of very fast memory inside or close to the CPU. It stores data and instructions that the CPU uses often. The CPU can read from cache much faster than from main memory, so the computer runs faster.

What affects CPU performance

Embedded systems

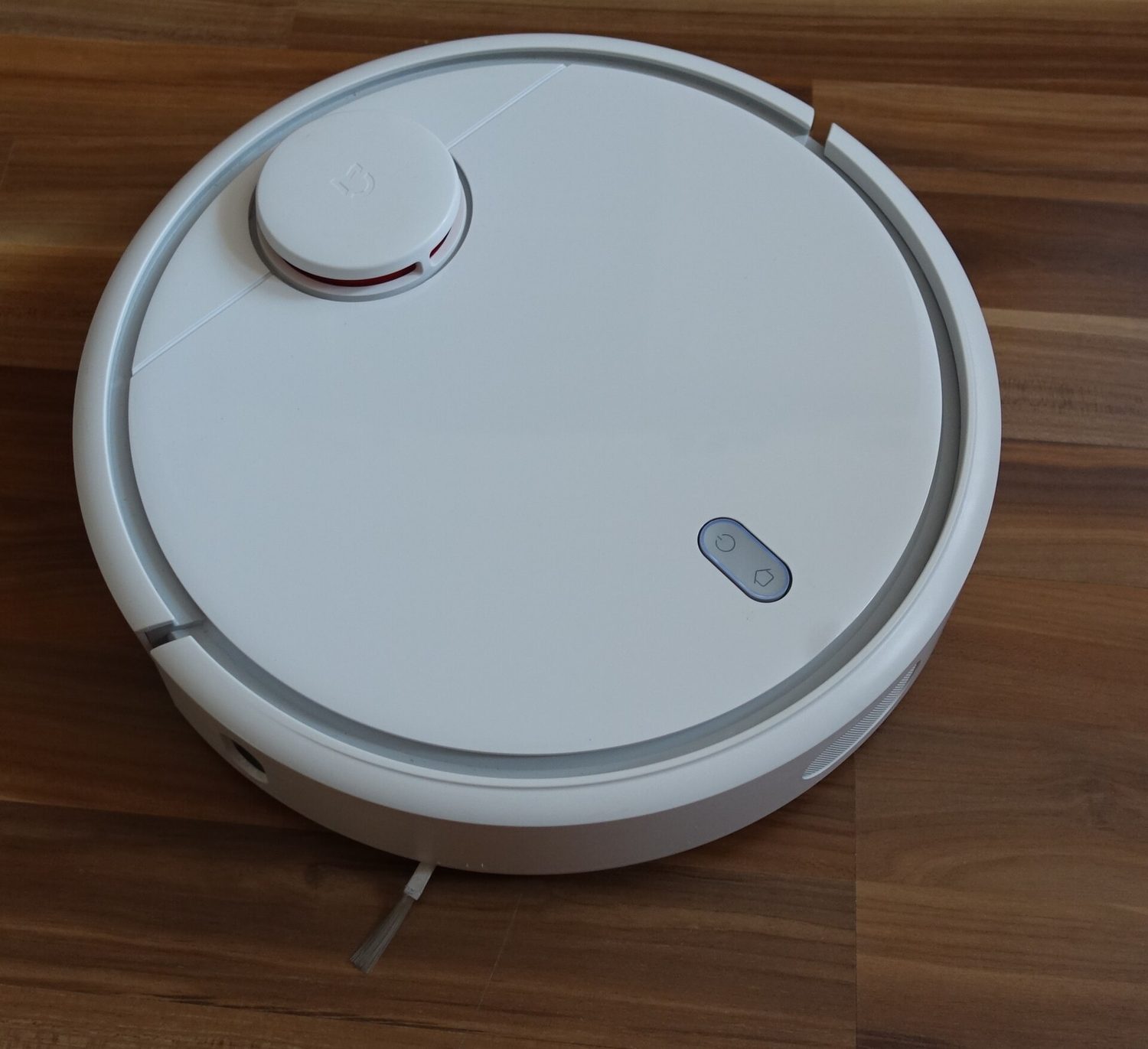

An embedded system 嵌入式系统 is a small computer built inside a larger device to do one fixed job. It is dedicated to that task, is usually small and low-cost, and has no general operating system. Examples: a washing machine, a microwave, a set-top box.

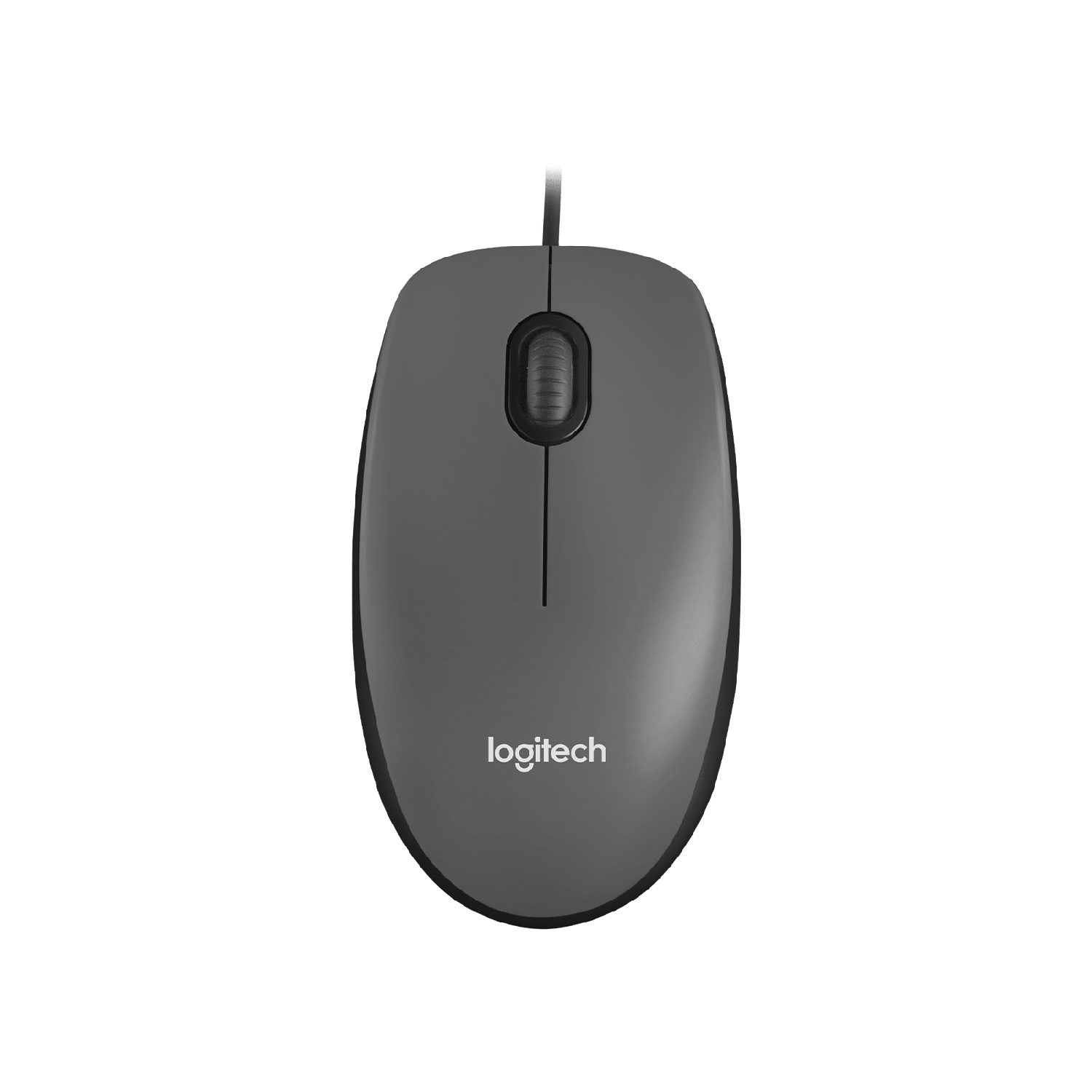

An input device sends data into the computer.

A keyboard: each key press sends a code for that character

An optical mouse: a light and a sensor track its movement on the desk

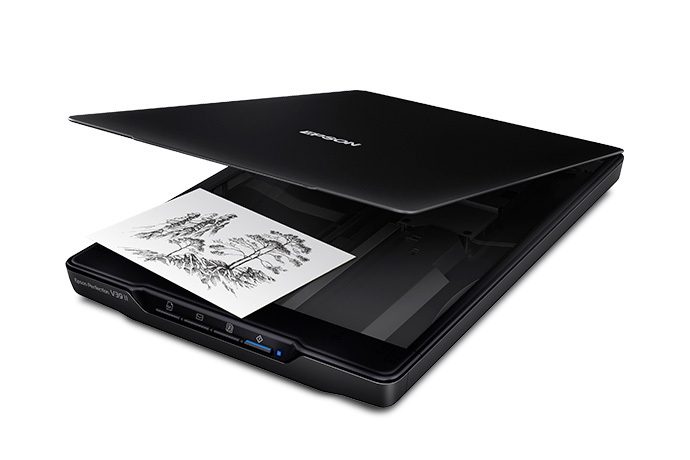

A flatbed scanner: it shines light across a page to copy it into the computer

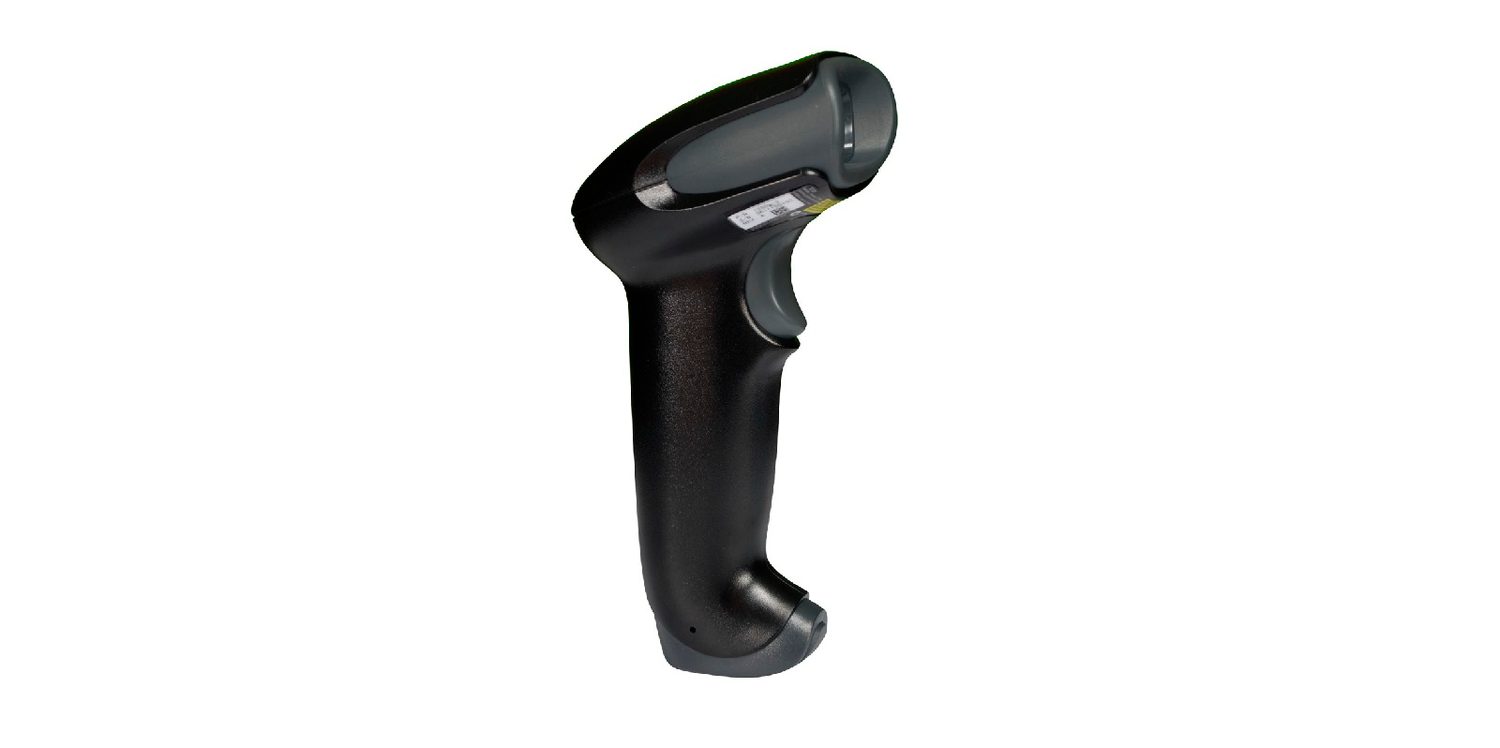

A barcode scanner reads the pattern of bars and sends it to the computer

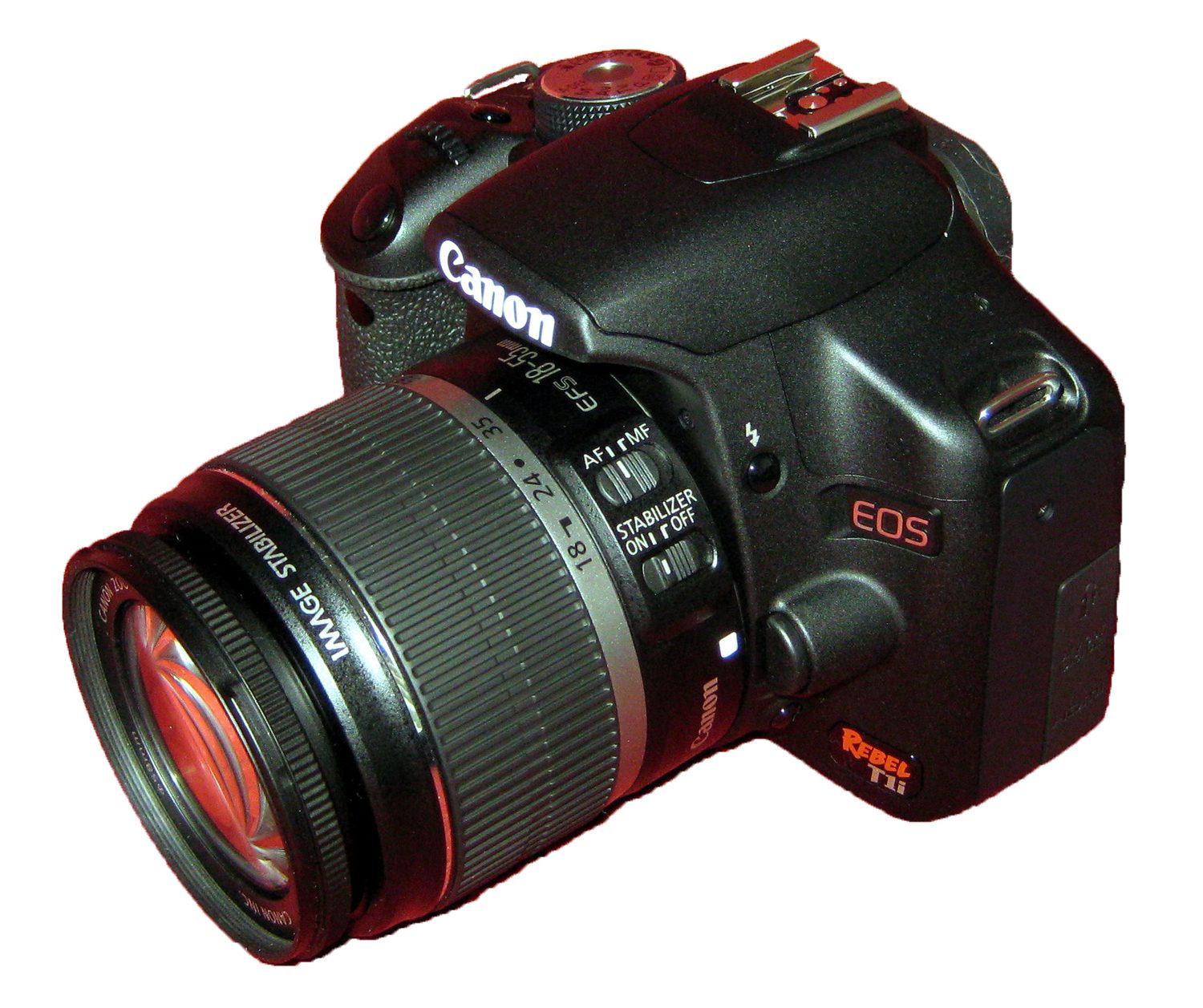

A digital camera: a lens focuses light onto a sensor that records the pixels

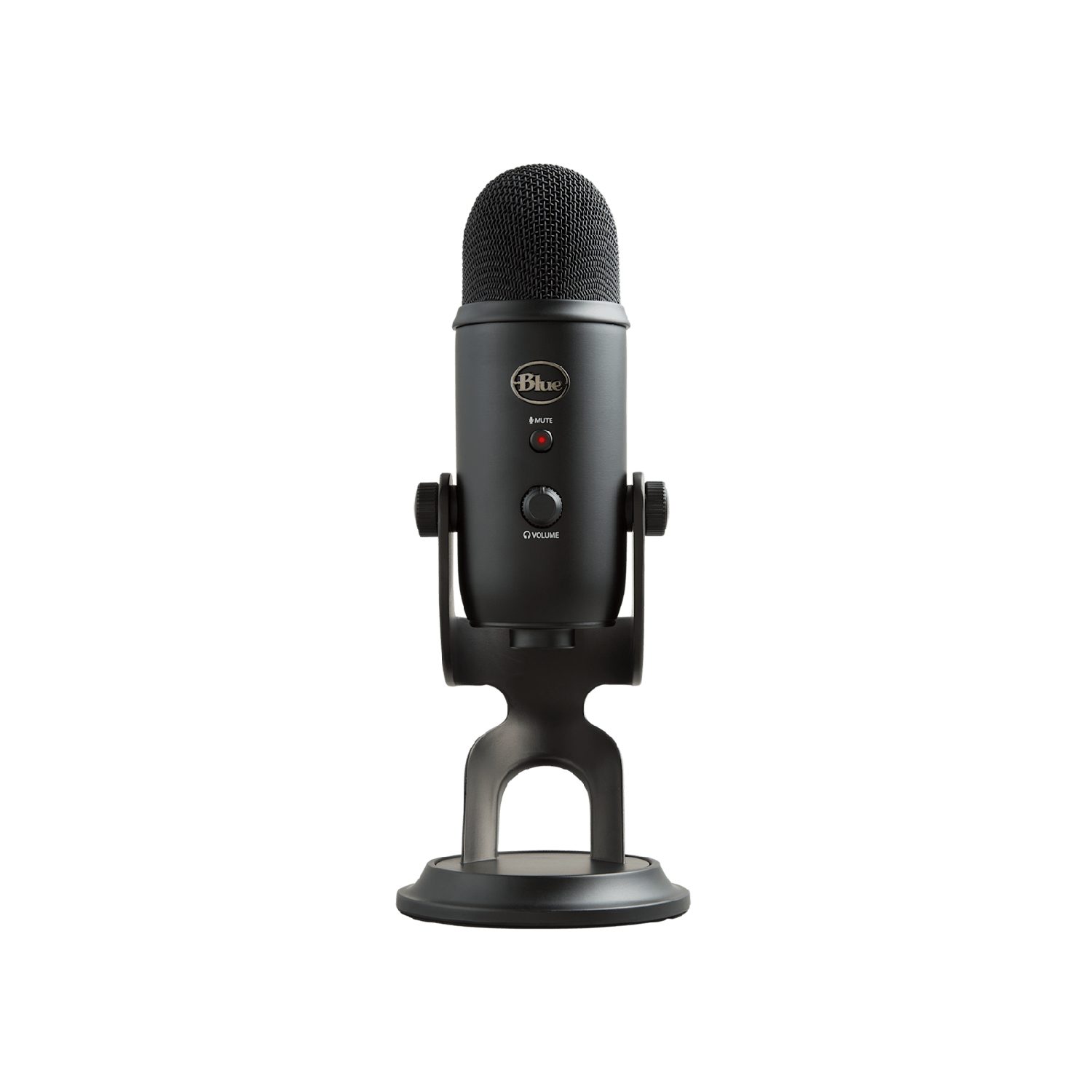

A microphone turns sound waves into an electrical signal

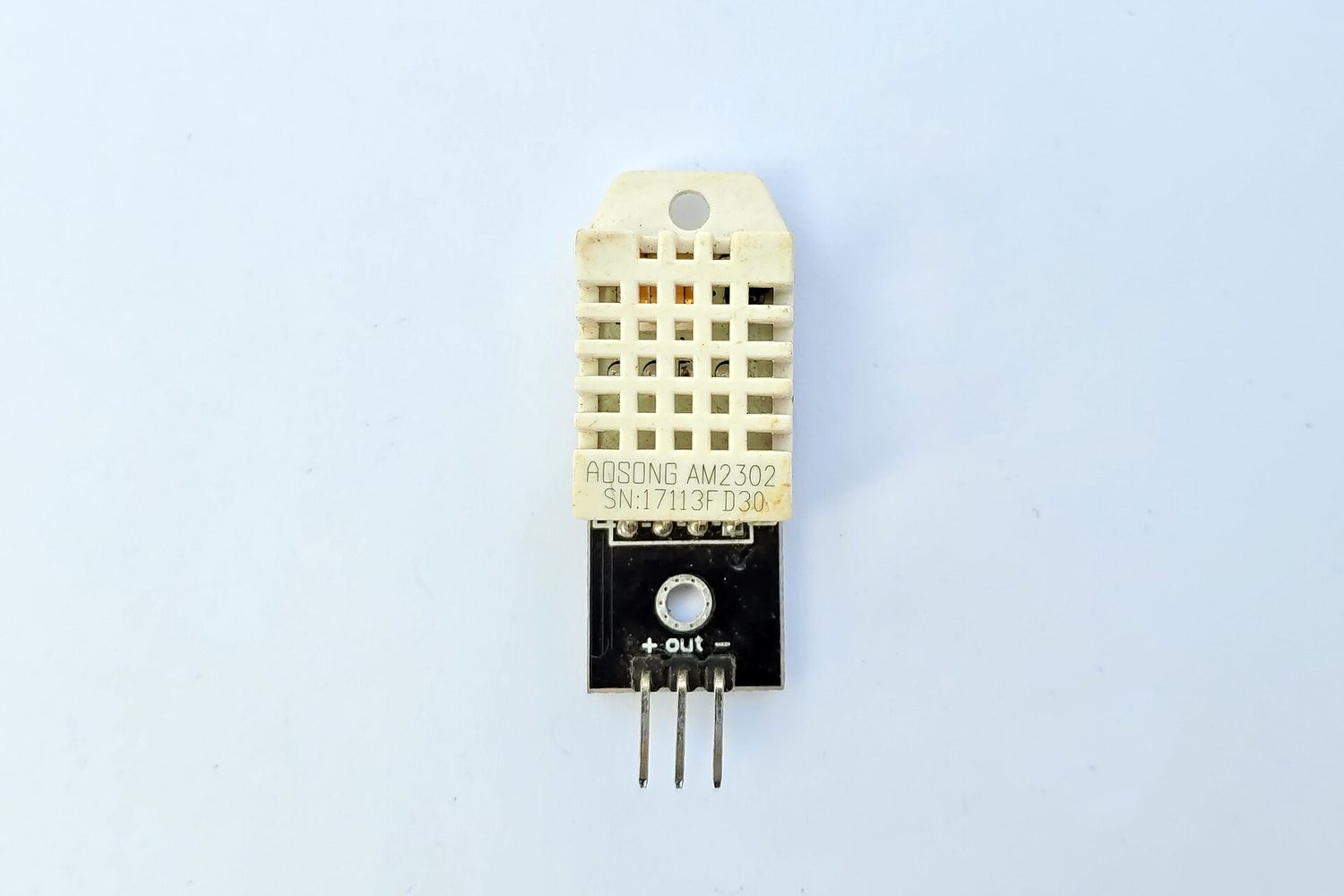

A sensor measures a physical quantity (here, temperature) and sends it as data

A touch screen can work in three ways:

• resistive 电阻式 — two layers are pressed together where you touch;
• capacitive 电容式 — it senses the tiny electric charge of your finger;
• infrared 红外线 — your finger breaks a grid of light beams.

A touch screen senses where your finger touches it

An output device sends data out of the computer to the user.

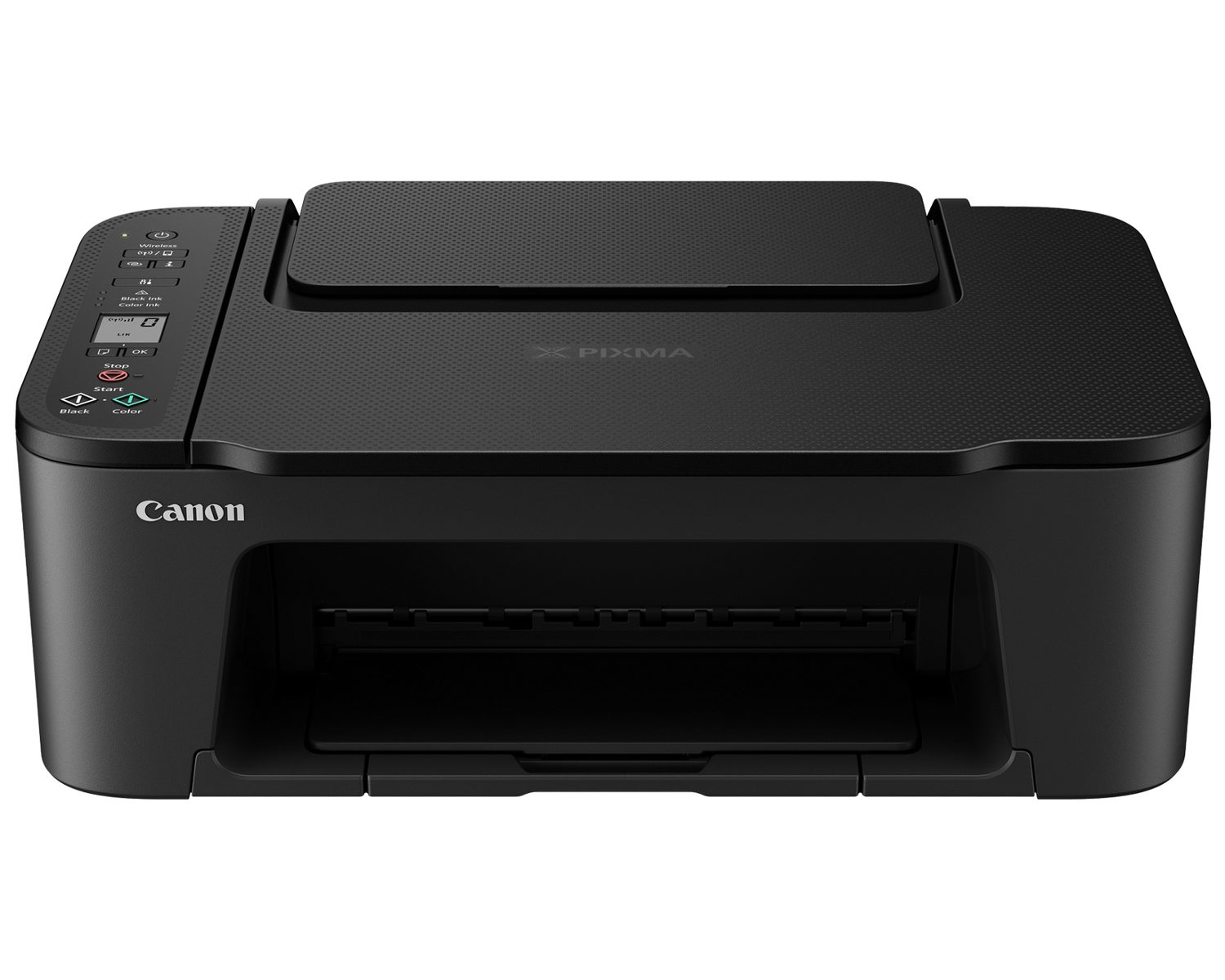

An inkjet printer sprays tiny drops of ink onto the paper

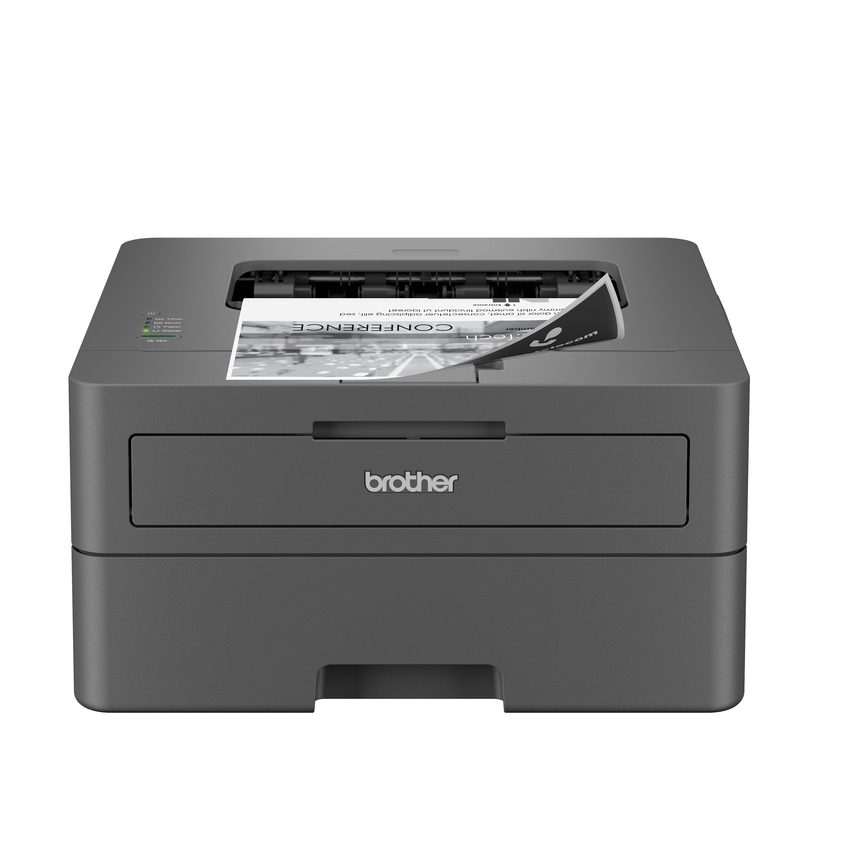

A laser printer uses a laser and powder (toner) fixed onto paper by heat

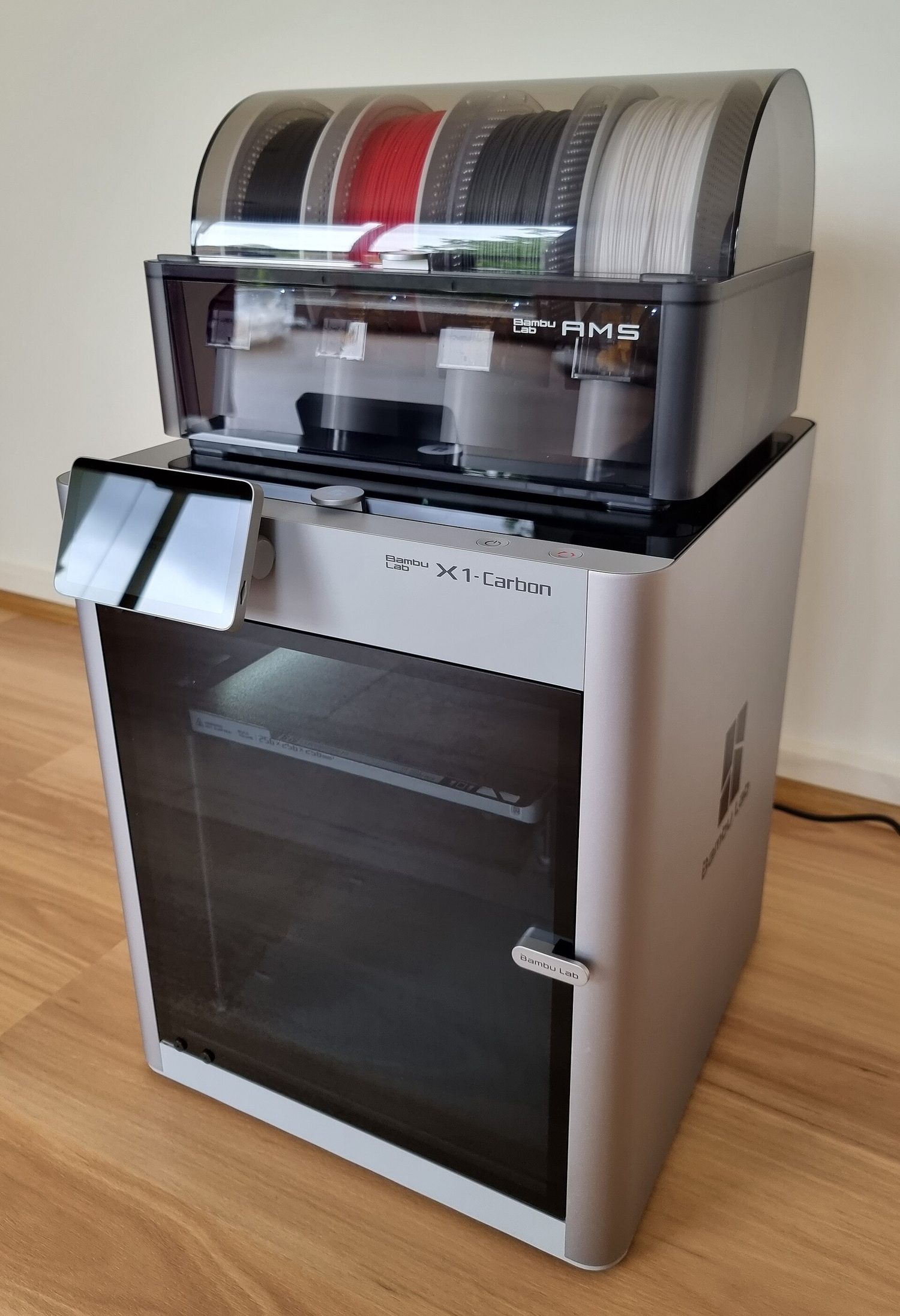

A 3D printer builds a solid object layer by layer

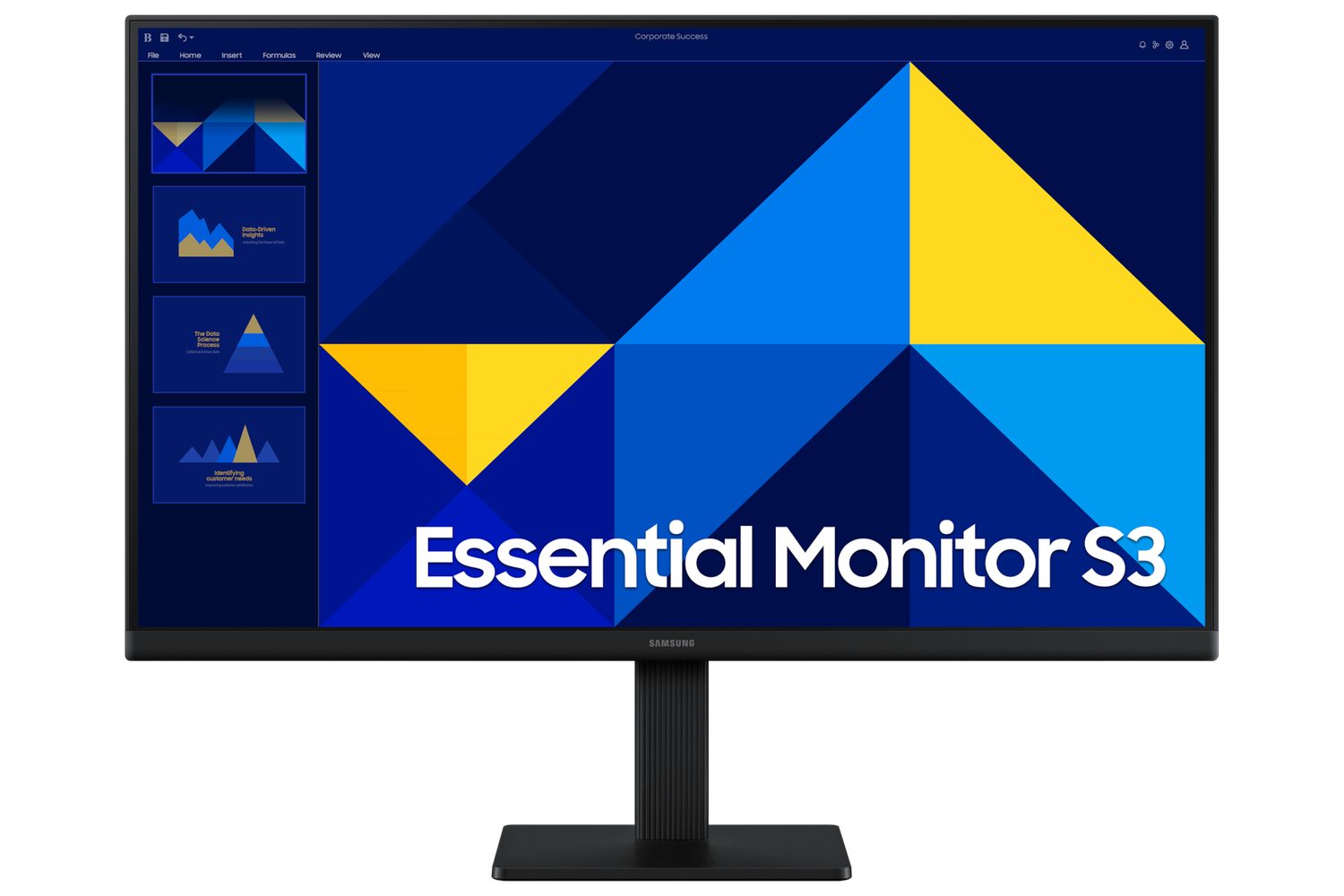

An LCD/LED monitor shows images using a grid of tiny coloured dots

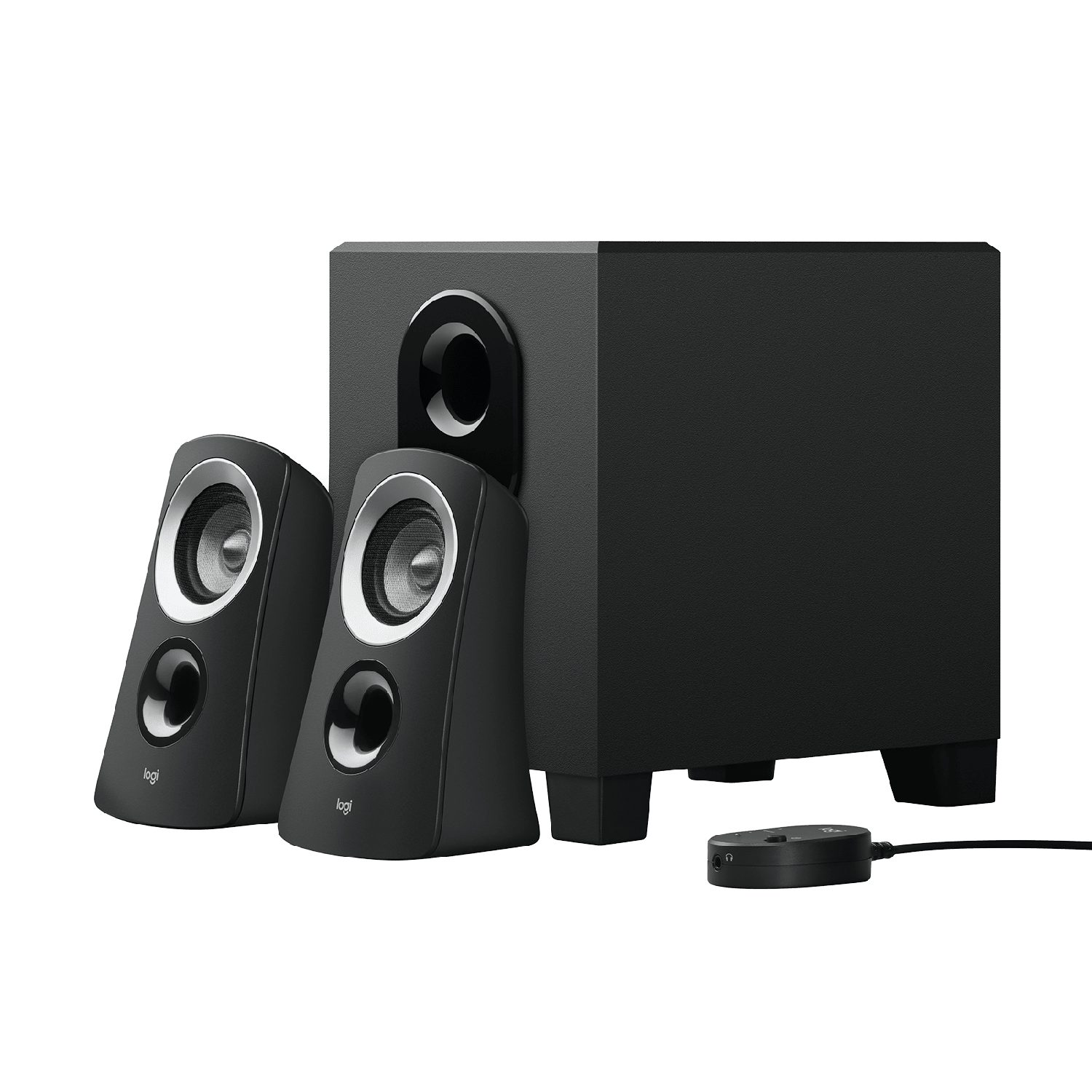

A speaker turns an electrical signal into sound

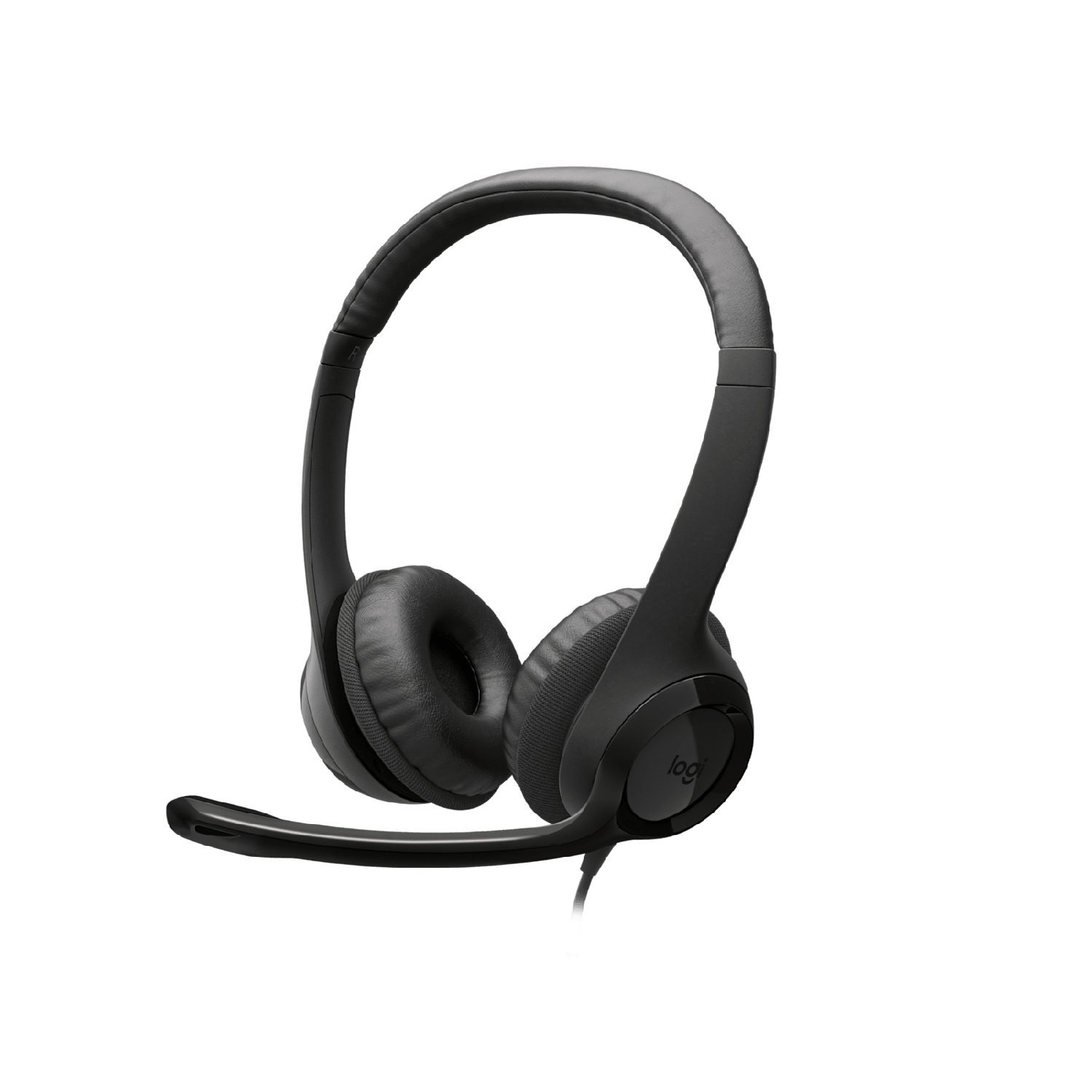

Headphones turn an electrical signal into sound for one listener

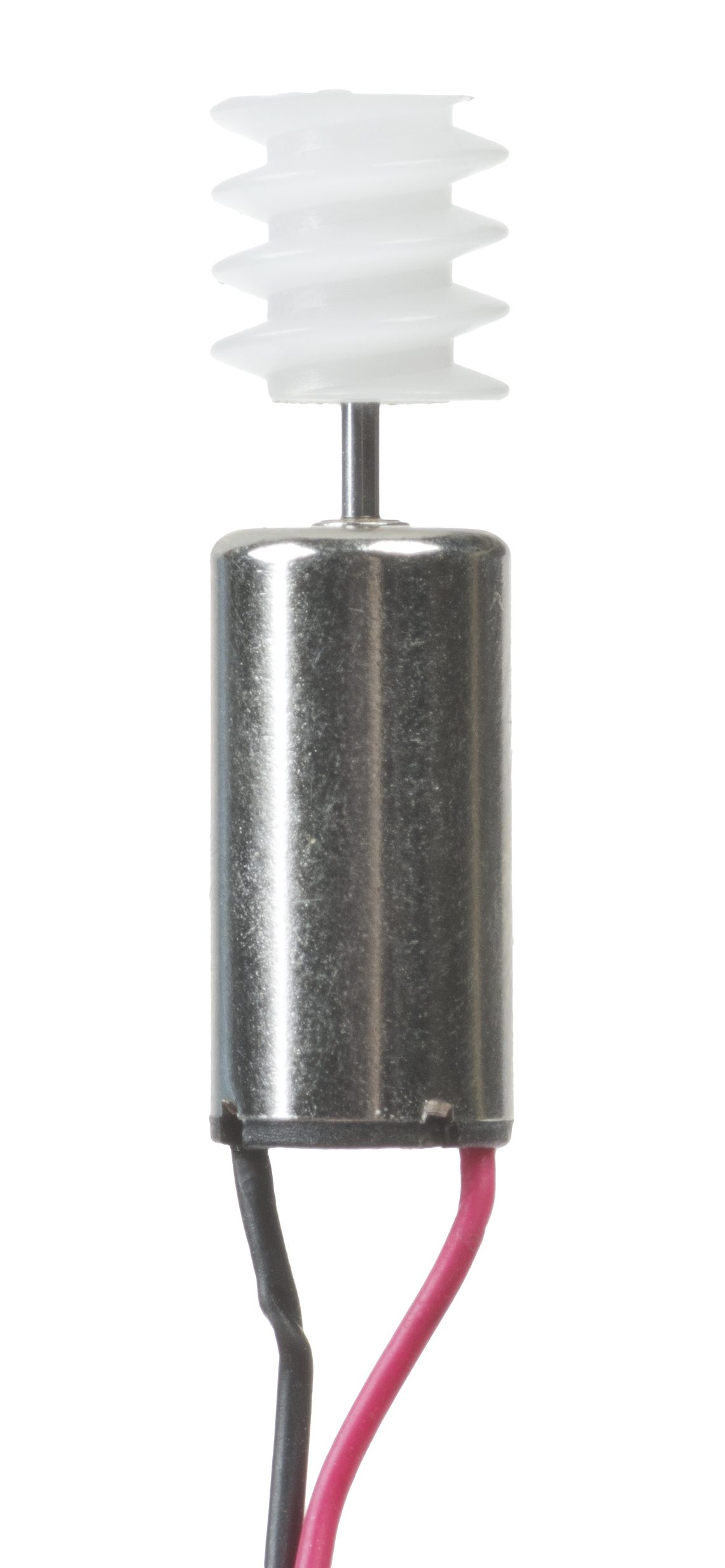

An actuator such as a motor turns an electrical signal into movement

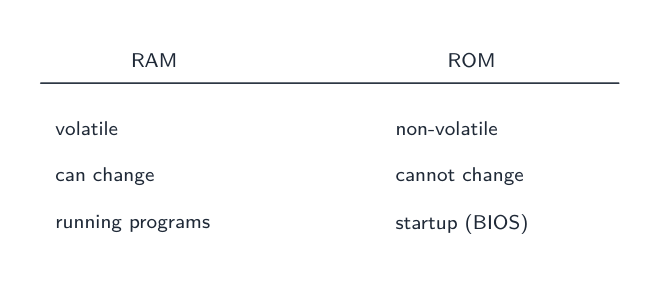

Primary storage 主存储器 is memory the CPU can use directly. There are two kinds.

Both are needed: ROM tells the computer how to start, then RAM holds the programs you run.

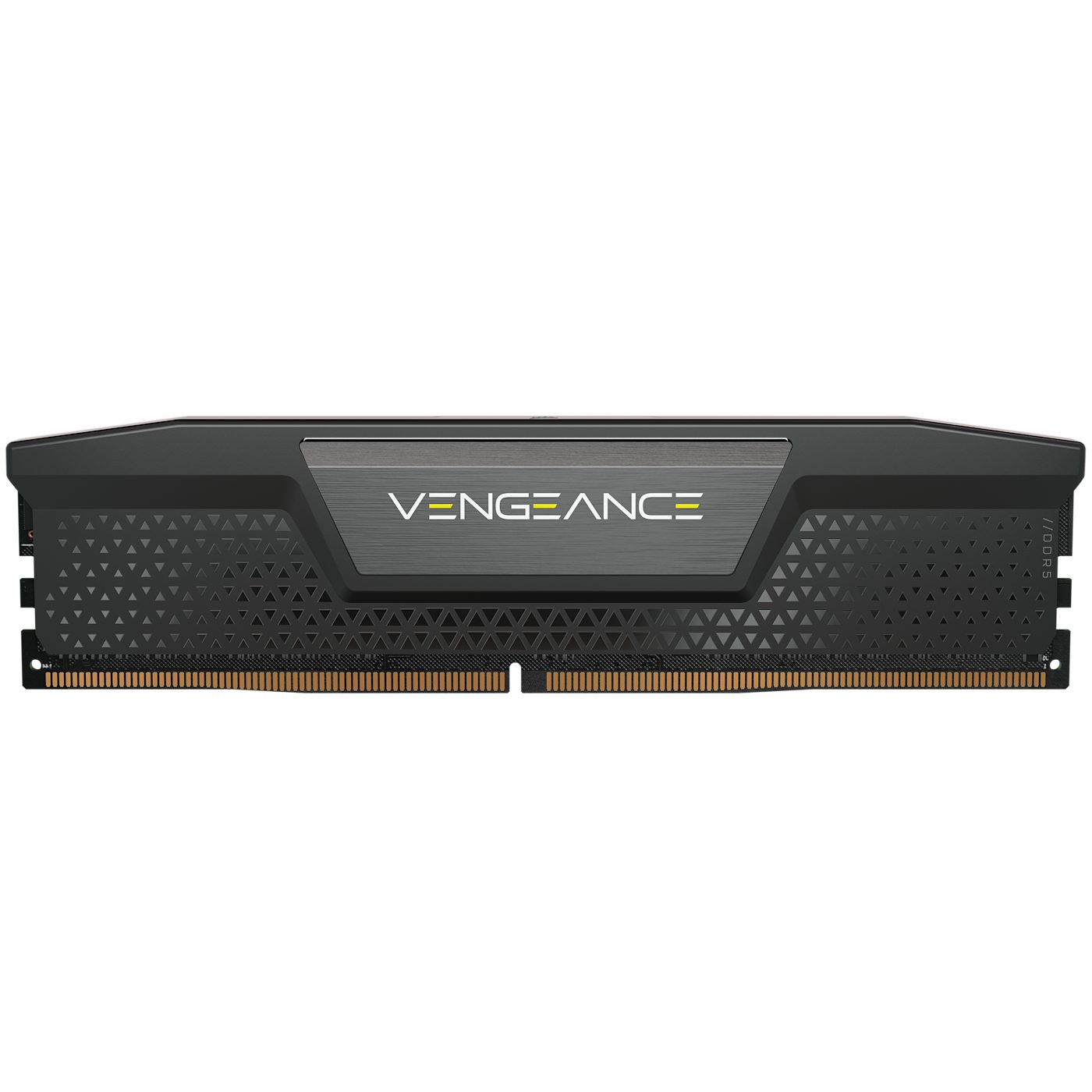

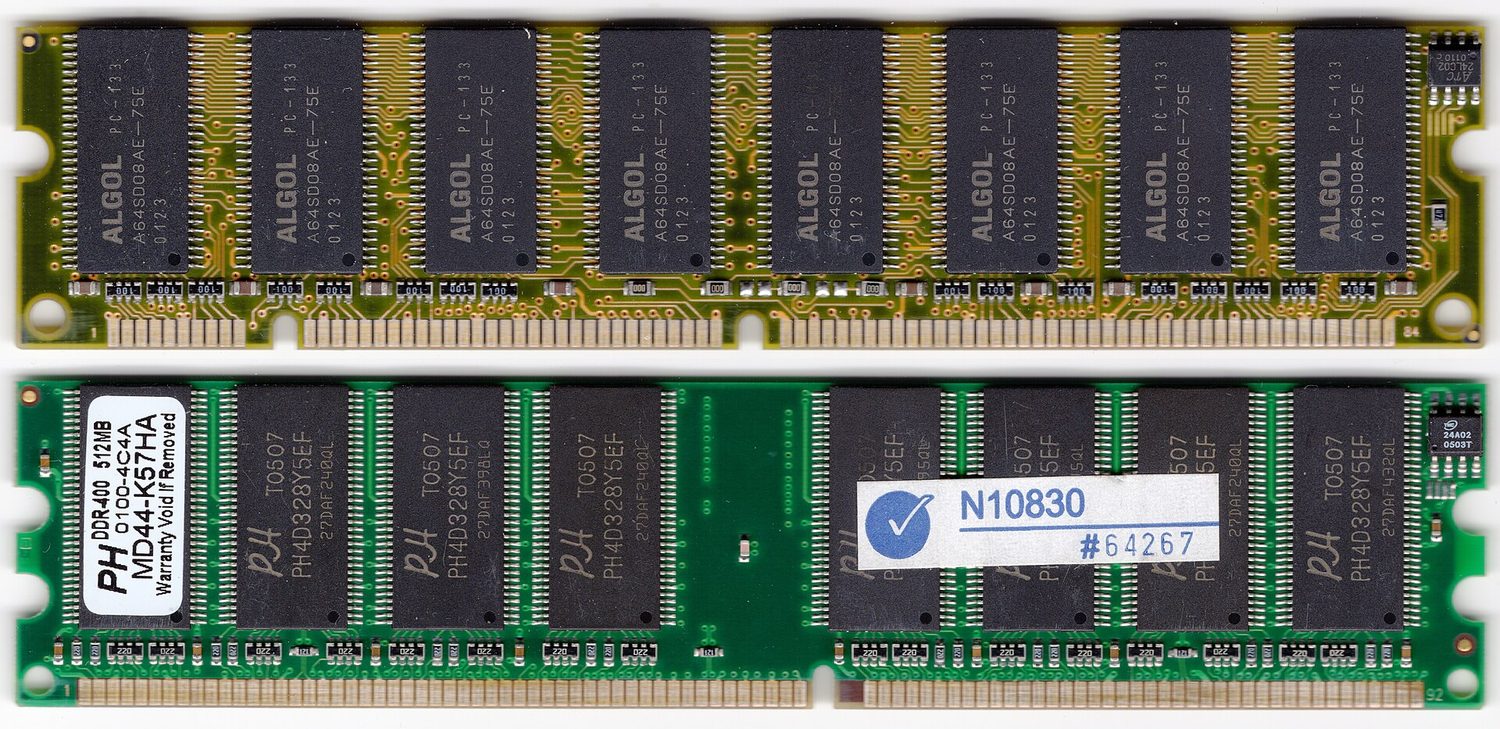

A stick of RAM (random access memory): it holds the programs and data in use now

Secondary storage 辅助存储器 keeps data permanently, even when the power is off. It is non-volatile and is used for long-term storage. There are three types.

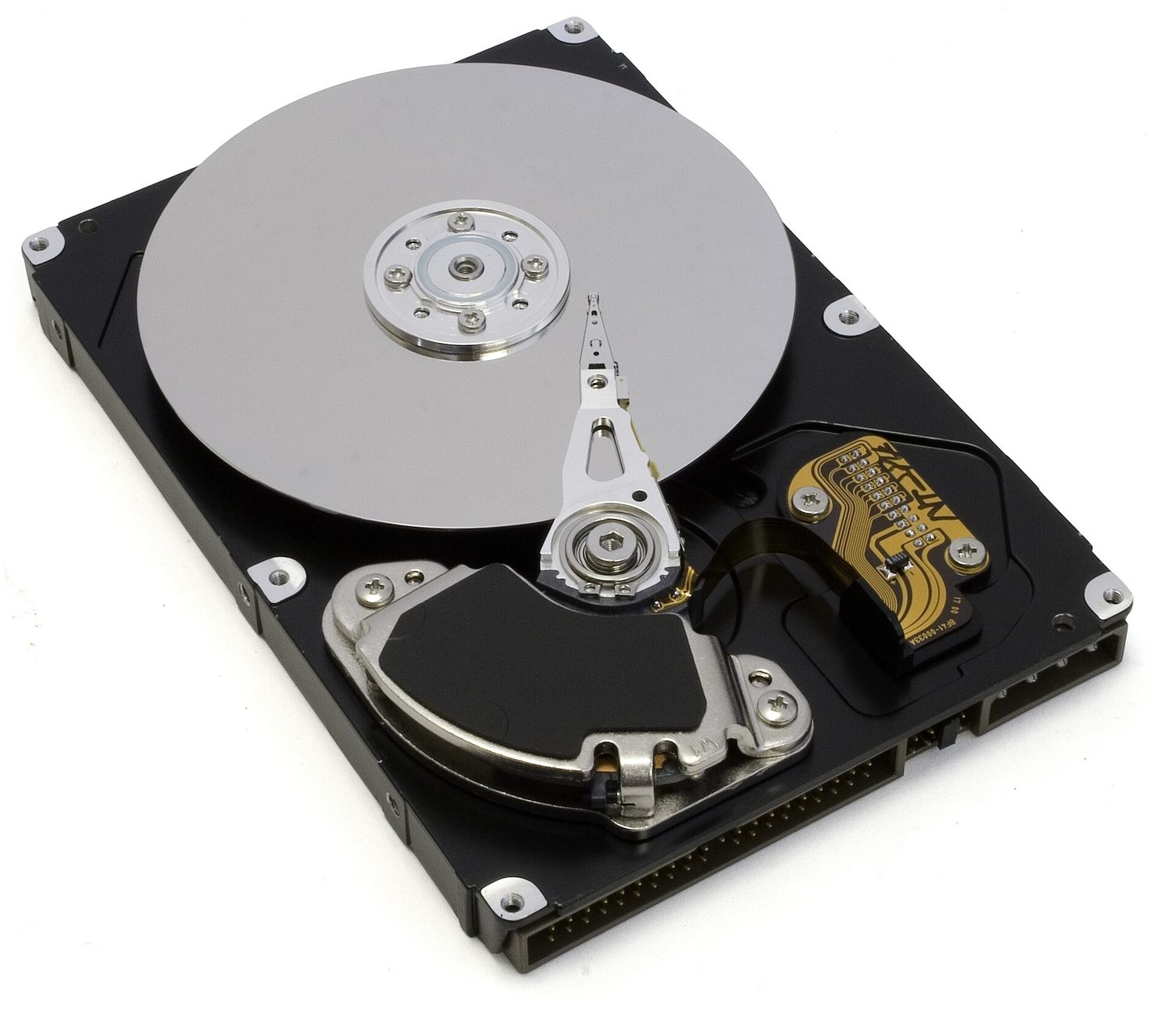

Inside a hard disk drive (HDD): the shiny disk spins and the arm reads the magnetised data

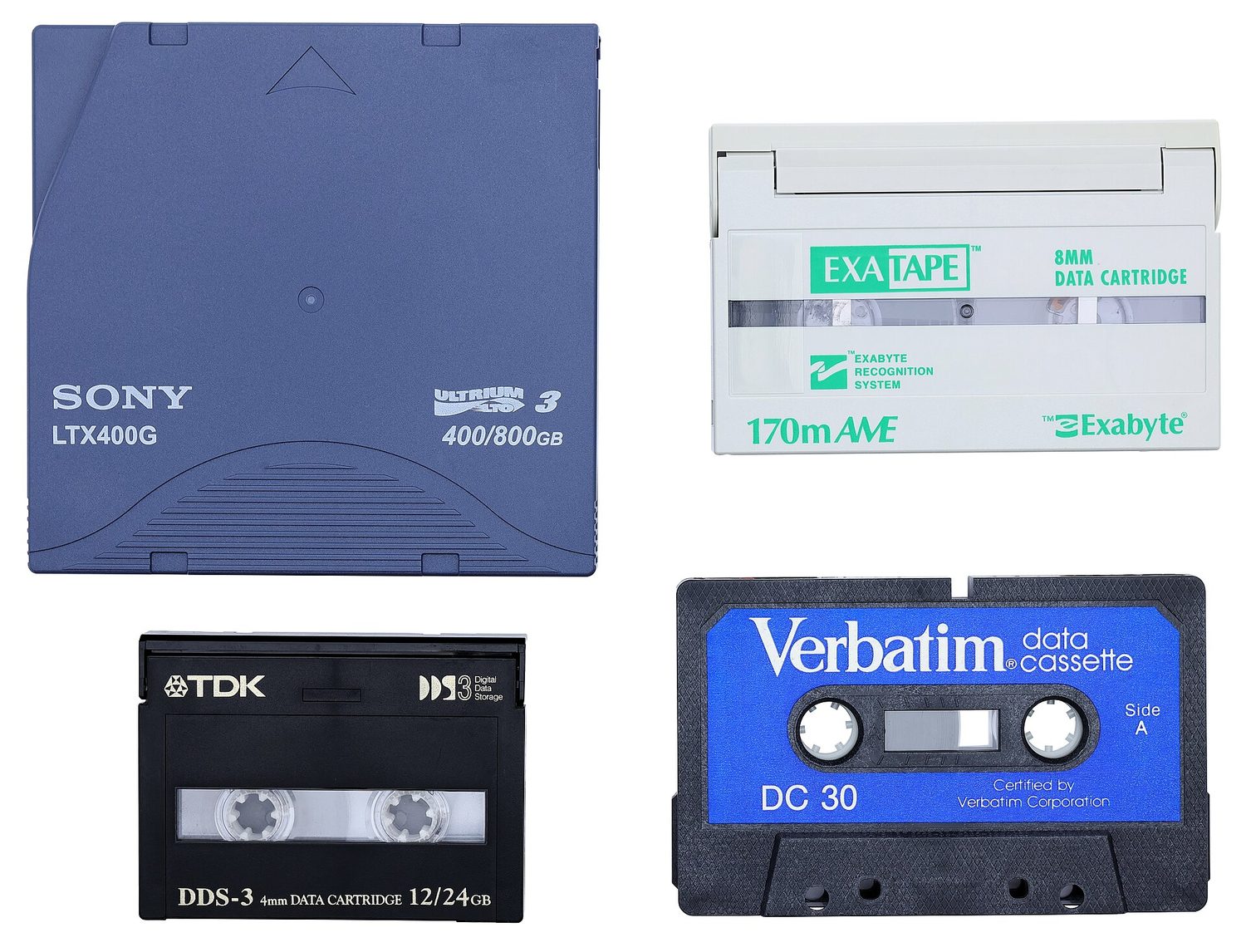

Magnetic tape stores data on a long magnetic strip; it is cheap for large backups

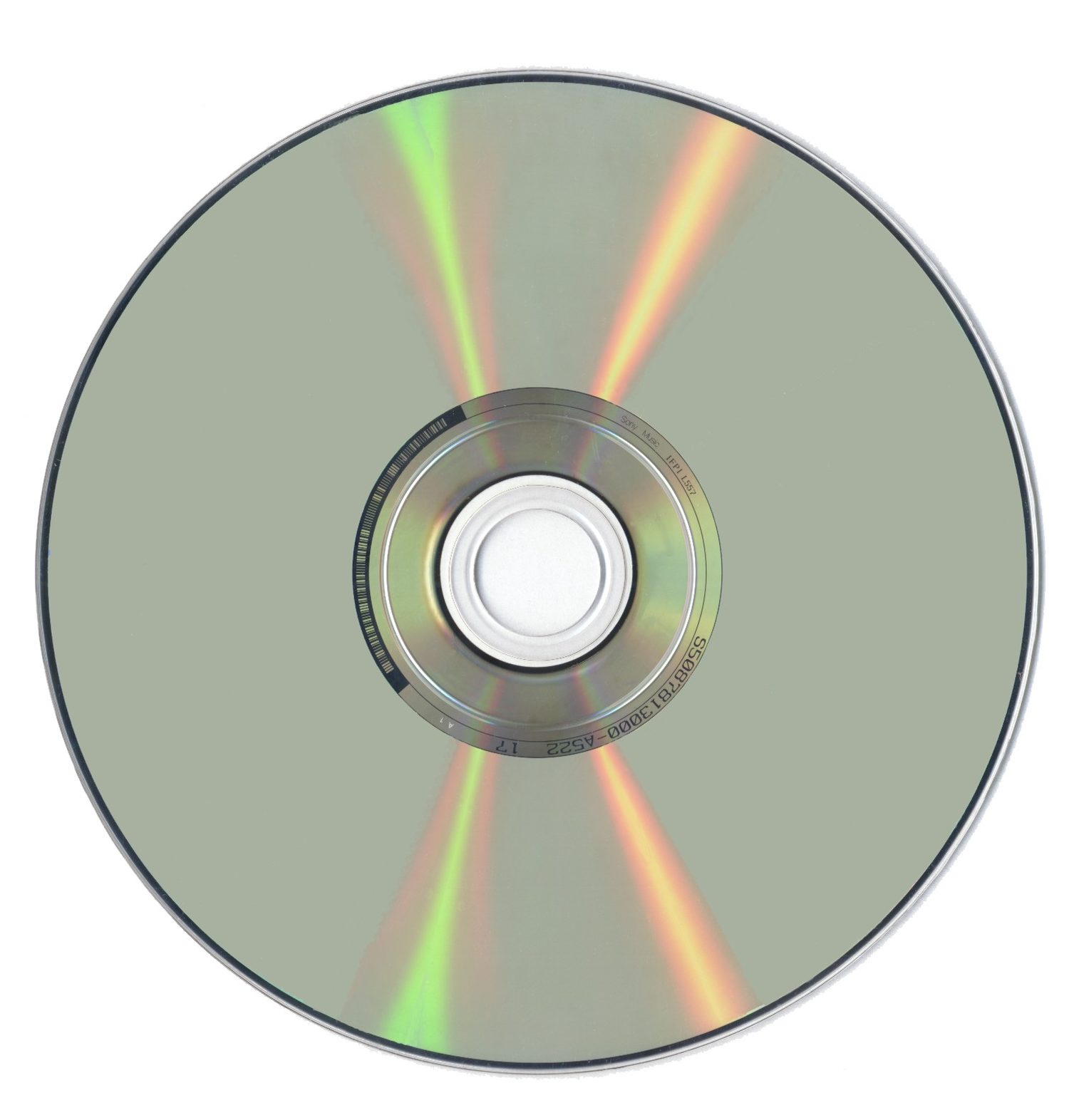

An optical disc such as a CD or DVD: a laser reads the marks on its shiny surface

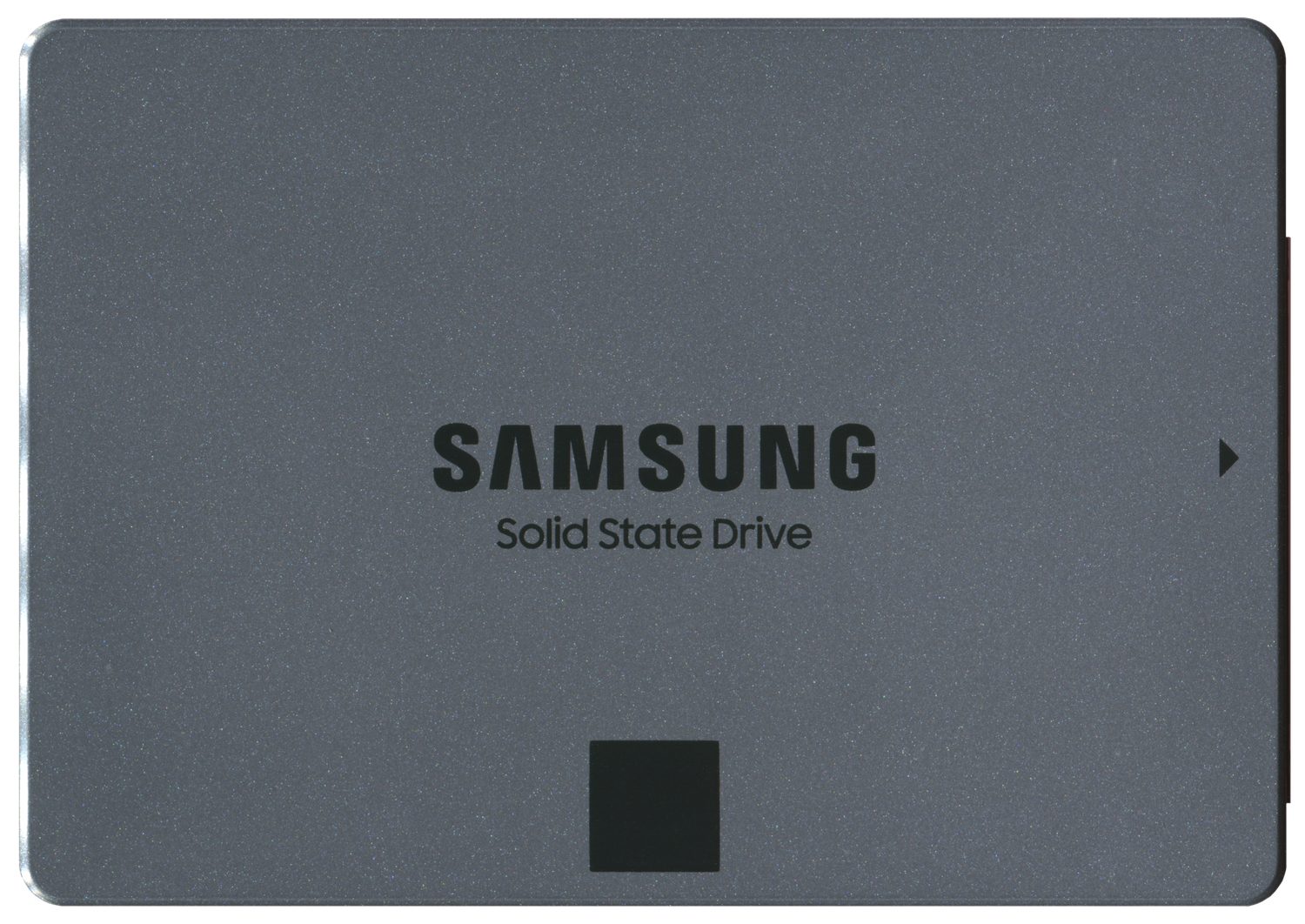

A solid state drive (SSD) stores data in flash memory chips and has no moving parts

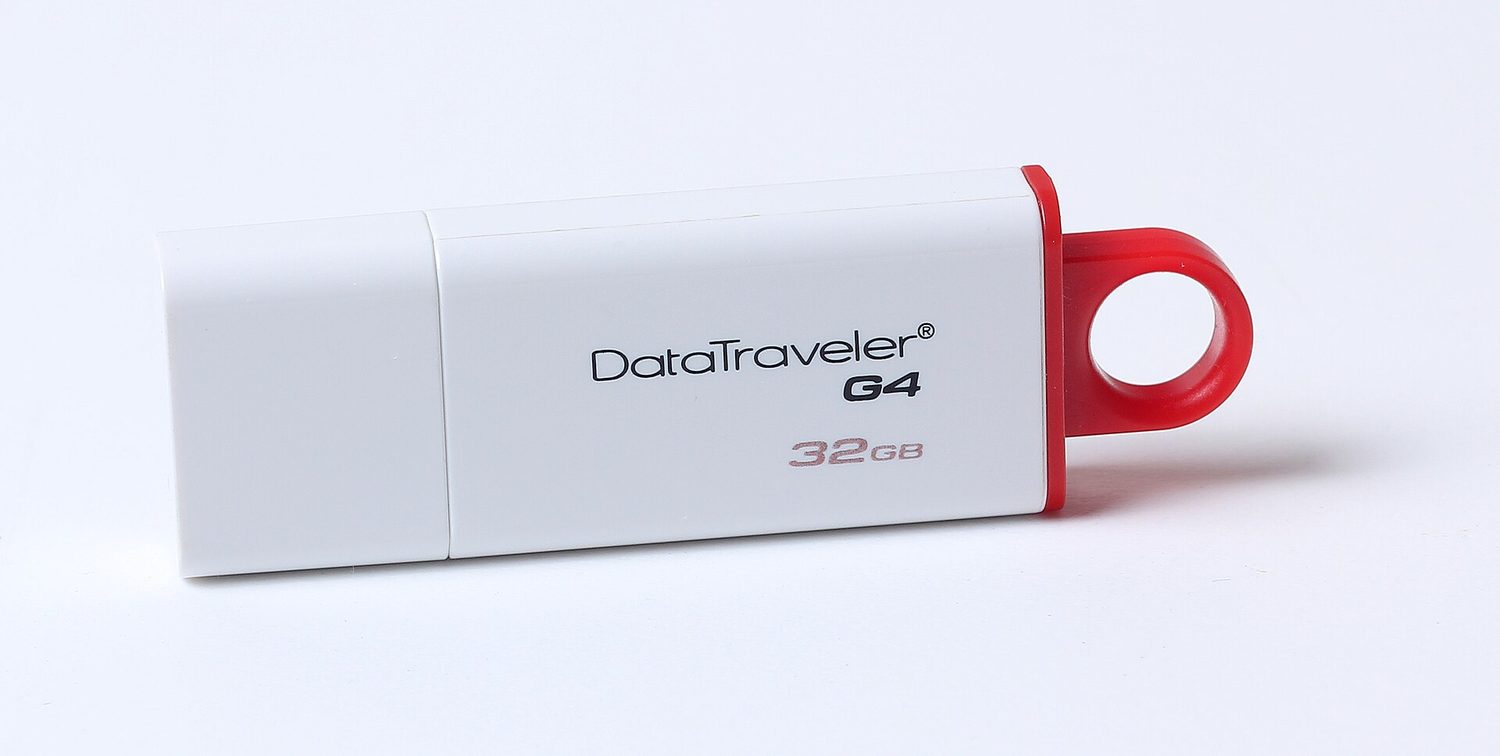

A USB flash drive stores data in flash memory and has no moving parts

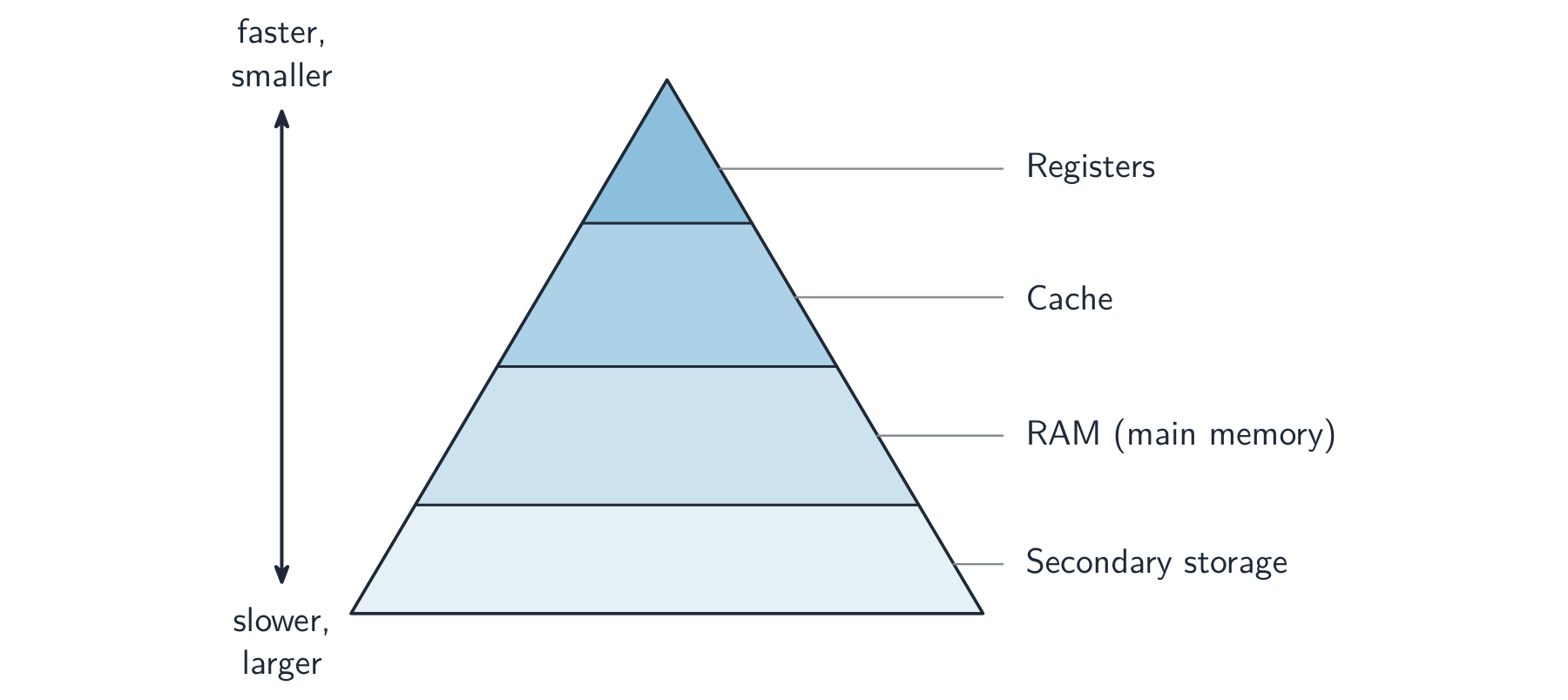

Storage forms a hierarchy: registers and cache are fastest but smallest; secondary storage is slowest but largest

When the RAM becomes full, the computer can use part of the secondary storage as extra, pretend RAM. This is called virtual memory 虚拟内存.

Data that is not needed right now is moved out of RAM onto the disk, which frees space in RAM for other programs. This lets you run more programs than the RAM alone could hold. It is slower, because secondary storage is much slower than RAM.

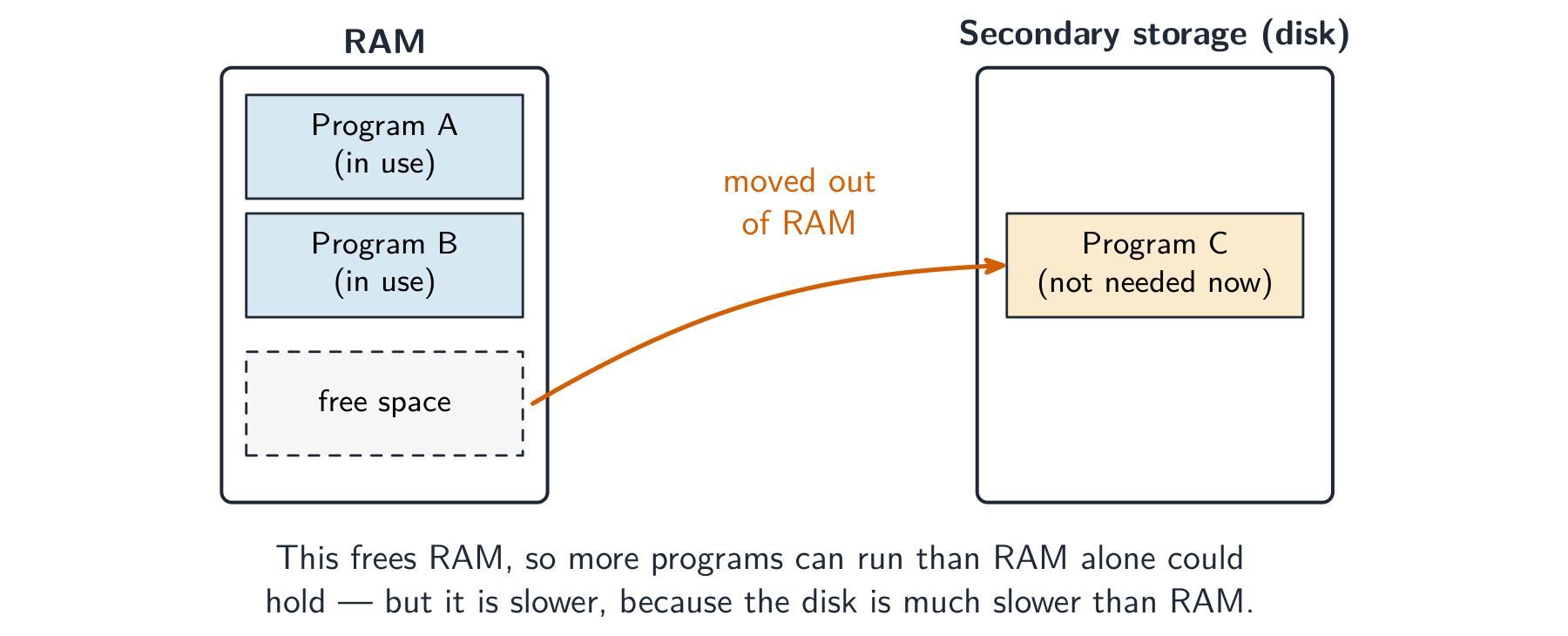

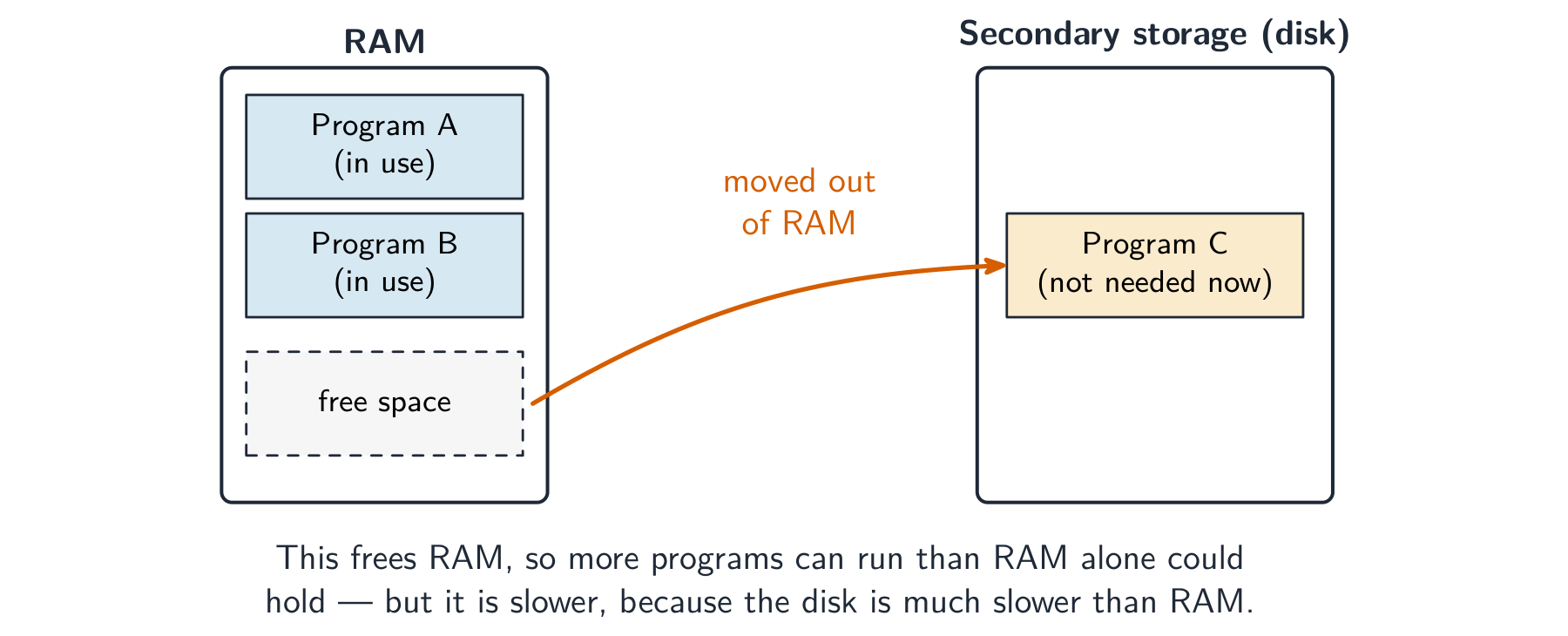

When RAM is full, data not in use is moved to the disk to free RAM — slower, but it lets more programs run

Network interface card (NIC)

A network interface card 网络接口卡 (NIC) is the hardware that lets a device join a network and send and receive data. Each NIC has a built-in MAC address.

MAC address and IP address

• A MAC address (media access control 介质访问控制 address) is a number that identifies one physical device. The maker sets it, and it does not normally change. It is written in hexadecimal.
• An IP address (internet protocol 网际协议 address) is a number that identifies a device on a network. It is given by the network and can change.

So a MAC address stays with the device, while an IP address depends on the network the device is using.

Router

A router 路由器 connects different networks together — for example, your home network to the internet. It reads the IP address in each packet and forwards it towards the right network.

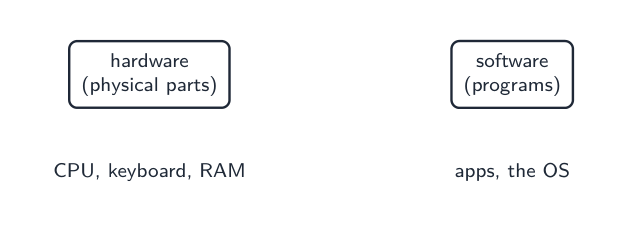

A computer system is made of two parts that work together.

• Hardware 硬件 is the physical 物理的 parts of the computer — the parts you can touch. Examples: the CPU, memory, keyboard, screen and hard disk.
• Software 软件 is the programs 程序 that control the computer and tell the hardware what to do.

Hardware cannot do anything useful on its own. Software needs hardware to run on. Both are needed.

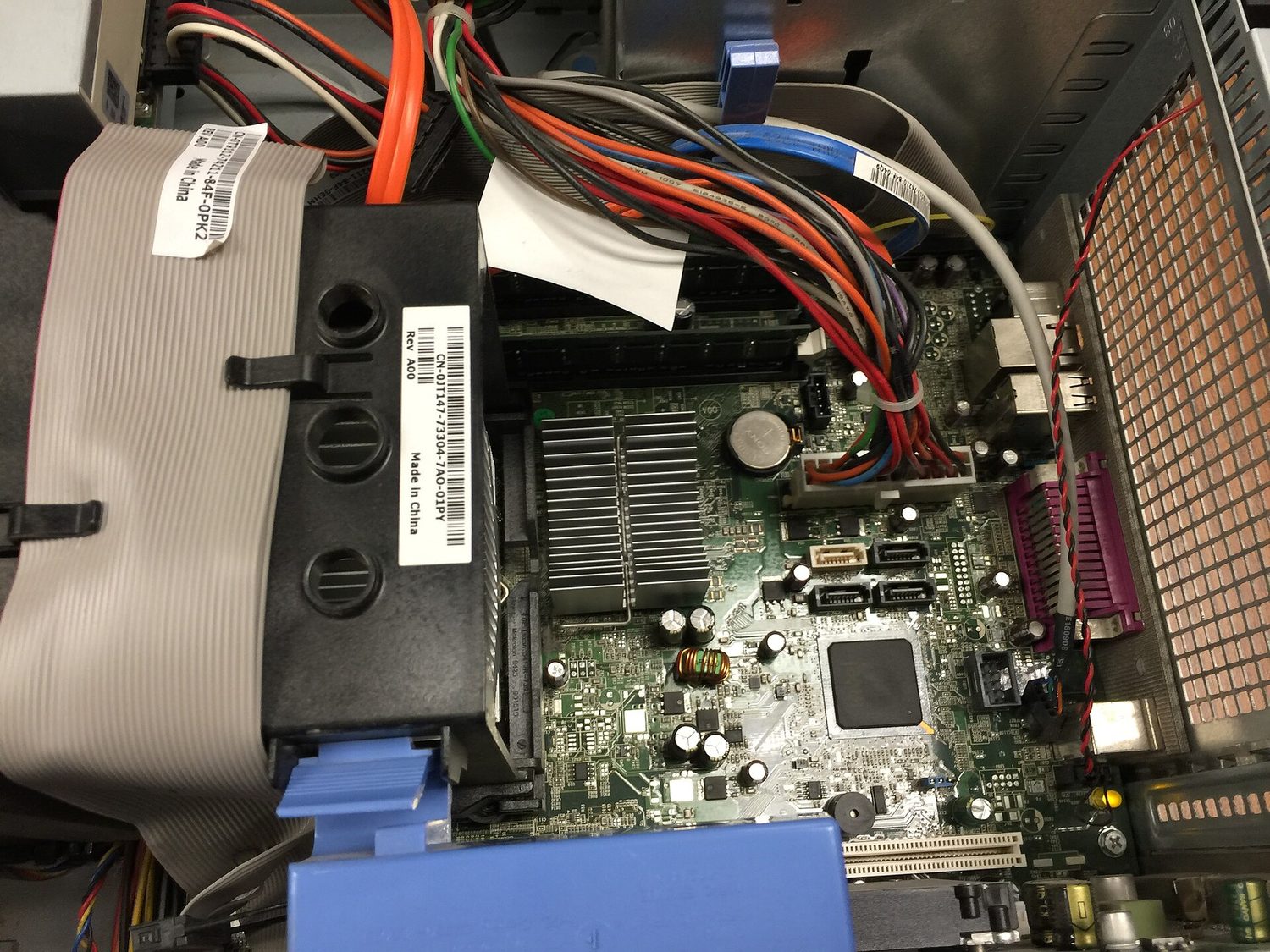

The motherboard and the parts attached to it are hardware — the physical parts you can touch

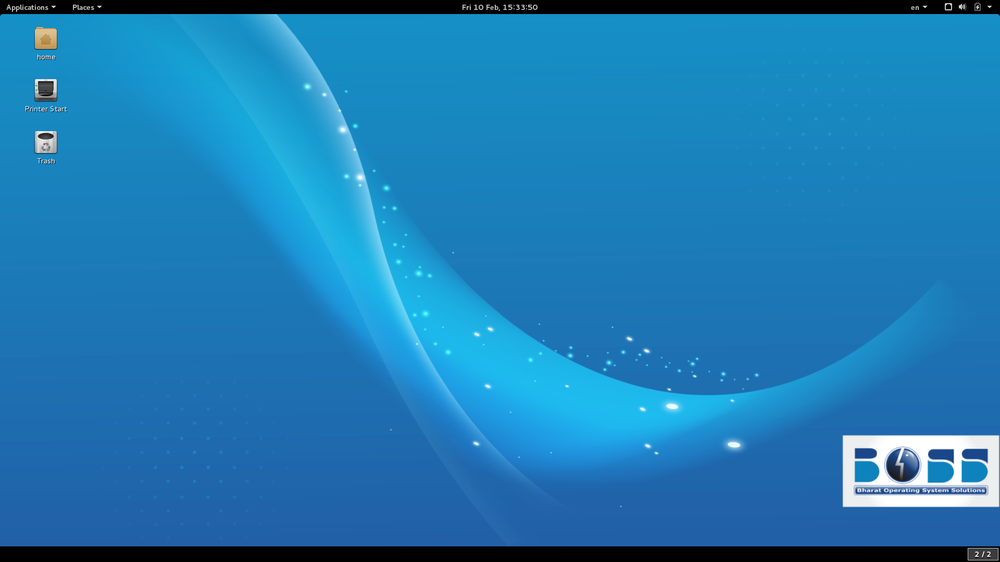

An operating system is software — the programs that tell the hardware what to do

Software is split into two types.

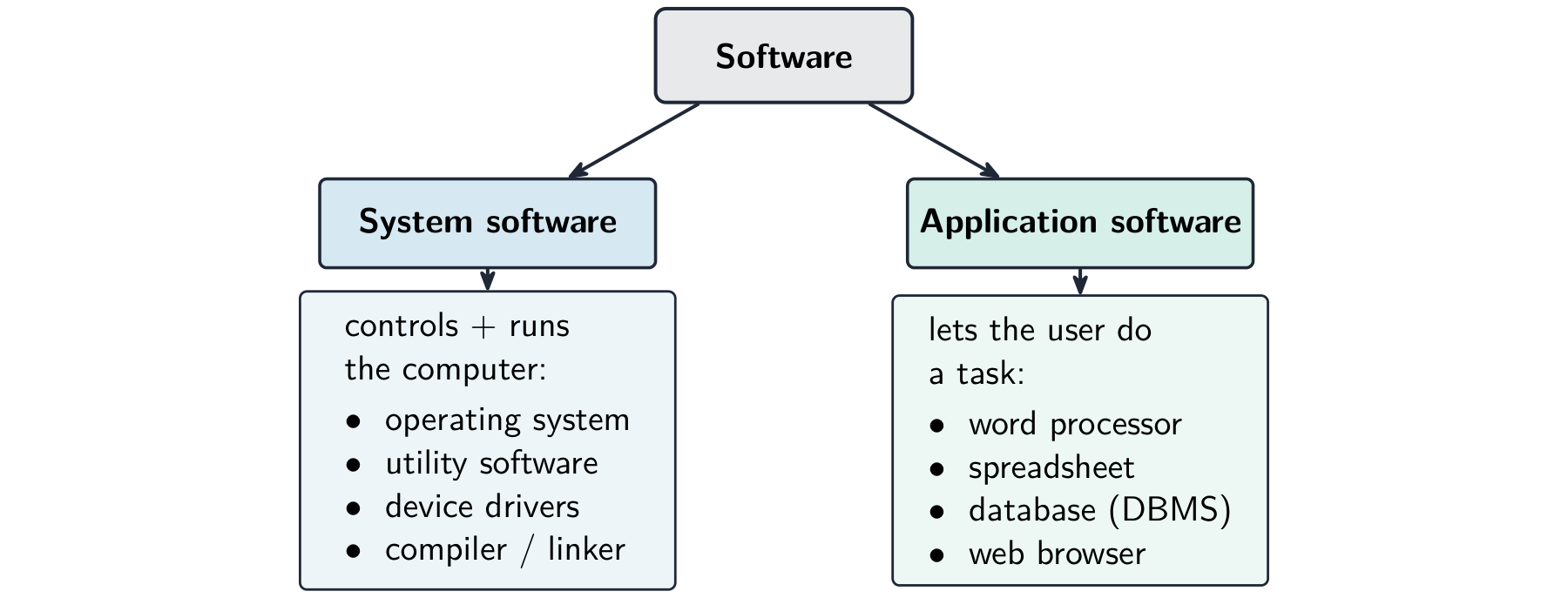

Software divides into system software (runs the computer) and application software (lets the user do a task)

System software

System software 系统软件 controls the computer itself and gives a base for other programs to run on. Examples:

• operating system 操作系统 (see below);
• compiler 编译器 and linker 链接器 (tools that turn programs into a form the computer can run);
• device driver 设备驱动程序 — software that lets the operating system control a piece of hardware;
• utility software 实用程序 — small tools that look after the computer (for example anti-virus, backup, disk clean-up).

Application software

Application software 应用软件 lets the user do a useful task. Examples:

• word processing 文字处理 software (writing documents);
• spreadsheet 电子表格 software (working with numbers in a grid);
• database management system 数据库管理系统 (storing and searching data);
• web browser 网页浏览器 (viewing web pages).

An operating system (OS) is the main system software. It controls the whole computer and lets the hardware, the application software and the user work together. Without an OS the computer is very hard to use.

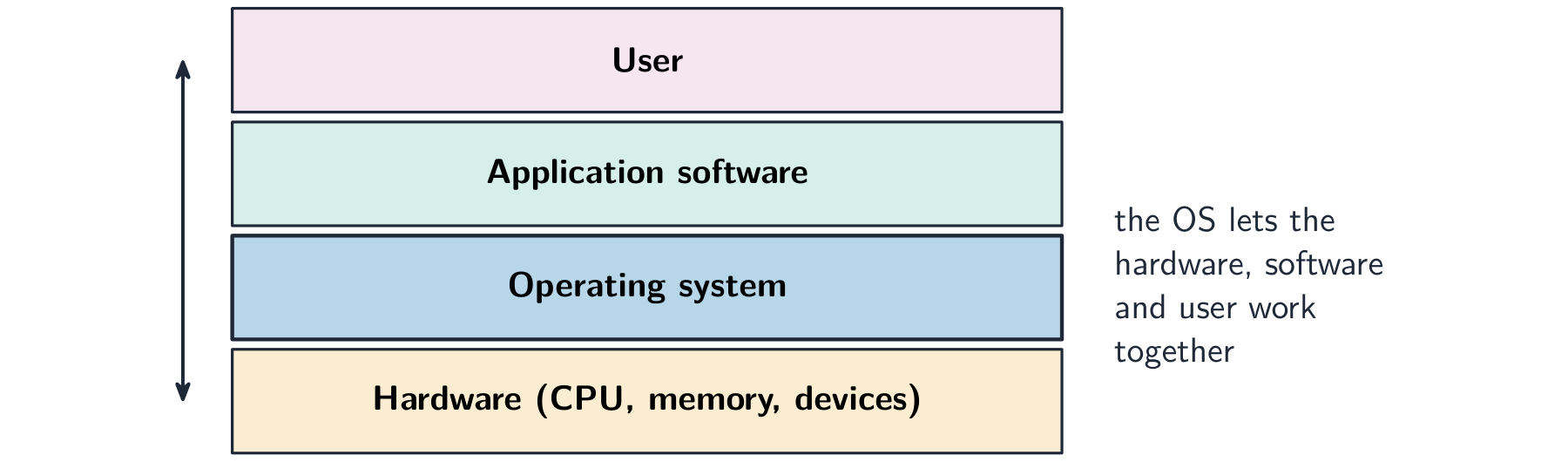

The operating system sits between the hardware and the application software and user, letting them work together

The OS has many roles:

• managing files — saving, opening, naming, moving and deleting files;
• handling interrupts (see below);
• providing a user interface 用户界面 so the user can control the computer;
• managing memory — deciding what is kept in RAM and where;
• managing peripherals 外围设备 and their drivers — controlling devices like printers;
• managing multitasking 多任务处理 — letting several programs run at once;
• providing a platform 平台 for running application software;
• managing security — user accounts, passwords and access rights.

An interrupt 中断 is a signal sent to the processor 处理器 to tell it that something needs attention now.

An interrupt can come from three sources:

• hardware — for example a key is pressed, or a printer runs out of paper;
• software — for example a program tries to divide by zero;
• the user — for example the user presses a "cancel" key.

When an interrupt arrives, the processor stops what it is doing, saves its place, and services (deals with) the interrupt. When that is done, it goes back to what it was doing before. This lets the computer react quickly to important events.

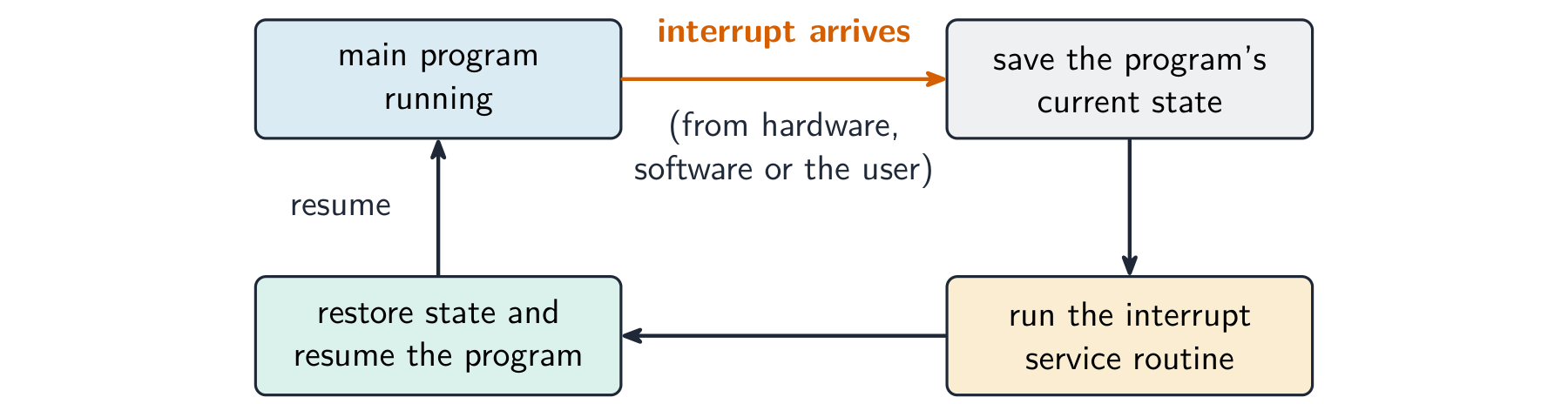

On an interrupt the CPU saves its place, runs the interrupt service routine, then restores its place and carries on

All computers process data using the central processing unit 中央处理器 (CPU). To make the CPU do work, people write programs in a programming language 编程语言. There are two kinds.

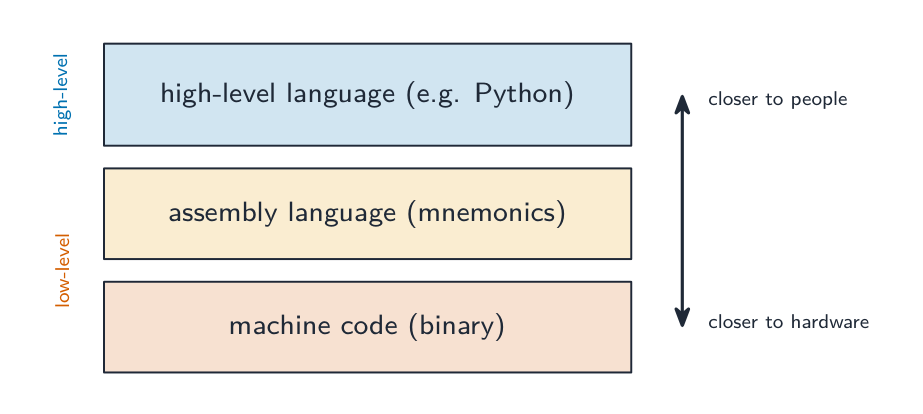

High-level languages

A high-level language 高级语言 is written in words that look a bit like English (for example Python). It is:

• easy for people to read, write and fix;
• independent of the computer — the same program can run on different types of computer.

Low-level languages

A low-level language 低级语言 is close to what the hardware actually uses. It includes:

• machine code 机器码 — instructions written in binary (0s and 1s), which the CPU runs directly;
• assembly language 汇编语言 — machine code written with short word codes (mnemonics) instead of binary.

A low-level language relates to the specific 特定的 type of CPU, so a program written for one CPU may not run on another. It is used when the programmer needs full control of the hardware or very fast, small code.

The CPU can only run machine code. A high-level program must first be changed into machine code. The software that does this is a translator 翻译程序. There are two types.

Compiler

A compiler translates the whole program into machine code before it is run. After translating, the machine code can be run many times without translating again.

• translation happens once, in full;
• it reports all the errors together, at the end of translating;
• the finished program runs fast and does not need the compiler to run.

Interpreter

An interpreter 解释器 translates and runs the program one line at a time.

• it stops at the first error it finds, which helps when testing;
• the program runs more slowly, because it is translated each time it runs;
• the interpreter must be present every time the program runs.

Use a compiler when you want to share a fast, finished program. Use an interpreter when you are writing and testing a program and want to find errors easily.

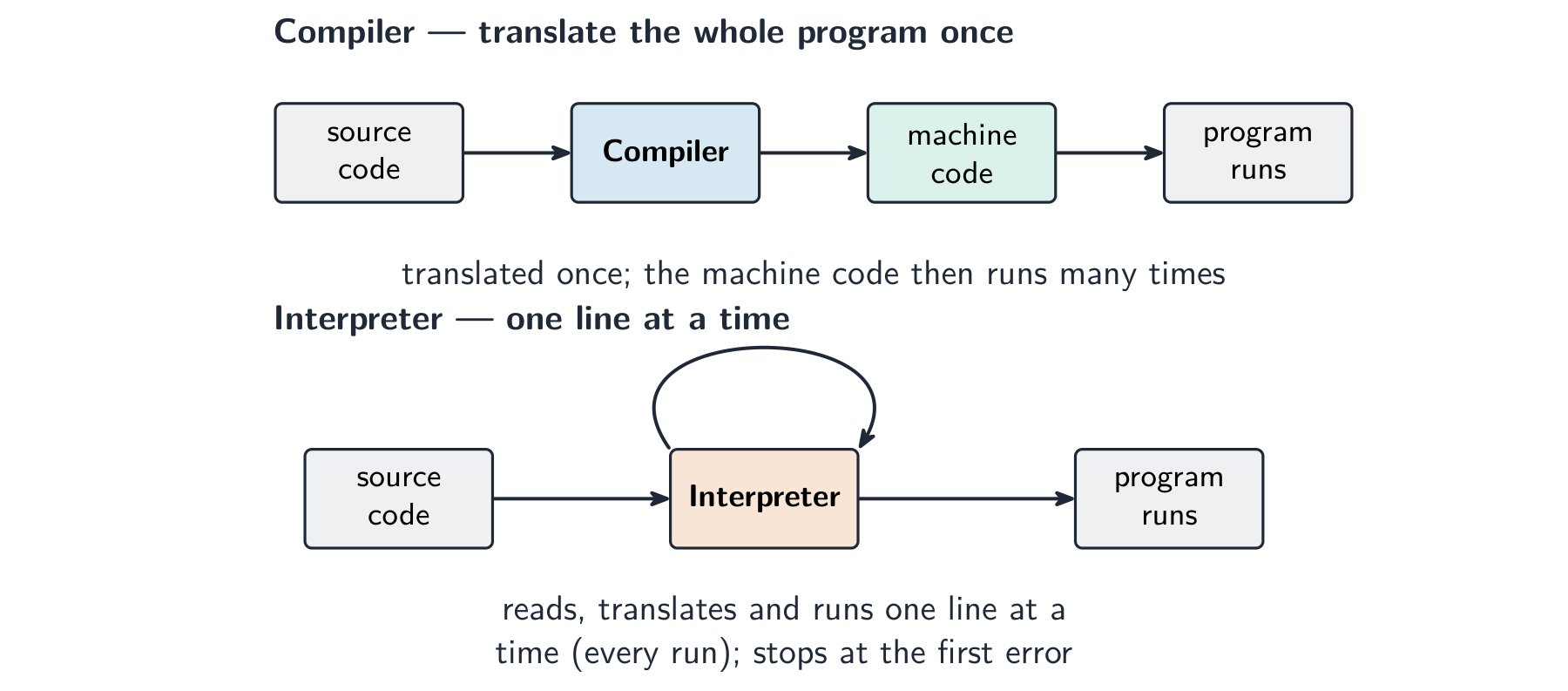

A compiler translates the whole program once into machine code; an interpreter translates and runs one line at a time

An integrated development environment 集成开发环境 (IDE) is software that helps you write programs. It puts many useful tools in one place:

• a code editor 代码编辑器 — for typing in your program;
• a run time environment 运行时环境 — for running the program to test it;
• a translator — a compiler or interpreter to turn your code into machine code;
• error diagnostics 错误诊断 — messages that help you find and understand mistakes;
• auto-completion 自动补全 and auto-correction 自动纠错 — the IDE finishes or fixes code as you type;
• prettyprinting 美化打印 — laying out the code neatly with colour and indentation so it is easy to read.

People often mix up these two terms, but they are not the same.

• The internet 互联网 is the infrastructure 基础设施 — the huge worldwide network of computers and the cables, routers and connections that join them.
• The world wide web 万维网 (WWW) is a collection of websites 网站 and web pages that you view using the internet.

So the internet is the network; the web is one of the things you use on that network.

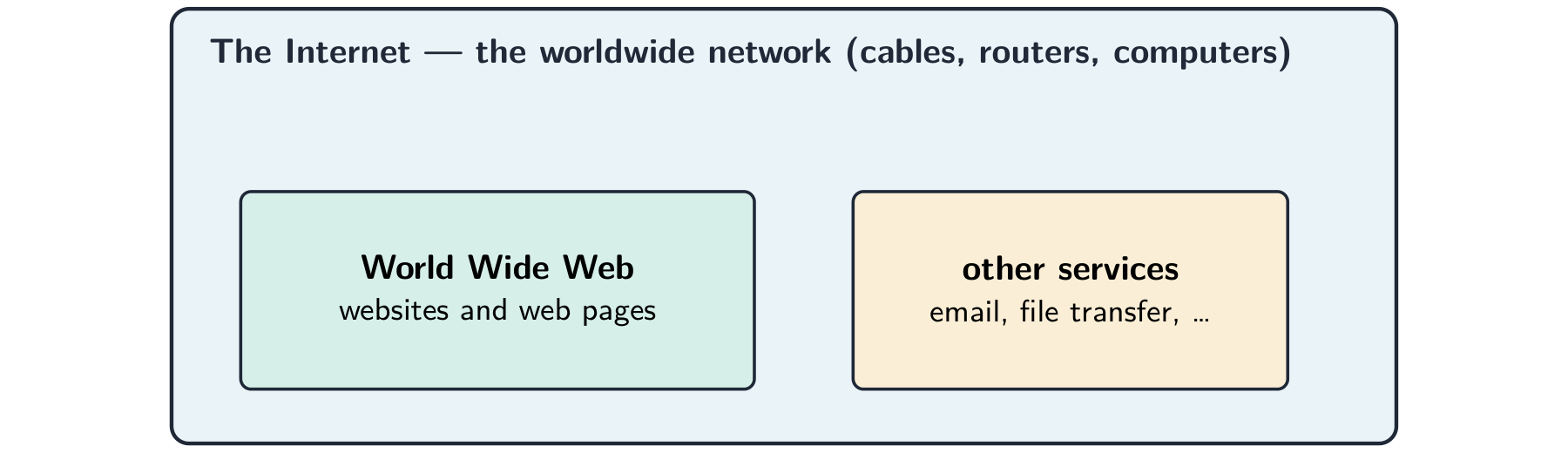

The internet is the worldwide network; the world wide web is one of the things you use on it

A router joins your home network to the internet and sends data to the right place

A uniform resource locator 统一资源定位符 (URL) is a text-based address for a web page. You type it into a web browser 网页浏览器 to visit a page, for example https://www.example.com/index.html.

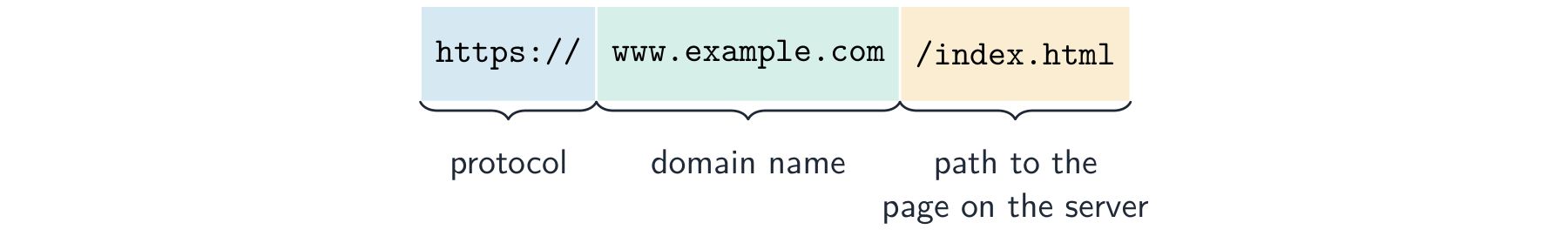

A URL has three parts: the protocol, the domain name, and the path to the page on the server

A web browser is the program you use to view web pages. Its role includes:

• rendering 渲染 the hypertext markup language 超文本标记语言 (HTML) — turning the page's code into what you see;
• displaying web pages on the screen;
• managing how a web page is presented — its layout, text and images.

When you type a URL and press enter, several steps happen:

1. The browser needs the website's IP address 网际协议地址, but a URL uses a name, not a number.
2. The browser asks a domain name service 域名服务 (DNS) — a system that stores the IP address for each web address.
3. The DNS finds the matching IP address and sends it back to the browser.
4. The browser uses the IP address to contact the web server 网络服务器 that stores the page.
5. The web server sends the page's HTML back to the browser.
6. The browser turns the HTML into the page and displays it.

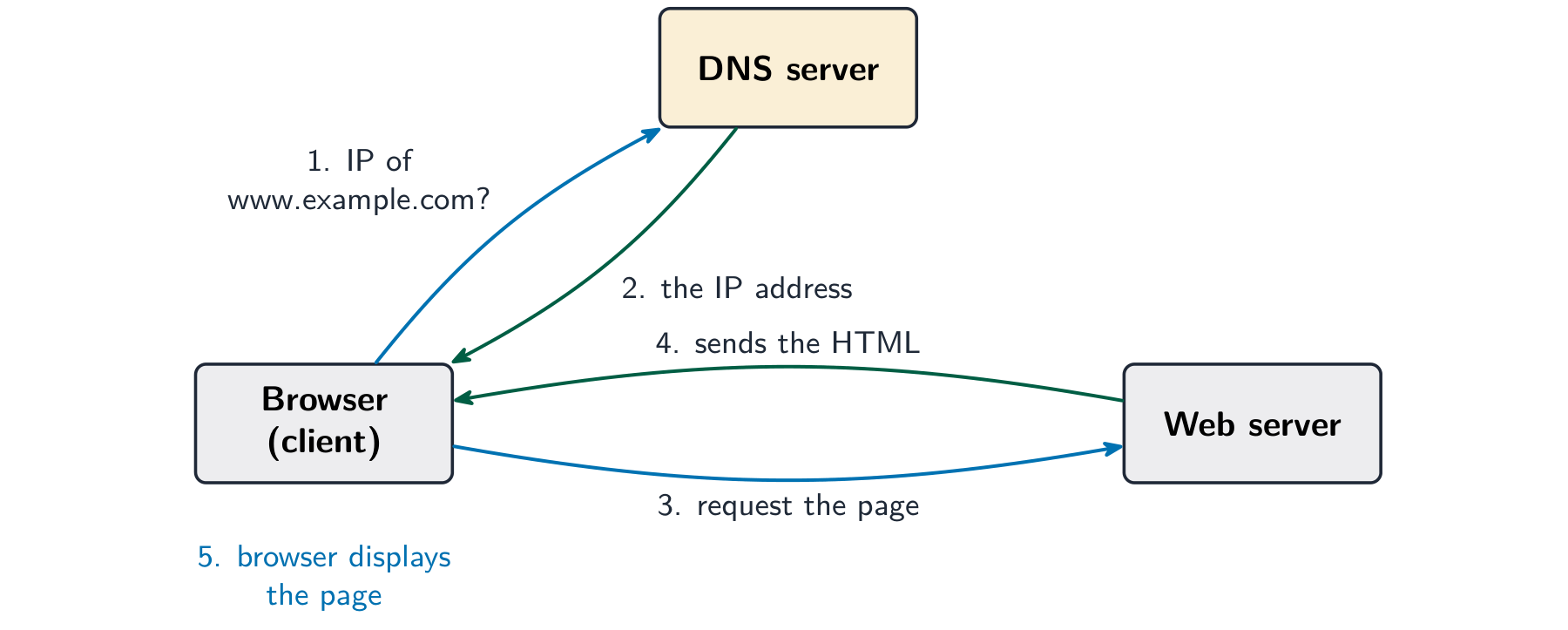

The browser asks a DNS for the site's IP address, then requests the page from the web server, which returns the HTML

If the DNS does not have the address, it asks another DNS server until the address is found.

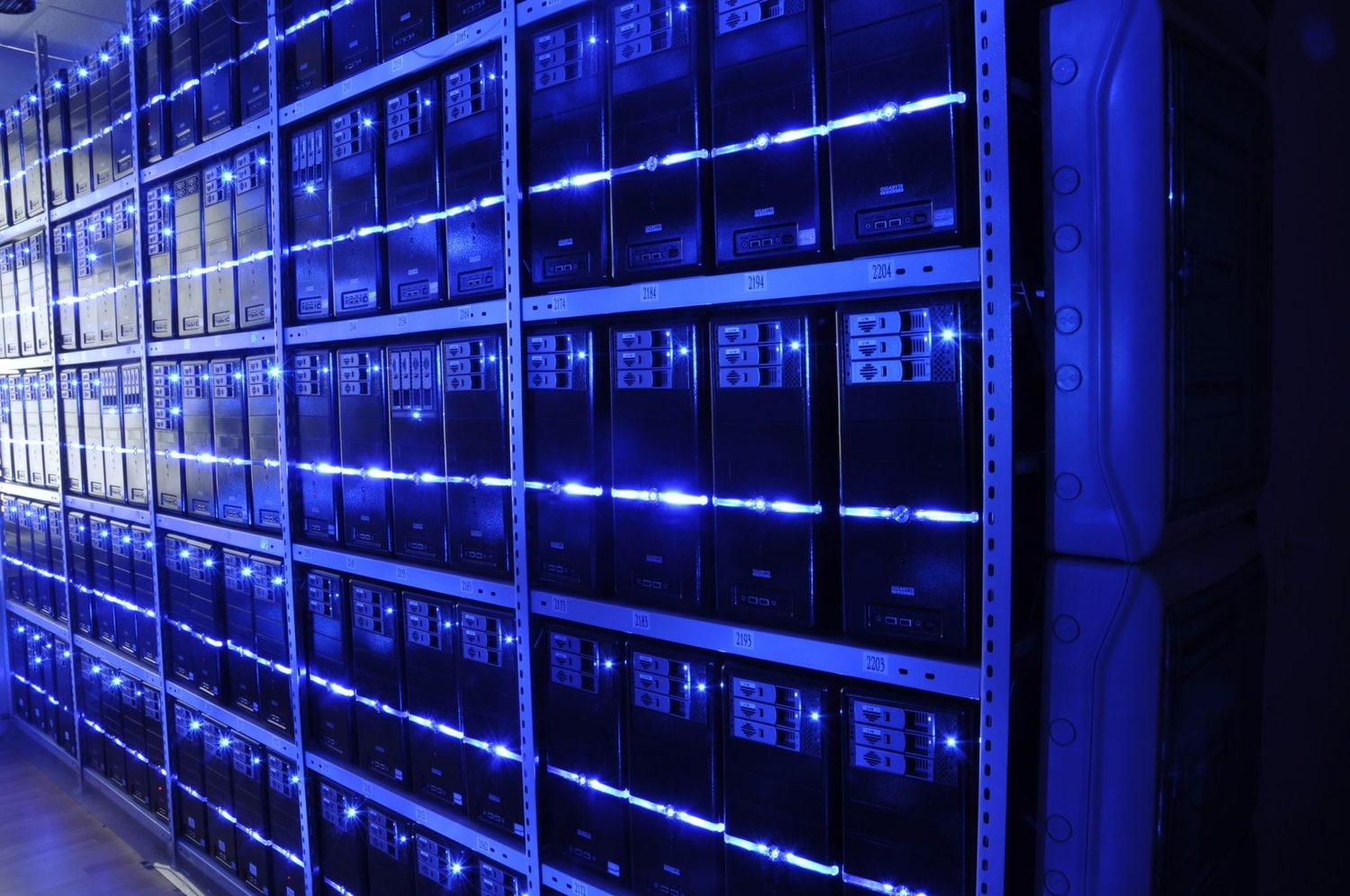

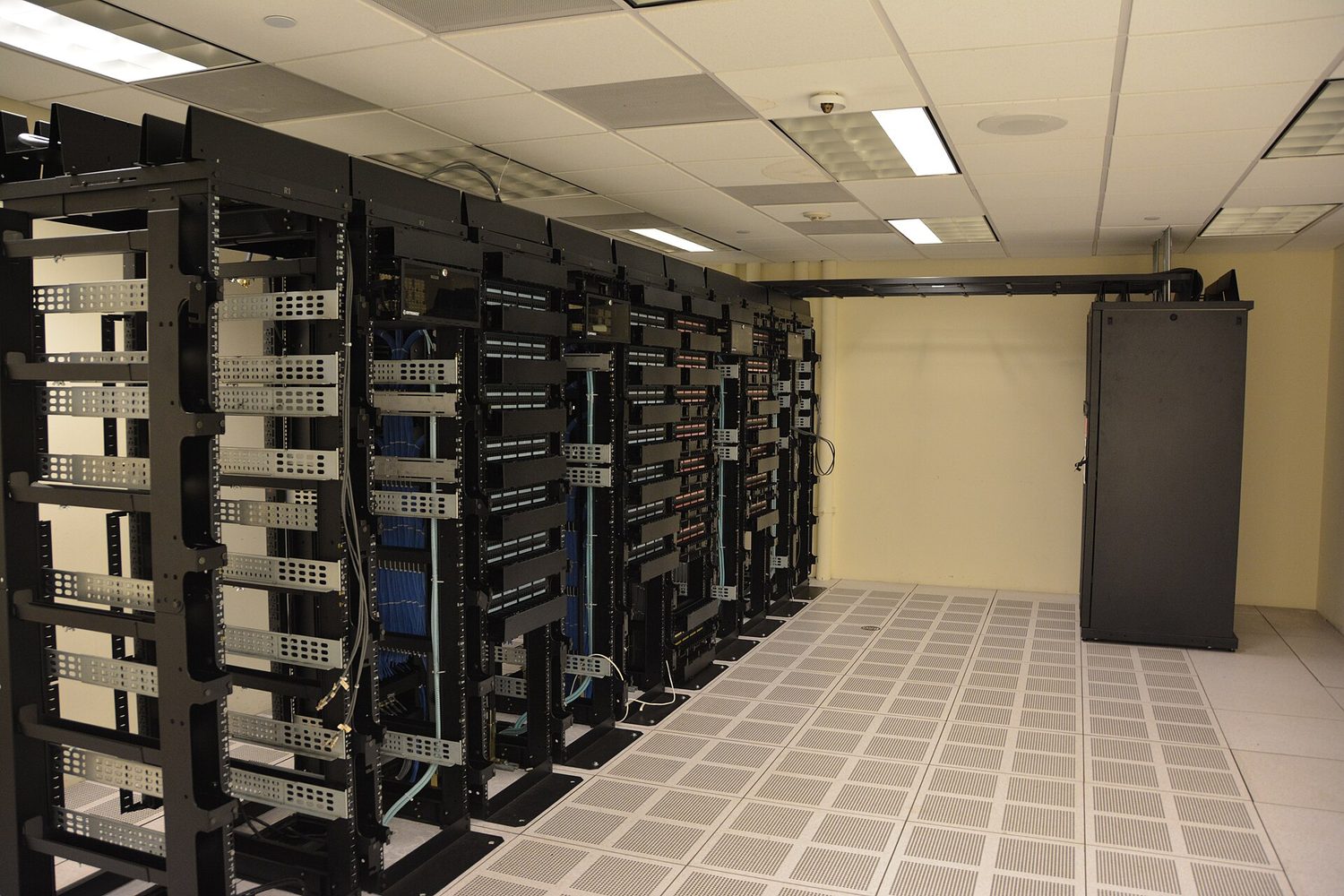

A data centre full of servers: powerful computers that store websites and send them to you

A cookie is a small text file that a website stores on your device. It lets the website remember things about you. There are two types.

Cookies are used to:

• save personal details so you do not type them again (such as login or address);
• track user preferences 用户偏好, such as your language or the things you like, so the site can suggest content.

A digital currency 数字货币 is money that exists only in electronic form 电子形式. There are no coins or notes. It is stored and moved between people using computers, and can be used to pay for things online.

A problem with digital money is trust: how do you stop someone spending the same money twice, or changing the records? Blockchain solves this.

A blockchain 区块链 is a digital ledger 数字账本 — a shared record of every transaction 交易. The record is copied across many computers, so no single person controls it and it is very hard to change.

The transactions are kept in blocks joined in a chain. Each block holds:

• the data of the transaction (who paid whom, and how much);
• a timestamp 时间戳 (the date and time);
• a hash value 哈希值 — a special code worked out from the block's contents.

Each block also stores the hash of the block before it. If someone changes an old block, its hash changes, so it no longer matches the next block. This breaks the chain and the change is spotted at once. This is how blockchain tracks transactions safely.

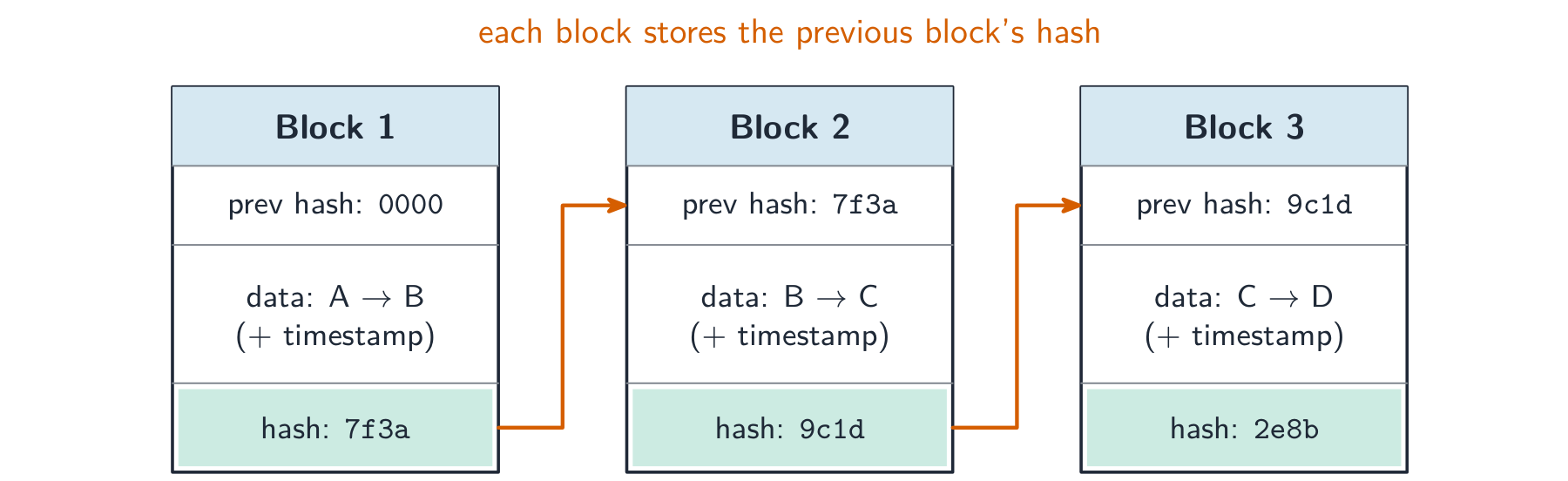

Each block stores the previous block's hash, chaining the blocks; changing one block breaks the chain

Cyber security 网络安全 means keeping computers, networks and data safe from attack. You must know these threats.

Types of malware

Malware is any software made to harm a computer. The main types are:

Impact of the threats

These attacks can steal personal data, delete or change files, stop a service from working, cost money, and make users lose trust in a company. For example, a DDoS attack can make an online shop unusable, so it loses sales.

You can protect data using these methods.

• access levels 访问权限 — each user can only see or change the data they need, nothing more.
• anti-malware 反恶意软件 software, including anti-virus 杀毒软件 and anti-spyware 反间谍软件 — scans for and removes harmful software.
• authentication 身份验证 — proving who you are before you get access. Methods include:
  • biometrics 生物识别 (fingerprint or face),
  • a password 密码,
  • two-step verification 两步验证 (a code sent to your phone as well as a password).
• automating software updates — updates fix weak points (bugs) in software automatically.
• checking the spelling and tone of messages — bad spelling or an odd, urgent tone can show a message is fake (phishing).
• checking the URL attached to a link — a wrong or strange web address warns you the link is unsafe.

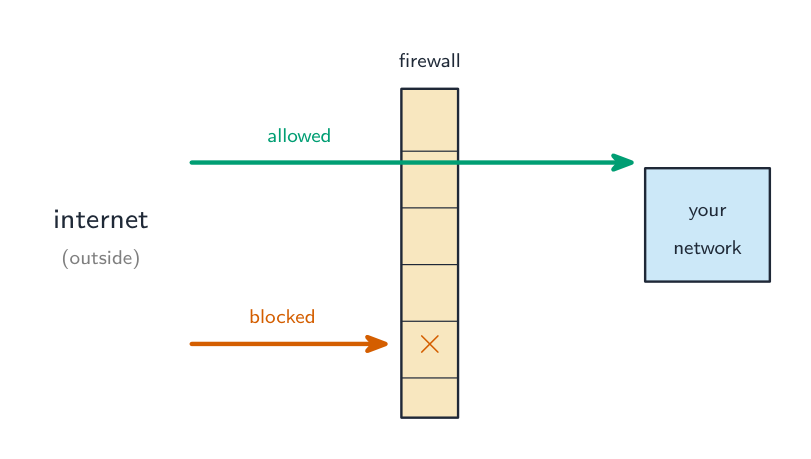

• firewall 防火墙 — checks data going in and out of a network and blocks anything not allowed.
• privacy settings 隐私设置 — control who can see your information online.
• proxy server 代理服务器 — sits between the user and the internet, hiding the user's IP address and filtering out unsafe content.

An automated system 自动化系统 is a mix of software and hardware that senses and responds to data in its environment 环境, with no need for human intervention 人工干预. In other words, it works on its own.

Examples of automated systems:

• a central heating 中央供暖 system;
• a chemical process 化学过程 in a factory;
• a greenhouse 温室 (for growing plants);
• a car park barrier 停车场道闸.

Sensors, microprocessors and actuators

Three parts work together in an automated system.

The cycle works like this:

1. The sensor sends data to the microprocessor.
2. The microprocessor compares this data with stored values 存储值 and makes a decision.
3. The microprocessor sends signals to the actuators to take action.

For example, in a greenhouse: a temperature sensor reads the heat; the microprocessor compares it with the wanted value; if it is too hot, the microprocessor signals an actuator to open a window.

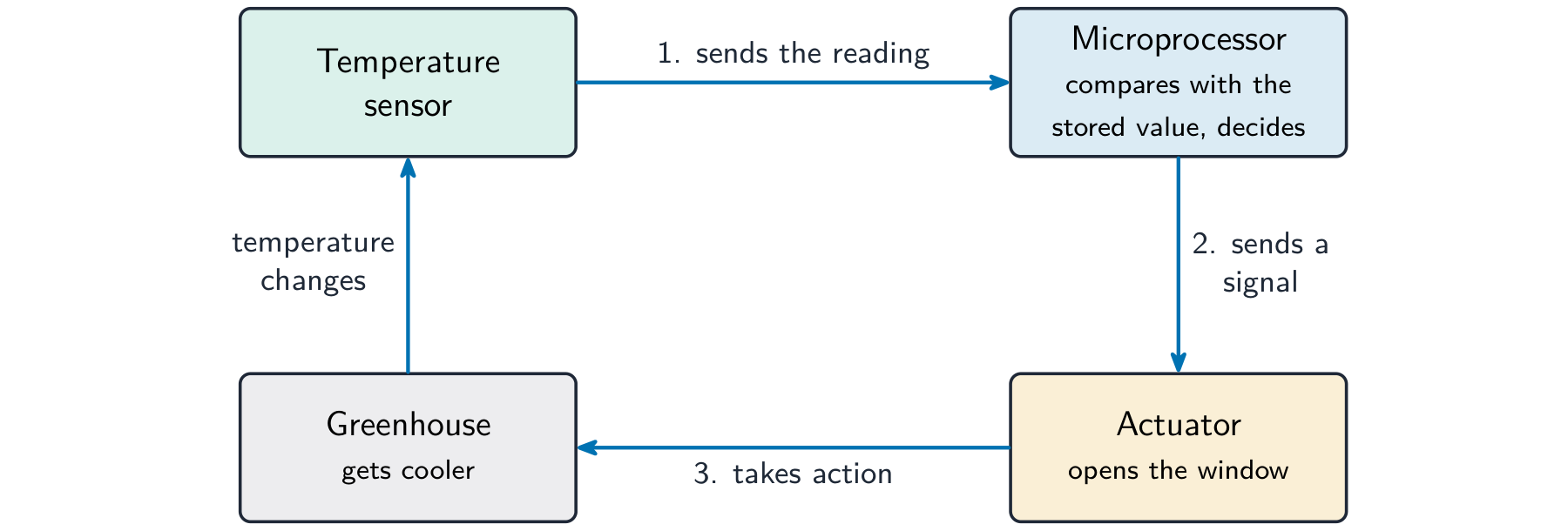

A sensor feeds the microprocessor, which compares the reading with a stored value and signals an actuator; the loop then repeats

Advantages and disadvantages

Automated systems are used in many situations, such as industry, transport, agriculture 农业 (farming), weather (gathering data), gaming and lighting.

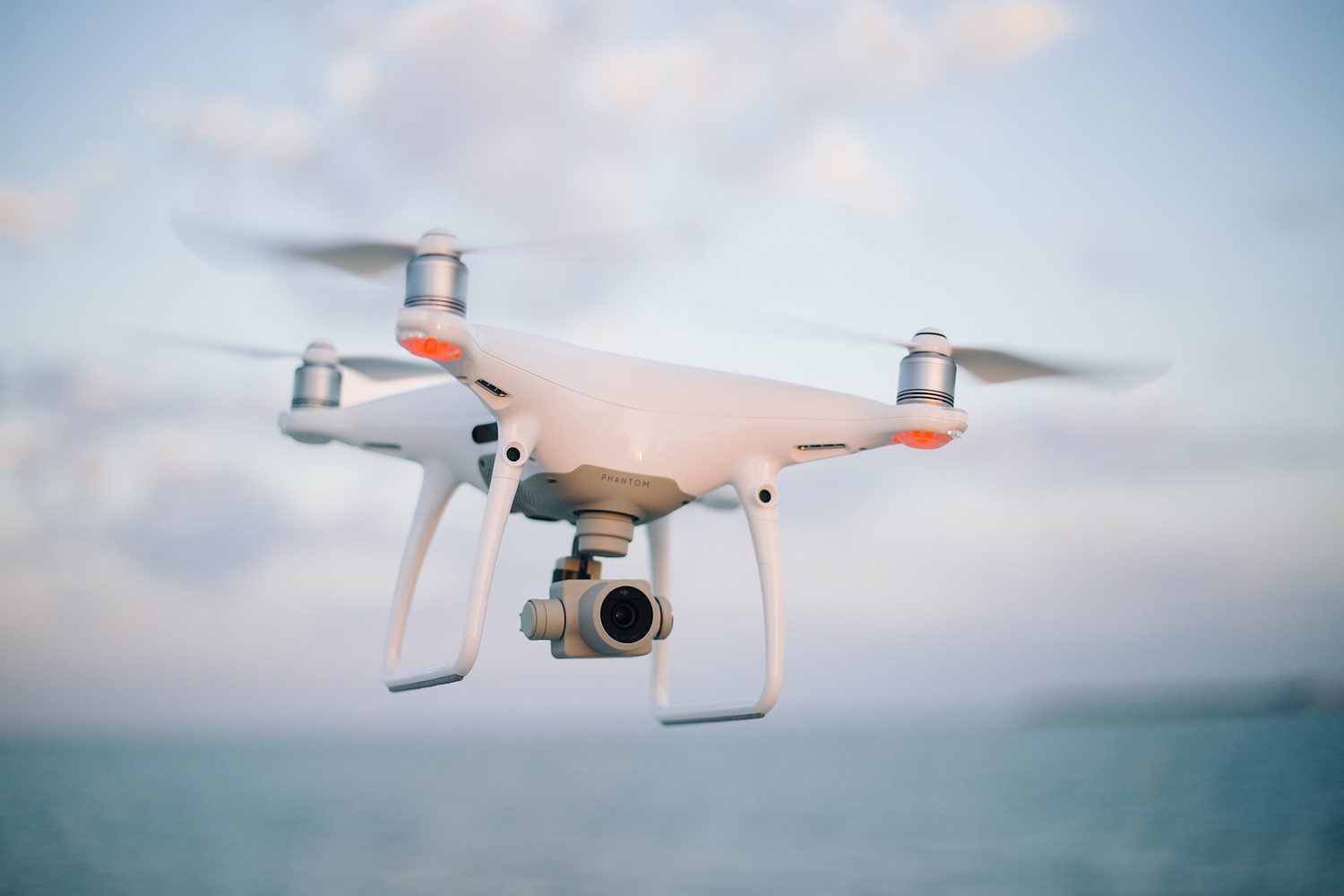

A camera drone: it can fly itself along a set route to collect data

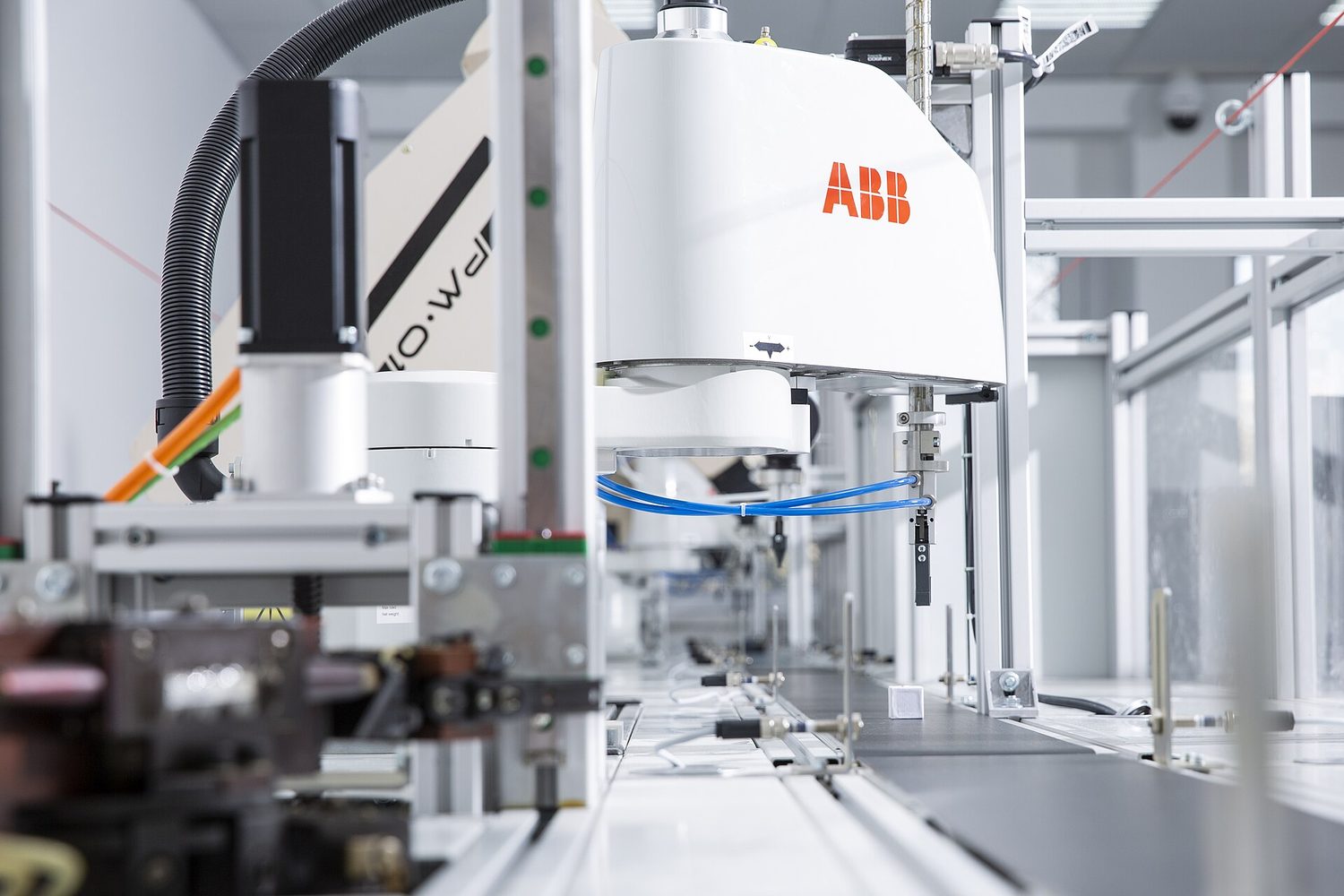

Robotics 机器人技术 is the branch of technology that deals with the design, building and operation of robots 机器人.

A robot has these characteristics:

• a physical structure 物理结构 (a mechanical 机械的 body, such as arms);
• electrical components 电子元件 (motors, sensors and wiring);
• programmable instructions 可编程指令 — it follows a program that can be changed.

What robots do

Robots can perform many roles, for example:

• factory equipment 工厂设备 — building cars, welding, moving heavy parts;
• domestic appliances 家用电器 — such as a robotic vacuum cleaner 吸尘器.

An industrial robot arm. It follows a program and can be reprogrammed to do a new job.

A robot vacuum cleaner: a home robot that drives itself around to clean the floor

A key limit of a robot is that it cannot think for itself. It cannot make its own choices when something unexpected happens.

Artificial intelligence 人工智能 (AI) is the simulation 模拟 of human intelligence by computer systems. This means a computer doing tasks that normally need human thinking.

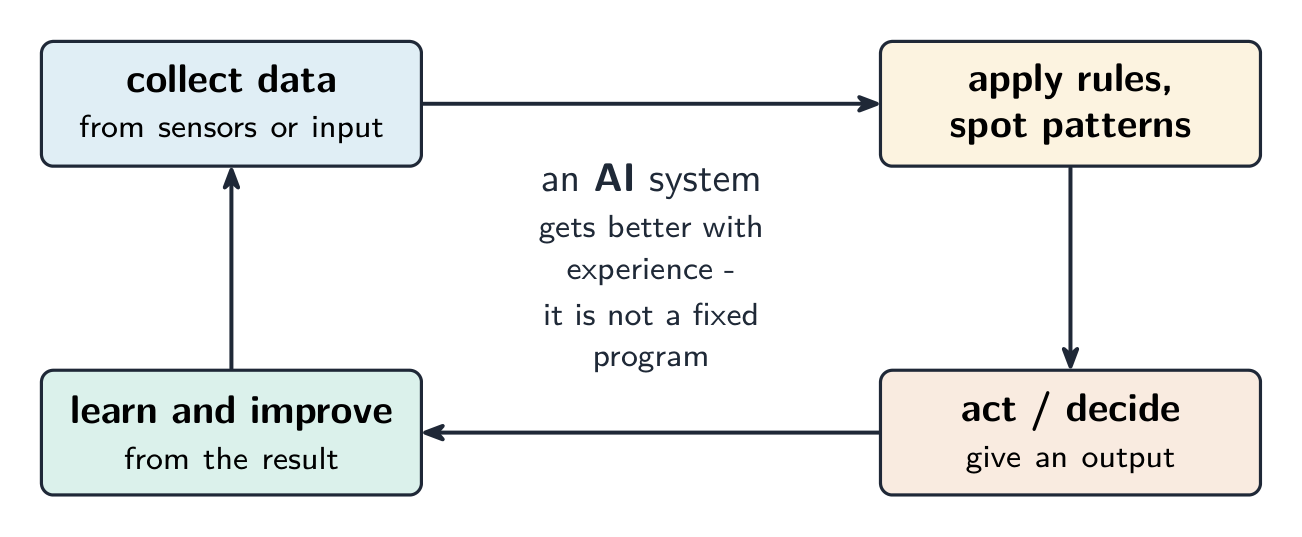

Characteristics of AI

AI systems usually have these features:

• they collect data and the rules 规则 for using that data;
• they have the ability to reason 推理 (work things out using the rules);
• they have the ability to draw conclusions 得出结论, which may be approximate 近似的 (a best guess) or definite 确定的 (certain);
• they have the ability to learn 学习 from data;
• they have the ability to adapt 适应 — to change their behaviour as they get new data.

Examples of AI

• expert systems 专家系统 — software that gives advice like a human expert (for example, helping a doctor with a diagnosis);
• natural language processing 自然语言处理 — understanding human speech or text;
• self-driving cars 自动驾驶汽车.

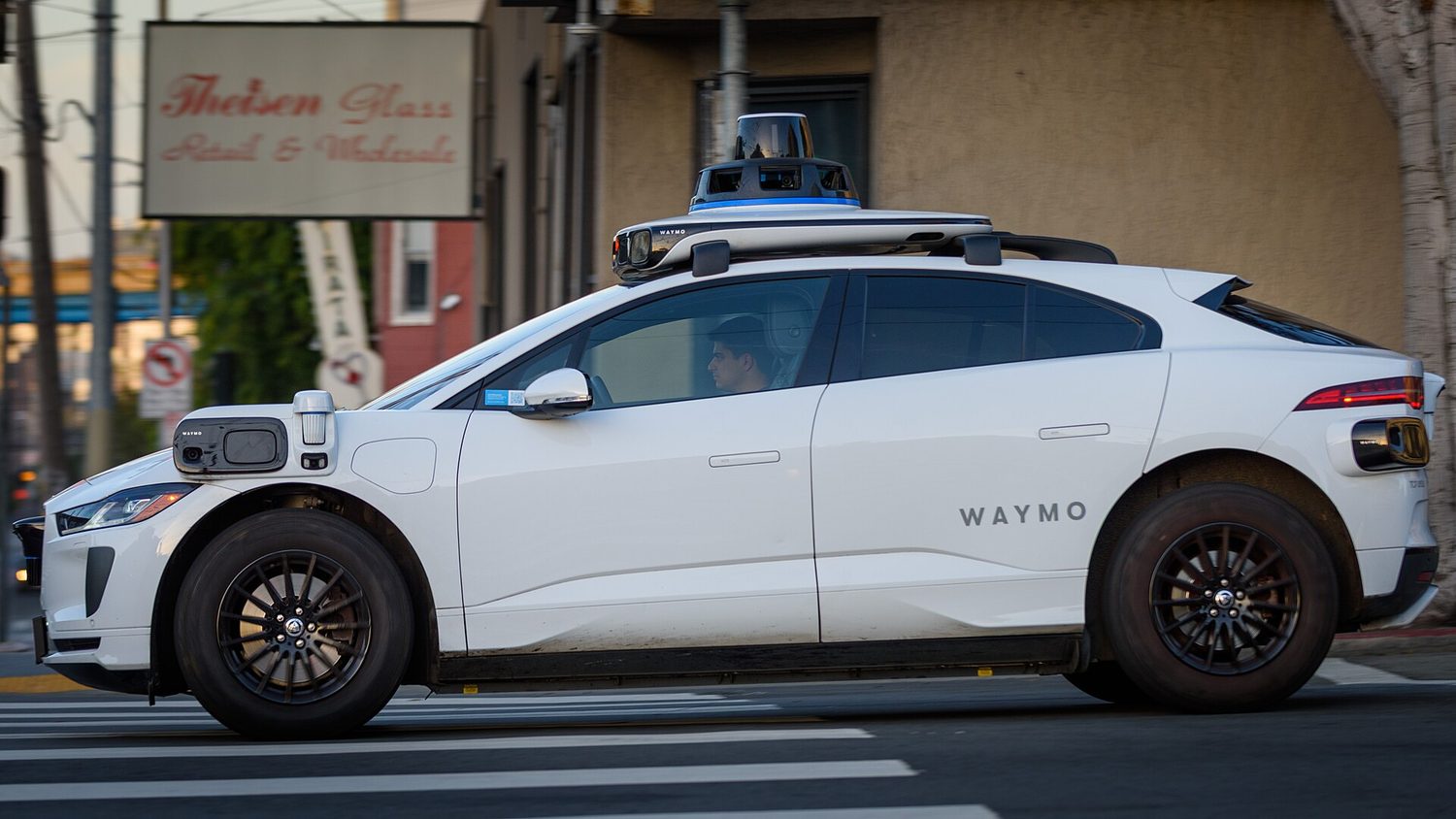

A self-driving car: sensors on the car let a computer steer it with no driver

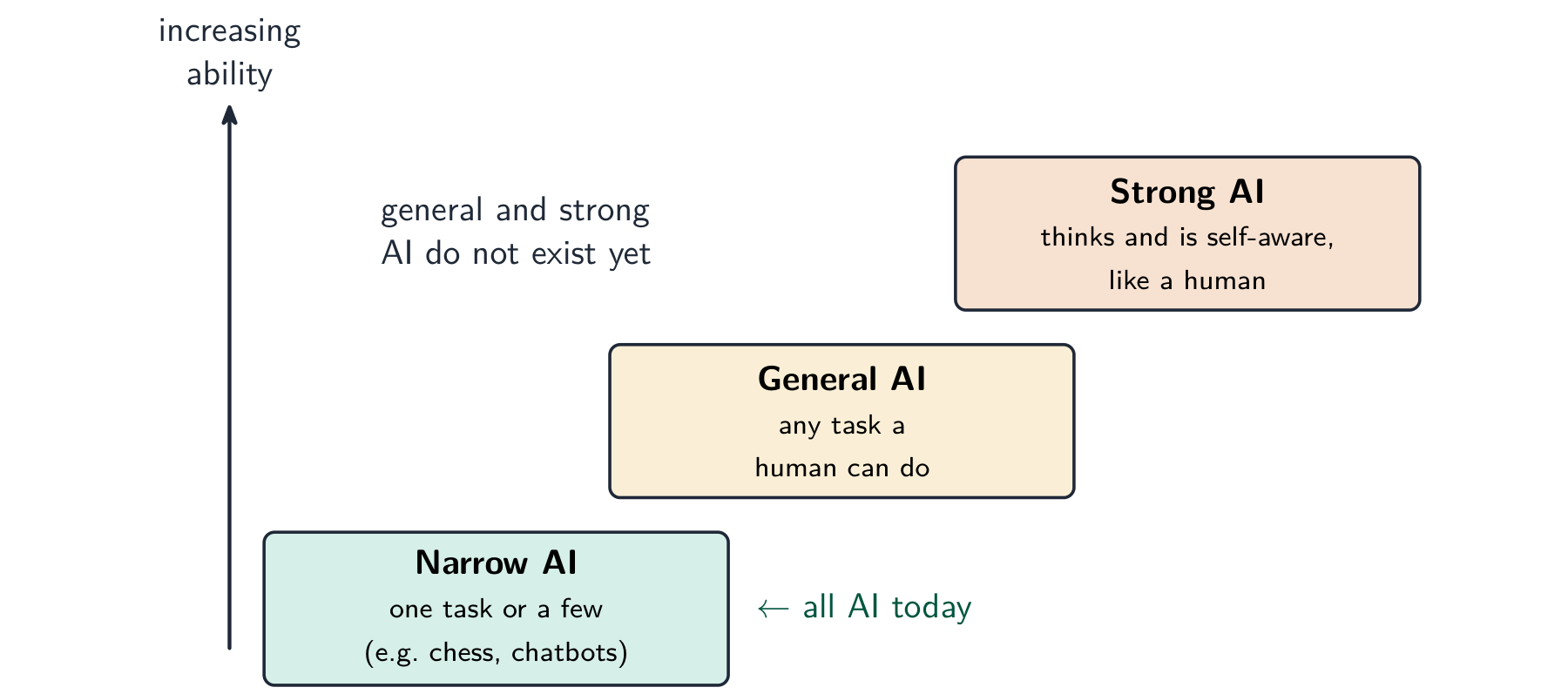

Narrow, general and strong AI

Narrow AI does one task (all AI today); general AI could do any human task; strong AI would be self-aware — neither exists yet

The program development life cycle 程序开发生命周期 is the set of stages used to make a program. There are four stages.

Software is written by programmers, who follow the development life cycle

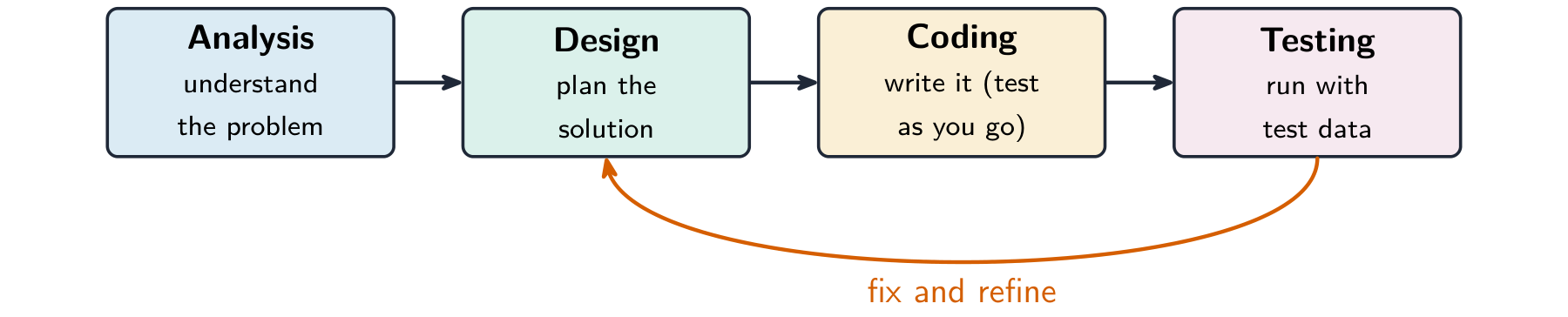

The four stages of program development; testing feeds back to fix and refine the design

A program flowchart sets out the steps and decisions of a program during the design stage

Analysis

In analysis you understand the problem. Two key skills help:

• abstraction 抽象 — keep only the important details and ignore the rest;
• decomposition 分解 — break a big problem into smaller, easier parts.

Design

In design you plan the solution, often using decomposition. You can show the parts as sub-systems 子系统 in a structure diagram 结构图 (a chart that splits a system into smaller boxes).

Coding and testing

In coding you write the program code. You use iterative testing 迭代测试 — test small parts again and again as you build them. In testing you run the whole program with test data 测试数据 to check it works.

You can plan a solution in three main ways.

• a structure diagram — shows the parts of a system and how they fit together;
• a flowchart 流程图 — a diagram using boxes and arrows to show the steps in order;
• pseudocode 伪代码 — steps written in simple, code-like English (not a real language).

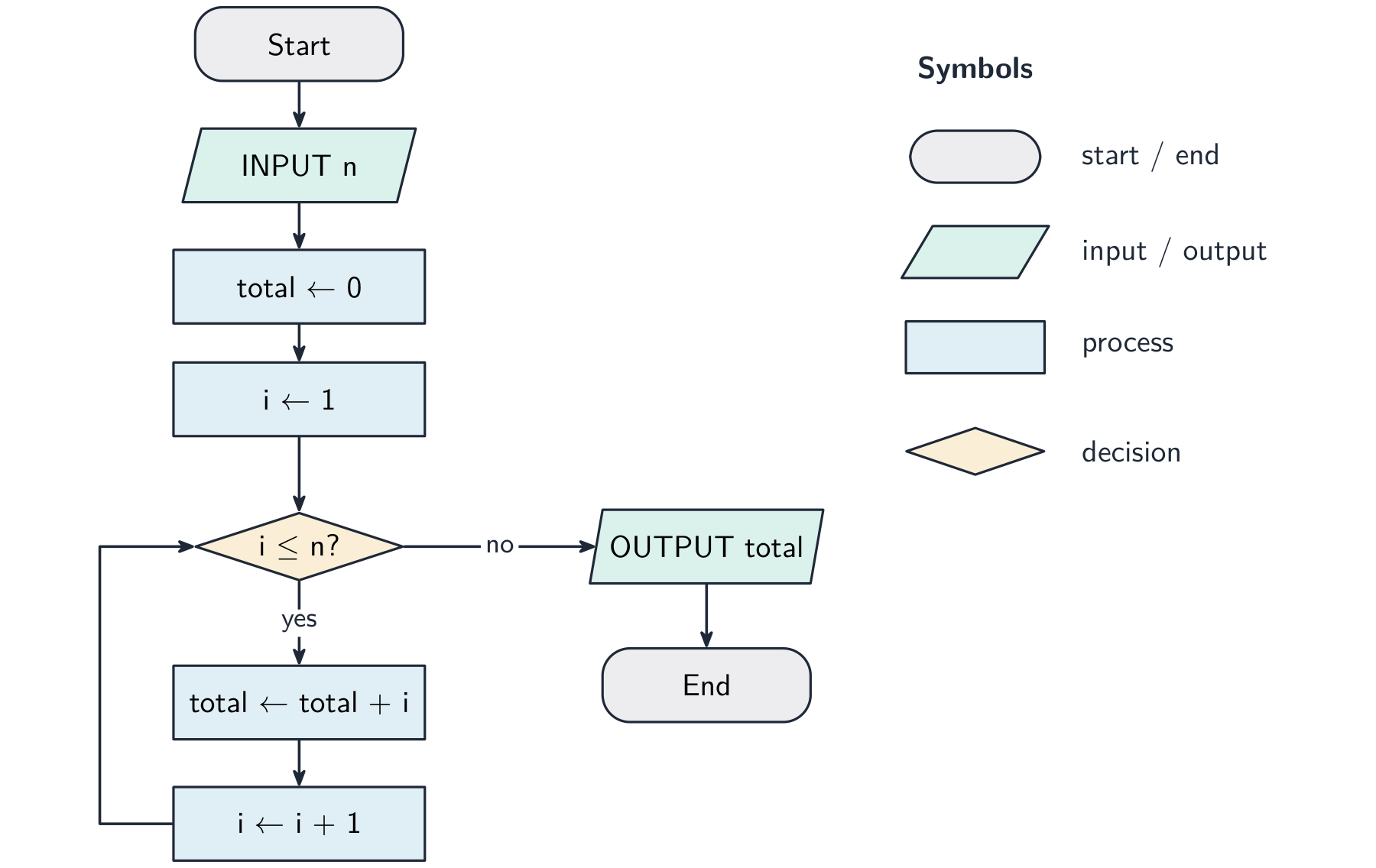

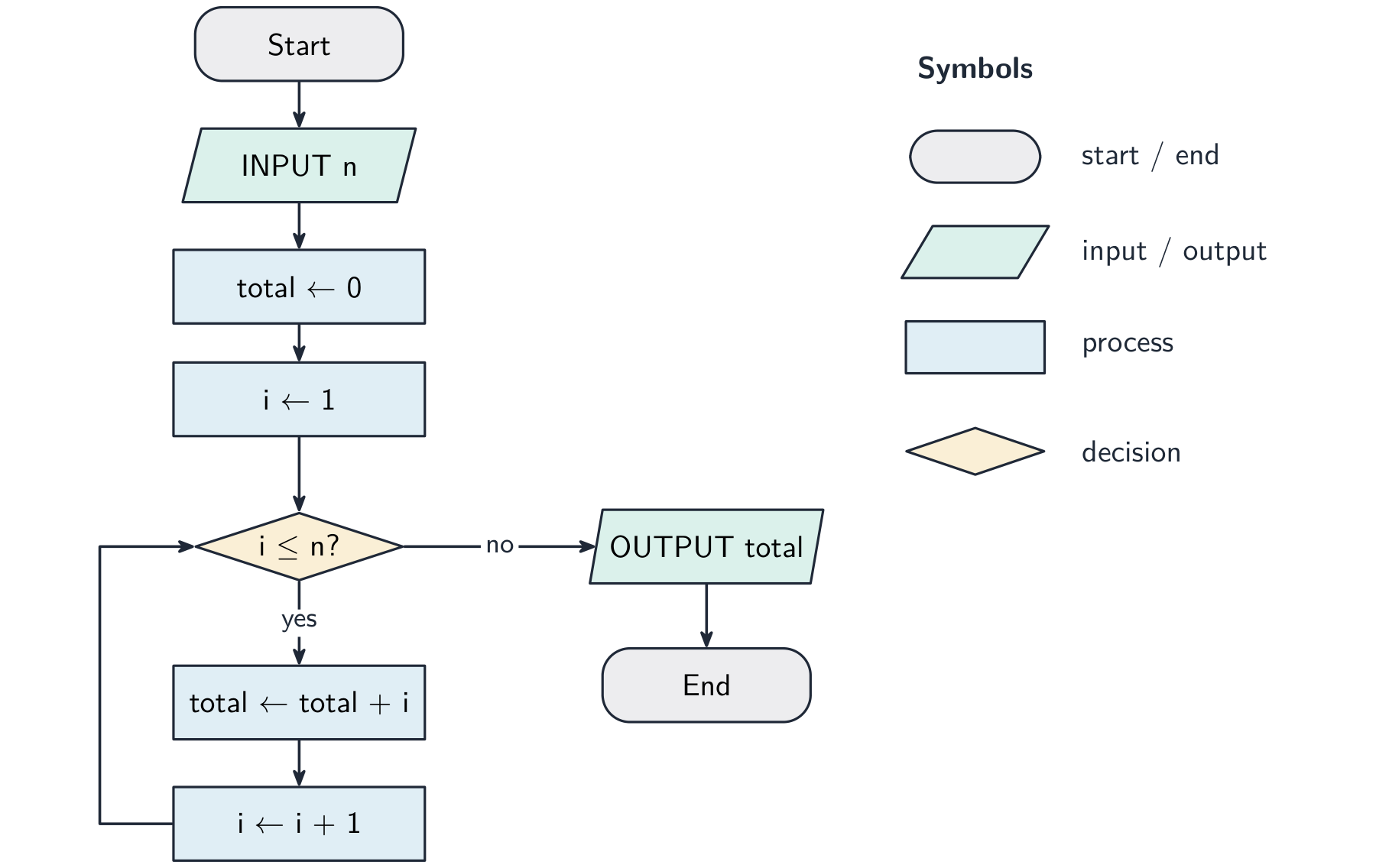

A flowchart for the sum algorithm, using the standard symbols (start/end, input/output, process, decision)

An algorithm 算法 is a set of steps, in the right order, that solves a problem. Every algorithm can be split into three parts:

• input 输入 — the data that goes in;
• processing 处理 — the work done on the data;
• output 输出 — the result that comes out.

This is called decomposition into inputs, processes and outputs. For example, for "find the average of three marks": the inputs are the three marks; the processing is adding them and dividing by 3; the output is the average.

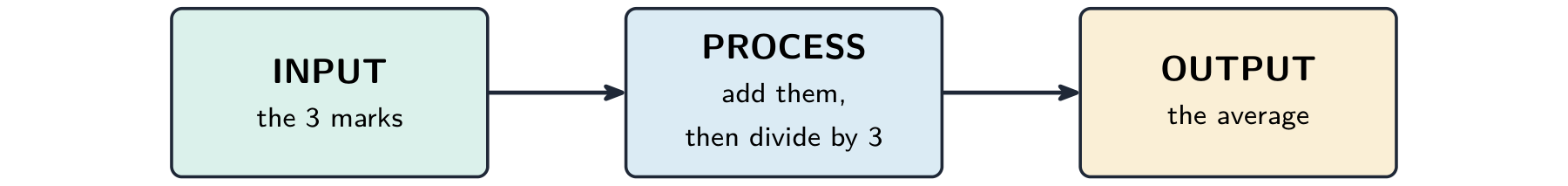

Every algorithm decomposes into input, processing and output — here, finding the average of three marks

When data is entered, you check it to reduce mistakes.

Validation 验证 checks that the data is sensible and follows the rules. It cannot check that the data is true, only that it is allowed.

Verification 核实 checks that data was copied or entered correctly (no mistakes while typing it in). Two methods:

• visual check 目视检查 — a person compares the typed data with the original;
• double entry 双重输入 — the data is entered twice and the two copies are compared.

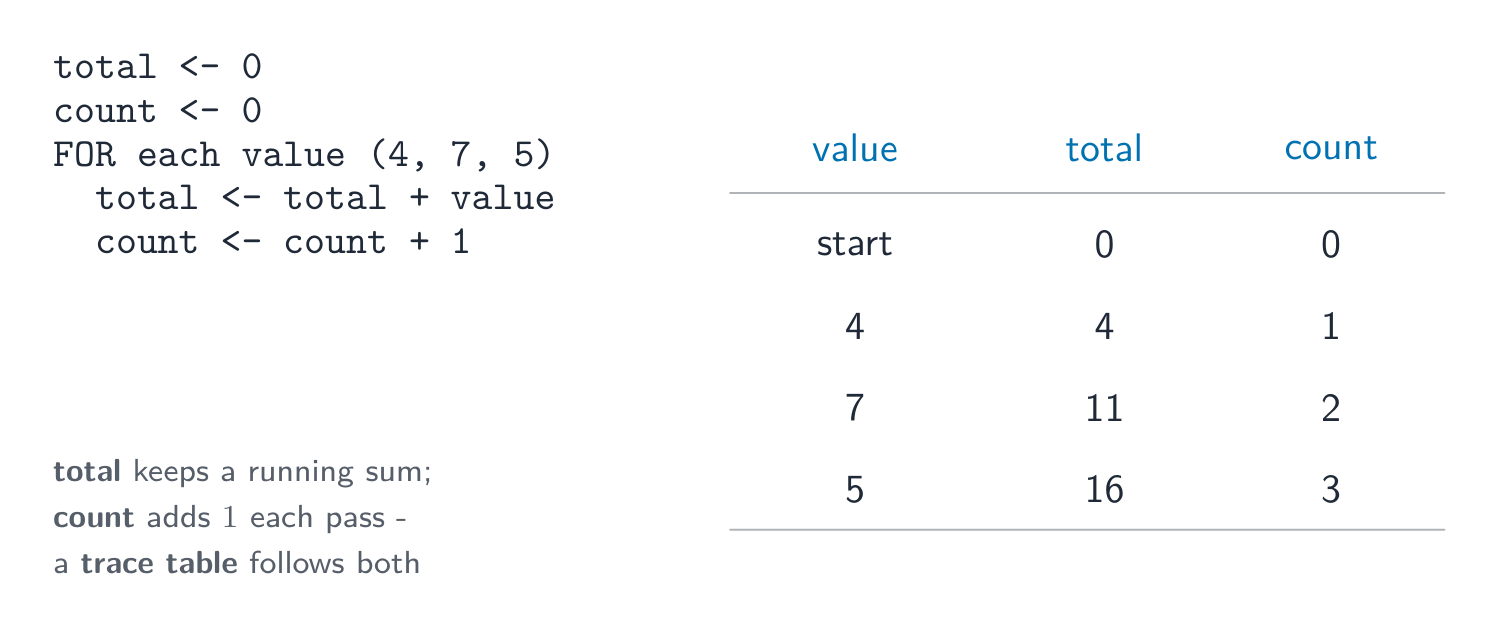

A trace table 追踪表 records the value of each variable as an algorithm runs, step by step. It helps you:

• check that an algorithm works correctly;
• work out what an algorithm does by following it with given data.

Example: trace this algorithm with the input 5.

INPUT n
total ← 0
FOR i ← 1 TO n
    total ← total + i
NEXT i
OUTPUT total

The trace shows the algorithm adds up 1 to n. With input 5 the output is 15.

Test data is data you use to test a program. There are four types you must know.

You must know these common algorithms.

Linear search

A linear search 线性查找 checks each item in a list, one by one, until it finds the value it wants or reaches the end.

found ← FALSE
FOR i ← 0 TO 9
    IF list[i] = searchValue THEN
        found ← TRUE
    ENDIF
NEXT i
OUTPUT found

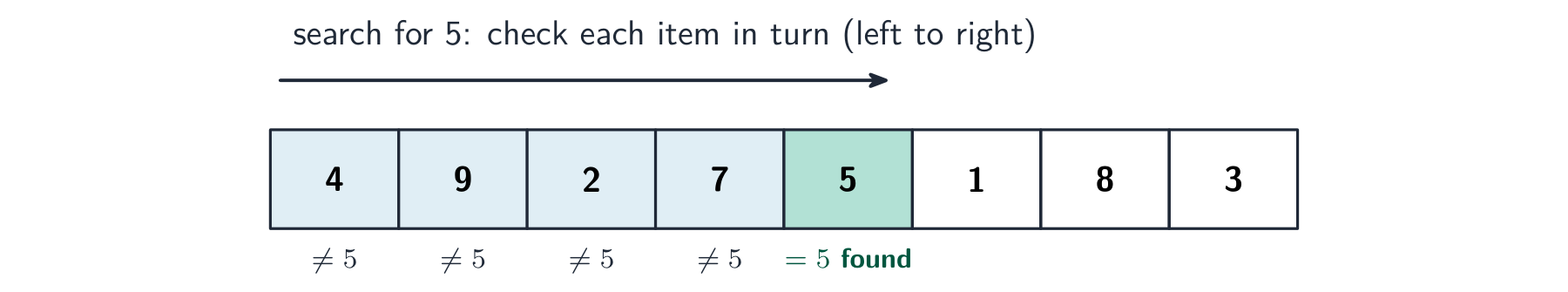

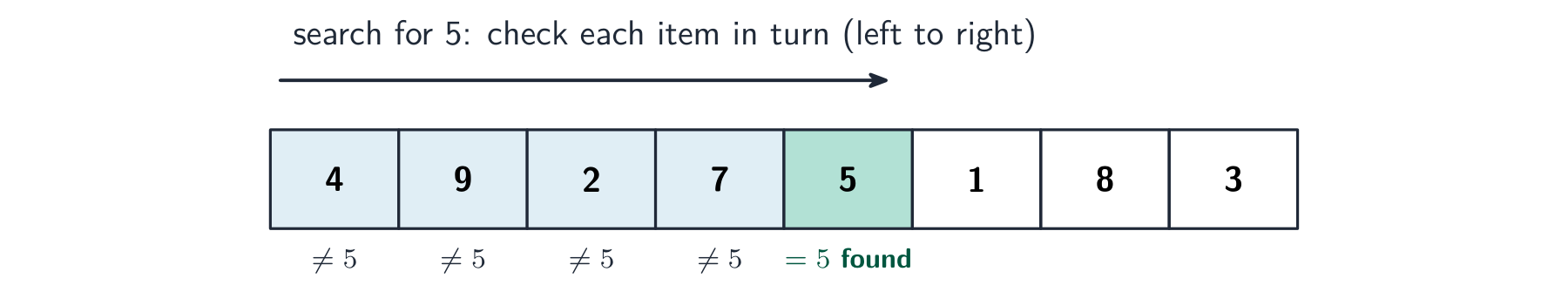

Linear search checks each item in turn from the start until it finds the value

Bubble sort

A bubble sort 冒泡排序 puts a list in order. It compares each pair of side-by-side items and swaps them if they are in the wrong order. It repeats this until no more swaps are needed.

FOR i ← 0 TO 8
    IF list[i] > list[i + 1] THEN
        temp ← list[i]
        list[i] ← list[i + 1]
        list[i + 1] ← temp
    ENDIF
NEXT i

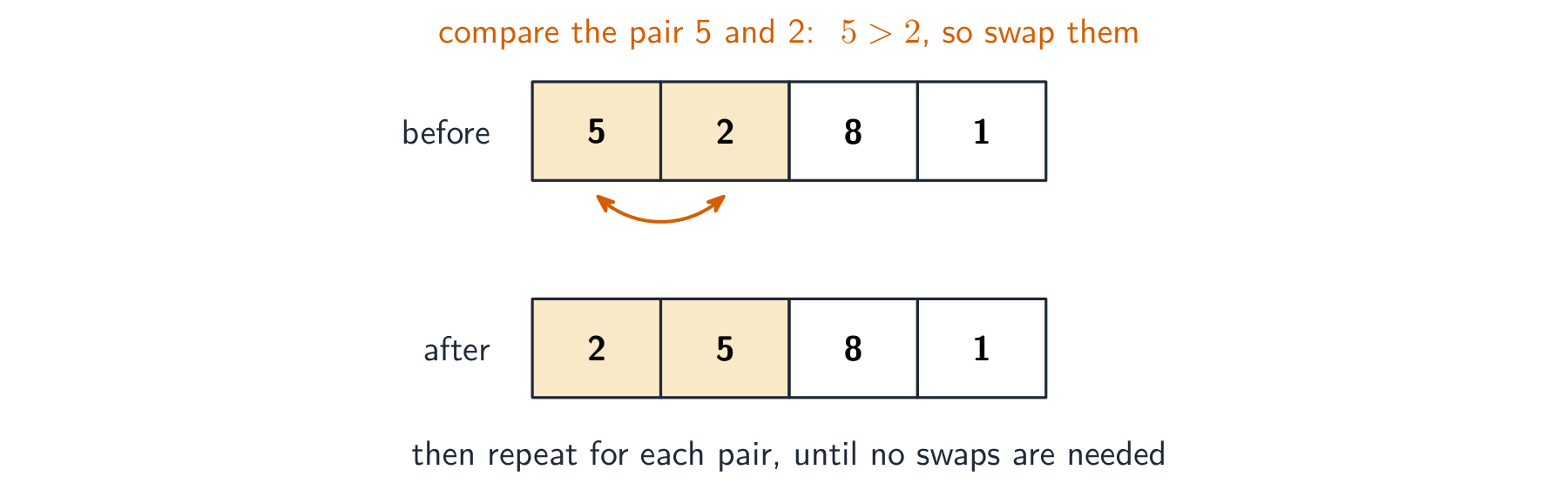

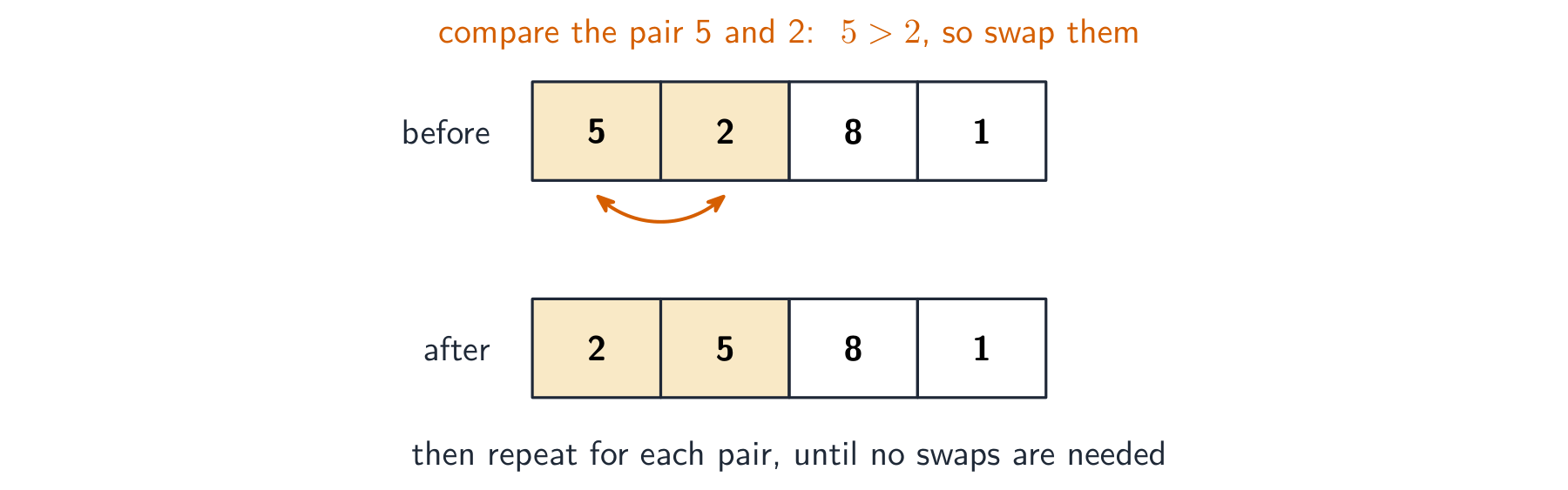

Bubble sort compares each side-by-side pair and swaps them if they are out of order, repeating until sorted

Totalling and counting

• totalling 求和 — keep adding values to a running total (total ← total + value).
• counting 计数 — add 1 to a counter each time something happens (count ← count + 1).

Maximum, minimum and average

• to find the maximum 最大值: keep the largest value seen so far.
• to find the minimum 最小值: keep the smallest value seen so far.
• to find the average 平均值: divide the total by how many values there are.

total ← 0
FOR i ← 0 TO 9
    total ← total + list[i]
NEXT i
average ← total / 10
OUTPUT average

A variable 变量 is a named store that holds a value which can change while the program runs. A constant 常量 is a named store whose value is fixed and does not change.

Variables and constants are named stores for values, set in the program's code

You should declare 声明 them (say their name and type) before use:

DECLARE score : INTEGER
DECLARE name : STRING
CONSTANT Pi = 3.142

While a program runs, its variables are held in the computer's memory (RAM)

Use a constant for a value that never changes (like Pi), so it is set in one place and is easy to read.

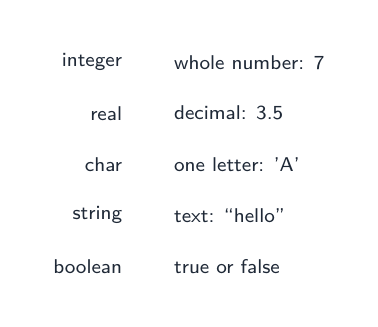

A data type 数据类型 says what kind of value a variable holds. You must know five basic types.

Input 输入 reads a value from the user. Output 输出 shows a value on the screen.

OUTPUT "What is your name?"
INPUT name
OUTPUT "Hello ", name

Every program is built from three control structures.

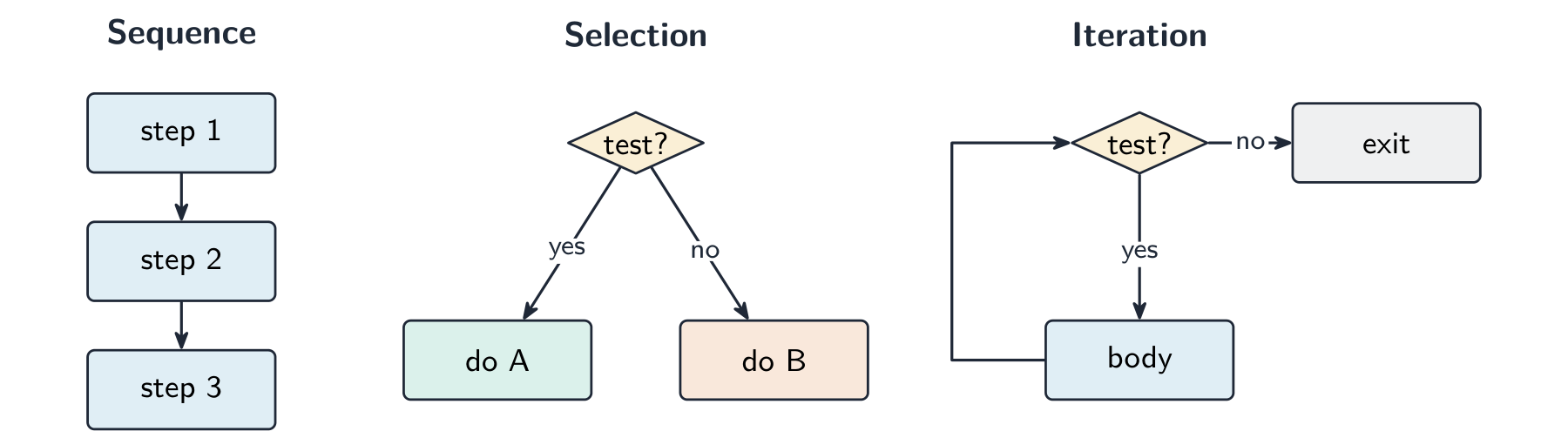

The three control structures: sequence runs steps in order, selection chooses a branch, iteration repeats a body

Sequence

Sequence 顺序 means the steps run one after another, in order, from top to bottom.

INPUT length
INPUT width
area ← length * width
OUTPUT area

Selection

Selection 选择 chooses which steps to run, based on a condition. Use an IF statement, or a CASE statement when there are many choices.

IF score >= 50 THEN
    OUTPUT "Pass"
ELSE
    OUTPUT "Fail"
ENDIF

CASE OF grade
    'A' : OUTPUT "Excellent"
    'B' : OUTPUT "Good"
    OTHERWISE : OUTPUT "Keep trying"
ENDCASE

Iteration

Iteration 迭代 (a loop 循环) repeats steps. There are three kinds.

A count-controlled loop 计数循环 repeats a fixed number of times:

FOR i ← 1 TO 5
    OUTPUT "Hello"
NEXT i

A pre-condition loop 前测循环 checks the condition before each repeat, so it may run zero times:

WHILE answer <> "stop" DO
    INPUT answer
ENDWHILE

A post-condition loop 后测循环 checks the condition after each repeat, so it always runs at least once:

REPEAT
    INPUT password
UNTIL password = "secret"

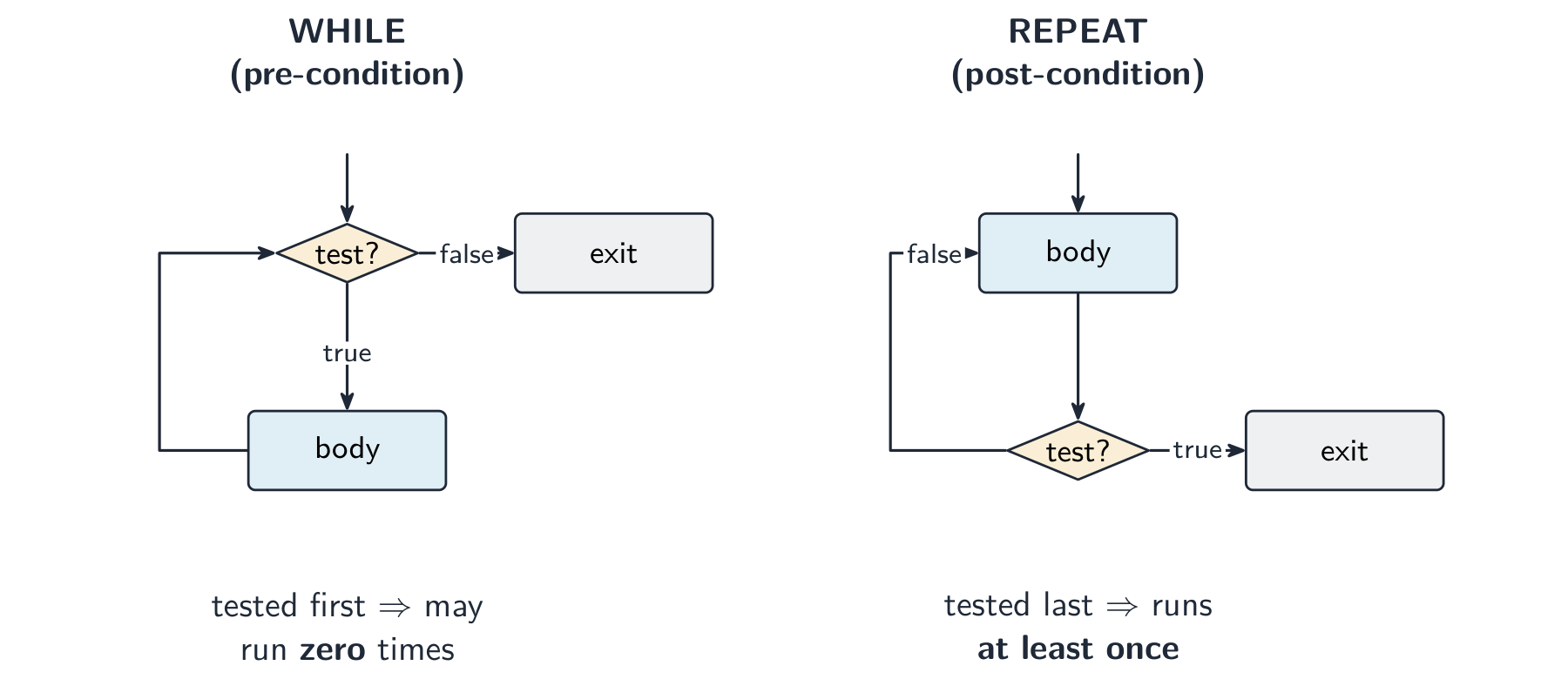

A pre-condition (WHILE) loop tests before the body, so it may run zero times; a post-condition (REPEAT) loop tests after, so it runs at least once

• totalling 求和 — keep adding values to a running total: total ← total + value.
• counting 计数 — add 1 to a counter each time: count ← count + 1.

total ← 0
FOR i ← 1 TO 10
    INPUT mark
    total ← total + mark
NEXT i
OUTPUT total

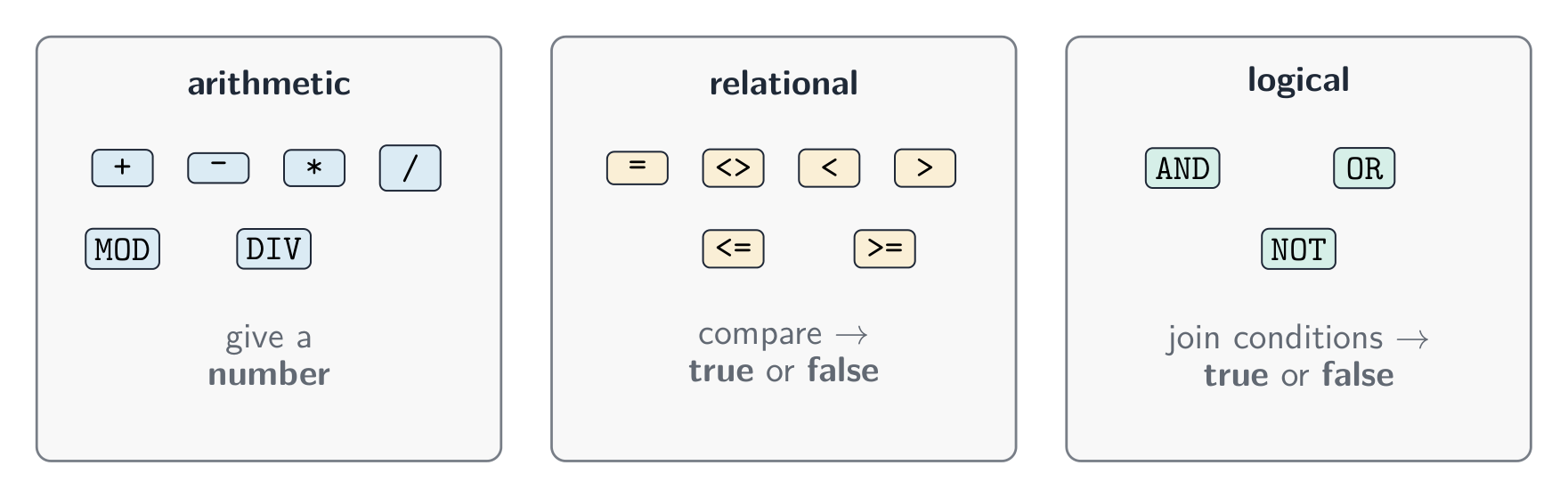

Arithmetic operators

For example, 17 MOD 5 is 2, and 17 DIV 5 is 3.

Relational operators

These compare two values and give a Boolean result: =, <, <=, >, >=, and <> (not equal to).

Logical operators

These join conditions: AND (both must be true), OR (at least one must be true), NOT (reverses true/false).

IF age >= 13 AND age <= 19 THEN
    OUTPUT "Teenager"
ENDIF

A string is made of characters. Useful operations:

• length 长度 — the number of characters in the string;
• substring 子串 — a smaller part taken from the string;
• upper case 大写 — change letters to capitals;
• lower case 小写 — change letters to small letters.

name ← "Computer"
OUTPUT LENGTH(name)          // 8
OUTPUT SUBSTRING(name, 1, 4) // "Comp"
OUTPUT UCASE(name)           // "COMPUTER"
OUTPUT LCASE(name)           // "computer"

(The first character may be counted as position 0 or position 1, depending on the language.)

A nested statement 嵌套语句 is one control structure placed inside another. You can nest selection and iteration.

FOR i ← 1 TO 3
    IF i MOD 2 = 0 THEN
        OUTPUT i, " is even"
    ELSE
        OUTPUT i, " is odd"
    ENDIF
NEXT i

You will not have to write more than three levels of nesting.

To avoid repeating code, you can break a program into named blocks.

• A procedure 过程 is a named block of code that does a task. You run it with CALL.
• A function 函数 is like a procedure, but it returns a value back to where it was called.

A parameter 参数 is a value passed into a procedure or function (up to three parameters).

PROCEDURE Greet(personName : STRING)
    OUTPUT "Hello ", personName
ENDPROCEDURE

CALL Greet("Sam")

FUNCTION Square(n : INTEGER) RETURNS INTEGER
    RETURN n * n
ENDFUNCTION

answer ← Square(5)   // answer is 25

Local and global variables

• A local variable 局部变量 is declared inside a procedure or function. It can only be used there.
• A global variable 全局变量 is declared in the main program. It can be used anywhere.

Local variables are safer, because they cannot be changed by mistake from another part of the program.

A library routine 库程序 is a ready-made piece of code you can use. You must know these:

A maintainable 可维护的 program is easy for other people to read and change later. To make one:

• use meaningful identifiers 有意义的标识符 — clear names for variables, constants, arrays, procedures and functions (totalScore, not x);
• add comments 注释 to explain what parts of the code do;
• use procedures and functions to split the work into small blocks.

An array 数组 is a single variable that holds many values of the same type, found by an index 索引 (a position number).

One-dimensional arrays

A one-dimensional (1D) array 一维数组 is like a single list.

DECLARE scores : ARRAY[1:5] OF INTEGER
scores[1] ← 90
scores[2] ← 75
OUTPUT scores[1]

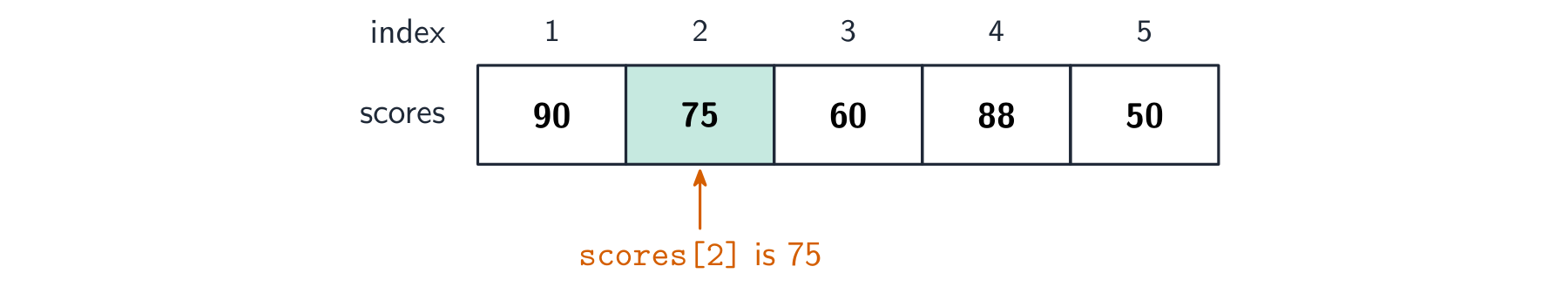

A 1D array holds many values in one variable; each is found by its index

You can use a loop to fill or read an array:

FOR i ← 1 TO 5
    INPUT scores[i]
NEXT i

Two-dimensional arrays

A two-dimensional (2D) array 二维数组 is like a table with rows and columns. It uses two indexes.

DECLARE grid : ARRAY[1:3, 1:3] OF INTEGER
grid[1, 1] ← 5
grid[2, 3] ← 8

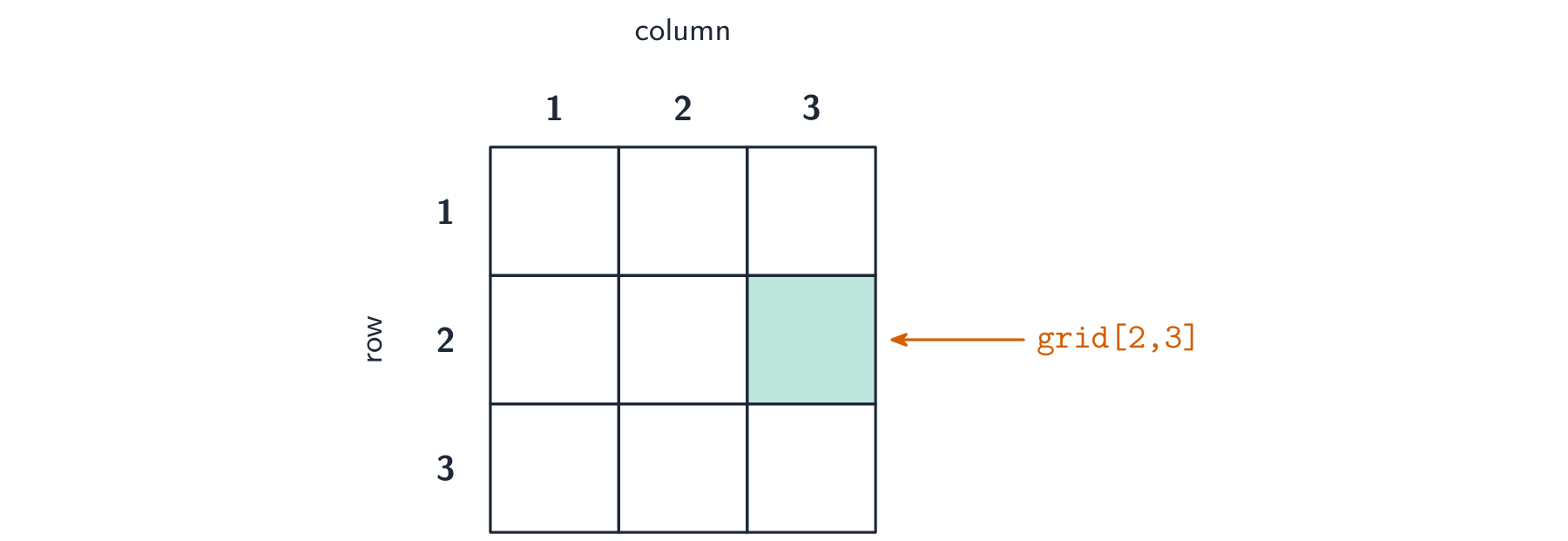

A 2D array is a table; each value is found by two indexes, [row, column]

You read a 2D array with a loop inside a loop (nested iteration).

A program can store data in a file 文件 so it is kept after the program stops. You must open the file, use it, then close it.

OPENFILE "data.txt" FOR WRITE
WRITEFILE "data.txt", "Hello"
CLOSEFILE "data.txt"

OPENFILE "data.txt" FOR READ
READFILE "data.txt", line
CLOSEFILE "data.txt"

You can read and write single items of data or a whole line of text. Always close a file when you have finished with it.

A database 数据库 is an organised store of data, kept so that it is easy to search, sort and update. At IGCSE you work with a single-table database 单表数据库 — all the data is held in one table.

A library card catalogue is a database on paper — records you can search and sort by index

Large modern databases are stored on servers in data centres

A database table is made of records and fields.

• A record 记录 is one row in the table — all the data about one thing (for example one student).
• A field 字段 is one column in the table — one piece of data that every record has (for example "First name").

Here each row is a record, and each column is a field.

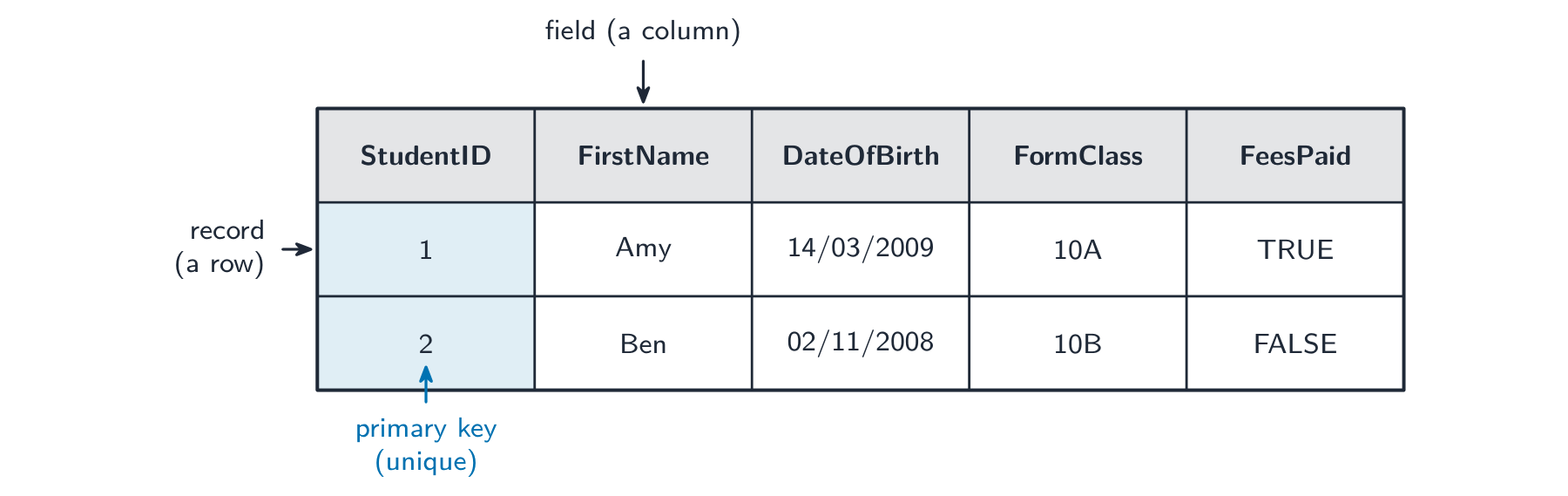

Each row is a record and each column is a field; the primary key (StudentID) is unique for every record

Each field stores one data type 数据类型. You choose the type that best fits the data.

A primary key 主键 is a field that holds a unique 唯一的 value for every record. No two records can have the same primary key, so it lets you pick out exactly one record.

In the table above, StudentID is a good primary key because every student has a different number. A field like FormClass would be a bad primary key, because many students share the same class.

When data is put into a database, validation 验证 checks make sure it is sensible — for example a range check on an age field, or a presence check so a field is not left empty. (You saw these checks in topic 7.)

Structured Query Language 结构化查询语言 (SQL) is a language used to query 查询 a database — to pick out the records you want. You must understand and complete SQL scripts.

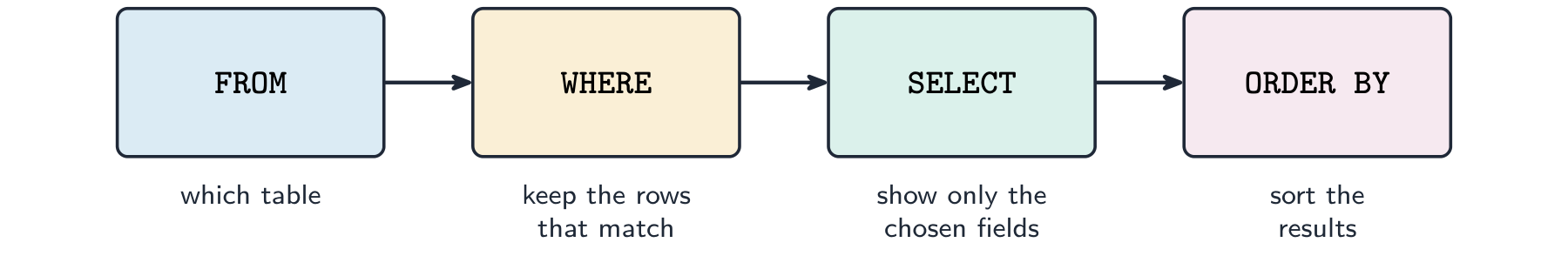

SELECT, FROM and WHERE

• SELECT says which fields to show.
• FROM says which table to use.
• WHERE gives a condition 条件, so only matching records are shown.

SELECT FirstName, FormClass
FROM Student
WHERE FeesPaid = TRUE;

This shows the first name and class of every student who has paid the fees.

Use * to select all fields:

SELECT *
FROM Student
WHERE FormClass = '10A';

ORDER BY

ORDER BY sorts the results. Use ASC for ascending 升序 (smallest first, A→Z) or DESC for descending 降序 (largest first, Z→A).

SELECT FirstName, DateOfBirth
FROM Student
ORDER BY DateOfBirth ASC;

AND and OR

Join conditions with AND (both must be true) or OR (at least one must be true).

SELECT FirstName
FROM Student
WHERE FormClass = '10A' AND FeesPaid = FALSE;

SUM and COUNT

• SUM adds up the values in a number field.
• COUNT counts how many records match.

SELECT COUNT(StudentID)
FROM Student
WHERE FeesPaid = FALSE;

This counts how many students have not paid. SUM works the same way but adds a number field instead of counting rows.

Working out the output

To find the output of an SQL script, read it in this order:

1. FROM — which table;
2. WHERE — keep only the records that match the condition;
3. SELECT — show only the chosen fields;
4. ORDER BY — put the results in order.

Read an SQL query in this order: FROM (which table), WHERE (which rows), SELECT (which fields), ORDER BY (sort)

Following these steps, you can write down exactly which rows and columns the query returns.

Boolean logic 布尔逻辑 works with values that are either true or false. In electronics these are shown as 1 (true) and 0 (false). A logic gate 逻辑门 takes one or more of these inputs and gives one output, following a fixed rule.

A truth table 真值表 lists every possible set of inputs and the output for each. You build it by writing out all the input combinations.

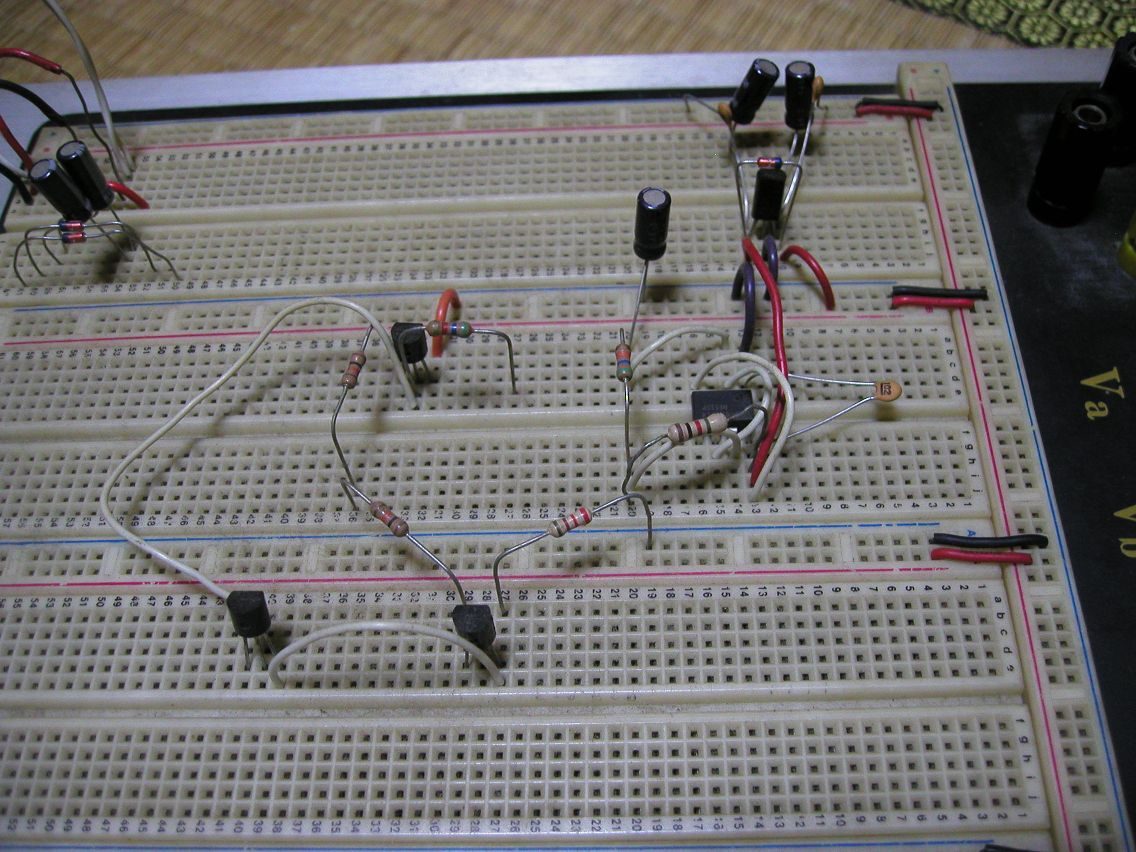

Logic gates are built from electronic circuits like this one, where each gate switches on 1s and 0s

You must know six gates. NOT has one input; all the others have two inputs (A and B).

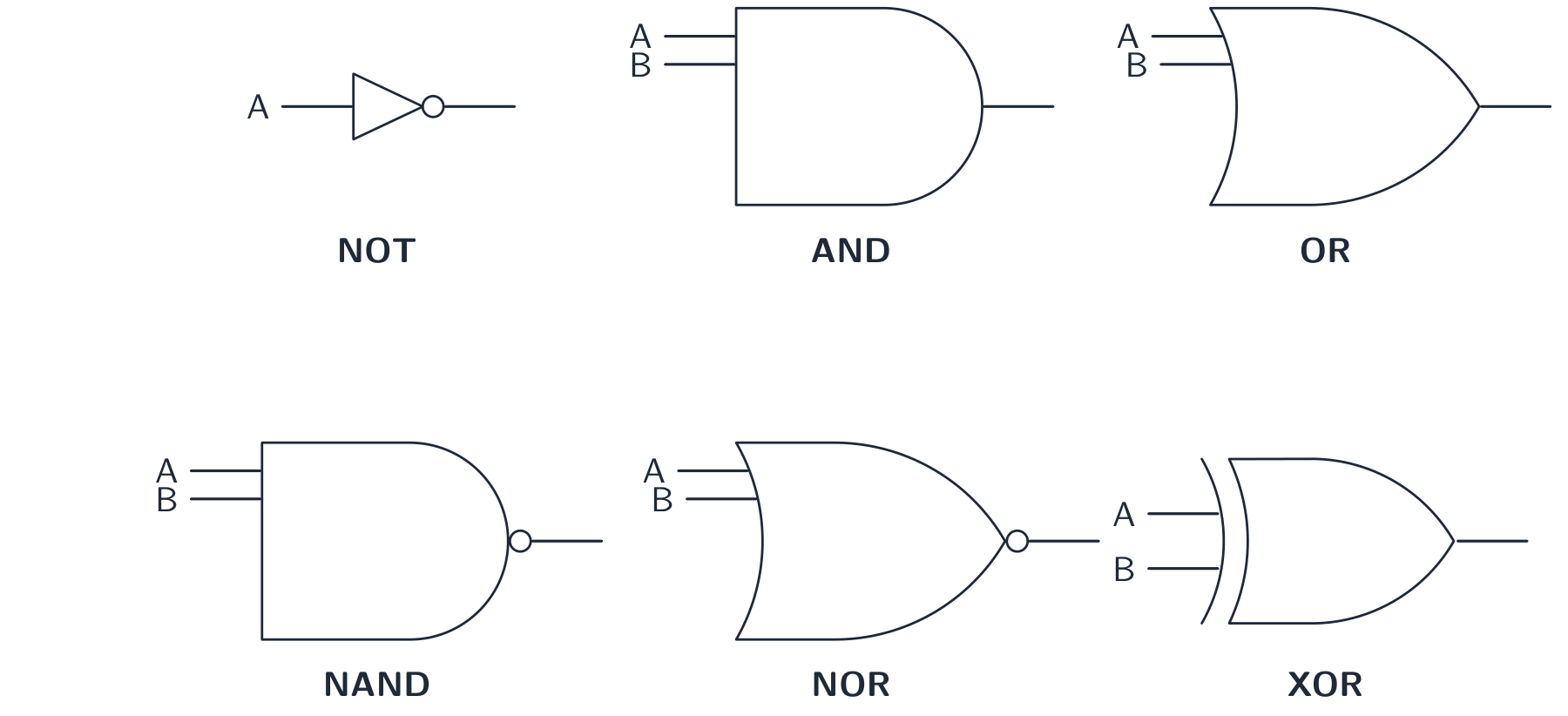

The six logic gates. A small circle on the output means the result is inverted (NOT, NAND, NOR)

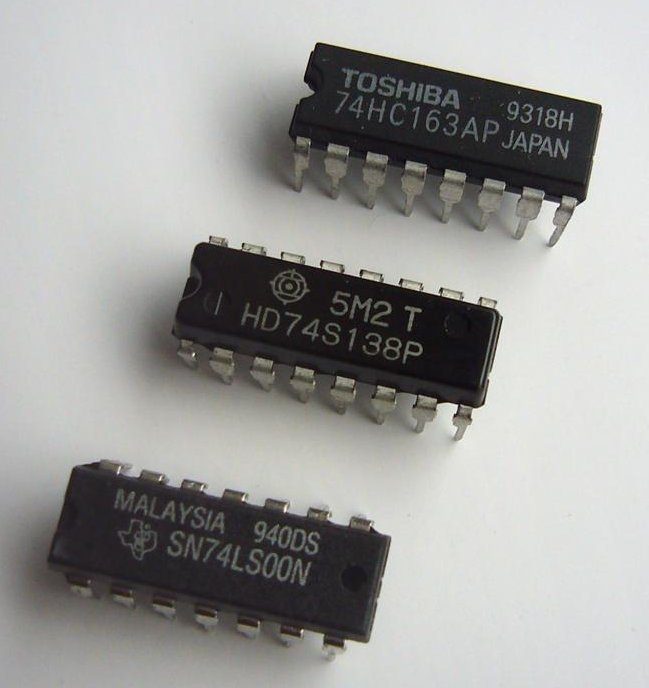

A real logic chip: inside are logic gates like the ones on this page

NOT gate

The NOT gate 非门 reverses the input. Output is 1 when the input is 0.

AND gate

The AND gate 与门 gives output 1 only when both inputs are 1.

OR gate

The OR gate 或门 gives output 1 when at least one input is 1.

NAND gate

The NAND gate 与非门 is AND followed by NOT. The output is the opposite of AND.

NOR gate

The NOR gate 或非门 is OR followed by NOT. The output is the opposite of OR.

XOR gate

The XOR gate 异或门 (exclusive OR) gives output 1 when the inputs are different.

A logic expression 逻辑表达式 writes a circuit using letters and gate words. The usual way to write the gates:

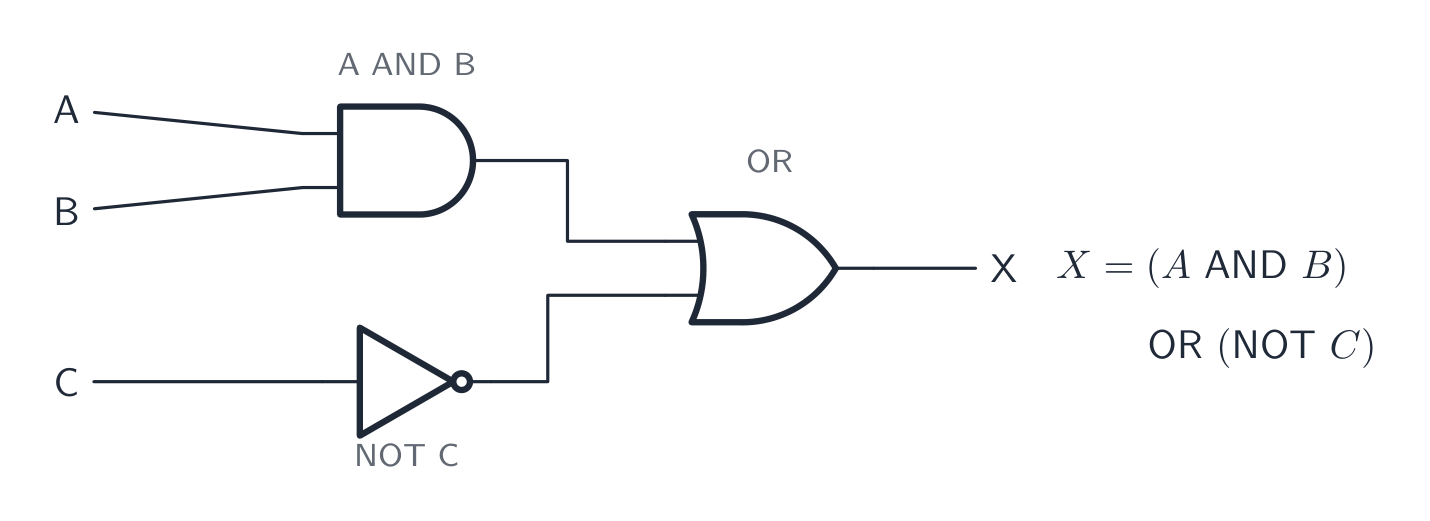

For example, the expression (A AND B) OR (NOT C) means: do A AND B, do NOT C, then OR the two results together.

A logic circuit 逻辑电路 joins gates together to carry out a task. The output of one gate can become the input of another. At IGCSE a circuit has up to three inputs and one output.

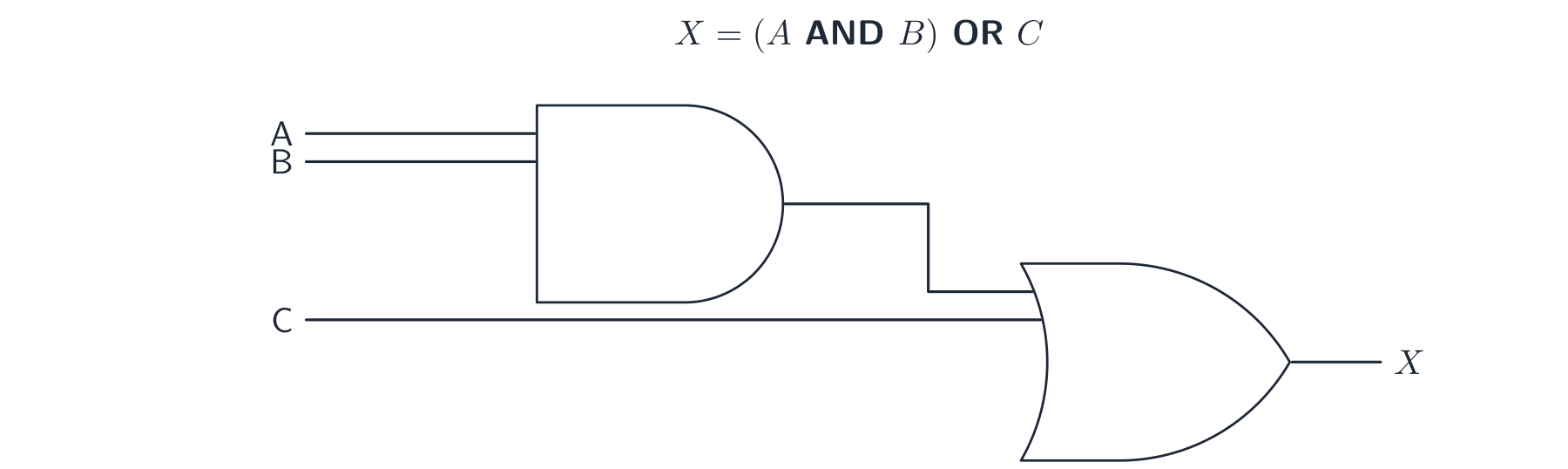

Building the circuit for X = (A AND B) OR C — the AND gate's output feeds the OR gate

You must be able to move between three forms:

• a problem statement 问题陈述 (a description in words),
• a logic expression,
• a logic circuit,
• a truth table.

From a problem statement to a circuit

Read the statement and pick out the conditions and the logic words (and, or, not). For example:

An alarm (X) sounds when the door is open (A) AND the system is switched on (B).

This is X = A AND B, so you draw one AND gate with inputs A and B.

Completing a truth table from a circuit or expression

To fill in a truth table:

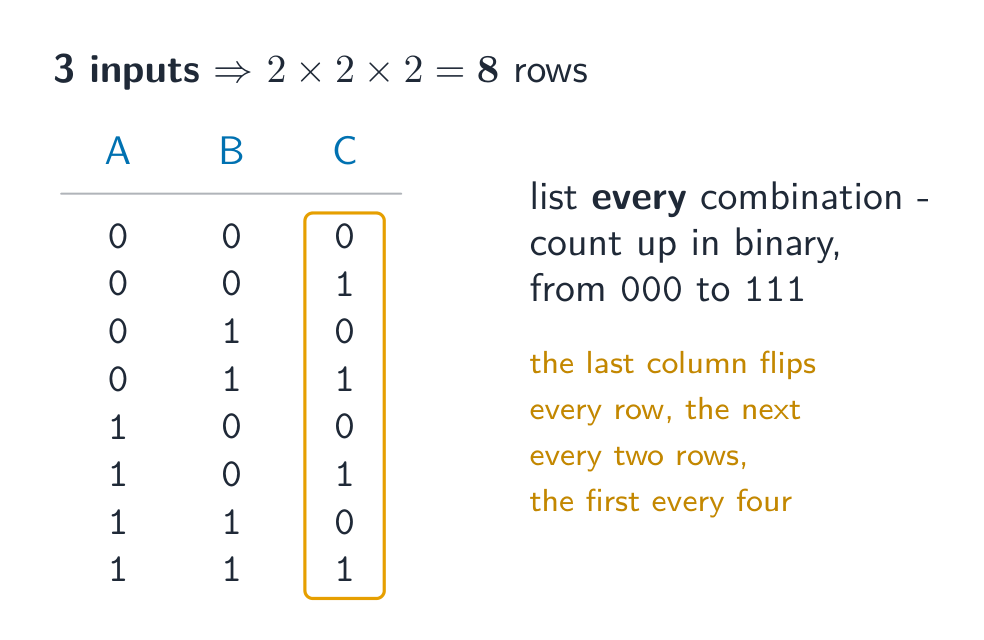

1. Write all the input combinations. For three inputs there are 8 rows (000 up to 111).
2. Work out each gate's output in order, one column at a time.
3. The last column is the final output.

Adding a middle "working" column for each gate makes the final output easy to fill in. Always draw the circuit exactly as the statement says, without simplifying it.
