Data representation

A computer can only work with two states: on and off. You write these as 1 and 0. A system that uses only two digits 数字 is called binary 二进制 (base 2).

Computers represent all data — numbers, text, sound and images — as binary strings of 0s and 1s

Every kind of data 数据 — numbers, text, sound and images — must be changed into binary before a computer can use it. The computer processes this binary using logic gates 逻辑门, and stores it in registers 寄存器 (small, fast stores inside the processor 处理器).

A microprocessor holds millions of tiny transistors, each a switch that is on (1) or off (0) — the physical basis of binary

A number system 数制 is a way of writing numbers using a fixed set of digits. You need three of them.

• denary 十进制 is the normal counting system (also called decimal).
• binary uses only 0 and 1.
• hexadecimal 十六进制 (hex) uses sixteen digits: 0–9, then A, B, C, D, E, F stand for 10, 11, 12, 13, 14, 15.

The base 基数 tells you how many different digits a system uses.

Place value

Each column in a number has a place value 位值. In binary the place values double from right to left. For an 8-bit number they are:

128  64  32  16  8  4  2  1

An 8-bit place-value chart: the 1s sit under the values that add up to 150

One bit 位 is a single 0 or 1. Eight bits make one byte 字节. Four bits (half a byte) is a nibble 半字节.

Converting between number systems

Denary → binary. Write the place values. Put a 1 under each value you need so they add up to your number; put 0 under the rest.

Example: change denary 150 to binary. $150 = 128 + 16 + 4 + 2$.

128 64 32 16 8 4 2 1
  1  0  0  1 0 1 1 0

So $150$ = 10010110.

Binary → denary. Add the place values where there is a 1. 10010110 $= 128 + 16 + 4 + 2 = 150$.

Hexadecimal → binary. Change each hex digit into its own 4-bit group (a nibble).

Example: hex F08. $F = 1111$, $0 = 0000$, $8 = 1000$, so F08 = 1111 0000 1000.

Each hex digit maps to its own 4-bit nibble — F08 = 1111 0000 1000

Binary → hexadecimal. Group the bits into nibbles of 4, starting from the right. Change each nibble to one hex digit.

Denary → hexadecimal. The easy way is to change to binary first, then binary to hex.

This table helps with the hex letters:

Cambridge questions use binary numbers up to 16 bits long.

Worked example. Convert denary 100 to 8-bit binary, then to hexadecimal.

$100 = 64 + 32 + 4$, so the binary is 01100100. Splitting into nibbles, 0110 0100 $= 6$ and $4$, so the hexadecimal is 64.

Why hexadecimal is used

Hex is shorter than binary and easier for people to read and write. One hex digit replaces 4 binary digits, so you make fewer mistakes. The value does not change — hex is just a shorter way to show the same binary.

Computer scientists use hex for:

• MAC addresses and IPv6 addresses
• colour codes in HTML (for example #FF0000 is red)
• memory addresses 内存地址 and error codes
• showing the contents of memory (a "memory dump")

You can add two 8-bit binary numbers, column by column from the right, just like denary. The rules for one column are:

When a carry also comes in, $1 + 1 + 1 = 1$ with a carry of 1.

Example: add 01110110 (118) and 00110000 (48).

  0 1 1 1 0 1 1 0    (118)
+ 0 0 1 1 0 0 0 0    (48)
-------------------
  1 0 1 0 0 1 1 0    (166)

Adding column by column; the carries ripple to the left. 118 + 48 = 166

Overflow

An 8-bit register can hold denary values from 0 to 255 only. If an addition gives a result above 255, the answer needs a 9th bit. The register cannot hold this extra bit, so it is lost. This is called overflow 溢出 (an overflow error). It happens when a value goes outside the limit the register can store.

Example: 11001000 (200) $+$ 01001000 (72) $= 272$. In binary that is 1 00010000, which needs 9 bits. The leading 1 will not fit in 8 bits, so the stored answer is wrong.

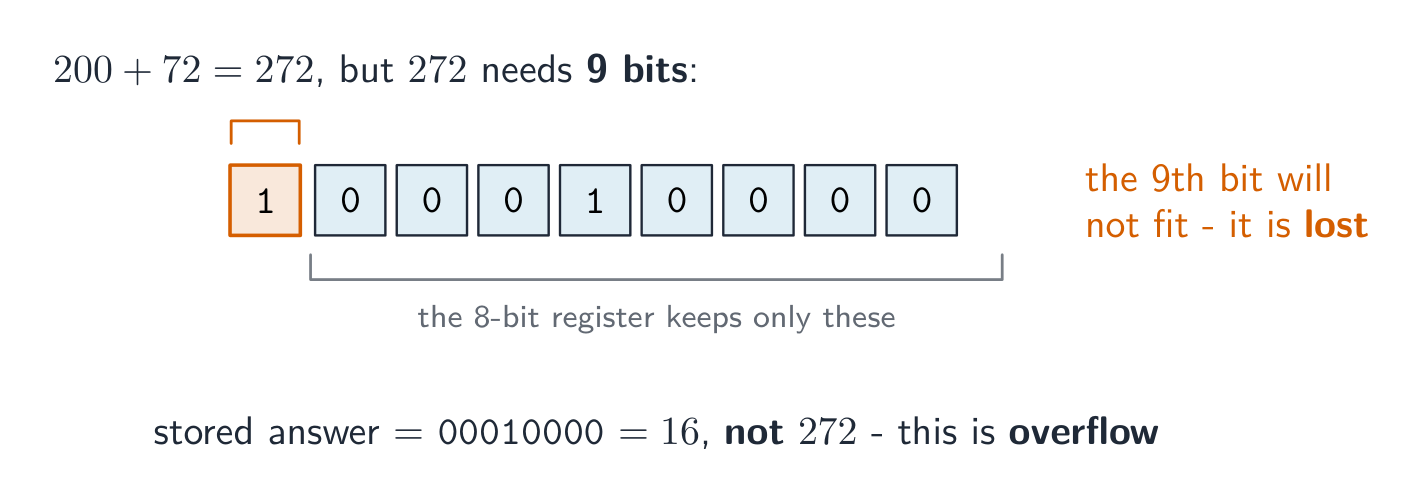

Adding 200 and 72 needs 9 bits, but an 8-bit register drops the ninth, so the answer is wrong

A logical binary shift 逻辑二进制移位 moves all the bits left or right by a number of places.

• Bits that move off the end of the register are lost.
• Zeros are added at the empty end.

A left shift multiplies the number by 2 for each place moved. A right shift divides it by 2 for each place; the right-most bits (the least significant bit(s) 最低有效位) are lost.

Example: left shift 00110101 (53) by 2 places.

start:         0 0 1 1 0 1 0 1
left shift 2:  1 1 0 1 0 1 0 0

A left shift of 2: every bit moves 2 places left, the top bits are lost and zeros fill the right

The result is 11010100 (212), which is $53 \times 4$. The two left-most bits were lost and two zeros came in on the right. If a 1 is pushed off the end, that information is gone for good.

So far the numbers were positive. Two's complement 补码 lets an 8-bit register hold negative numbers too.

In two's complement, the left-most bit (the most significant bit 最高有效位, or MSB) has a negative place value:

-128  64  32  16  8  4  2  1

• If the MSB is 0, the number is positive.
• If the MSB is 1, the number is negative.

To make a positive number negative: write the positive binary, flip every bit (0↔1), then add 1.

Example: make $-40$.

• $+40$ = 00101000
• flip the bits = 11010111
• add 1 = 11011000

So $-40$ = 11011000. Check by adding the place values: $-128 + 64 + 16 + 8 = -40$.

The most significant bit is worth −128, so 11011000 = −128 + 64 + 16 + 8 = −40

To read a negative two's complement number, just add the place values (the MSB counts as $-128$). The range of an 8-bit two's complement number is $-128$ to $+127$.

Computers store text by giving every character a number, then storing that number in binary. The set of characters a computer can use, together with their numbers, is a character set 字符集.

• ASCII uses 7 bits per character, so it has 128 different characters. This is enough for English letters, digits and common symbols.
• Unicode uses more bits per character. It can represent far more characters — many languages, plus symbols and emoji 表情符号.

Because Unicode has more characters, it needs more bits per character than ASCII, so the same text takes more storage 存储.

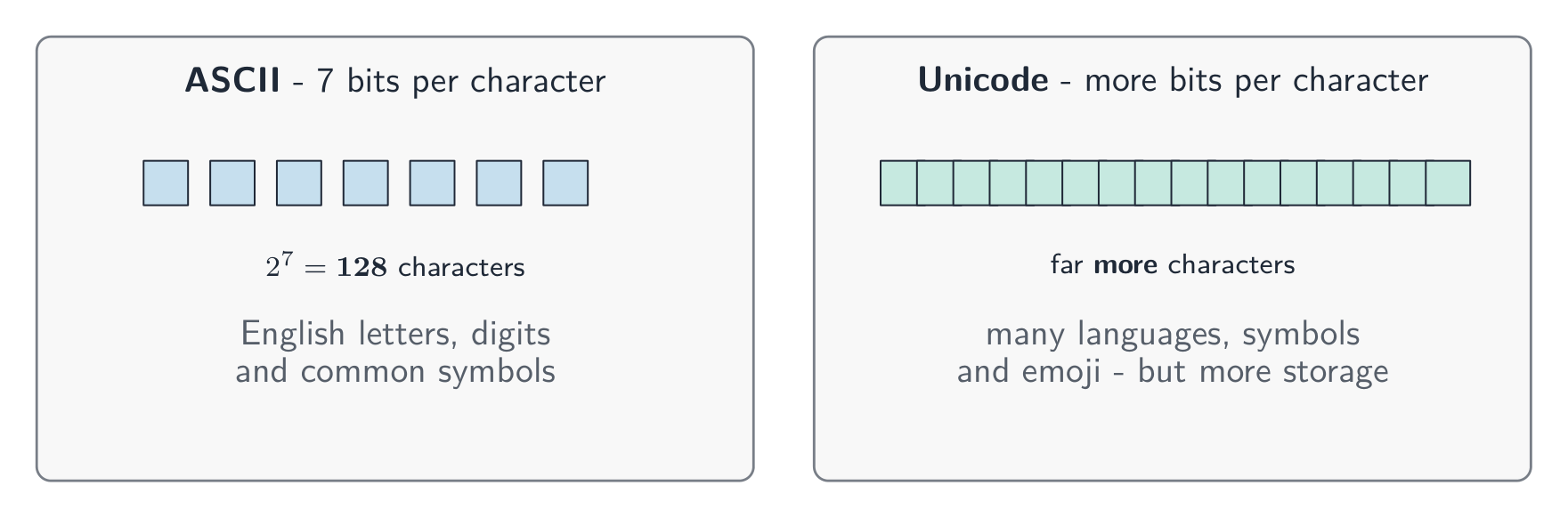

ASCII uses 7 bits for 128 characters; Unicode uses more bits for far more characters but more storage

A sound wave 声波 is smooth and always changing. To store it, the computer measures the height of the wave at regular moments. This is called sampling 采样, and each measurement is a sample.

Sampling records the wave's height (amplitude) at regular moments

• sample rate 采样率 is the number of samples taken each second (measured in Hz).
• sample resolution 采样分辨率 is the number of bits used for each sample. The height of the wave at a sample point is its amplitude 振幅.

A higher sample rate and a higher sample resolution give a more accurate recording, but a larger file.

A computer image is made of a grid of small dots called pixels 像素.

A bitmap is a grid of pixels; the resolution is how many pixels it has

• resolution 分辨率 is the number of pixels in the image (for example $1920 \times 1080$).
• colour depth 颜色深度 is the number of bits used to store the colour of each pixel.

A higher resolution and a higher colour depth give a better-quality image, but a larger file.

Data storage is measured in the units below. Each unit is 1024 times the one before it (because $1024 = 2^{10}$, which fits binary).

Image file size (in bits) $=$ resolution $\times$ colour depth $=$ width $\times$ height $\times$ colour depth.

Example: an image is $1024 \times 1024$ pixels with a colour depth of 2 bytes ($= 16$ bits).

• bits $= 1024 \times 1024 \times 16 = 16\,777\,216$ bits
• bytes $= \div 8 = 2\,097\,152$ bytes
• KiB $= \div 1024 = 2048$ KiB
• MiB $= \div 1024 = 2$ MiB

Sound file size (in bits) $=$ sample rate $\times$ sample resolution $\times$ length in seconds.

Always divide by 1024 (not 1000) to change to KiB, MiB and so on. Give your answer in the unit the question asks for.

Worked example. A sound is recorded for 30 seconds at a sample rate of 8,000 Hz with a sample resolution of 16 bits. Find the file size in kibibytes (KiB).

• bits $= 8\,000 \times 16 \times 30 = 3\,840\,000$ bits
• bytes $= 3\,840\,000 \div 8 = 480\,000$ bytes
• KiB $= 480\,000 \div 1024 \approx 469$ KiB

Compression 压缩 makes a file smaller. A smaller file:

• uses less storage space,
• needs less bandwidth 带宽 (the amount of data a connection can carry),
• takes a shorter time to send (a shorter transmission 传输 time).

There are two types.

Lossless compression

Lossless 无损 compression makes the file smaller with no permanent loss of data. The original file can be rebuilt exactly.

One method is run-length encoding 行程编码 (RLE). It replaces a run of repeated values with one copy of the value and a count of how many times it repeats. For example WWWWWWWW (8 whites) is stored as "8 W". This works well when data has many repeats.

Run-length encoding stores each run once as a count and a value

Lossy compression

Lossy 有损 compression makes the file much smaller by permanently removing some data. The removed data cannot be got back. For example:

• reducing the resolution or colour depth of an image,
• reducing the sample rate or sample resolution of a sound.

Use lossless when you must keep every detail (text and program files). Use lossy for photos, music and video, where a small loss of quality is worth a much smaller file.

• Convert denary → binary by subtracting the place values (128, 64, 32 …); binary → denary by adding the place values that hold a 1.
• To convert to hex, group the binary into nibbles of 4 bits from the right; each nibble is exactly one hex digit.
• Overflow happens when a result needs more bits than the register has (an 8-bit register only holds 0–255), so the extra bit is lost.
• File size in bits: for an image, width × height × colour depth; for sound, sample rate × resolution × seconds. Divide by 8 for bytes, then by 1024 for each larger unit.
• Lossless compression keeps every bit (text; run-length encoding); lossy permanently removes data (photos, music) for a much smaller file.
