Comparing Distributions of a Quantitative Variable
Đã giới thiệu| English | Ý nghĩa |
|---|---|
| parallel boxplots/ˈpærəlel ˈbɒksplɒts/ | biểu đồ hộp song song |
Putting two groups side by side
- Often the real question is a comparison: do boys and girls, or two treatments, differ?
- Show the groups together with parallel boxplots 平行箱线图 or back-to-back displays.
- Then compare them explicitly, feature by feature.
- A good comparison names the difference and its direction, in context.
One group's boxplot
Placing two boxplots side by side lets you compare their centers, spreads, and shapes explicitly.
Parallel boxplots are a good way to compare two or more distributions.
Độ khó 1/5 · 100 xu + một phần thưởng nhỏ cho lần hoàn thành đầu tiên trong ngày
They align groups on the same scale.
Compare shape, center, spread
- Shape: is each group symmetric or skewed? Do they differ in form?
- Center: which group has the higher median (or mean)? By how much?
- Spread: which group is more variable (bigger IQR or SD)?
- Address all three — a comparison that mentions only the center is incomplete.

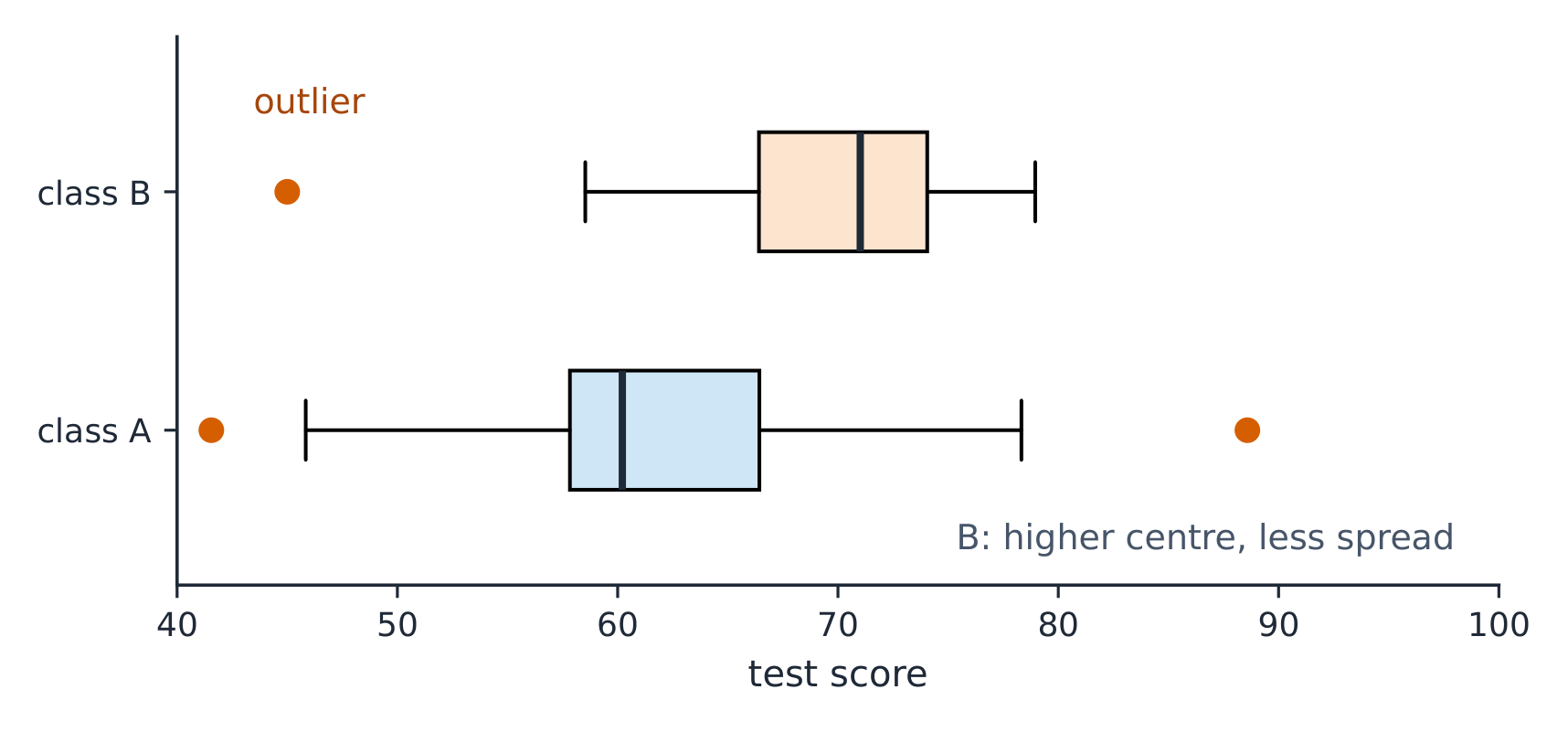

Parallel box plots compare centre, spread and outliers of two groups
A complete comparison of two groups addresses which features?
Độ khó 2/5 · 140 xu + một phần thưởng nhỏ cho lần hoàn thành đầu tiên trong ngày
Shape, center, spread, and unusual features for both groups.
A wider box (larger IQR) means a group is...
Độ khó 1/5 · 100 xu + một phần thưởng nhỏ cho lần hoàn thành đầu tiên trong ngày
Bigger IQR = more spread = more variable.
Use comparative language
- Say it comparatively: "Group A's median is greater than Group B's," or "Group A is more variable than Group B."
- Vague statements ("they're different") earn no credit — be specific about what differs and which way.
- Always tie the comparison to the context (the actual variable and groups).
- Comparative words — greater, less, more spread out — are what graders look for.
Which statement earns credit on the AP exam?
Độ khó 1/5 · 100 xu + một phần thưởng nhỏ cho lần hoàn thành đầu tiên trong ngày
Explicit, directional, in context.
Comparisons should be ____ — stating which group is greater and by how much.
Độ khó 1/5 · 100 xu + một phần thưởng nhỏ cho lần hoàn thành đầu tiên trong ngày
Directional, quantified, in context.
Note outliers and unusual features
- Do the groups differ in outliers or other unusual features?
- One group might have a high outlier the other lacks, or a gap.
- Mention these differences too — they can be the most interesting finding.
- A complete comparison covers shape, center, spread, and unusual features for both groups.
If one group has a low outlier the other lacks, you should...
Độ khó 1/5 · 100 xu + một phần thưởng nhỏ cho lần hoàn thành đầu tiên trong ngày
Differences in outliers are part of a complete comparison.
Comparisons must be explicit and directional: "Group A's median (72) is higher than Group B's (65)" — not just "the medians are different." State which group is greater/more variable, by roughly how much, in context. Merely describing each group separately, without comparing, misses the point.
Parallel boxplots of test scores for Class A and Class B.
- Center: Class A's median ($78$) is greater than Class B's ($70$).
- Spread: Class B is more variable (a wider box/IQR).
- Shape/unusual: both roughly symmetric, but Class B has a low outlier that Class A lacks.
Compare distributions with parallel boxplots (or back-to-back plots), addressing shape, center, spread, and unusual features for both groups. Use explicit comparative language ("greater than," "more variable than") with direction and context — not just "they differ."
Write from a higher median
- Group A has median 42 and a small spread.
- Group B has median 55 and a similar spread.
How should the centers be compared?
Compare centers with the medians when those are the summaries given.
Which group has the higher median?
Độ khó 1/5 · 100 xu + một phần thưởng nhỏ cho lần hoàn thành đầu tiên trong ngày
55 is greater than 42.
