Lenses and dispersion
| English | Chinese | Pinyin |
|---|---|---|
| dispersion | 色散 | sè sàn |
| diverging lens | 凹透镜 | āo tòu jìng |
| converging lens | 凸透镜 | tū tòu jìng |
| principal focus | 焦点 | jiāo diǎn |
| focal length | 焦距 | jiāo jù |
| real image | 实像 | shí xiàng |
| virtual image | 虚像 | xū xiàng |
| spectrum | 光谱 | guāng pǔ |
| monochromatic | 单色 | dān sè |
Focusing and splitting light
- A magnifying glass makes tiny print big; a prism turns white light into a rainbow.
- Both use refraction — bending light in a careful, shaped way.
- Meet the lens and dispersion 色散.
Converging and diverging lenses 凹透镜
- A converging lens 凸透镜 is fat in the middle. It bends parallel rays inwards to meet at the principal focus 焦点.
- The distance from the lens to that focus is the focal length 焦距 $f$.
- A diverging lens is thin in the middle and spreads rays out.

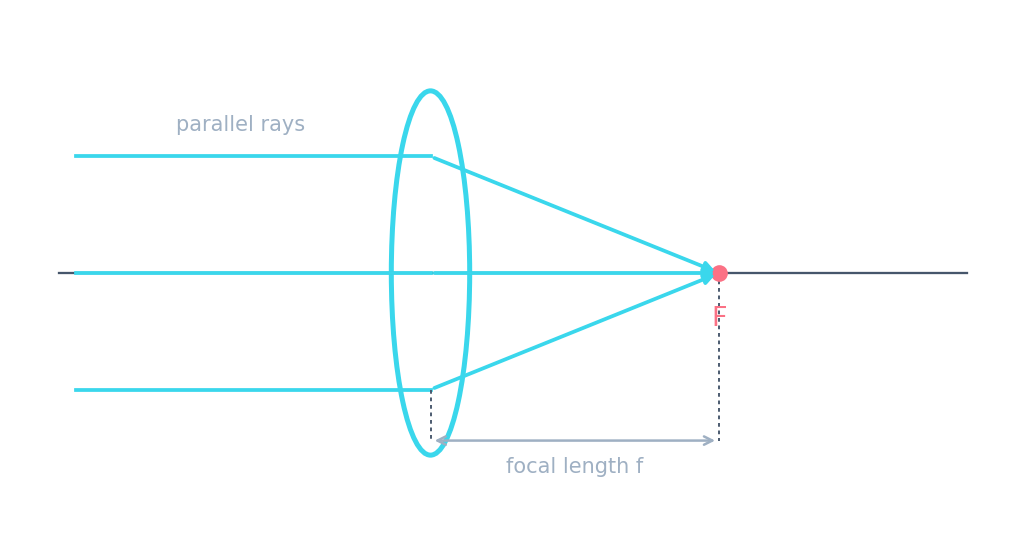

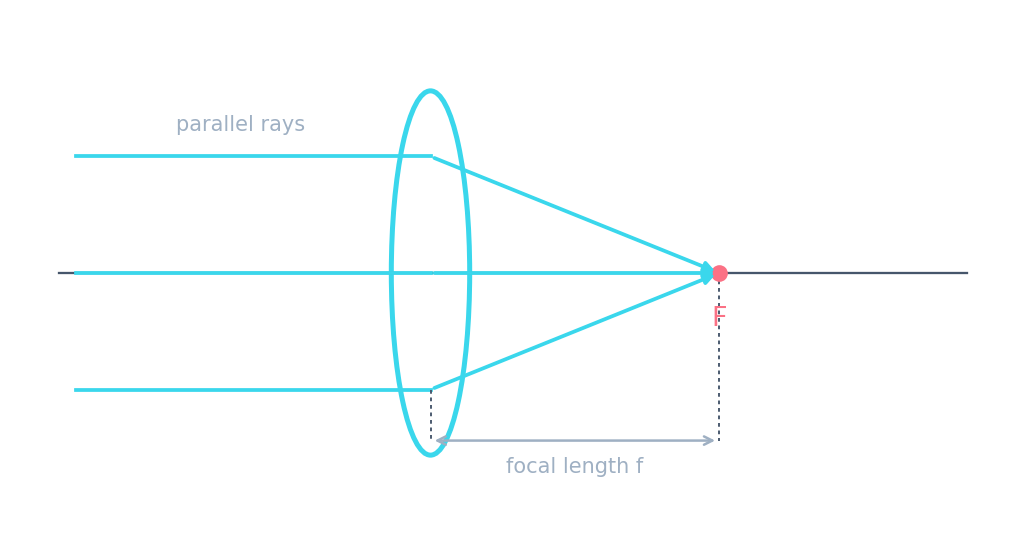

A converging lens and its principal focus
Image formation by a converging lens
Trace the three special rays from the object — where they meet is the image. Move the object closer than the focal point to flip it into a magnifying glass.
A converging lens makes parallel rays of light:
A converging (convex) lens bends parallel rays inward so they meet at the principal focus.
The distance from the lens to its principal focus is called the ____ length.
The focal length is the distance from the centre of the lens to the principal focus.
Images from a lens
- A converging lens can make a real image 实像 — the rays really meet, so it can be shown on a screen (as in a camera or the eye).
- When the object is very close, it makes a larger virtual image 虚像 instead.
- Used close to the eye like this, the lens is a magnifying glass.
Used close to the eye as a magnifying glass, a converging lens makes a:
With the object very close, the lens forms an enlarged, upright virtual image — a magnifying glass.
Dispersion

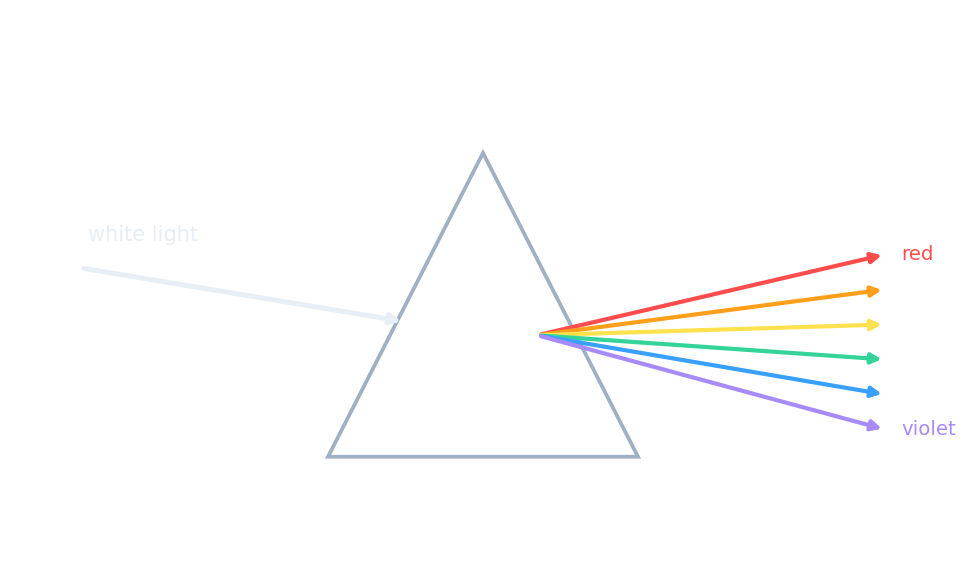

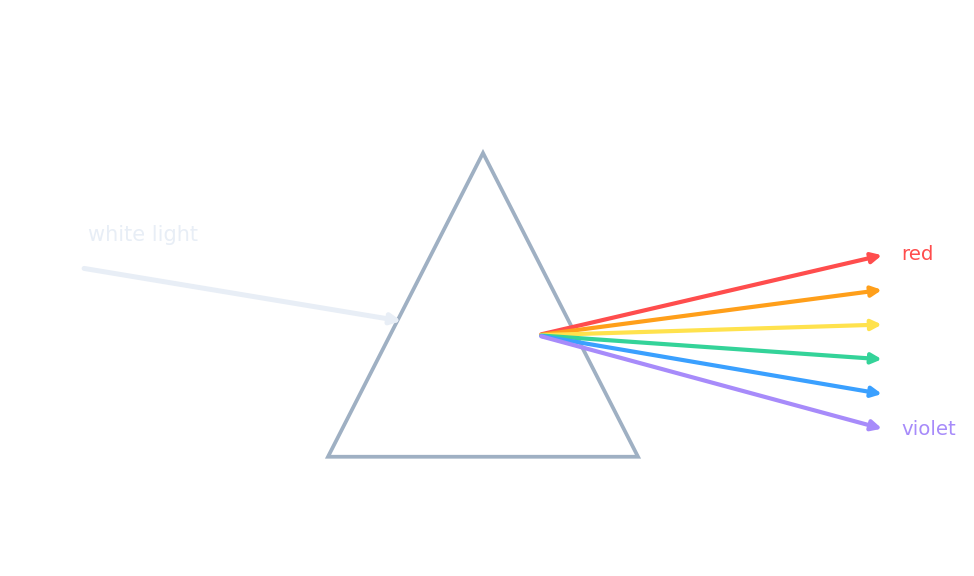

- A glass prism splits white light into a band of colours — the spectrum 光谱. This splitting is dispersion.
- The order is red, orange, yellow, green, blue, indigo, violet.
- Red bends least: it has the longest wavelength and lowest frequency. Violet is the opposite.
- Light of a single colour (one frequency) is monochromatic 单色.
Put these spectrum colours in order of wavelength, longest first.
Red has the longest wavelength and violet the shortest, so: red, yellow, green, blue, violet.
Which colour of visible light has the longest wavelength?
Red light has the longest wavelength and lowest frequency; violet has the shortest wavelength and highest frequency.
You've got it
- a converging lens brings parallel rays to the principal focus; lens-to-focus = focal length
- it makes a real image (on a screen) — or a magnified virtual image when the object is close (magnifying glass)
- a prism causes dispersion: white light → red…violet
- red = longest wavelength, lowest frequency; violet = shortest, highest
