Scatter diagrams and correlation
Introduced| English | Meaning |
|---|---|
| scatter diagram/ˈskætə ˈdaɪəɡræm/ | A plot of paired data as points, showing correlation. |
| correlation/ˌkɒrɪˈleɪʃn/ | A statistical association between variables, which does not by itself establish causation. |
| positive correlation/ˈpɒzɪtɪv ˌkɒrɪˈleɪʃn/ | positive correlation |
| negative correlation/ˈneɡətɪv ˌkɒrɪˈleɪʃn/ | negative correlation |
| line of best fit/laɪn ɒv best fɪt/ | A line chosen to summarise the overall relationship between two variables in a scatter plot. |
| extrapolation/ekˈstræpəleɪʃn/ | Estimating a value outside the range of observed data by extending a pattern or model. |
| outlier/ˈaʊtlaɪə/ | An observation unusually far from the rest of the data or from the pattern expected under a model. |
Do tall people have bigger feet?
- Plot height against shoe size for 30 people and you'll see a pattern: taller people tend to have larger feet.
- A scatter diagram 散点图 reveals whether two variables are linked — and how strongly.
Correlation 相关性
- Positive correlation 正相关: as one goes up, the other goes up (points slope upward).
- Negative correlation 负相关: as one goes up, the other goes down (points slope downward).
- Zero correlation: no clear pattern (points scattered randomly).
Correlation $\neq$ causation. Ice cream sales and drowning deaths both rise in summer — but ice cream doesn't cause drowning. Both are caused by a third factor: hot weather.
A line of best fit 最佳拟合线 is one straight line through the middle of the points, with about as many on each side; use it to predict
Scatter & correlation
r near ±1 = strong
Tighten the points to see strong correlation; scatter them for weak — read r and the line.
As one quantity increases, the other also increases. This is:
Difficulty 1/5 · 100 coins + a small bonus on first completion today
Both rising together is positive correlation.
Negative correlation means as one quantity goes up, the other goes down.
Difficulty 1/5 · 100 coins + a small bonus on first completion today
A downward trend on the scatter diagram is negative correlation.
If two variables are correlated, one must cause the other.
Difficulty 1/5 · 100 coins + a small bonus on first completion today
Correlation does not prove causation — both could be caused by a third factor.
Line of best fit
- If there is correlation, draw one straight line through the middle of the points, with roughly equal numbers on each side.
- Use it to predict values.
A line of best fit through height-shoe size data: height $170$ cm → predicted shoe size $9$. But don't trust predictions far outside the data range (extrapolation 外推 is risky).
Positive correlation: both rise together. Negative: one rises as the other falls. Zero: no clear link
A line of best fit is mainly used to:
Difficulty 1/5 · 100 coins + a small bonus on first completion today
It models the trend so you can predict one value from the other.
Using the line of best fit to predict values far outside the data range is called ______.
Difficulty 1/5 · 100 coins + a small bonus on first completion today
Extrapolation is unreliable because the trend may not continue beyond the observed data.
Outliers 异常值 on scatter diagrams
- A point far from the general pattern is an outlier.
- Investigate before removing it — it might be a genuine unusual case, or a recording error.

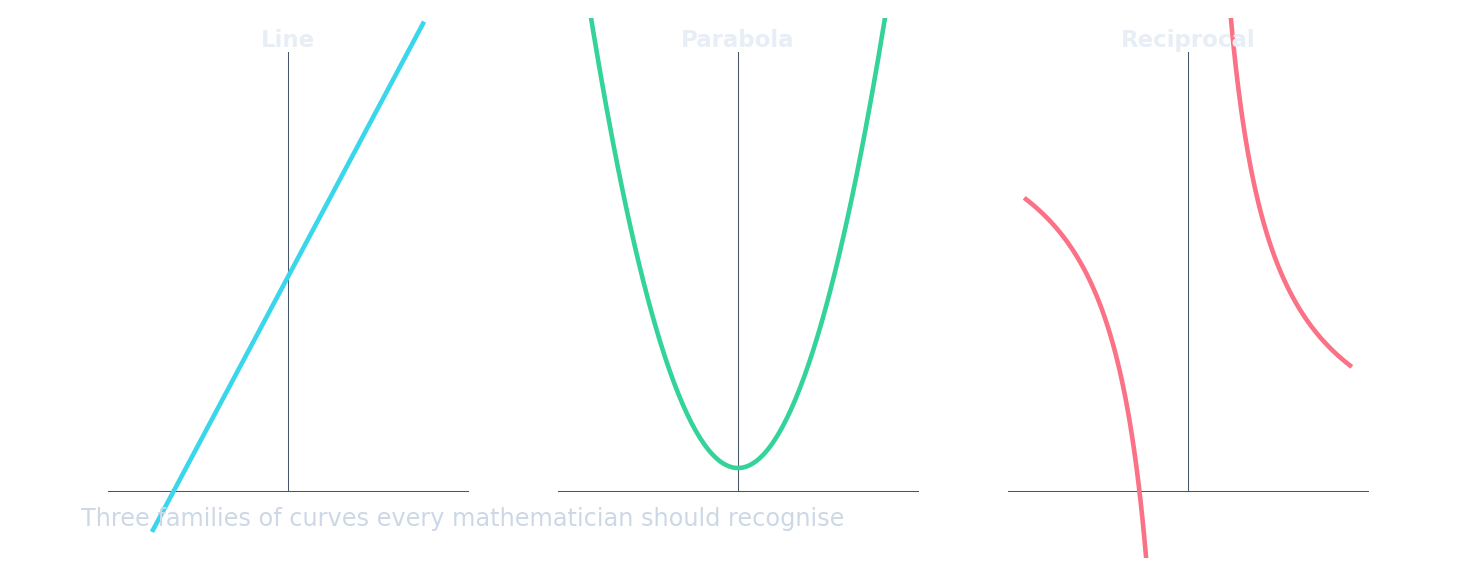

Scatter diagrams reveal patterns: positive (like a rising line), negative (like a falling line), or zero (no pattern).
On a scatter diagram, most points follow a line, but one point is far away. This point is called an ______.
Difficulty 1/5 · 100 coins + a small bonus on first completion today
An outlier is a data point that does not fit the general pattern.
Plot pairs and read an estimate
- Mark each pair with a small cross, not joined points. For $(1,12),(2,15),(3,19),(4,20),(5,24)$, a sensible by-eye line is close to $y=3x+9$; it spans all the data and roughly balances the points above and below.
- At $x=3.5$, this line estimates $y=19.5$. A nearby balanced line may give a slightly different answer. Predicting at $x=20$ is extrapolation and much less secure; correlation alone does not prove cause.
Use the line y = 3x + 9 to estimate y at x = 3.5.
Difficulty 2/5 · 140 coins + a small bonus on first completion today
y = 3(3.5) + 9 = 19.5.
You've got it
- positive correlation rises together; negative falls as the other rises; zero $=$ no link
- a line of best fit is one straight line through the middle of the points
- use the line to predict — but don't trust it far outside the data
