The development life cycle and design tools
Introduced| English | Meaning |
|---|---|
| program development life cycle/ˈprəʊɡræm dɪˈveləpmənt laɪf ˈsaɪkl/ | program development life cycle |
| design/dɪˈzaɪn/ | design |
| analysis/əˈnæləsɪs/ | Examination of information or a problem to identify its parts, relationships, meaning and implications. |
| coding/ˈkəʊdɪŋ/ | coding |
| testing/ˈtestɪŋ/ | testing |
| abstraction/əbˈstrækʃn/ | Representing essential features while leaving out unnecessary detail. |
| decomposition/ˌdiːkɒmpəˈzɪʃn/ | The breakdown of a substance or system into simpler components. |
| flowchart/ˈfləʊtʃɑːt/ | A diagram showing the sequence of steps and decisions in a process or algorithm. |
| pseudocode/ˈsuːdəʊkəʊd/ | A language-independent description of an algorithm using structured, programming-like statements. |
Building a program
- A program is built in stages — the program development life cycle 程序开发生命周期.
- We plan it with design 设计 tools, then write the algorithm.
- Every algorithm breaks into input → processing → output.
The four stages
- Analysis 分析 — study the problem and work out what's needed.
- Design — plan how the program will work.
- Coding 编码 — write the code, testing 测试 small parts as you go (iterative testing).
- Testing — run the finished program with test data to find errors.
- Two analysis skills: abstraction 抽象 (keep only the important details) and decomposition 分解 (break a big problem into smaller parts).

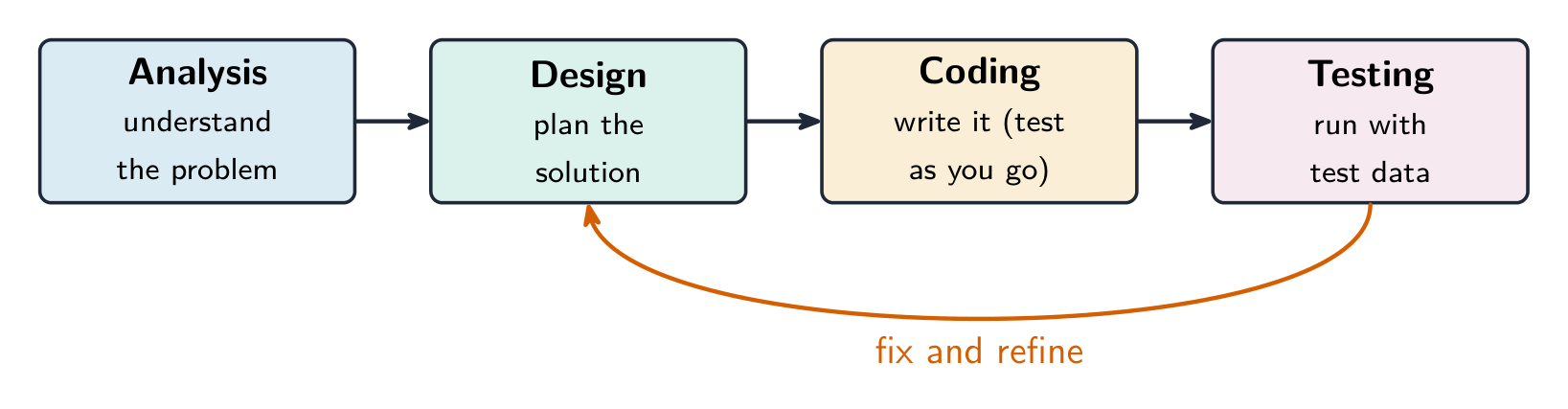

The four stages of program development; testing feeds back to fix and refine the design.
The program development life cycle
Step through the stages every project follows — work out what's needed, plan it, build it, then check it. Getting analysis right first saves a lot of rework later.
Put the development life cycle stages in order.
Difficulty 3/5 · 200 coins + a small bonus on first completion today
Analysis (what is needed) → design (plan) → coding (write) → testing (check).
Abstraction means:
Difficulty 1/5 · 100 coins + a small bonus on first completion today
Abstraction simplifies; decomposition breaks a problem into parts.
Match each design concept to what it means.
Difficulty 2/5 · 140 coins + a small bonus on first completion today
Abstraction simplifies, decomposition splits up, pseudocode plans the steps, and IPO is the overall flow.
Design tools
- A structure diagram — shows the parts of a system and how they fit together.
- A flowchart 流程图 — boxes and arrows showing the steps in order.
- Pseudocode 伪代码 — steps in simple, code-like English (not a real language).
Software is written by programmers who follow the development life cycle.
Pseudocode is:
Difficulty 1/5 · 100 coins + a small bonus on first completion today
Pseudocode describes an algorithm in readable, code-like English without being a real language.
Input, processing, output
- Every algorithm decomposes into input (the data in), processing (the work done), and output (the result).
- e.g. "average of three marks": input the 3 marks → add them and divide by 3 → output the average.
A program flowchart sets out the steps and decisions of a program during the design stage.
Every algorithm can be decomposed into:
Difficulty 1/5 · 100 coins + a small bonus on first completion today
Input (data in) → processing (the work) → output (the result).
You've got it
- life cycle: analysis → design → coding → testing
- abstraction = keep what matters; decomposition = break into parts
- design tools: structure diagram, flowchart, pseudocode
- every algorithm = input → processing → output
