The mitotic cell cycle

A-Level Biology · Topic 5

Train
5.1

The structure of a chromosome

Syllabus
  1. describe the structure of a chromosome, limited to: • DNA • histone proteinssister chromatidscentromeretelomeres
  2. explain the importance of mitosis in the production of genetically identical daughter cells during: • growth of multicellular organisms • replacement of damaged or dead cells • repair of tissues by cell replacement • asexual reproduction
  3. outline the mitotic cell cycle, including: • interphase (growth in G_1 and G_2 phases and DNA replication in S phase) • mitosis • cytokinesis
  4. outline the role of telomeres in preventing the loss of genes from the ends of chromosomes during DNA replication
  5. outline the role of stem cells in cell replacement and tissue repair by mitosis
  6. explain how uncontrolled cell division can result in the formation of a tumour

Source: Cambridge International syllabus

Mitosis: one cell into two

A chromosome 染色体 is one very long molecule of DNA wound tightly around special proteins 蛋白质 called histones 组蛋白. Winding the DNA like this lets a huge length fit inside the nucleus and keeps it tidy.

Before a cell divides, its DNA is copied (this copying is called replication 复制). After copying, each chromosome is made of two identical copies joined together. These two copies are the sister chromatids 姐妹染色单体, and they are held together at a point called the centromere 着丝粒. The tips of each chromosome are capped by telomeres 端粒, which protect the ends.

A replicated chromosome drawn as two sister chromatids joined at a central centromere, with telomeres capping the four tips After replication a chromosome is two sister chromatids joined at the centromere, with telomeres at the tips

Vocabulary Train
English Chinese Pinyin
chromosome 染色体 rǎn sè tǐ
protein 蛋白质 dàn bái zhì
histone 组蛋白 zǔ dàn bái
replication 复制 fù zhì
sister chromatids 姐妹染色单体 jiě mèi rǎn sè dān tǐ
centromere 着丝粒 zhe sī lì
telomere 端粒 duān lì
5.1

Why mitosis matters

Mitosis 有丝分裂 is a type of nuclear division that makes two daughter cells 子细胞 that are genetically identical — they carry exactly the same genes 基因 as the parent cell and as each other.

This matters for:

  • growth of multicellular 多细胞 organisms 生物体 (making more cells).
  • replacement of damaged or dead cells.
  • repair of tissues 组织 by making new cells.
  • asexual reproduction 无性生殖 (one parent makes identical offspring).
Explore

Why mitosis matters

Classify real cases by the role mitosis is playing.

Vocabulary Train
English Chinese Pinyin
mitosis 有丝分裂 yǒu sī fēn liè
daughter cell 子细胞 zi xì bāo
gene 基因 jī yīn
multicellular 多细胞 duō xì bāo
organism 生物体 shēng wù tǐ
tissue 组织 zǔ zhī
asexual reproduction 无性生殖 wú xìng shēng zhí
5.1

The mitotic cell cycle

The cell cycle 细胞周期 is the full life of a cell from one division to the next. It has three parts:

  1. interphase 间期 — the longest part. The cell grows in the G₁ phase, copies its DNA in the S phase (replication), and grows again and prepares to divide in the G₂ phase.
  2. mitosis — the nucleus divides into two identical nuclei.
  3. cytokinesis 胞质分裂 — the rest of the cell splits, giving two separate daughter cells.

A pie chart of the cell cycle: a large interphase made of G1, S and G2, plus a smaller M phase for mitosis and cytokinesis, with an arrow showing the direction Most of the cycle is interphase (G₁, S, G₂); mitosis (M) and cytokinesis are a short part

The mitotic index

The mitotic index is the fraction of cells in a sample that are in mitosis. You find it by counting cells under a microscope:

$$\text{mitotic index} = \frac{\text{number of cells in mitosis}}{\text{total number of cells}}.$$

Worked example. In a root-tip sample, $8$ of the $50$ cells seen are in mitosis. Find the mitotic index.

$$\text{mitotic index} = \frac{8}{50} = 0.16.$$

A high mitotic index means many cells are dividing quickly — normal in a growing root tip, but in adult animal tissue it can be a warning sign of uncontrolled growth.

Explore

The cell cycle

Step around the cycle. Most of it is interphase (grow, copy DNA, grow); mitosis and cytokinesis are short, then it repeats.

Explore

The cell cycle

Step through the cycle. Most of a cell's life is interphase (G1, S, G2); mitosis and cytokinesis are the short dividing phase.

Vocabulary Train
English Chinese Pinyin
cell cycle 细胞周期 xì bāo zhōu qī
interphase 间期 jiān qī
cytokinesis 胞质分裂 bāo zhì fēn liè
5.1

Telomeres and the ends of chromosomes

When DNA is replicated, the copying cannot reach the very end of the molecule, so a little is lost each time. Telomeres are short, repeated lengths of DNA at the ends that carry no genes. Because the telomeres are shortened instead, no important genes are lost during replication.

A chromosome shown three times: the red telomere caps at each end get shorter after each division, while the blue gene-carrying middle stays the same length The telomeres (which carry no genes) shorten a little at each division, so the genes in the middle are never lost

5.1

Stem cells

A stem cell 干细胞 is an unspecialised cell that can keep dividing by mitosis and can differentiate 分化 (change) into different specialised cell types. Stem cells are the source of new cells for replacing lost cells and repairing tissues.

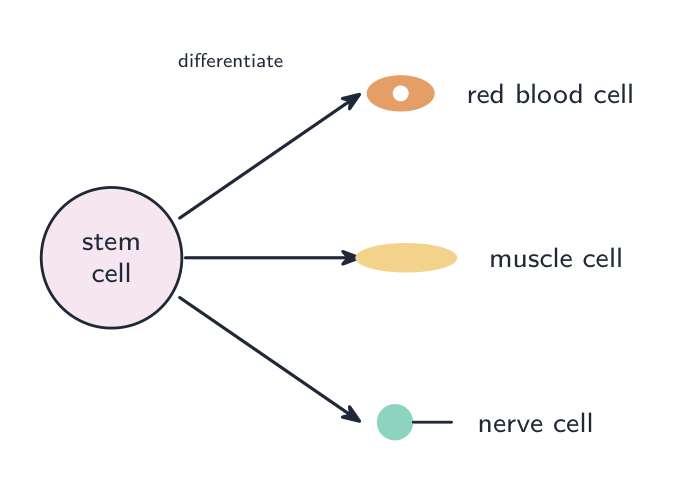

An unspecialised stem cell with arrows to three specialised cells: a red blood cell, a muscle cell and a nerve cell One unspecialised stem cell can differentiate into many specialised cell types

Vocabulary Train
English Chinese Pinyin
stem cell 干细胞 gàn xì bāo
differentiate 分化 fēn huà
5.1

Uncontrolled division and tumours

The cell cycle is normally tightly controlled, so cells divide only when needed. If this control is lost, a cell may divide again and again without stopping. This uncontrolled division produces a lump of cells called a tumour 肿瘤.

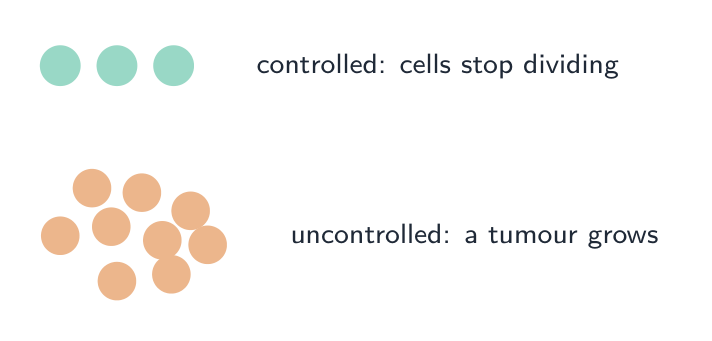

Controlled division shown as a few separate cells that stop; uncontrolled division shown as a growing clump of cells forming a tumour Normally cells stop dividing when they should; if that control is lost, they keep dividing into a tumour

Vocabulary Train
English Chinese Pinyin
tumour 肿瘤 zhǒng liú
5.2

The stages of mitosis

Syllabus
  1. describe the behaviour of chromosomes in plant and animal cells during the mitotic cell cycle and the associated behaviour of the nuclear envelope, the cell surface membrane and the spindle (names of the main stages of mitosis are expected: prophase, metaphase, anaphase and telophase)
  2. interpret photomicrographs, diagrams and microscope slides of cells in different stages of the mitotic cell cycle and identify the main stages of mitosis

Source: Cambridge International syllabus

Mitosis runs through four stages. You should be able to recognise them in photomicrographs and slides.

Stage What happens
prophase 前期 chromosomes coil up and become visible as two sister chromatids; the nuclear envelope 核膜 breaks down; a spindle 纺锤体 of fibres forms across the cell
metaphase 中期 chromosomes line up along the middle (the equator 赤道); spindle fibres attach to each centromere
anaphase 后期 the centromeres split; the sister chromatids are pulled to opposite ends (poles) of the cell
telophase 末期 a set of chromosomes reaches each pole; a new nuclear envelope forms around each set, making two nuclei

Four cells showing prophase, metaphase, anaphase and telophase: chromosomes condense, line up at the equator, separate to the poles, then form two new nuclei The four stages: prophase, metaphase, anaphase, telophase

A stained light micrograph of an onion root tip with many square cells, several caught in the act of dividing A real onion root tip: in a growing tip many cells are caught dividing

Cytokinesis then follows. In an animal cell the cell surface membrane pinches inwards to split the cell; in a plant cell a new wall forms across the middle. The result is two genetically identical daughter cells.

Explore

The stages of mitosis

Drag through prophase, metaphase, anaphase and telophase to watch the chromosomes line up and then separate into two identical cells.

Explore

The stages of mitosis

Step through PMAT. Watch the chromosomes condense, line up, split to the poles, then reform two nuclei.

Vocabulary Train
English Chinese Pinyin
prophase 前期 qián qī
nuclear envelope 核膜 hé mó
spindle 纺锤体 fǎng chuí tǐ
metaphase 中期 zhōng qī
equator 赤道 chì dào
anaphase 后期 hòu qī
telophase 末期 mò qī
5.2

Exam tips

  • Learn the stages in order (prophase, metaphase, anaphase, telophase) with one key event each; interphase (G1, S, G2) is not part of mitosis.
  • Mitosis gives two genetically identical diploid cells — for growth, repair and asexual reproduction.
  • Mitotic index $=$ cells in mitosis $\div$ total cells; a high value means rapid division.
  • Link uncontrolled mitosis to tumours and telomere shortening to the limit on the number of divisions.
