The Doppler Effect
Introduzido| English | Significado |
|---|---|
| Doppler effect/ˈdɒplə ɪˈfekt/ | efeito Doppler |
A siren drops in pitch the instant it passes you
- An ambulance races toward you with a high-pitched wail, then drops to a lower pitch as it passes.
- The siren itself never changes — the motion shifts the pitch you hear.
- This is the Doppler effect 多普勒效应: motion changes the observed frequency of a wave.
- It works for sound, light and every kind of wave.
Why the pitch shifts

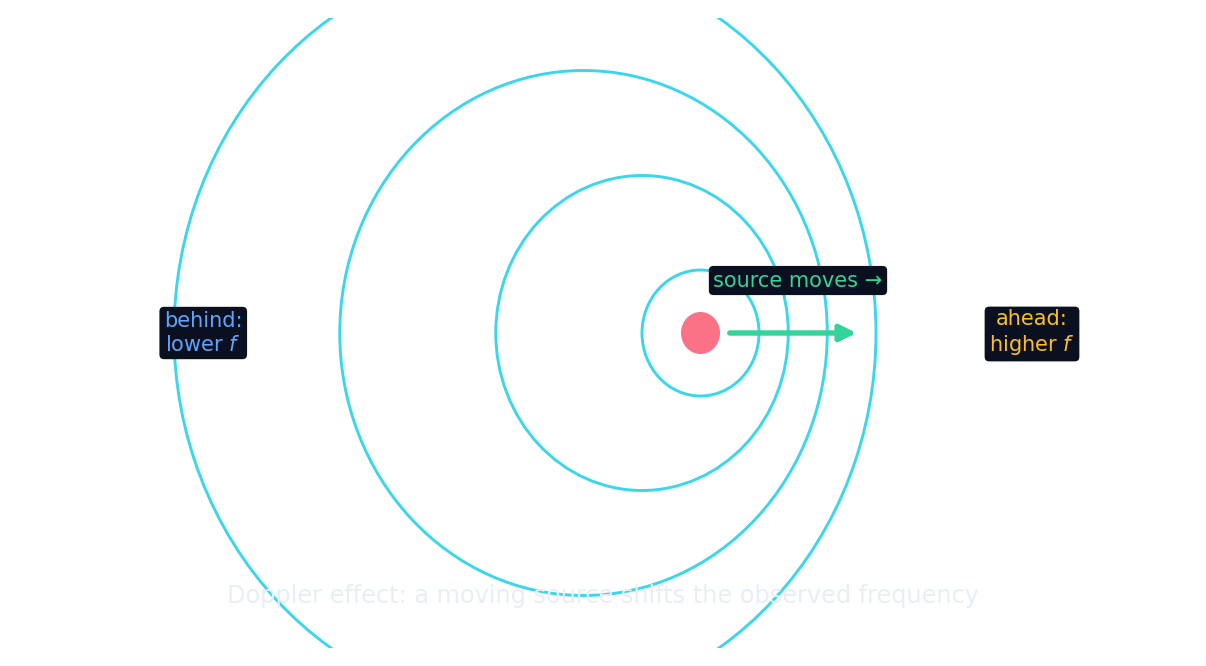

- As a source moves toward you, each wave is emitted a little closer, so the waves bunch up.
- Bunched waves have a shorter wavelength and a higher frequency — a higher pitch.
- As it moves away, the waves stretch out — longer wavelength, lower frequency.
- The source's frequency is unchanged; only the observed frequency shifts.

Move the source
Increase the source's speed and see the waves bunch up ahead and stretch out behind.
Toward = higher, away = lower
- Approaching: higher observed frequency (higher pitch, or light shifted toward blue).
- Receding: lower observed frequency (lower pitch, or light shifted toward red).
- The faster the motion, the bigger the shift.
- Motion of the source, observer, or both along their line of sight can shift frequency. For sound, observer motion alone changes encounter rate without changing wavelength in the stationary medium.
A siren moves toward you. Compared with its true note, you hear a:
Dificuldade 1/5 · Moedas 100 + pequeno bônus na primeira conclusão hoje
Approaching bunches the waves, giving a higher observed frequency (higher pitch).
As a wave source moves away from you, the wavelength you observe is:
Dificuldade 1/5 · Moedas 100 + pequeno bônus na primeira conclusão hoje
Receding stretches the waves — a longer wavelength and lower frequency.
The Doppler effect happens whether the source moves, the observer moves, or both.
Dificuldade 1/5 · Moedas 100 + pequeno bônus na primeira conclusão hoje
Source or observer motion along their line of sight can change received frequency. For sound, their motions relative to the medium matter; a moving observer alone does not change wavelength in the medium.
Doppler in the universe
- Receding nearby sources have a Doppler redshift; the redshift of distant galaxies primarily comes from the expansion of space stretching light wavelengths.
- The systematic increase of galaxy redshift with distance is evidence that the universe is expanding.
- Doppler radar tracks storms and speeding cars by the shift in reflected waves.
- The same simple idea spans a passing siren and the edge of the cosmos.
In the Doppler effect, the source's own frequency changes as it moves.
Dificuldade 1/5 · Moedas 100 + pequeno bônus na primeira conclusão hoje
The source's frequency is unchanged; only the observed frequency shifts.
Light from a galaxy moving away is shifted toward lower frequency — a ____.
Dificuldade 1/5 · Moedas 100 + pequeno bônus na primeira conclusão hoje
Receding light lowers in frequency: a redshift, evidence of an expanding universe.
Select todos true statements about the Doppler effect.
Dificuldade 2/5 · Moedas 140 + pequeno bônus na primeira conclusão hoje
Approach along the line of sight raises observed frequency; recession lowers it. Nearby receding light sources show Doppler redshift, while cosmological redshift mainly reflects expansion of space. The source frequency need not change.
In the Doppler effect the source's frequency never changes — only the frequency you observe does. Approaching raises it (blueshift for light); receding lowers it (redshift). Don't say the siren "changes its note" — your received frequency changes.
A train sounds its horn as it speeds toward, then away from, a listener on the platform.
- Approaching: the listener hears a higher pitch than the true horn note.
- Receding: they hear a lower pitch. The drop happens as the train passes.
The Doppler effect: motion shifts the observed frequency of a wave. A source moving toward you bunches its waves (higher frequency/pitch, blueshift); moving away stretches them (lower frequency, redshift). The source's own frequency is unchanged. Redshift shows the universe is expanding.
Write from the data: compare source and received frequencies
- A siren produces 400 Hz.
- An observer hears 440 Hz as it approaches and 360 Hz after it passes. Say what changed.
A siren produces a steady 400 Hz. An observer hears 440 Hz as the siren approaches and 360 Hz after it has passed. What frequency did the source actually produce, and why did the heard pitch change?
Motion changes the observed frequency, not the source frequency.
A siren emits a steady 400 Hz. A listener hears 440 Hz on approach and 360 Hz after it passes. What frequency does the siren itself emit?
Dificuldade 1/5 · Moedas 100 + pequeno bônus na primeira conclusão hoje
The source frequency is unchanged at 400 Hz. Other options — 440 Hz (the pitch heard on approach); 360 Hz (the pitch heard after it passes).
