Thermal expansion and specific heat capacity
Introduced| English | Meaning |
|---|---|
| specific heat capacity/spəˈsɪfɪk hiːt kəˈpæsɪti/ | The energy needed to raise the temperature of one kilogram of a substance by one kelvin or one degree Celsius. |
| thermal expansion/ˈθɜːml ekˈspænʃn/ | The increase in size of a material when its temperature rises, as particles move farther apart. |
| internal energy/ɪnˈtɜːnl ˈenədʒi/ | The total microscopic kinetic and potential energy of a system's particles, excluding its overall motion and position as a whole. |
Why bridges have gaps
- Railway lines have small gaps; bridges sit on rollers; power cables hang loose in summer.
- All for the same reason: things get bigger when they are heated.
- Heating also stores energy inside matter — measured by its specific heat capacity 比热容.
Thermal expansion 热膨胀
- Heat a material and its particles move more, so they take up more space — it expands.
- Gases expand the most, then liquids, then solids (whose particles are held tightly).
- Engineers leave gaps in rails and put bridges on rollers so the expansion does not buckle them.
- A tight metal jar lid loosens when you run it under hot water — the metal expands.

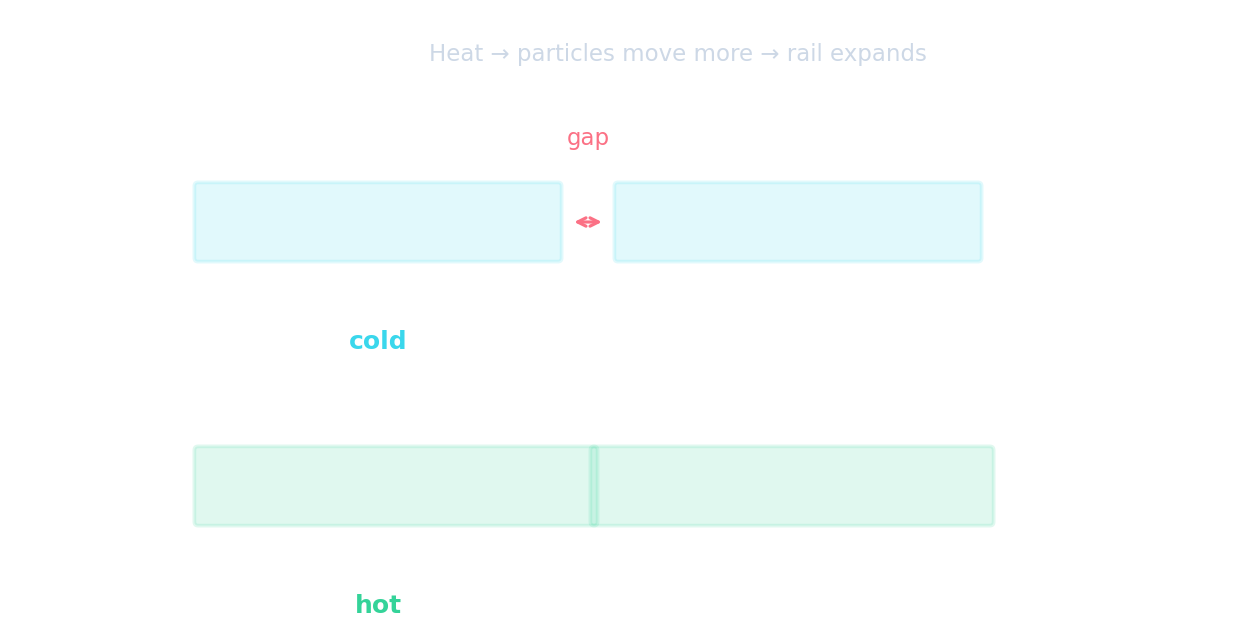

Thermal expansion: heating makes the rail longer, closing the gap left for it.
Worked example. A steel bridge is $50\ \text{m}$ long at $10\ {}^{\circ}\text{C}$. Steel expands about $0.012\ \text{mm}$ per metre per ${}^{\circ}\text{C}$. If the temperature rises to $40\ {}^{\circ}\text{C}$ (a $30\ {}^{\circ}\text{C}$ rise): expansion $= 50 \times 0.012 \times 30 = 18\ \text{mm}$. That's why bridges have expansion joints!
The particles don't get bigger. When a solid expands, the particles themselves stay the same size — they just vibrate more and push further apart. This is a common exam misconception.
Heating and specific heat capacity
Q = mcΔT
The heat energy needed is proportional to the temperature rise for a given mass of material.
For the same rise in temperature, which expands the most?
Difficulty 1/5 · 100 coins + a small bonus on first completion today
Gases expand the most, then liquids, then solids (whose particles are held most tightly).
Why are small gaps left between railway lines?
Difficulty 1/5 · 100 coins + a small bonus on first completion today
On a hot day the rails expand. The gaps give the extra length somewhere to go, so the track does not bend out of shape.
Internal energy 内能
- The internal energy of an object is the total energy of all its particles (their movement and arrangement).
- Heating an object raises its internal energy — usually raising its temperature too.
The same hand in ordinary light and through a thermal (infrared) camera
Specific heat capacity
- The specific heat capacity $c$ is the energy needed to raise the temperature of $1\ \text{kg}$ of a material by $1\ {}^{\circ}\text{C}$:
- So the energy to warm something is $\Delta E = m c\,\Delta\theta$.
- Water has a very high $c$ ($\approx 4200$ joules per kg per °C): it needs a lot of energy to warm up and cools down slowly. That is why the sea stays mild and water is used in heating systems.
A digital thermometer measures temperature
How much energy is needed to heat $2.0\ \text{kg}$ of water by $10\ {}^{\circ}\text{C}$? (Use $c = 4200$ J per kg per °C.)
Difficulty 2/5 · 140 coins + a small bonus on first completion today
$\Delta E = mc\,\Delta\theta = 2.0 \times 4200 \times 10 = 84\,000\ \text{J}$.
Adding $8400\ \text{J}$ raises the temperature of $0.50\ \text{kg}$ of a metal by $40\ {}^{\circ}\text{C}$. What is its specific heat capacity, in J per kg per °C?
Difficulty 2/5 · 140 coins + a small bonus on first completion today
$c = \dfrac{\Delta E}{m\,\Delta\theta} = \dfrac{8400}{0.50 \times 40} = \dfrac{8400}{20} = 420$ J per kg per °C.
Because water has a high specific heat capacity, it warms up and cools down slowly.
Difficulty 1/5 · 100 coins + a small bonus on first completion today
A high specific heat capacity means a lot of energy is needed per degree, so water changes temperature slowly.
You've got it
- heating makes matter expand — gases most, solids least; leave gaps for it
- internal energy = total energy of all the particles
- specific heat capacity $c = \dfrac{\Delta E}{m\,\Delta\theta}$, so $\Delta E = mc\,\Delta\theta$
- water has a high $c$ → warms and cools slowly
