Newton's laws of motion
Introduced| English | Meaning |
|---|---|
| resultant force/rɪˈzʌltənt fɔːs/ | The single force equivalent to all the forces acting together. |
| weight/weɪt/ | The gravitational force acting on an object. |
| tension/ˈtenʃn/ | A pulling force transmitted through a stretched string, cable or similar object. |
| inclined plane/ɪnˈklaɪnd pleɪn/ | A flat surface set at an angle to the horizontal. |
| connected particles/kəˈnektɪd ˈpɑːtɪklz/ | Objects modelled as point masses whose motions are linked by a connection such as a string. |
| inextensible/ˌɪnekˈstensɪbl/ | inextensible |
The law that launched rockets
- Every rocket, every car, every falling apple obeys the same rule: $F = ma$.
- Newton's second law is the foundation of all mechanics. Master it and you can predict the motion of anything.
Newton's second law
- The key law: resultant force 合力 = mass × acceleration:
- Weight 重力 is the force of gravity: $W = mg$ (take $g = 10\text{ m s}^{-2}$).
- Forces include weight, friction, tension 张力 in a string, and the push in a rod.
Worked example. A 4 kg box is pushed with a horizontal force of 20 N on a smooth surface. $F = ma \Rightarrow 20 = 4a \Rightarrow a = 5\text{ m s}^{-2}$.
Resultant force, not just any force. $F = ma$ uses the net (resultant) force. If there's friction, you must subtract it: $F_{\text{net}} = F_{\text{applied}} - F_{\text{friction}}$.
Resultant force
F = ma
The resultant force sets the acceleration. Balanced forces ⇒ no acceleration.
A resultant force gives a 5 kg mass an acceleration of 2 m/s². What is the force (F = ma), in N?
Difficulty 2/5 · 140 coins + a small bonus on first completion today
F = ma = 5 × 2 = 10 N.
Taking g = 10 m/s², what is the weight of a 2 kg object (W = mg), in N?
Difficulty 2/5 · 140 coins + a small bonus on first completion today
W = mg = 2 × 10 = 20 N.
F = ma uses the resultant (net) force, not just any single force.
Difficulty 1/5 · 100 coins + a small bonus on first completion today
F = ma requires the net force. If friction is present, subtract it from the applied force first.
Slopes and inclined planes 斜面
- On an inclined plane: split forces along and perpendicular to the slope, then apply $F = ma$ along the slope.
- Component of weight along slope: $mg\sin\theta$. Component perpendicular: $mg\cos\theta$.
To analyse motion on an inclined plane, you should:
Difficulty 1/5 · 100 coins + a small bonus on first completion today
Resolve along the slope (apply F = ma there) and perpendicular to it (for the normal reaction).
Connected particles 连接质点
- For connected particles (joined by a string): apply $F = ma$ to each body, or to the whole system.
- The string has the same tension throughout (if light and inextensible 不可伸长).
- Both bodies have the same acceleration.
Connected particles share one tension T and one acceleration; apply F = ma to each mass.
A 3 kg and 2 kg mass over a smooth pulley. Acceleration = g/5. With g = 10, find a (m/s²).
Difficulty 2/5 · 140 coins + a small bonus on first completion today
a = g/5 = 10/5 = 2 m/s².
For the 3 kg and 2 kg masses over a pulley (a = 2 m/s²), find the tension T from T − 2g = 2a (g = 10).
Difficulty 2/5 · 140 coins + a small bonus on first completion today
T − 2(10) = 2(2) → T = 20 + 4 = 24 N.

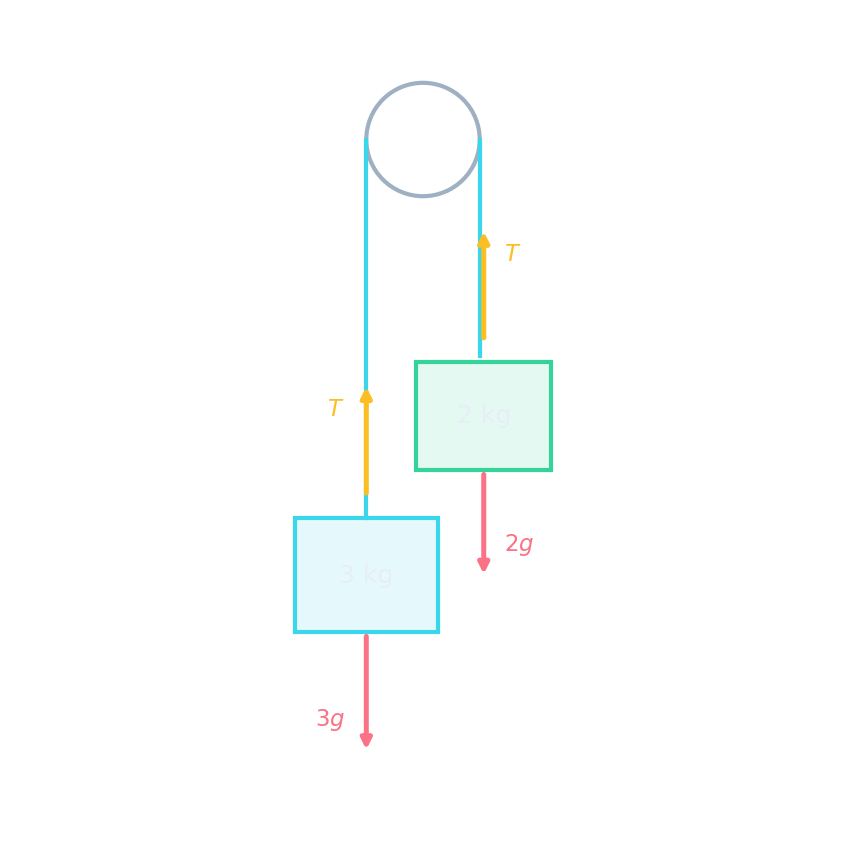

Worked example — connected particles
- A 3 kg and 2 kg mass are connected by a light string over a smooth pulley. Find the acceleration.
- For the 3 kg mass (moving down): $3g - T = 3a$.
- For the 2 kg mass (moving up): $T - 2g = 2a$.
- Adding: $3g - 2g = 5a \Rightarrow a = \dfrac{g}{5} = 2\text{ m s}^{-2}$.
- Newton's laws of motion give $F=ma$; forces may include thrust and air resistance.
You've got it
- F = ma; weight $W = mg$
- on a slope, resolve forces along and perpendicular to the slope
- for connected particles, apply $F = ma$ to each body or the whole system
Write from an acceleration of 3 metres per second squared
- A resultant force of 18 N acts on a 6 kg body.
- Find the acceleration.
A resultant force of 18 N acts on a 6 kg body on a smooth surface. What is the acceleration, and is that force the weight?
Force divided by mass is acceleration. 18 divided by 6 is 3.
What is the acceleration?
Difficulty 1/5 · 100 coins + a small bonus on first completion today
18 divided by 6 is 3 metres per second squared.
