Electric Circuits

• 11.1.A.1 Current is the rate at which charge passes through a cross-sectional area of a wire.
  • Equation: $I = \dfrac{\Delta q}{\Delta t}$
  • 11.1.A.1.i Electric charge moves in a circuit in response to an electric potential difference, sometimes referred to as electromotive force, or $\mathrm{emf}$ ($\varepsilon$).
  • 11.1.A.1.ii If the current is zero in a section of wire, the net motion of charge carriers in the wire is also zero, although individual charge carriers will not have zero speed.
• 11.1.A.2 Although current is not a vector quantity, it does have a direction. The direction of current is associated with what the motion of positive charge would be but not with any coordinate system in space.
  • 11.1.A.2.i The direction of conventional current is chosen to be the direction in which positive charge would move.
  • 11.1.A.2.ii In common circuits, current is actually due to the movement of electrons (negative charge carriers).

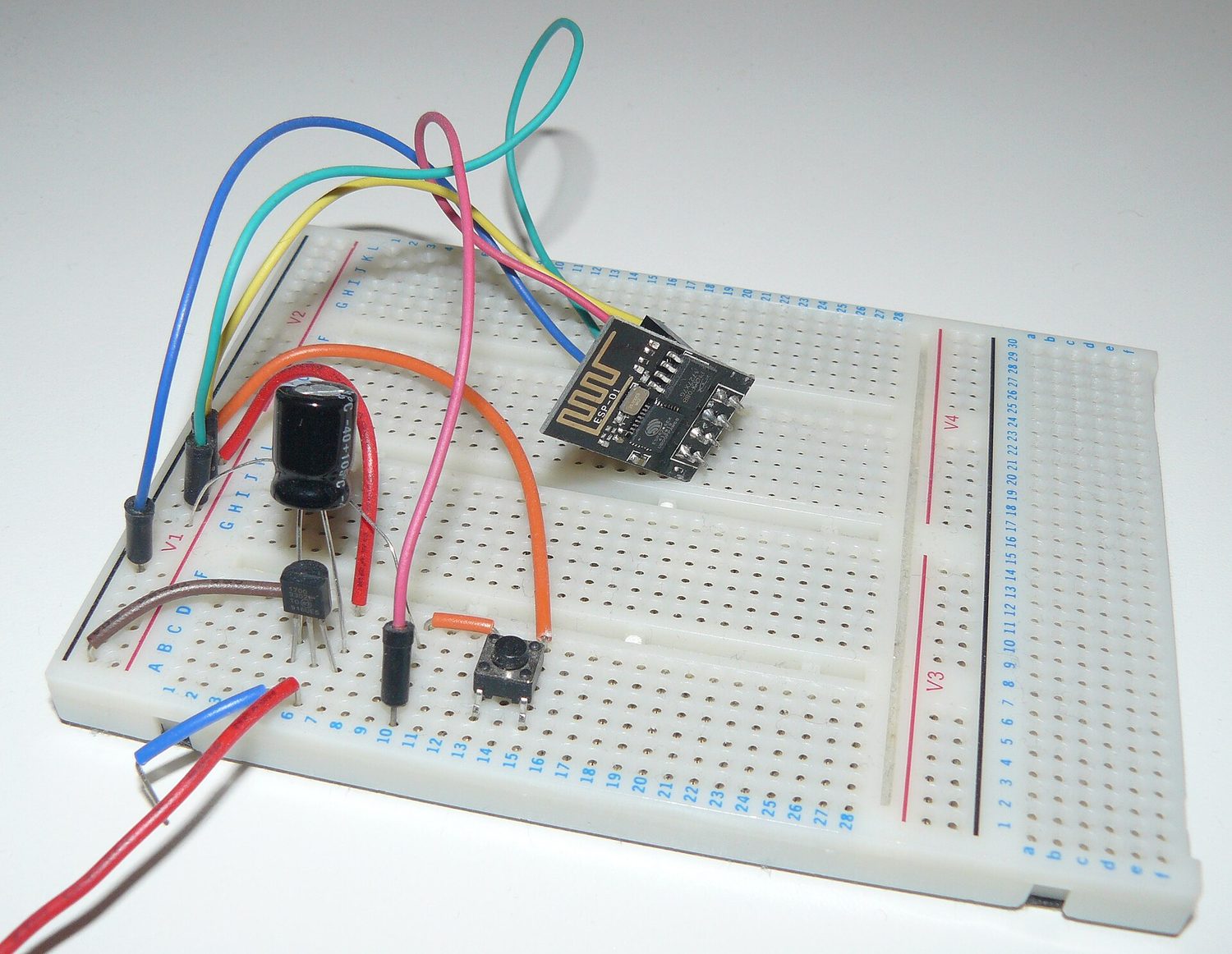

• 11.2.A.1 A circuit is composed of electrical loops, which may include circuit elements such as wires, batteries, resistors, lightbulbs, capacitors, switches, ammeters, and voltmeters.
• 11.2.A.2 A closed electrical loop is a closed path through which charges may flow.
  • 11.2.A.2.i A closed circuit is one in which charges would be able to flow.
  • 11.2.A.2.ii An open circuit is one in which charges would not be able to flow.
  • 11.2.A.2.iii A short circuit is one in which charges would be able to flow with no change in potential difference.
• 11.2.A.3 A single circuit element may be part of multiple electrical loops.
• 11.2.A.4 Circuit schematics are representations used to describe and analyze electric circuits.
  • 11.2.A.4.i The properties of an electric circuit are dependent on the physical arrangement of its constituent elements.
  • 11.2.A.4.ii Circuit elements have common symbols that are used to create schematic diagrams. Variable elements are indicated by a diagonal strikethrough arrow across the standard symbol for that element. (Standard symbols: Battery, Bulb, Switch, Capacitor, Resistor, Ammeter, Voltmeter.)

Boundary statement: Unless otherwise specified, all circuit schematic diagrams will be drawn using conventional current.

• 11.3.A.1 Resistance is a measure of the degree to which an object opposes the movement of electric charge.
• 11.3.A.2 The resistance of a resistor with uniform geometry is proportional to its resistivity and length and is inversely proportional to its cross-sectional area.
  • Equation: $R = \dfrac{\rho \ell}{A}$
  • 11.3.A.2.i Resistivity is a fundamental property of a material that depends on its atomic and molecular structure and quantifies how strongly the material opposes the motion of electric charge.
  • 11.3.A.2.ii The resistivity of a conductor typically increases with temperature.

• 11.3.B.1 Ohm's law relates current, resistance, and potential difference across a conductive element of a circuit.
  • Equation: $I = \dfrac{\Delta V}{R}$
  • 11.3.B.1.i Materials that obey Ohm's law have constant resistance for all currents and are called ohmic materials.
  • 11.3.B.1.ii The resistivity of an ohmic material is constant regardless of temperature.
  • 11.3.B.1.iii Resistors can also convert electrical energy to thermal energy, which may change the temperature of both the resistor and the resistor's environment.
  • 11.3.B.1.iv The resistance of an ohmic circuit element can be determined from the slope of a graph of the current in the element as a function of the potential difference across the element.

• 11.4.A.1 The rate at which energy is transferred, converted, or dissipated by a circuit element depends on the current in the element and the electric potential difference across it.
  • Equation: $P = I \Delta V$
  • Equation (derived): $P = I^2 R = \dfrac{(\Delta V)^2}{R}$
• 11.4.A.2 The brightness of a bulb increases with power, so power can be used to qualitatively predict the brightness of bulbs in a circuit.

• 11.5.A.1 Circuit elements may be connected in series and/or in parallel.
  • 11.5.A.1.i A series connection is one in which any charge passing through one circuit element must proceed through all elements in that connection and has no other path available. The current in each element in series must be the same.
  • 11.5.A.1.ii A parallel connection is one in which charges may flow through one of two or more paths. Across each path, the potential difference is the same.
• 11.5.A.2 A collection of resistors in a circuit may be analyzed as though it were a single resistor with an equivalent resistance $R_{\text{eq}}$.
  • 11.5.A.2.i The equivalent resistance of a set of resistors in series is the sum of the individual resistances.
    • Equation: $R_{\text{eq},s} = \sum_i R_i$
  • 11.5.A.2.ii The inverse of the equivalent resistance of a set of resistors connected in parallel is equal to the sum of the inverses of the individual resistances.
    • Equation: $\dfrac{1}{R_{\text{eq},p}} = \sum_i \dfrac{1}{R_i}$
  • 11.5.A.2.iii When resistors are connected in parallel, the number of paths available to charges increases, and the equivalent resistance of the group of resistors decreases.

• 11.5.B.1 Ideal batteries have negligible internal resistance. Ideal wires have negligible resistance.
  • 11.5.B.1.i The resistance of wires that are good conductors may normally be neglected, because their resistance is much smaller than that of other elements of a circuit.
  • 11.5.B.1.ii The resistance of wires may only be neglected if the circuit contains other elements that do have resistance.
  • 11.5.B.1.iii The potential difference a battery would supply if it were ideal is the potential difference measured across the terminals when there is no current in the battery and is sometimes referred to as its $\mathrm{emf}$ ($\varepsilon$).
• 11.5.B.2 The internal resistance of a nonideal battery may be treated as the resistance of a resistor in series with an ideal battery and the remainder of the circuit.
• 11.5.B.3 When there is current in a nonideal battery with internal resistance $r$, the potential difference across the terminals of the battery is reduced relative to the potential difference when there is no current in the battery.
  • Equation (derived): $\Delta V_{\text{terminal}} = \varepsilon - Ir$

• 11.5.C.1 Ammeters are used to measure current at a specific point in a circuit.
  • 11.5.C.1.i Ammeters must be connected in series with the element in which current is being measured.
  • 11.5.C.1.ii Ideal ammeters have zero resistance so that they do not affect the current in the element that they are in series with.
• 11.5.C.2 Voltmeters are used to measure electric potential difference between two points in a circuit.
  • 11.5.C.2.i Voltmeters must be connected in parallel with the element across which potential difference is being measured.
  • 11.5.C.2.ii Ideal voltmeters have an infinite resistance so that no charge flows through them.
• 11.5.C.3 Nonideal ammeters and voltmeters will change the properties of the circuit being measured.

Boundary statement: AP Physics 2 only expects students to qualitatively discuss how a nonideal ammeter or voltmeter will affect the results of measurements. Unless otherwise stated, all batteries, wires, and meters are assumed to be ideal.

Boundary statement: Circuits with batteries of different potential differences connected in parallel will not be assessed.

• 11.5.A.1 Circuit elements may be connected in series and/or in parallel.
  • 11.5.A.1.i A series connection is one in which any charge passing through one circuit element must proceed through all elements in that connection and has no other path available. The current in each element in series must be the same.
  • 11.5.A.1.ii A parallel connection is one in which charges may flow through one of two or more paths. Across each path, the potential difference is the same.
• 11.5.A.2 A collection of resistors in a circuit may be analyzed as though it were a single resistor with an equivalent resistance $R_{\text{eq}}$.
  • 11.5.A.2.i The equivalent resistance of a set of resistors in series is the sum of the individual resistances.
    • Equation: $R_{\text{eq},s} = \sum_i R_i$
  • 11.5.A.2.ii The inverse of the equivalent resistance of a set of resistors connected in parallel is equal to the sum of the inverses of the individual resistances.
    • Equation: $\dfrac{1}{R_{\text{eq},p}} = \sum_i \dfrac{1}{R_i}$
  • 11.5.A.2.iii When resistors are connected in parallel, the number of paths available to charges increases, and the equivalent resistance of the group of resistors decreases.

• 11.5.B.1 Ideal batteries have negligible internal resistance. Ideal wires have negligible resistance.
  • 11.5.B.1.i The resistance of wires that are good conductors may normally be neglected, because their resistance is much smaller than that of other elements of a circuit.
  • 11.5.B.1.ii The resistance of wires may only be neglected if the circuit contains other elements that do have resistance.
  • 11.5.B.1.iii The potential difference a battery would supply if it were ideal is the potential difference measured across the terminals when there is no current in the battery and is sometimes referred to as its $\mathrm{emf}$ ($\varepsilon$).
• 11.5.B.2 The internal resistance of a nonideal battery may be treated as the resistance of a resistor in series with an ideal battery and the remainder of the circuit.
• 11.5.B.3 When there is current in a nonideal battery with internal resistance $r$, the potential difference across the terminals of the battery is reduced relative to the potential difference when there is no current in the battery.
  • Equation (derived): $\Delta V_{\text{terminal}} = \varepsilon - Ir$

• 11.5.C.1 Ammeters are used to measure current at a specific point in a circuit.
  • 11.5.C.1.i Ammeters must be connected in series with the element in which current is being measured.
  • 11.5.C.1.ii Ideal ammeters have zero resistance so that they do not affect the current in the element that they are in series with.
• 11.5.C.2 Voltmeters are used to measure electric potential difference between two points in a circuit.
  • 11.5.C.2.i Voltmeters must be connected in parallel with the element across which potential difference is being measured.
  • 11.5.C.2.ii Ideal voltmeters have an infinite resistance so that no charge flows through them.
• 11.5.C.3 Nonideal ammeters and voltmeters will change the properties of the circuit being measured.

Boundary statement: AP Physics 2 only expects students to qualitatively discuss how a nonideal ammeter or voltmeter will affect the results of measurements. Unless otherwise stated, all batteries, wires, and meters are assumed to be ideal.

Boundary statement: Circuits with batteries of different potential differences connected in parallel will not be assessed.

• 11.6.A.1 Energy changes in simple electrical circuits may be represented in terms of charges moving through electric potential differences within circuit elements.
  • Equation: $\Delta U_E = q \Delta V$
• 11.6.A.2 Kirchhoff's loop rule is a consequence of the conservation of energy.
• 11.6.A.3 Kirchhoff's loop rule states that the sum of potential differences across all circuit elements in a single closed loop must equal zero.
  • Equation: $\sum \Delta V = 0$
• 11.6.A.4 The values of electric potential at points in a circuit can be represented by a graph of electric potential as a function of position within a loop.

• 11.7.A.1 Kirchhoff's junction rule is a consequence of the conservation of electric charge.
• 11.7.A.2 Kirchhoff's junction rule states that the total amount of charge entering a junction per unit time must equal the total amount of charge exiting that junction per unit time.
  • Equation: $\sum I_{\text{in}} = \sum I_{\text{out}}$

• 11.8.A.1 A collection of capacitors in a circuit may be analyzed as though it were a single capacitor with an equivalent capacitance $C_{\text{eq}}$.
  • 11.8.A.1.i The inverse of the equivalent capacitance of a set of capacitors connected in series is equal to the sum of the inverses of the individual capacitances.
    • Equation: $\dfrac{1}{C_{\text{eq},s}} = \sum_i \dfrac{1}{C_i}$
  • 11.8.A.1.ii The equivalent capacitance of a set of capacitors in series is less than the capacitance of the smallest capacitor.
  • 11.8.A.1.iii The equivalent capacitance of a set of capacitors in parallel is the sum of the individual capacitances.
    • Equation: $C_{\text{eq},p} = \sum_i C_i$
• 11.8.A.2 As a result of conservation of charge, each of the capacitors in series must have the same magnitude of charge on each plate.

• 11.8.B.1 The time constant $\tau$ is a significant feature of an RC circuit.
  • 11.8.B.1.i The time constant of an RC circuit is a measure of how quickly the capacitor will charge or discharge and is defined as $\tau = R_{\text{eq}} C_{\text{eq}}$.
  • 11.8.B.1.ii For a charging capacitor, the time constant represents the time required for the capacitor's charge to increase from zero to approximately 63 percent of its final asymptotic value.
  • 11.8.B.1.iii For a discharging capacitor, the time constant represents the time required for the capacitor's charge to decrease from fully charged to approximately 37 percent of its initial value.
• 11.8.B.2 The potential difference across a capacitor and the current in the branch of the circuit containing the capacitor each change over time as the capacitor charges and discharges, but both will reach a steady state after a long time interval.
  • 11.8.B.2.i Immediately after being placed in a circuit, an uncharged capacitor acts like a wire, and charge can easily flow to or from the plates of the capacitor.
  • 11.8.B.2.ii As a capacitor charges, changes to the potential difference across the capacitor affect the charge on the plates of the capacitor, the current circuit branch in which the capacitor is located, and the electric potential energy stored in the capacitor.
  • 11.8.B.2.iii The potential difference across a capacitor, the current in the circuit branch in which the capacitor is located, and the electric potential energy stored in the capacitor all change with respect to time and asymptotically approach steady state conditions.
  • 11.8.B.2.iv After a long time, a charging capacitor approaches a state of being fully charged, reaching a maximum potential difference at which there is zero current in the circuit branch in which the capacitor is located.
  • 11.8.B.2.v Immediately after a charged capacitor begins discharging, the amount of charge on the capacitor plates and the energy stored in the capacitor begin to decrease.
  • 11.8.B.2.vi As a capacitor discharges, the amount of charge on the capacitor, the potential difference across the capacitor, and the current in the circuit branch in which the capacitor is located all decrease until a steady state is reached.
  • 11.8.B.2.vii After either charging or discharging for times much greater than the time constant, the capacitor and the relevant circuit branch may be modeled using steady-state conditions.

Boundary statement: Descriptions of charging/discharging RC circuits in AP Physics 2 are limited to qualitative descriptions and representations. While students should be able to mathematically describe initial and final states of RC circuits, students are not expected to mathematically model these behaviors with respect to time.
