Programming

Programming turns a design into instructions written as code

A programmer writes the code and tests it as they go

From design to code

You should be able to turn a design — a flowchart 流程图 (program flowchart) or structured English 结构化英语 — into pseudocode 伪代码, and then into a real language:

1. find the variables 变量 and their data types 数据类型.
2. turn input/output boxes into INPUT / OUTPUT.
3. turn decision diamonds into IF...ELSE...ENDIF (or CASE).
4. turn loop arrows into WHILE, REPEAT...UNTIL, or FOR.
5. turn process boxes into assignments or calculations.
6. check by tracing a small input.

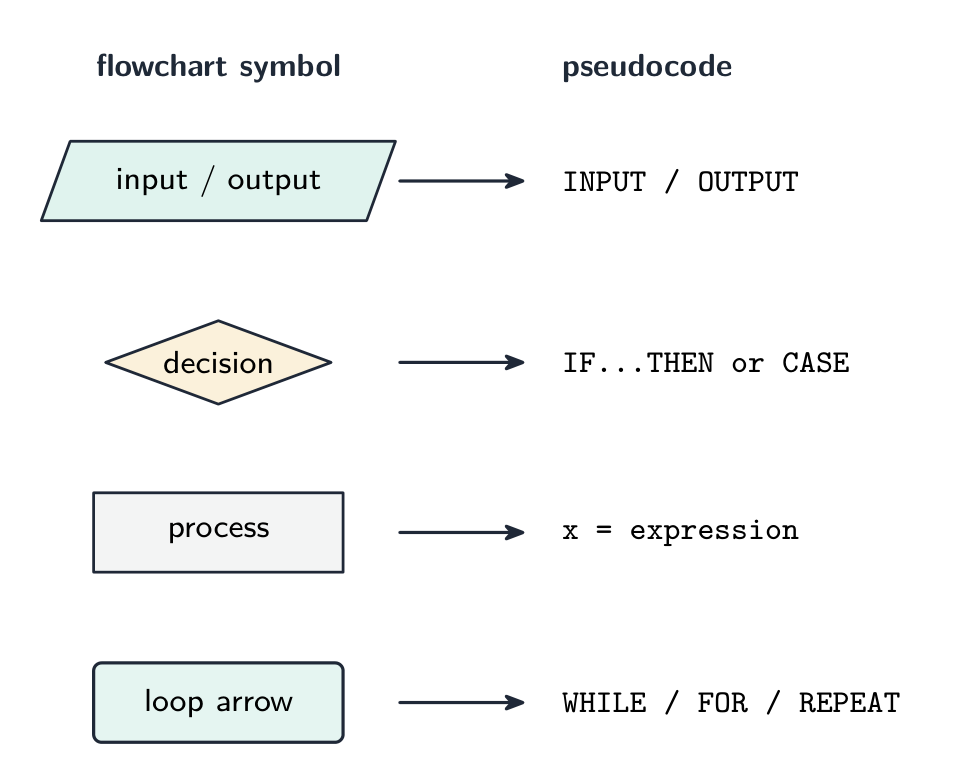

Each flowchart symbol becomes a pseudocode keyword

Constants and variables

A constant 常量 holds a value that never changes; a variable holds one that may change. Declare them with a type:

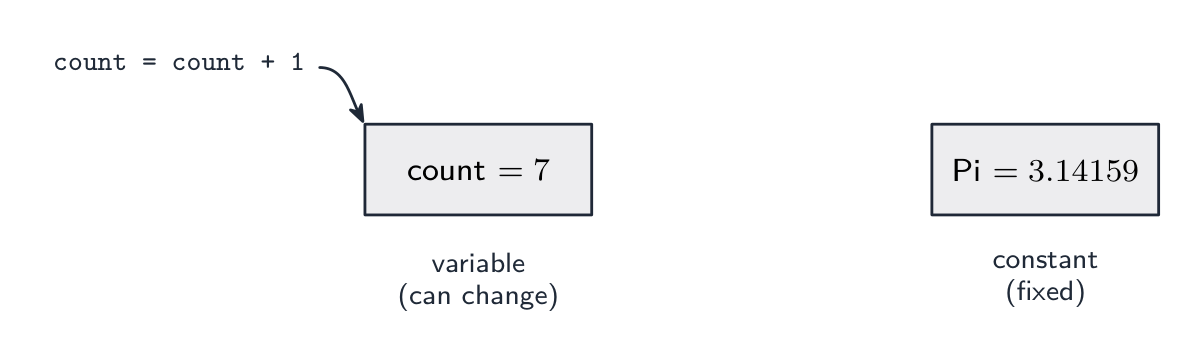

A variable's value can change; a constant stays fixed

CONSTANT Pi ← 3.14159
DECLARE Radius : REAL
DECLARE Area : REAL

Radius ← 5
Area ← Pi * Radius * Radius

Use constants for fixed values that recur (Pi, MaxScore); they make code clearer and easy to change in one place.

Assignment and expressions

Use ← for assignment 赋值:

Total ← Total + 1
Average ← Sum / Count

Expressions use operators 运算符:

• arithmetic + - * /, plus DIV (integer division) and MOD (remainder): 7 DIV 2 = 3; 7 MOD 2 = 1.
• comparisons =, <>, <, >, <=, >=.
• logic AND, OR, NOT.

Precedence 优先级 (highest to lowest): NOT → * / DIV MOD → + - → comparisons → AND → OR. Use brackets when unsure.

Input and output

OUTPUT "Enter your name:"
INPUT Name
OUTPUT "Hello, ", Name

Built-in functions and library routines

Many tasks have ready-made library routines 库例程, so you need not write them:

• string: LENGTH(s), LEFT(s, n), RIGHT(s, n), MID(s, start, len), UCASE(s), LCASE(s).
• numeric: INT(x), ROUND(x), ABS(x), MOD(a, b), RANDOM().
• conversion: STR(x) (number → string), VAL(s) (string → number).

Use the exact names from the question paper's reference list.

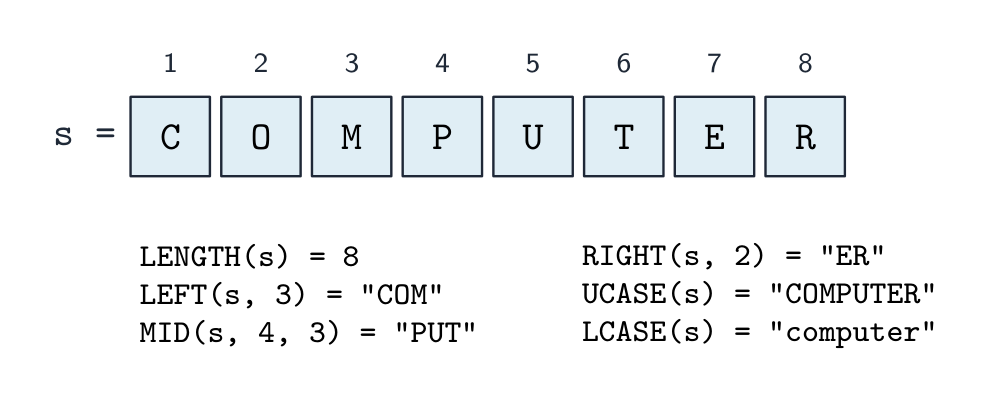

The common string routines acting on s = "COMPUTER" (positions 1–8)

Selection 选择 chooses which steps run.

IF age >= 18 THEN
    OUTPUT "Adult"
ELSE
    OUTPUT "Minor"
ENDIF

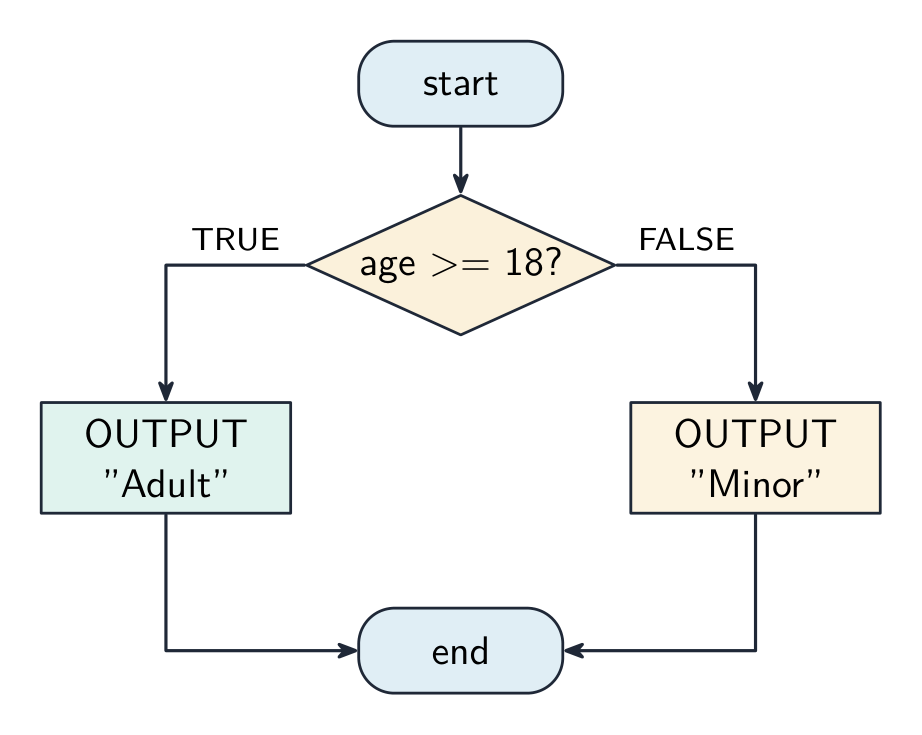

An IF...ELSE tests the condition once, then runs exactly one branch

For more than two cases you can use a nested 嵌套 IF, but deep nesting is hard to read — a CASE is cleaner when testing one value against several options:

CASE OF Grade
    "A": OUTPUT "Excellent"
    "B": OUTPUT "Good"
    OTHERWISE: OUTPUT "Try again"
ENDCASE

Cambridge CASE allows single values, value lists (1, 2, 3:), and ranges (1 TO 5:).

A CASE statement runs the branch that matches the value

Iteration 迭代 repeats a block. Three loops differ in how many times the body runs.

Count-controlled (FOR) loop

A count-controlled loop 计数循环 — use it when you know how many times to repeat:

FOR i ← 1 TO 10
    OUTPUT i
NEXT i

A STEP can change the count (e.g. FOR i ← 10 TO 1 STEP -1). Best for a fixed number of repeats or processing each element of an array 数组.

Pre-condition (WHILE) loop

A pre-condition loop 前测循环 tests the condition before each pass, so it may run zero times:

WHILE total < 100 DO
    INPUT n
    total ← total + n
ENDWHILE

Post-condition (REPEAT...UNTIL) loop

A post-condition loop 后测循环 tests the condition after each pass, so it always runs at least once:

REPEAT
    INPUT password
UNTIL password = correctPassword

Choosing the right loop

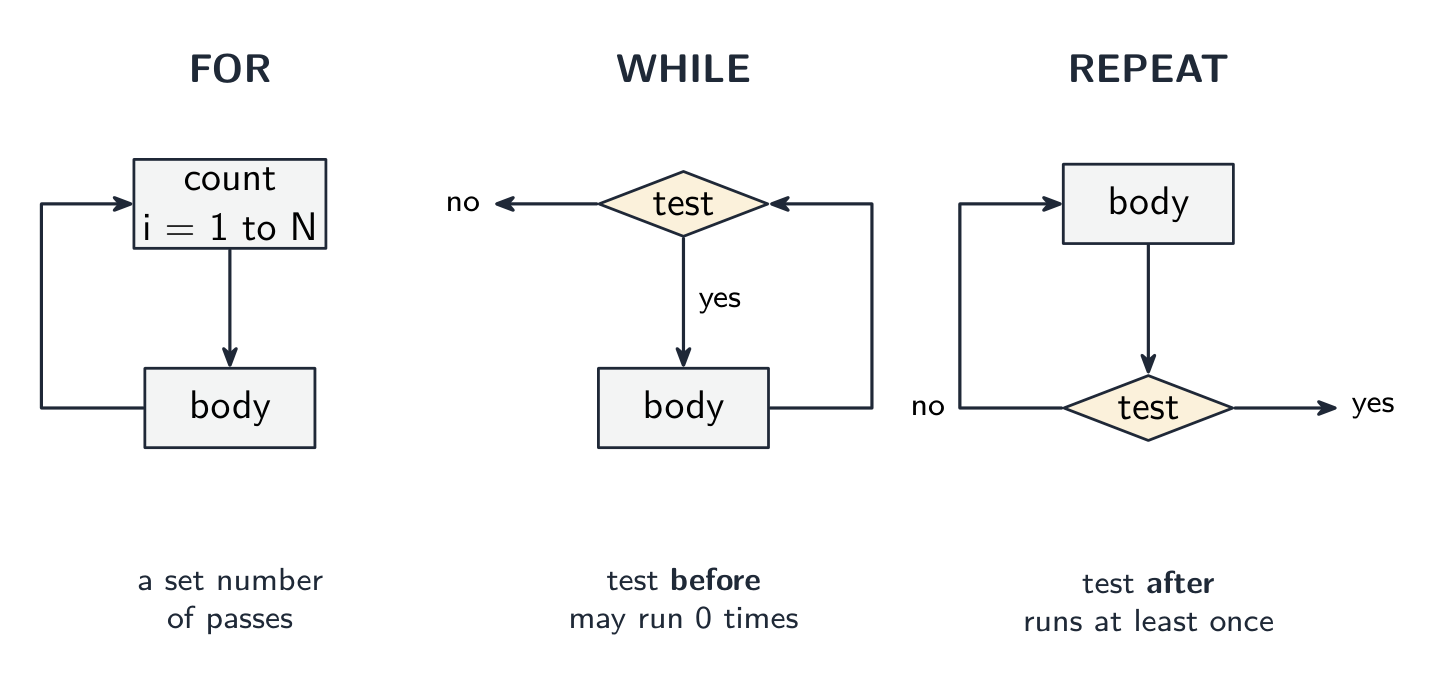

The three loops differ in where the condition is tested — before the body (WHILE), after it (REPEAT), or a set number of times (FOR)

• count known up front → FOR.
• may need zero passes → WHILE.
• always at least one pass → REPEAT...UNTIL.

Justify your choice by whether the count is known and whether the body must run at least once. A typical question gives a scenario ("ask for a password until correct, but always ask at least once") and asks which loop fits.

Structured programming 结构化编程 builds a program from small named subroutines 子程序, each with one job.

Procedure

A procedure 过程 is a named block that does an action; it may take parameters 参数 but does not return a value.

PROCEDURE Greet(name : STRING)
    OUTPUT "Hello, ", name
ENDPROCEDURE

CALL Greet("Ada")

Function

A function 函数 is like a procedure but it returns a value that becomes part of an expression.

FUNCTION Square(x : INTEGER) RETURNS INTEGER
    RETURN x * x
ENDFUNCTION

result ← Square(5) + 1     // result = 26

Use a procedure when the subroutine performs an action; use a function when it computes a value for the caller.

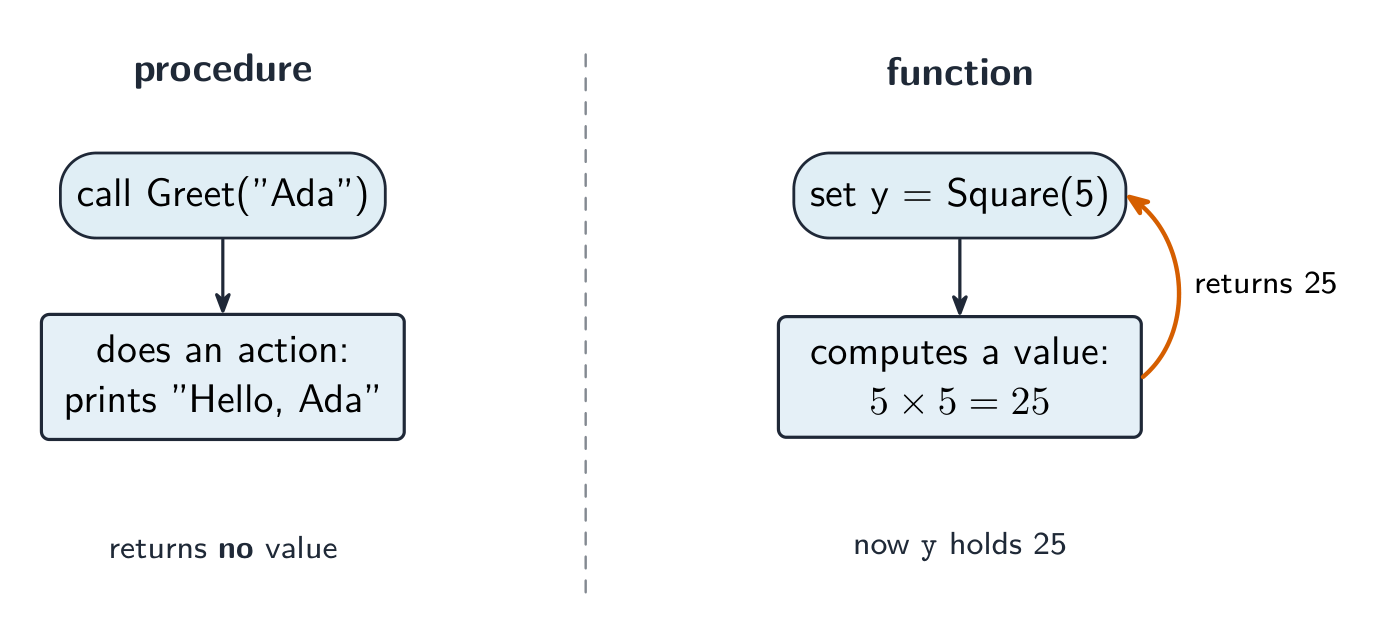

A procedure does an action and returns nothing; a function returns a value you use in an expression

Parameters

A parameter is a variable a subroutine declares to receive input; the values the caller supplies are arguments 实参. Two ways to pass them:

• pass by value 传值 — the routine gets a copy; changes inside it do not affect the caller. Use for inputs it only reads.
• pass by reference 传引用 — the routine gets a reference to the caller's variable; changes do affect the caller. Use when it must update a parameter.

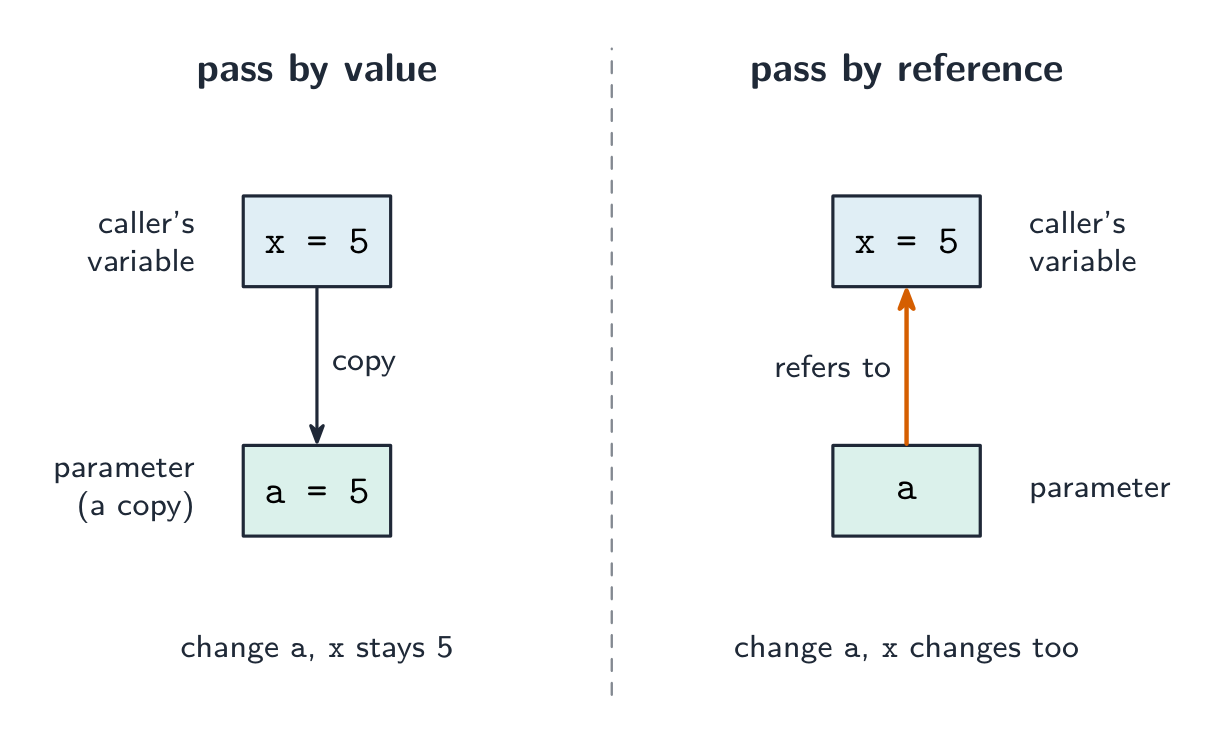

Pass by value copies the value into a new box; pass by reference lets the routine change the caller's own variable

PROCEDURE Swap(BYREF a : INTEGER, BYREF b : INTEGER)
    DECLARE temp : INTEGER
    temp ← a
    a ← b
    b ← temp
ENDPROCEDURE

Local vs global variables

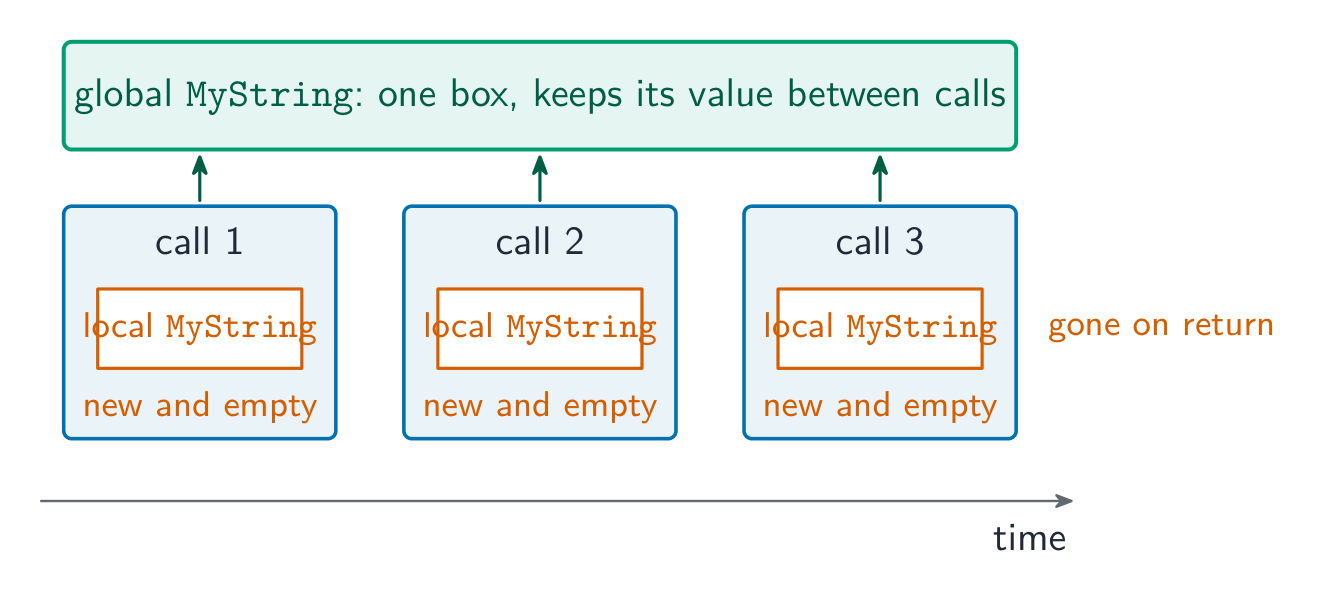

A local variable 局部变量 is declared inside a subroutine and exists only while it runs. A global variable 全局变量 is declared outside and is visible everywhere. Prefer locals and parameters — heavy use of globals makes code hard to follow and test. (The region where a name is visible is its scope 作用域.)

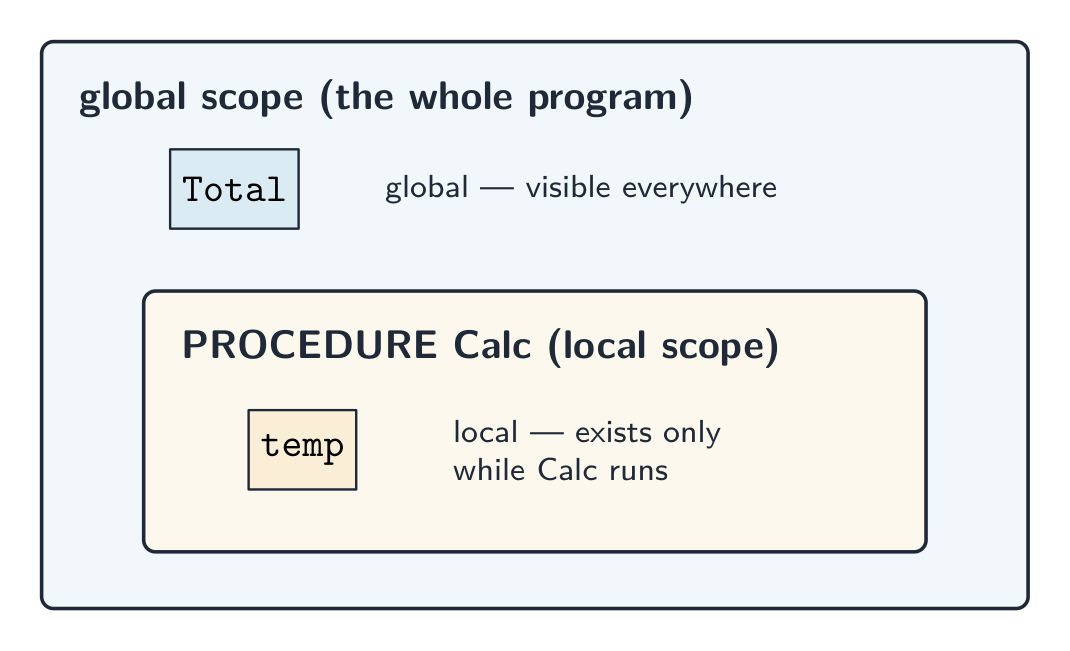

A global variable is visible everywhere; a local variable exists only inside its own procedure

When to use a subroutine

Use a subroutine when:

• the same logic appears in more than one place — write it once, call it many times.
• a block has a clear named purpose — the name documents what it does.
• the program is complex — break it into parts (decomposition 分解).
• you want to test a piece in isolation.

Don't make them so tiny that the call costs more than the work inside.

Terminology

• definition — the PROCEDURE ... ENDPROCEDURE (or function) block.
• call — where it is invoked. argument — a value passed in. parameter — the variable that receives it.
• return value — what a function passes back.
• procedure/function header — the first line giving the name and parameters (PROCEDURE Name(params) or FUNCTION Name(params) RETURNS type).
• procedure/function interface / signature 签名 — name + parameters + return type: what a caller must know to use it.

Worked example. Which loop suits each task? (a) print the 12 times table; (b) keep reading numbers until the user enters 0; (c) ask for a password until it is correct. Choose by asking how many times the body runs and when the test happens. (a) The count is known in advance (12), so use a FOR loop. (b) The count is unknown, and the very first input might already be 0 - so the test must come before the body: a WHILE loop, which runs zero or more times. (c) The count is unknown, but you must always ask at least once before there is anything to test - so the test comes after the body: a REPEAT...UNTIL, which runs one or more times. The deciding question is whether the body must run at least once: WHILE may run zero times, REPEAT always runs once.

• move invariants out of loops — if a value (an invariant 不变量) does not change with the loop counter, compute it once before the loop.
• exit a loop early when the answer is found (stop a linear search 线性查找 as soon as the target appears).
• avoid redundant work — store a result and reuse it instead of recomputing.
• choose the right data structure — an array beats many separate variables when the items belong together.
• replace deep nested IFs with CASE when testing one value against many.
• comment the intent, not the mechanics (// validate the postcode, not // loop 6 times).
• use meaningful names (numberOfPupils, not n) and initialise variables before use.

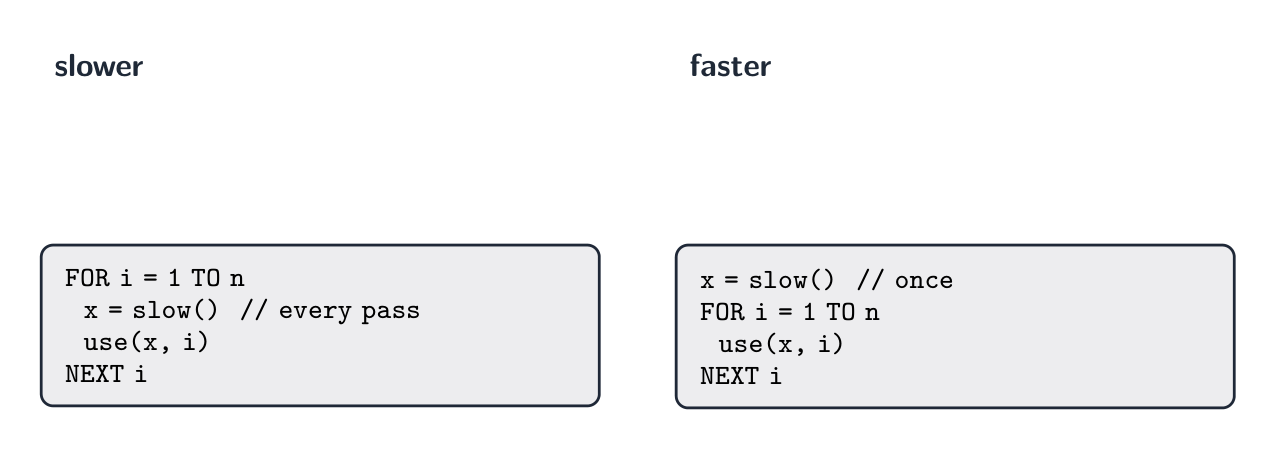

Move unchanging work out of the loop so it runs once

• Distinguish a procedure (no return value) from a function (returns a value); know pass by value vs by reference.
• Choose the right loop: count-controlled (FOR) when the number of repeats is known, condition-controlled (WHILE/REPEAT) otherwise.
• Distinguish local vs global variables and scope; prefer local variables in reusable modules.
