Data Types and Structures

Every variable needs a data type 数据类型 — the kind of value it holds and the operations allowed:

• INTEGER — a whole number (42, -7). For counts, indexes, IDs.
• REAL — a number with a fractional part (3.14). For money, measurements.
• STRING — characters in quotes ("Hello"). For text.
• CHAR — a single character ('A').
• BOOLEAN — TRUE or FALSE. For flags.
• DATE — a calendar date.

Pick the smallest precise type that fits: INTEGER for whole counts, BOOLEAN for flags (not the strings "yes"/"no").

A record 记录 (a record structure 记录结构) holds several fields of different types under one name — useful when several values describe one thing.

TYPE TStockItem
    DECLARE ItemID : INTEGER
    DECLARE Category : STRING
    DECLARE ItemCost : REAL
    DECLARE InStock : BOOLEAN
ENDTYPE

This defines the type TStockItem; declare variables of it:

DECLARE Item1 : TStockItem
DECLARE Items : ARRAY[1:100] OF TStockItem

Use dot notation to reach each field 字段:

Item1.Category ← "Fruit"
OUTPUT Item1.Category, " costs ", Item1.ItemCost

Use a record when values always belong together (a customer, a stock item); use separate variables for unrelated values.

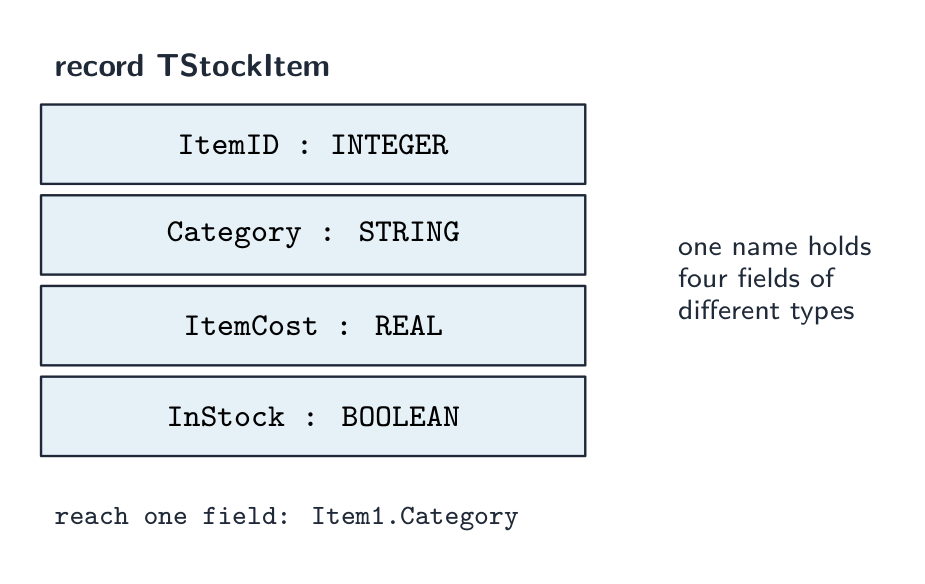

A record holds several fields of different types under one name

An array 数组 is an ordered collection of items of the same type, under one name, reached by an index 索引.

• element 元素 — one item in the array.
• bounds 边界 — the lowest and highest valid indices.
• dimension 维度 — 1-D (a list), 2-D (a table), etc.

1-D arrays

DECLARE Names : ARRAY[1:5] OF STRING
Names[3] ← "Cara"
OUTPUT Names[3]

Process every element with a FOR loop:

FOR i ← 1 TO 5
    OUTPUT Names[i]
NEXT i

A 1-D array (a list) with indices and bounds

2-D arrays (2D array)

DECLARE Grid : ARRAY[1:3, 1:4] OF INTEGER
Grid[2, 3] ← 99

The first index is the row, the second the column. Use nested loops to visit every cell. Use 1-D for a single sequence, 2-D for two natural dimensions (a grid, rows × columns).

A 2-D array (a table) with row and column indices

Common operations

A linear search 线性查找 checks each element until found:

FOR i ← 1 TO n
    IF A[i] = Target THEN
        OUTPUT "Found at ", i
    ENDIF
NEXT i

To find a sum, count, maximum or minimum, set a running variable then sweep through:

Max ← A[1]
FOR i ← 2 TO n
    IF A[i] > Max THEN Max ← A[i]
NEXT i

A bubble sort 冒泡排序 puts an array in order: pass through it comparing each adjacent pair and swapping any that are out of order; repeat the passes until one pass makes no swaps.

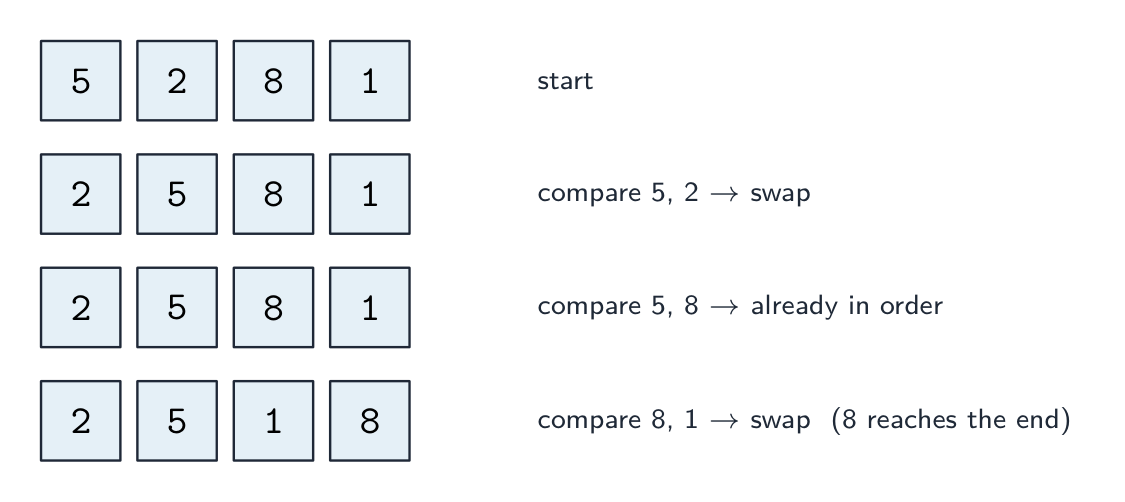

One pass of a bubble sort: adjacent pairs are compared and swapped, bubbling the largest value to the end

A file 文件 is data stored on secondary storage 辅助存储器, kept between program runs. Variables in RAM disappear when the program ends, so to save data permanently (high scores, records, settings) the program writes to a file. Files also let programs share data and restart from a saved state.

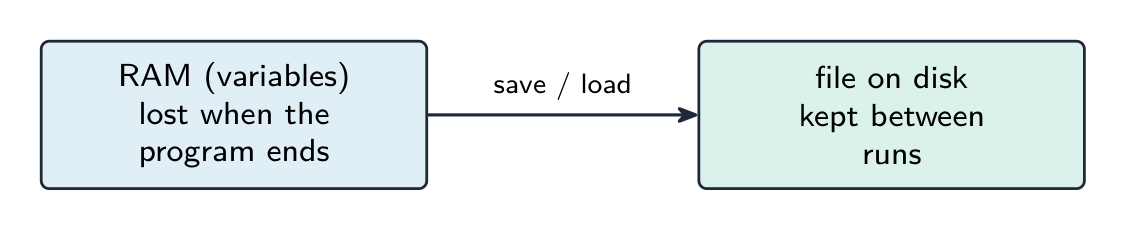

Variables in RAM vanish when the program ends; a file on disk persists between runs

A text file 文本文件 holds one or more lines of readable characters; programs read and write text files line by line. Open a file before use and close it after:

OPENFILE "data.txt" FOR READ      // or FOR WRITE, FOR APPEND
WHILE NOT EOF("data.txt") DO
    READFILE "data.txt", LineString
    OUTPUT LineString
ENDWHILE
CLOSEFILE "data.txt"

EOF tests the end of file 文件结束 before reading. To write:

OPENFILE "log.txt" FOR WRITE
FOR i ← 1 TO 100
    WRITEFILE "log.txt", "Event " & i
NEXT i
CLOSEFILE "log.txt"

Always close every file — otherwise buffered writes may be lost and other programs may be locked out.

An Abstract Data Type 抽象数据类型 (ADT) is a collection of data plus operations on it, defined by what it does, not how it is stored. The user works only through the operations; the implementation is hidden, so it can change without affecting code that uses the ADT. Know three: stack, queue, linked list.

Stack

A stack 栈 works in LIFO 后进先出 order (Last In, First Out). Operations: push 入栈 (add to the top), pop 出栈 (remove from the top), peek (look at the top), and tests for empty/full. Uses: undo history, function-call return addresses, expression parsing, backtracking.

Push and pop change the top pointer; the base pointer stays put

A pile of books is a stack you can see. You can only add or take a book from the top, so the last one you put on is the first one you take off — that is exactly LIFO

Queue

A queue 队列 works in FIFO 先进先出 order (First In, First Out). Operations: enqueue 入队 (add to the rear), dequeue 出队 (remove from the front), and tests for empty/full. Uses: print spooling, scheduling, breadth-first search, buffering.

Enqueue adds at the rear; dequeue removes from the front

A line of people is a queue you can see. You join at the back and are served from the front, so whoever waited longest is served first — that is exactly FIFO

Linked list

A linked list 链表 stores data as a sequence of nodes 节点. Each node holds a value and a pointer 指针 to the next node; a head pointer marks the start, and the last node's pointer is a sentinel (e.g. NULL). Operations: insert, delete, search, and traverse 遍历 (visit each node in order). Its advantage over an array is cheap insertion/deletion (just adjust pointers); its disadvantage is slow random access (you must follow pointers from the head).

A linked list: each node points to the next

Stack using an array

Hold items in Stack[1:MaxSize] with an integer Top (0 when empty).

• Push(x): if Top = MaxSize the stack is full (overflow 溢出); else Top ← Top + 1; Stack[Top] ← x.
• Pop(): if Top = 0 the stack is empty (underflow 下溢); else return Stack[Top] and Top ← Top - 1.

Queue using a circular array

A simple queue lets Front and Rear march off the end, wasting the start. The fix is a circular array 循环数组 — when a pointer reaches MaxSize it wraps back to 1:

• Enqueue(x): check full; else Rear ← (Rear MOD MaxSize) + 1; Queue[Rear] ← x.
• Dequeue(): check empty; else return Queue[Front] and Front ← (Front MOD MaxSize) + 1.

Track a separate count to tell empty from full.

For example, with MaxSize = 6: if Rear = 5, then (5 MOD 6) + 1 = 6, so the next item goes in cell 6; if Rear = 6, then (6 MOD 6) + 1 = 1, so the pointer wraps back to cell 1.

A circular queue wraps the pointers back to the start of the array

Linked list using an array

Use an array of records, each with a Next index:

TYPE TNode
    DECLARE Value : INTEGER
    DECLARE Next : INTEGER     // index of the next node, or -1 for end
ENDTYPE

DECLARE Nodes : ARRAY[1:MaxSize] OF TNode
DECLARE Head : INTEGER         // index of first node, -1 if empty
DECLARE FreeListHead : INTEGER // first available free node

A free list 空闲列表 chains the unused slots, just as the data list chains its used ones. To insert: take a slot from FreeListHead, set the new node's value and Next, and update the previous node's Next (or Head). To delete: unlink the node and return its slot to the free list. This gives the flexibility of a linked structure with the static allocation of an array.

A linked list stored in an array: a data array and a pointer array

Worked example. A circular queue is held in an array of size 5 (indices 0 to 4) with Front = 3, Rear = 3 and one item stored. Two items are added, then two are removed. Where are the pointers, and why use a circular queue at all? Every move uses (pointer + 1) MOD size, so the pointers wrap. Adding twice moves Rear: $3 \rightarrow 4$, then $4 \rightarrow 0$ (because $(4+1) \bmod 5 = 0$), so Rear = 0 and three items are stored. Removing twice moves Front the same way: $3 \rightarrow 4$, then $4 \rightarrow 0$, leaving Front = 0 and one item. The wrap is the whole point: in a linear array queue the pointers march to the end and the freed space at the front is wasted even when the queue is empty. Remember a queue removes at the Front and adds at the Rear - a stack uses one pointer for both.

• Choose the right data structure and justify it (a record for mixed fields, a 2-D array for a grid).
• Know how to implement a stack, queue and linked list with an array and pointers (top; front/rear; next).
• Distinguish an ADT (its behaviour) from its implementation (array plus pointers).
