Group 17

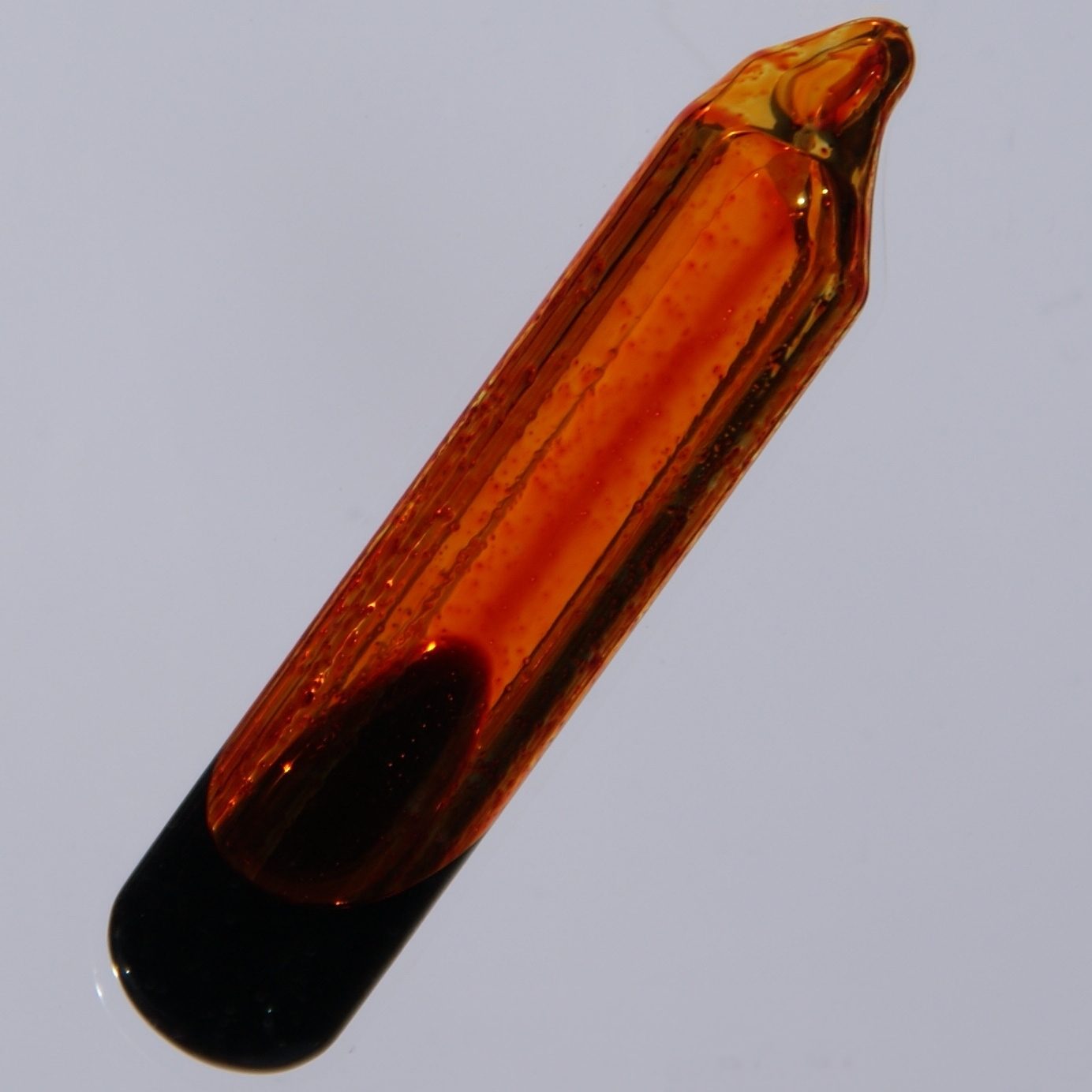

Bromine is a Group 17 halogen — a dark liquid that gives off an orange vapour.

The halogens 卤素 are the Group 族 17 elements. They exist as diatomic molecules ($\text{Cl}_2$, $\text{Br}_2$, $\text{I}_2$). Going down the group:

The volatility 挥发性 (how easily a substance turns to vapour) decreases down the group: chlorine is a gas, but iodine is a solid. This is because the molecules get larger and have more electrons, so the instantaneous dipole 瞬时偶极 and induced dipole 诱导偶极 forces between them get stronger. Stronger forces are harder to break, so the boiling point rises and volatility falls.

Down Group 17 the halogens change from a pale green gas to a red-brown liquid to a grey-black solid as volatility falls

The bond energy 键能 (bond strength) of the $\text{X}\text{–}\text{X}$ molecules generally falls from $\text{Cl}_2$ to $\text{I}_2$, because the shared electrons are further from the nuclei in the larger atoms.

Halogens as oxidising agents

Each halogen reacts by gaining one electron to form a $1-$ ion, so it acts as an oxidising agent 氧化剂. This power decreases down the group, because the larger atoms attract an extra electron less strongly. A more reactive halogen can push out a less reactive one from its salt:

Chlorine displaces bromine: the solution turns orange

Reactions with hydrogen

Each halogen reacts with hydrogen to form a hydrogen halide 卤化氢:

The reaction gets less vigorous down the group: chlorine reacts explosively in light, bromine needs heat, and iodine reacts slowly and only partly.

Thermal stability of the hydrogen halides

The thermal stability 热稳定性 of the hydrogen halides decreases down the group. The H–X bond gets weaker as the halogen atom gets larger, so HI breaks apart on gentle heating while HCl is very stable.

Halide ions as reducing agents

A halide ion 卤离子 (such as $\text{Cl}^-$) can give away an electron, acting as a reducing agent 还原剂. This power increases down the group, because a larger ion holds its outer electron less tightly.

Two opposite trends: the oxidising power of the halogens falls down the group, while the reducing power of the halide ions rises

Reaction with aqueous silver ions

Add aqueous silver nitrate, then aqueous ammonia 氨, to identify the halide from the colour of the silver halide precipitate 沉淀:

Silver halide precipitates: AgCl is white, AgBr cream and AgI yellow — and their solubility in ammonia confirms which halide is present

The silver halide test: AgCl is white, AgBr cream and AgI yellow

Reaction with concentrated sulfuric acid

All the halides first give the hydrogen halide. The lower halides are then oxidised by the acid, because they are stronger reducing agents:

• chloride gives only $\text{HCl}$ (no redox).
• bromide also gives some brown $\text{Br}_2$ and $\text{SO}_2$.
• iodide gives $\text{I}_2$ and the smelly gases $\text{H}_2\text{S}$ and $\text{SO}_2$, because $\text{I}^-$ is the strongest reducing agent.

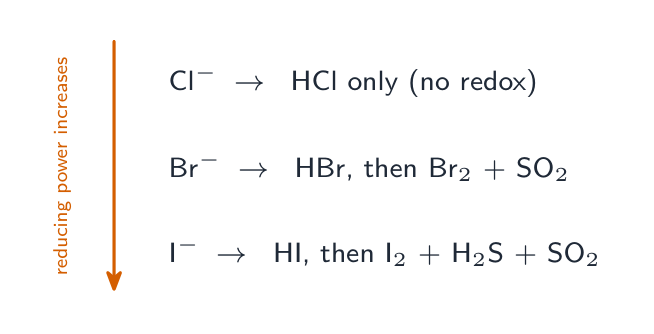

With concentrated sulfuric acid, chloride gives only HCl, but bromide and iodide (stronger reducing agents) are also oxidised to the halogen

Chlorine is added to pool water to kill microbes.

With sodium hydroxide

With cold, dilute sodium hydroxide, chlorine reacts to form chloride and chlorate(I):

With hot, concentrated sodium hydroxide, it forms chloride and chlorate(V):

In both, the oxidation number 氧化数 of chlorine goes both up and down (from $0$), so both are disproportionation 歧化 reactions.

Chlorine in water purification

A little chlorine is added to water for water purification 水净化. It reacts with water:

The active species $\text{HOCl}$ and $\text{ClO}^-$ kill bacteria 细菌, making the water safe to drink.

Worked example. Solid $\text{NaCl}$, $\text{NaBr}$ and $\text{NaI}$ are each warmed with concentrated $\text{H}_2\text{SO}_4$. Predict the products. Reducing power increases down the group, so how far each halide reduces the sulfuric acid differs. $\text{Cl}^{-}$ is too weak to reduce it at all, so you get only steamy $\text{HCl}$ - an acid-base reaction. $\text{Br}^{-}$ reduces it a little: $\text{HBr}$ plus brown $\text{Br}_2$ and $\text{SO}_2$. $\text{I}^{-}$ is the strongest reducing agent: $\text{HI}$ plus $\text{I}_2$, and it drives the sulfur all the way down to $\text{H}_2\text{S}$, with its bad-egg smell. Every halide gives the hydrogen halide first; the extra products appear only where the halide is a strong enough reducing agent to attack the sulfur.

• Halogens get less reactive down the group (harder to gain an electron); oxidising power decreases.
• Displacement: a more reactive halogen displaces a less reactive halide — state the colour change.
• Test halide ions with $\text{AgNO}_3$: white ($\text{Cl}^-$), cream ($\text{Br}^-$), yellow ($\text{I}^-$), then confirm with dilute/concentrated ammonia.
• Chlorine with water and with cold $\text{NaOH}$ are disproportionation — show the oxidation-number changes.
