Atomic structure
A-Level Chemistry · Topic 1
1.1
What an atom is made of
Syllabus
Source: Cambridge International syllabus
A scanning tunnelling microscope can image individual atoms.
Everything is made of atoms 原子. An atom is mostly empty space. At its centre is a tiny, heavy nucleus 原子核. The nucleus holds two kinds of particle: protons 质子 and neutrons 中子. Around the nucleus, in the empty space, move the electrons 电子. The electrons stay in shells 壳层 — layers at set distances from the nucleus.
The nucleus is very small but holds almost all the mass. The electrons take up almost all the space but have almost no mass.
An atom is mostly empty space: protons and neutrons sit in the tiny central nucleus, while electrons move in shells around it
Relative charge and relative mass
We compare the three particles using relative charge 相对电荷 and relative mass 相对质量. These are simple numbers, not real units.
| Particle | Relative charge | Relative mass |
|---|---|---|
| proton | $+1$ | $1$ |
| neutron | $0$ | $1$ |
| electron | $-1$ | $\tfrac{1}{1836}$ (about $0$) |
A proton and a neutron have almost the same mass. An electron is about 1836 times lighter. The proton is positive, the electron is negative, and the neutron has no charge — it is neutral 中性.
Proton number and nucleon number
Two numbers describe the nucleus:
- the proton number 质子数 (also called the atomic number 原子序数), symbol $Z$ — the number of protons.
- the nucleon number 核子数 (also called the mass number 质量数), symbol $A$ — the total number of protons and neutrons. Protons and neutrons are both nucleons 核子.
So the number of neutrons is $A - Z$.
Counting particles in an atom or ion
For a neutral atom, the number of electrons equals the number of protons, which equals $Z$.
An ion 离子 is an atom that has lost or gained electrons, so it has a charge:
- a positive ion has fewer electrons than protons.
- a negative ion has more electrons than protons.
Example: $^{27}_{13}\text{Al}^{3+}$ has $13$ protons, $27 - 13 = 14$ neutrons, and $13 - 3 = 10$ electrons (it lost 3 electrons to become $3+$).
How mass and charge are spread out
Almost all the mass sits in the nucleus, because protons and neutrons are heavy and electrons are very light. All the positive charge is in the nucleus (the protons). The negative charge is spread out in the shells (the electrons).
Beams of particles in an electric field
Imagine beams of protons, neutrons and electrons moving at the same speed into an electric field 电场 between two charged plates:
- the proton beam bends towards the negative plate (protons are positive).
- the electron beam bends the other way, towards the positive plate. It bends much more, because the electron is far lighter — the same force gives a bigger deflection 偏转 to a smaller mass.
- the neutron beam goes straight through. It has no charge, so the field gives it no force.
In an electric field the proton bends towards the $-$ plate and the electron bends the opposite way and far more (it is much lighter); the neutron passes straight through
Atomic radius and ionic radius
The atomic radius 原子半径 is the size of an atom. The ionic radius 离子半径 is the size of an ion.
Across a period 周期 (left to right), the atomic radius gets smaller. The nuclear charge 核电荷 (the pull from the protons) rises, but the electrons go into the same outer shell, so the shielding 屏蔽 by inner shells stays about the same. The stronger pull draws the outer shell inwards.
Down a group 族 (top to bottom), the atomic radius gets larger. Each step down adds a new shell, so the outer electrons are further out and feel more shielding from the nucleus.

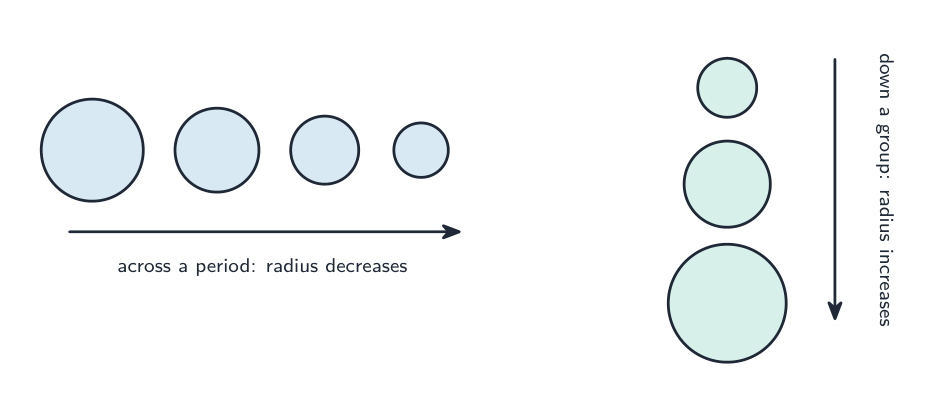

Across a period the atoms shrink (stronger nuclear pull on the same outer shell); down a group they grow (each step adds a shell)
For ions:
- a positive ion (cation 阳离子) is smaller than its atom. It has lost its outer shell, and the electrons that remain feel a stronger pull each.
- a negative ion (anion 阴离子) is larger than its atom. It has gained electrons, so there is more repulsion 排斥 between the electrons.
- among ions that have the same number of electrons, the one with more protons is smaller.
Explore
Explore the atom
Tap each part. A tiny dense nucleus of protons and neutrons holds the mass; light electrons orbit it in shells.
Explore
Atomic and ionic radius trends
Atomic radius falls across a period (rising nuclear charge pulls the same shell in) and rises down a group (an extra shell each time). Step across Period 3 to see it.
Vocabulary
Train
| English | Chinese | Pinyin |
|---|---|---|
| atom | 原子 | yuán zi |
| nucleus | 原子核 | yuán zǐ hé |
| proton | 质子 | zhì zi |
| neutron | 中子 | zhōng zi |
| electron | 电子 | diàn zi |
| shell | 壳层 | ké céng |
| relative charge | 相对电荷 | xiāng duì diàn hè |
| relative mass | 相对质量 | xiāng duì zhì liàng |
| neutral | 中性 | zhōng xìng |
| proton number | 质子数 | zhì zi shù |
| atomic number | 原子序数 | yuán zi xù shù |
| nucleon number | 核子数 | hé zǐ shù |
| mass number | 质量数 | zhì liàng shù |
| nucleon | 核子 | hé zǐ |
| ion | 离子 | lí zi |
| electric field | 电场 | diàn chǎng |
| deflection | 偏转 | piān zhuǎn |
| atomic radius | 原子半径 | yuán zi bàn jìng |
| ionic radius | 离子半径 | lí zi bàn jìng |
| period | 周期 | zhōu qī |
| nuclear charge | 核电荷 | hé diàn hè |
| shielding | 屏蔽 | píng bì |
| group | 族 | zú |
| cation | 阳离子 | yáng lí zi |
| anion | 阴离子 | yīn lí zi |
| repulsion | 排斥 | pái chì |
1.2
Isotopes
Syllabus
- define the term isotope in terms of numbers of protons and neutrons
- understand the notation $_y^x\text{A}$ for isotopes, where $x$ is the mass or nucleon number and $y$ is the atomic or proton number
- state that and explain why isotopes of the same element have the same chemical properties
- state that and explain why isotopes of the same element have different physical properties, limited to mass and density
Source: Cambridge International syllabus
Isotopes 同位素 are atoms of the same element with the same number of protons but a different number of neutrons. So isotopes have the same proton number $Z$ but a different nucleon number $A$.

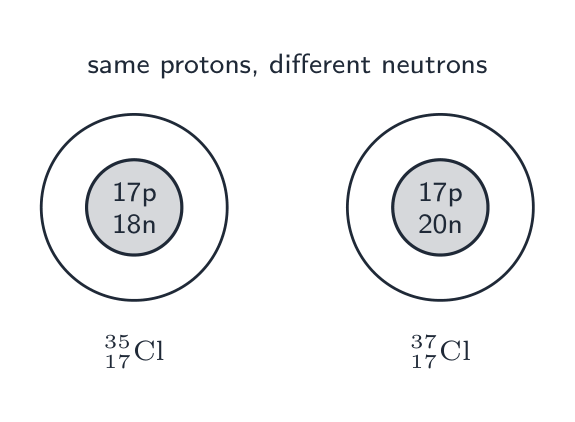

Two chlorine isotopes: same protons, different neutrons
We write an isotope as $^{A}_{Z}\text{X}$: the nucleon number $A$ on top, the proton number $Z$ below. For example, chlorine has two main isotopes, $^{35}_{17}\text{Cl}$ and $^{37}_{17}\text{Cl}$.
Same chemical properties
Chemical properties 化学性质 depend on the electrons, especially the outer electrons. Isotopes of one element have the same number of electrons arranged in the same way. So they react in exactly the same way — they have the same chemical properties.
Different physical properties
Some physical properties 物理性质 depend on mass, so they differ between isotopes. A heavier isotope has more neutrons, so more mass, and therefore a higher density 密度. (The syllabus limits this difference to mass and density.)
Explore
Isotope lab
Classify isotope facts by what changes and what stays the same.
Vocabulary
Train
| English | Chinese | Pinyin |
|---|---|---|
| isotope | 同位素 | tóng wèi sù |
| chemical properties | 化学性质 | huà xué xìng zhì |
| physical properties | 物理性质 | wù lǐ xìng zhì |
| density | 密度 | mì dù |
1.3
Electrons, energy levels and orbitals
Syllabus
- understand the terms: shells, sub-shells and orbitals; principal quantum number (n); ground state, limited to electronic configuration
- describe the number of orbitals making up s, p and d sub-shells, and the number of electrons that can fill s, p and d sub-shells
- describe the order of increasing energy of the sub-shells within the first three shells and the 4s and 4p sub-shells
- describe the electronic configurations to include the number of electrons in each shell, sub-shell and orbital
- explain the electronic configurations in terms of energy of the electrons and inter-electron repulsion
- determine the electronic configuration of atoms and ions given the atomic or proton number and charge, using either of the following conventions: e.g. for Fe: $1\text{s}^2 2\text{s}^2 2\text{p}^6 3\text{s}^2 3\text{p}^6 3\text{d}^6 4\text{s}^2$ (full electronic configuration) or [Ar] $3\text{d}^6 4\text{s}^2$ (shorthand electronic configuration)
- understand and use the electrons in boxes notation
- describe and sketch the shapes of s and p orbitals
- describe a free radical as a species with one or more unpaired electrons
Source: Cambridge International syllabus
Hydrogen emits light only at discrete, characteristic wavelengths — its line emission spectrum.
Electrons are arranged in shells, sub-shells and orbitals.
Shells and the principal quantum number
Each shell is labelled by the principal quantum number 主量子数 $n = 1, 2, 3, \dots$ A larger $n$ means a shell that is further from the nucleus and higher in energy.
Sub-shells and orbitals
Each shell is split into sub-shells 亚层, named s, p and d. Each sub-shell is built from orbitals 轨道. An orbital is a small region that can hold up to two electrons.
| Sub-shell | Number of orbitals | Maximum electrons |
|---|---|---|
| s | 1 | 2 |
| p | 3 | 6 |
| d | 5 | 10 |
So an s sub-shell holds 2 electrons, a p sub-shell holds 6, and a d sub-shell holds 10.
Order of increasing energy
Electrons fill the lowest-energy sub-shell first. For the first three shells, plus 4s and 4p, the order of rising energy is:
$$1\text{s} < 2\text{s} < 2\text{p} < 3\text{s} < 3\text{p} < 4\text{s} < 3\text{d} < 4\text{p}$$
Notice the surprise: 4s is slightly lower in energy than 3d, so 4s fills first.
The sub-shells in order of increasing energy. 4s lies just below 3d, so 4s fills first
Electronic configuration
The electronic configuration 电子排布 lists how many electrons are in each sub-shell. The lowest-energy arrangement is the ground state 基态.
For iron (Fe, $Z = 26$):
$$1\text{s}^2\,2\text{s}^2\,2\text{p}^6\,3\text{s}^2\,3\text{p}^6\,3\text{d}^6\,4\text{s}^2$$
You can write a shorthand using the nearest noble gas 稀有气体 in square brackets:
$$[\text{Ar}]\,3\text{d}^6\,4\text{s}^2$$
Here $[\text{Ar}]$ stands for the full configuration of argon.
For ions, you add or remove electrons. One key rule: when a transition metal forms a positive ion, it loses its 4s electrons before its 3d electrons. So $\text{Fe}^{3+}$ is $[\text{Ar}]\,3\text{d}^5$.
Electrons in boxes
The electrons in boxes notation draws each orbital as a box and each electron as an arrow. Two electrons in the same orbital must point opposite ways, because each electron has a property called spin 自旋, and a shared orbital needs opposite spins.
Within a sub-shell, electrons fill empty orbitals one at a time, with parallel arrows, before any orbital gets a second electron. Spreading out like this keeps the electrons apart and lowers the repulsion between them.
Electrons in boxes for nitrogen ($1\text{s}^2\,2\text{s}^2\,2\text{p}^3$): paired electrons point opposite ways, and the 2p orbitals fill singly with parallel spins
Why the configuration takes this shape
Electrons fill from low energy to high energy because that gives the most stable (lowest-energy) atom. Within a sub-shell they spread out singly first to reduce the repulsion between the negative electrons.
Shapes of s and p orbitals
- an s orbital is a sphere 球形 centred on the nucleus.
- a p orbital has two lobes, like a dumbbell, pointing along one axis. The three p orbitals point along three directions at right angles (the $x$, $y$ and $z$ axes).
An s orbital is a sphere; each p orbital is a dumbbell, and the three p orbitals point along the $x$, $y$ and $z$ axes
Free radicals
A free radical 自由基 is a species with one or more unpaired electrons 未成对电子. Free radicals are very reactive.
Explore
Filling the electron shells
Change the atomic number Z and watch the electrons fill the shells (2, 8, 8, …) — the pattern that builds the Periodic Table.
Vocabulary
Train
| English | Chinese | Pinyin |
|---|---|---|
| principal quantum number | 主量子数 | zhǔ liàng zǐ shù |
| sub-shell | 亚层 | yà céng |
| orbital | 轨道 | guǐ dào |
| electronic configuration | 电子排布 | diàn zi pái bù |
| ground state | 基态 | jī tài |
| noble gas | 稀有气体 | xī yǒu qì tǐ |
| spin | 自旋 | zì xuán |
| sphere | 球形 | qiú xíng |
| free radical | 自由基 | zì yóu jī |
| unpaired electrons | 未成对电子 | wèi chéng duì diàn zi |
1.4
Ionisation energy
Syllabus
- define and use the term first ionisation energy, IE
- construct equations to represent first, second and subsequent ionisation energies
- identify and explain the trends in ionisation energies across a period and down a group of the Periodic Table
- identify and explain the variation in successive ionisation energies of an element
- understand that ionisation energies are due to the attraction between the nucleus and the outer electron
- explain the factors influencing the ionisation energies of elements in terms of nuclear charge, atomic/ionic radius, shielding by inner shells and sub-shells and spin-pair repulsion
- deduce the electronic configurations of elements using successive ionisation energy data
- deduce the position of an element in the Periodic Table using successive ionisation energy data
Source: Cambridge International syllabus
First ionisation energy
The first ionisation energy 第一电离能 (IE) is the energy needed to remove one electron from each atom in one mole of gaseous atoms, forming one mole of gaseous $+1$ ions.
We use gaseous atoms so there are no forces between the particles. The unit is $\text{kJ mol}^{-1}$. As an equation, for an element X:
$$\text{X}(\text{g}) \rightarrow \text{X}^{+}(\text{g}) + \text{e}^{-}$$
The $(\text{g})$ shows the species is a gas.
Successive ionisation energies
After removing one electron, you can remove another. The second ionisation energy removes one electron from each $+1$ ion:
$$\text{X}^{+}(\text{g}) \rightarrow \text{X}^{2+}(\text{g}) + \text{e}^{-}$$
You can keep going. These are the successive ionisation energies 逐级电离能. Each is larger than the one before, because every electron is pulled away from a more positive ion.
What ionisation energy depends on
Ionisation energy comes from the attraction between the positive nucleus and the outer electron. Three main factors set how strong that attraction is:
- nuclear charge: more protons pull the electrons more strongly, so the ionisation energy is higher.
- atomic radius: the further the outer electron sits from the nucleus, the weaker the pull, so the ionisation energy is lower.
- shielding: inner shells block some of the pull on the outer electron. More inner shells mean more shielding and a lower ionisation energy.
There is a smaller effect too — spin-pair repulsion 自旋成对排斥. When two electrons share one orbital, they push each other a little, so one is easier to remove.
Trends in first ionisation energy
Across a period, the first ionisation energy generally rises. The nuclear charge grows while shielding stays about the same, so the outer electrons are held more tightly.
Down a group, the first ionisation energy falls. Lower elements have more shells, so more shielding and a larger radius, and the outer electron is easier to remove.
The dips are evidence for sub-shells
The rise across a period is not smooth. Two small dips appear, and you should be able to explain both:
- Group 2 to Group 13 (for example Mg to Al): the electron removed from Al comes from a 3p sub-shell, which is higher in energy than the full 3s sub-shell in Mg. A 3p electron is easier to remove, so the value dips.
- Group 15 to Group 16 (for example P to S): in S, one 3p orbital now holds a pair of electrons. Spin-pair repulsion makes one of them easier to remove, so the value dips.
These dips are evidence that sub-shells exist.

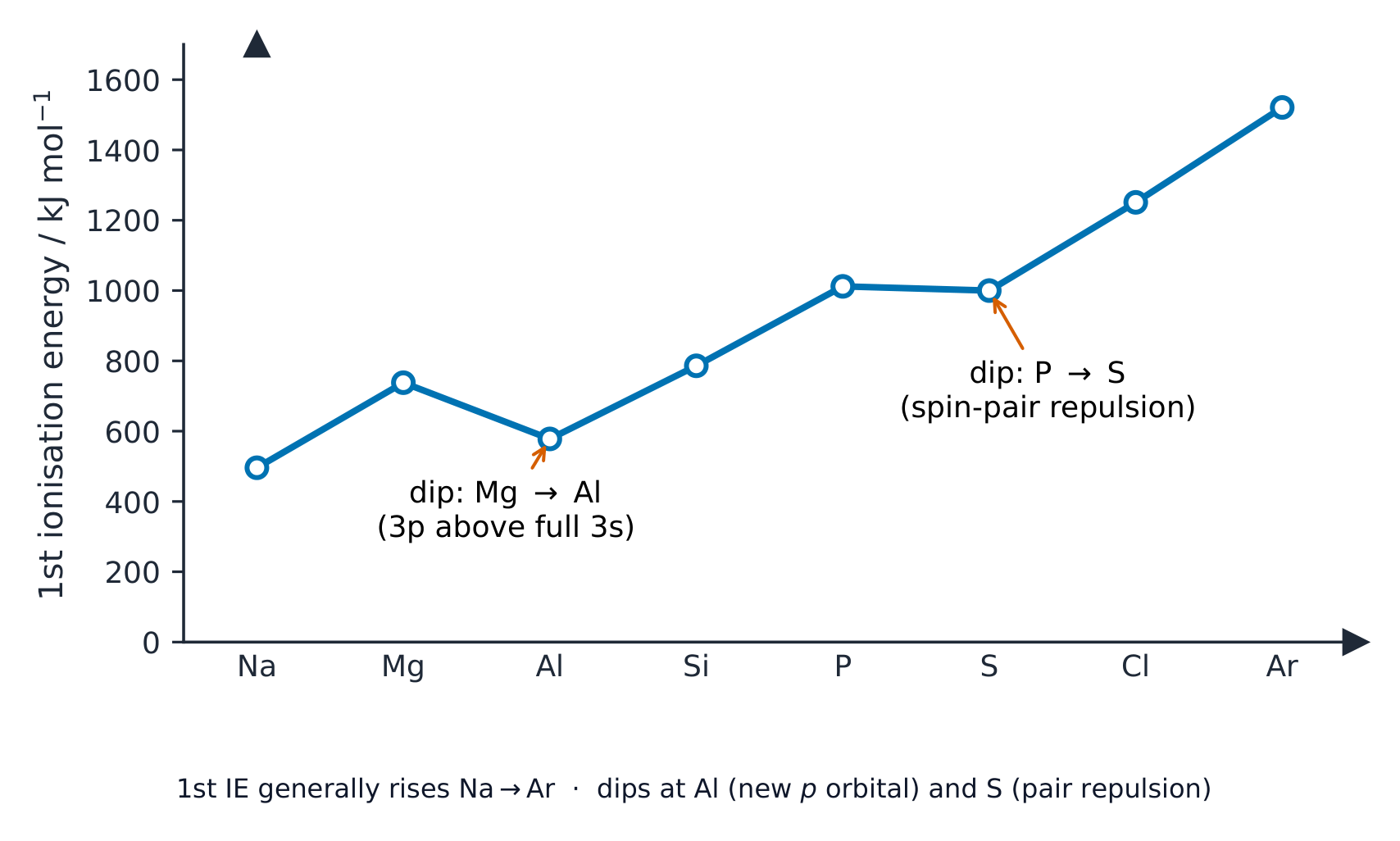

First ionisation energy rises across Period 3 but dips at Al and at S — evidence that sub-shells exist
Successive ionisation energies are evidence for shells
If you plot the successive ionisation energies of one element, the values rise, with big jumps at certain points. A big jump happens when the next electron must come from a shell closer to the nucleus.
Count how many electrons come off easily before the first big jump — that is the number of electrons in the outer shell, which tells you the group the element is in. You can also use the pattern to work out the electronic configuration and the position of the element in the Periodic Table.
Successive ionisation energies of sodium (log scale): the big jumps reveal the $2,8,1$ shell structure
| Electrons removed before the first big jump | Group |
|---|---|
| 1 | Group 1 |
| 2 | Group 2 |
| 3 | Group 13 |
Worked example. The first five successive ionisation energies of an element are $590$, $1150$, $4940$, $6480$ and $8120\ \text{kJ}\,\text{mol}^{-1}$. Which group is it in? Look for the big jump, not the biggest number. From the 1st to the 2nd the value roughly doubles, which is a normal rise. From the 2nd ($1150$) to the 3rd ($4940$) it more than quadruples: that is the jump. So two electrons come off easily before it, the outer shell holds 2 electrons, and the element is in Group 2. Count the electrons removed before the jump, and explain the jump properly: the next electron is being pulled from a shell closer to the nucleus, not from a different element.
Explore
The ionisation-energy trend — and its dips
First ionisation energy generally rises across a period, but DIPS where a new p sub-shell starts and where a p-orbital pair first forms. Step across to find the two tell-tale dips.
Vocabulary
Train
| English | Chinese | Pinyin |
|---|---|---|
| first ionisation energy | 第一电离能 | dì yī diàn lí néng |
| successive ionisation energies | 逐级电离能 | zhú jí diàn lí néng |
| spin-pair repulsion | 自旋成对排斥 | zì xuán chéng duì pái chì |
1.4
Exam tips
- Define isotopes in full: atoms of the same element with the same number of protons but a different number of neutrons — the mark scheme wants both halves.
- 4s fills before 3d, but electrons are removed from 4s first when forming ions, so $\text{Fe}^{3+}$ is $[\text{Ar}]3\text{d}^5$ (not $[\text{Ar}]3\text{d}^3 4\text{s}^2$).
- In successive ionisation energies, a big jump marks the start of a new (inner) shell — use the jumps to place the element in its group.
- Explain every ionisation-energy trend with the same three factors: nuclear charge, distance and shielding, plus sub-shell effects for the small dips.
- Learn the exact reason first ionisation energy of oxygen is below nitrogen: oxygen's paired 2p electrons repel, so one is easier to remove.
