Free-body diagrams and support reactions
Đã giới thiệu| English | Ý nghĩa |
|---|---|
| free-body diagram/friː ˈbɒdi ˈdaɪəɡræm/ | sơ đồ vật thể tự do |
| load/ləʊd/ | tải trọng |
| centre of gravity/ˈsentə ɒv ˈɡrævɪti/ | tâm trọng lực |
| reaction/rɪˈækʃn/ | lực phản ứng |
| roller/ˈrəʊlə/ | gối lăn |
| pin/pɪn/ | gối khớp cố định |
| fixed support/fɪkst səˈpɔːt/ | gối cố định |
| statically determinate/ˈstætɪkli dɪˈtɜːmɪnət/ | tĩnh định |
| two-force member/tuː fɔːs ˈmembə/ | thanh hai lực |
What does the table do to the book?
- A $2.0\ \text{kg}$ book rests on a table. Its weight is $2.0 \times 9.81 = 19.6\ \text{N}$ down, and it does not move.
- So the table must push up with $19.6\ \text{N}$. You only see that push when you cut the book free and draw what the table gives it.
A $3.0\ \text{kg}$ toolbox rests on a shelf. How large is the upward force from the shelf, in N? Use $g = 9.81\ \dfrac{\text{m}}{\text{s}^{2}}$.
Độ khó 2/5 · 140 xu + phần thưởng nhỏ khi hoàn thành lần đầu tiên hôm nay
The box does not move, so the shelf's push balances the weight: $N = mg = 3.0 \times 9.81 = 29.4\ \text{N}$.

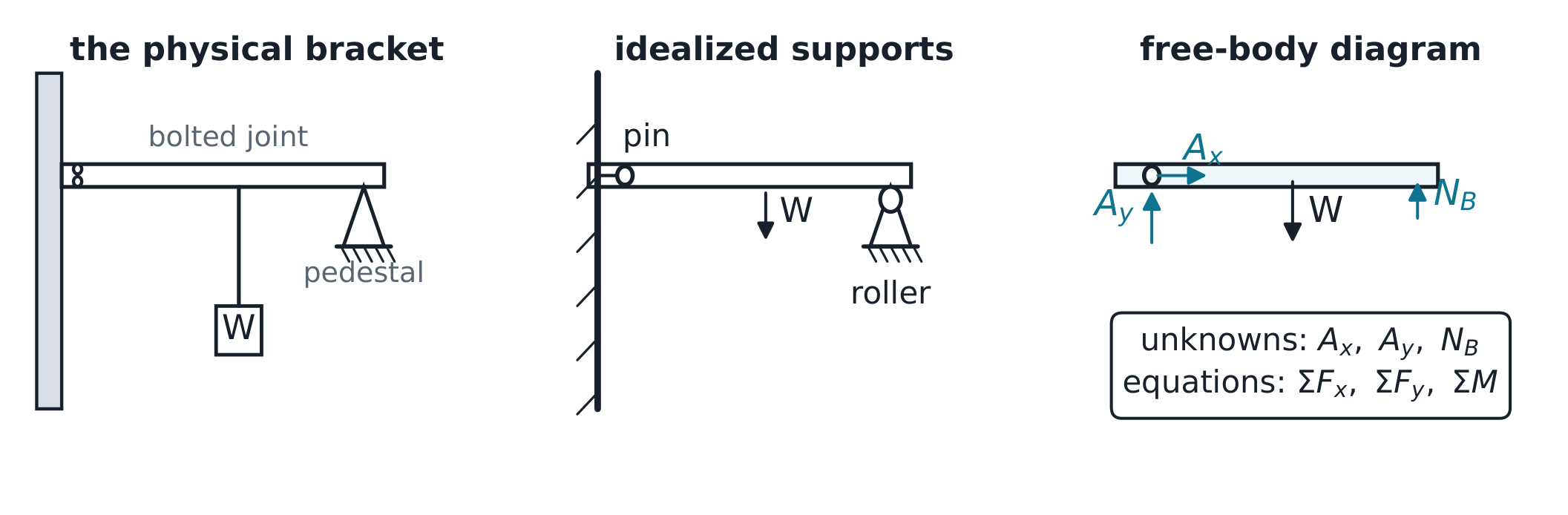

Cut the body free, then draw its world
- A free-body diagram 受力图 shows one body on its own, with every outside force acting on it, and nothing else.
- Each cut through a support, contact or cable is replaced by the force that the cut part was giving.
Three kinds of force go on it
- Applied loads 载荷 (cables, pushes, pressure), with direction and point of application. The weight acts at the centre of gravity 重心.
- Reactions 约束反力: what each support pushes back with. Internal forces stay off: if you did not cut a member, its force is not on this diagram.
You draw the free-body diagram of a beam resting on a pin at A and a roller at B. Which forces belong on it? Select all that apply.
Độ khó 2/5 · 140 xu + phần thưởng nhỏ khi hoàn thành lần đầu tiên hôm nay
Only forces acting on the beam from outside appear. The beam's force on the pin belongs on the pin's diagram, and an internal force appears only if you cut there.

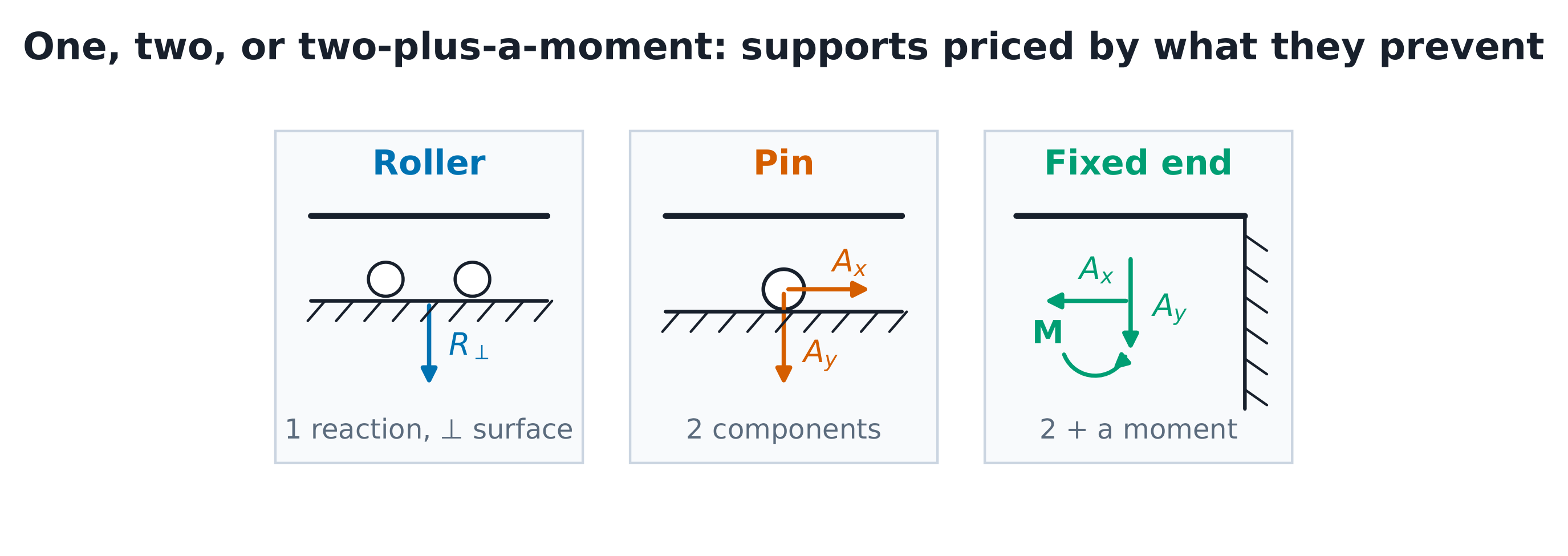

Each support speaks a fixed language
- Roller 滚动支座: one force, perpendicular to the surface. Pin 固定铰支座: two force components. Fixed support 固定端: two components and a moment.
- A cable gives one force: a pull along the cable. It can never push.
Match each support to the unknowns it gives.
Độ khó 2/5 · 140 xu + phần thưởng nhỏ khi hoàn thành lần đầu tiên hôm nay
Each support supplies a reaction for each motion it prevents. A roller stops one motion, a pin two, a fixed support three.
Count before you calculate
- A particle in 2D gives two equations; a rigid body gives three. When the unknowns equal the equations, the body is statically determinate 静定.
- A beam on a pin and a roller: $2 + 1 = 3$ unknowns, solvable. Fixed at both ends: $3 + 3 = 6$ unknowns, too many. On two rollers: only $2$, and nothing stops it sliding sideways.
A beam has a fixed support at A and a roller at B. How many unknown reactions does its free-body diagram have?
Độ khó 2/5 · 140 xu + phần thưởng nhỏ khi hoàn thành lần đầu tiên hôm nay
The fixed support gives $3$ (two components and a moment) and the roller gives $1$. Four unknowns against three equations, so this beam is statically indeterminate.
A beam rests on two rollers on a level floor and carries vertical loads. What is wrong?
Độ khó 1/5 · 100 xu + phần thưởng nhỏ khi hoàn thành lần đầu tiên hôm nay
Two rollers give only $2$ vertical unknowns. The vertical loads can be balanced, but the smallest sideways push would make the beam roll away.
Two-force members point the way
- A two-force member 二力杆 is loaded only at its two ends. Its force must act along the line joining those two ends, whatever the member's shape.
- That fact turns two unknown components into one unknown size. A strut meeting a beam at $45^{\circ}$ pushes along the strut, at $45^{\circ}$.
A curved bar pinned at both ends, with no other loads on it, pushes or pulls along the straight line joining its two pins.
Độ khó 1/5 · 100 xu + phần thưởng nhỏ khi hoàn thành lần đầu tiên hôm nay
Two forces can only balance if they are equal, opposite and on the same line, and that line runs through both pins. The bar's shape does not matter.

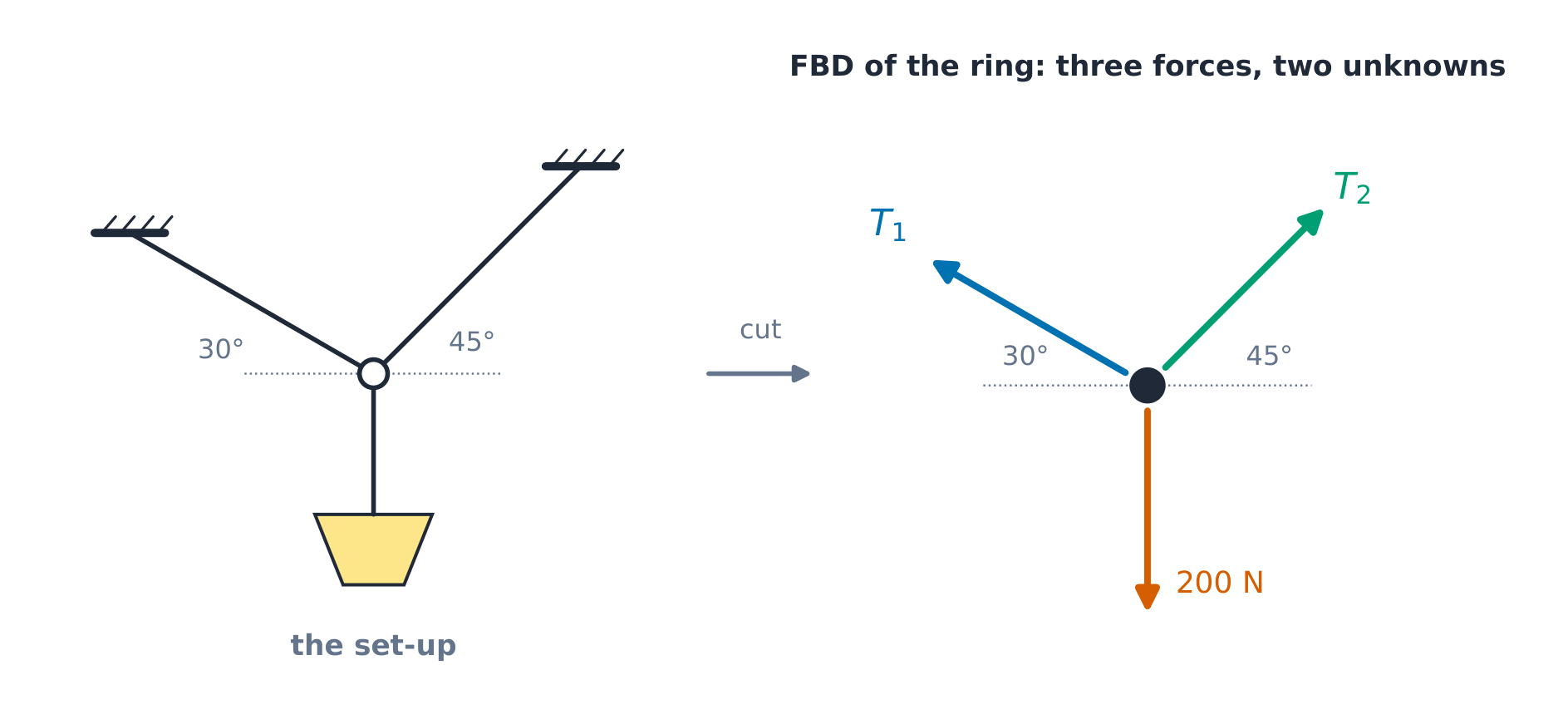

Worked example: the lamp ring
- A $200\ \text{N}$ lamp hangs from a ring held by two cables, at $30^{\circ}$ and $45^{\circ}$ above the horizontal. Draw the ring's free-body diagram and audit it.
- Cut both cables and the lamp's chain. On the ring: $200\ \text{N}$ down, $T_1$ along cable 1, $T_2$ along cable 2. Both tensions pull away from the ring.
- Audit: two unknowns ($T_1$, $T_2$), two particle equations. Determinate. The next lesson solves it.
Put the steps for drawing a free-body diagram in order.
Độ khó 3/5 · 200 xu + phần thưởng nhỏ khi hoàn thành lần đầu tiên hôm nay
The count comes last because it needs the finished diagram. A reaction left out at step four is the error the count is there to catch.
Marks that slip away
- Drawing forces the body does not feel, such as the force the beam puts on the wall. On the beam's diagram, only the wall's force on the beam appears.
- Leaving out a reaction because a support "looks rigid". Rigid is exactly why it pushes back.
- Pushing with a cable. A cable only pulls, away from the body.
You've got it
- Isolate one body; replace every cut with the force it gave; draw loads, weight and reactions, never internal forces.
- Roller 1 unknown, pin 2, fixed support 3; a two-force member acts along its own line.
- Count unknowns against equations before any algebra.
