Architecture and design

Từ vựng

English

Layers pointing inward

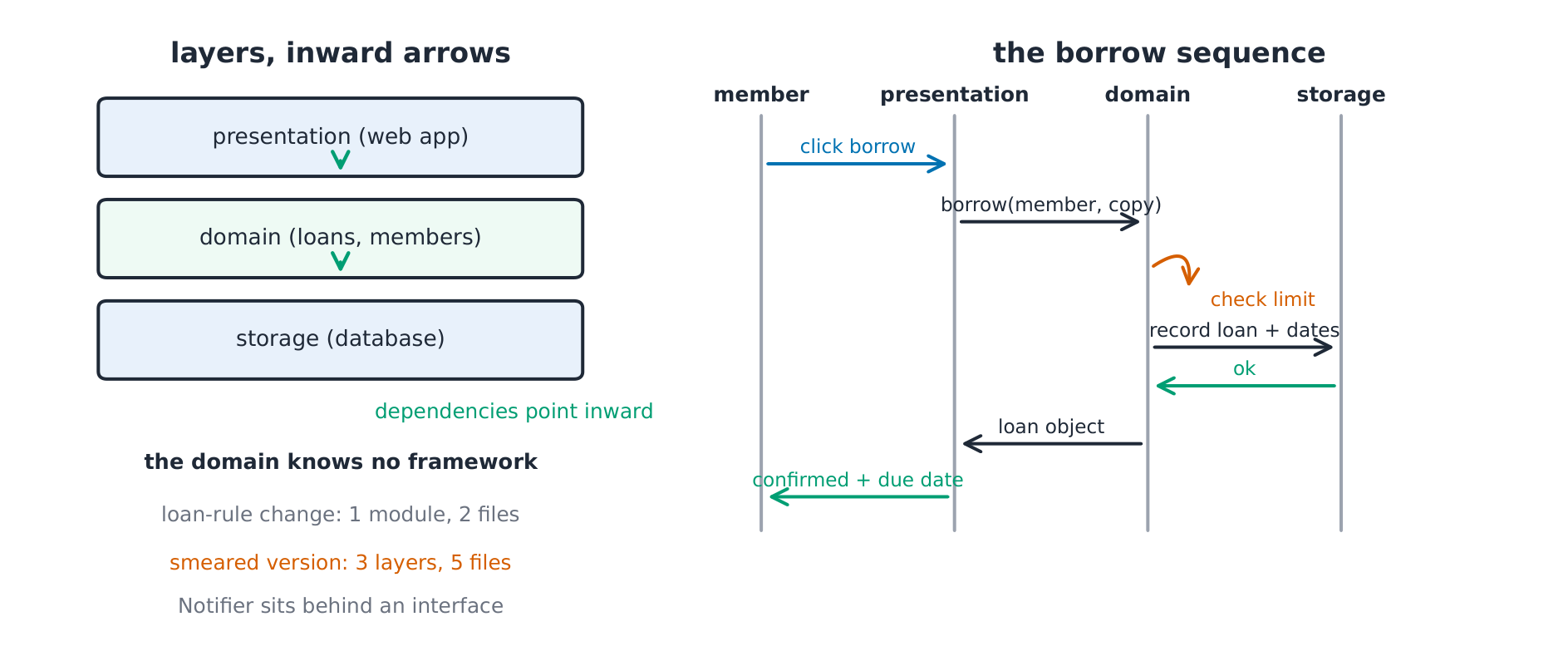

BookShare in three layers: presentation (web app), domain (loans, members, catalog), storage (database). The dependency rule: dependencies point inward — the domain knows no framework, and that is what makes it testable.

{exercise:uni-cs1202-layers}

Luyện tập

The dependency rule points —

Độ khó 1/5 · 100 xu + phần thưởng nhỏ khi hoàn thành lần đầu tiên hôm nay

English

Cohesion keeps related change in one module; coupling spreads it. The loan-limit rule change: 1 module, 2 files (high cohesion, low coupling). The same rule smeared across presentation: 3 layers, 5 files. The count IS the design metric.
The borrow sequence: presentation calls domain.borrow(member, copy); the domain checks limit and status; storage records with dates; presentation confirms — four participants, five labelled messages.

{exercise:uni-cs1202-counting}

Luyện tập

The loan-rule change touches 1 module, 2 files. The smeared version touches —

Độ khó 1/5 · 100 xu + phần thưởng nhỏ khi hoàn thành lần đầu tiên hôm nay

English

Reminder delivery is a strategy behind a Notifier interface: email today, push tomorrow — swapping costs one configuration line, zero domain edits.
The domain importing the web framework inverts the rule and becomes untestable; diagrams as decoration (unlabelled arrows) review nothing.

{exercise:uni-cs1202-boundary}

Luyện tập

Swapping the Notifier strategy costs —

Độ khó 1/5 · 100 xu + phần thưởng nhỏ khi hoàn thành lần đầu tiên hôm nay
