Circuits with Resistors and Inductors (LR Circuits)
| English | Chinese | Pinyin |
|---|---|---|
| inductor | 电感器 | diàn gǎn qì |
Flip the switch and the current takes its time to rise
- Close a switch on a plain resistor and the current jumps up instantly.
- Add an inductor 电感器 and the current climbs gradually instead.
- The inductor's back-EMF fights the sudden change, slowing the rise.
- A resistor and inductor together make an LR circuit — the magnetic cousin of RC.

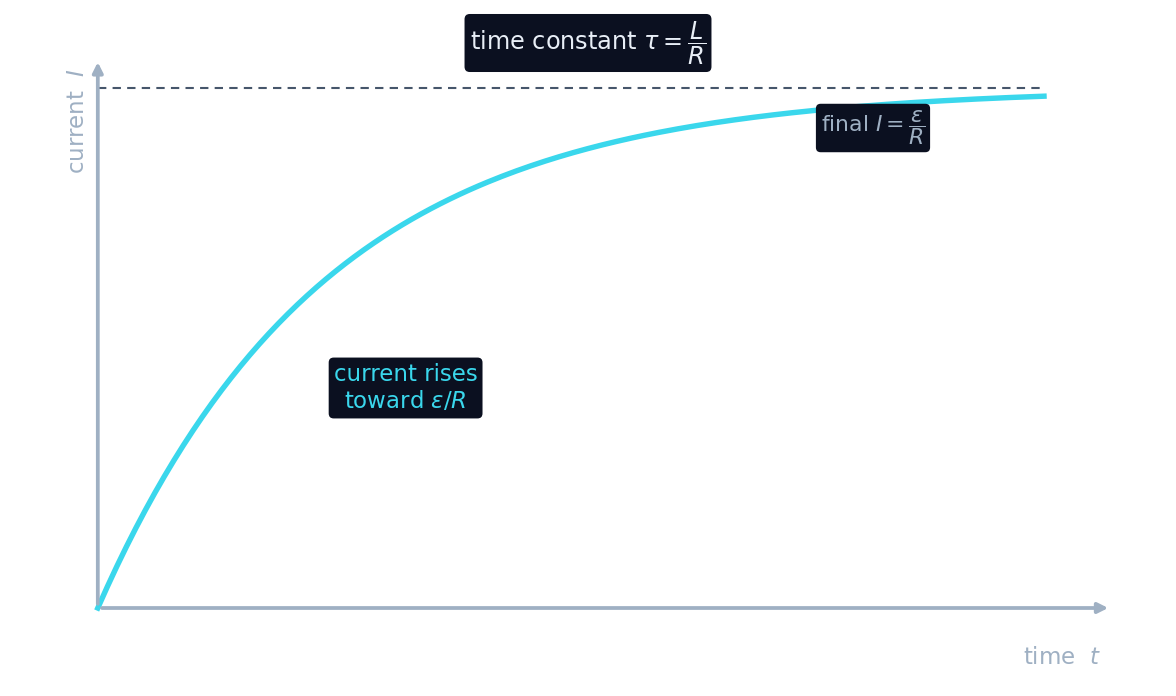

The current rises exponentially
- Close the switch and the current climbs: $I(t) = \dfrac{\varepsilon}{R}\left(1 - e^{-t/\tau}\right)$.
- It starts at zero, rises fast, then eases toward its final value $\varepsilon/R$.
- The inductor's opposition is strongest at the start and fades as $I$ steadies.
- The shape is the same exponential curve as an RC charging capacitor.
Long after the switch closes, the LR current settles at $\varepsilon/$ ____.
The final steady current is $\varepsilon/R$ (inductor acts like a wire).
The time constant τ = L/R
- The natural timescale here is $\tau = \dfrac{L}{R}$.
- In one $\tau$, the current reaches about $63\%$ of its final value.
- After about $5\tau$ it is essentially at $\varepsilon/R$.
- A bigger $L$ (more inertia) or smaller $R$ makes the rise slower.
The time constant of an LR circuit is:
For an LR circuit $\tau = L/R$.
An LR circuit has $L = 10\ \text{H}$ and $R = 5\ \Omega$. Find $\tau$ (in s).
$\tau = L/R = 10/5 = 2\ \text{s}$.
The inductor's two extremes
- At the first instant ($t = 0$): the inductor blocks the change, acting like an open gap (zero current).
- After a long time ($t \to \infty$): the current is steady, so the inductor acts like a plain wire.
- Notice this is the opposite of a capacitor's behaviour.
- Those two limits let you check any LR answer quickly.
An LR circuit switching on
An inductor resists sudden change. Sort each fact by the moment it describes.
At the first instant a switch closes, an inductor acts like:
It blocks the sudden change, so at $t=0$ the current is zero (open gap).
An inductor's early and late behaviour is the reverse of a capacitor's.
Inductor: open then wire. Capacitor: wire then open. They are reversed.
Switching off can spark
- Open the switch and the current tries to drop to zero at once.
- The inductor fights that huge $dI/dt$ with a large back-EMF.
- That surge can jump the switch gap as a spark.
- It is why circuits with big coils need protection when switched off.
Select all true statements about LR circuits.
Exponential rise, τ = L/R, blocked at t = 0. The rise is gradual, not instant.
An LR circuit has $L = 6\ \text{H}$ and $R = 2\ \Omega$. Find its time constant.
- $\tau = \dfrac{L}{R} = \dfrac{6}{2} = 3\ \text{s}$.
- After $3\ \text{s}$ the current is about $63\%$ of $\varepsilon/R$.
An inductor's limits are the reverse of a capacitor's. At $t = 0$ an inductor acts like an open gap (blocks current), and at $t \to \infty$ like a plain wire. Swapping these — or confusing them with the capacitor's — is the classic LR mistake.
In an LR circuit, the current rises as $I = \tfrac{\varepsilon}{R}(1 - e^{-t/\tau})$ with time constant $\tau = L/R$ (about $63\%$ per $\tau$). At $t=0$ the inductor acts like an open gap, and at $t\to\infty$ like a wire — the reverse of a capacitor.
