Investigation of limiting factors
Introduced| English | Meaning |
|---|---|
| limiting factor/ˈlɪmɪtɪŋ ˈfæktə/ | A factor whose availability restricts the rate or extent of a process. |
| light intensity/laɪt ɪnˈtensɪti/ | The amount of light energy incident per unit area per unit time, expressed using an appropriate physical measure. |
| denature/ˈdenətʃə/ | To alter a biological molecule's structure enough to disrupt its normal function, without necessarily breaking its primary covalent structure. |
| greenhouse/ˈɡriːnhaʊs/ | A structure with transparent walls or roofing that provides a controlled environment for growing plants. |
What holds photosynthesis back?
- The rate of photosynthesis depends on conditions.
- A limiting factor 限制因素 is the one in shortest supply that holds the rate back.
- The three main ones: light intensity 光照强度, CO₂ concentration, and temperature.
A limiting factor is:
Difficulty 1/5 · 100 coins + a small bonus on first completion today
The limiting factor is whichever requirement is in shortest supply, capping the overall rate.
Adding carbon dioxide can raise the rate of photosynthesis when CO₂ is the limiting factor.
Difficulty 1/5 · 100 coins + a small bonus on first completion today
Only the factor in shortest supply limits the rate, so increasing it speeds things up.

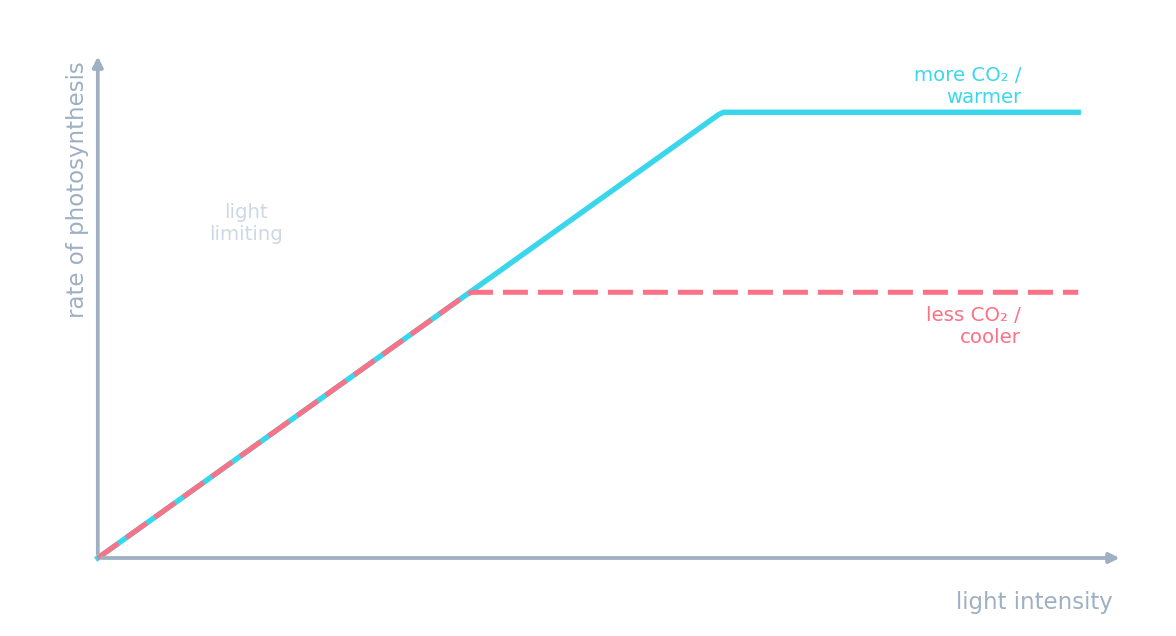

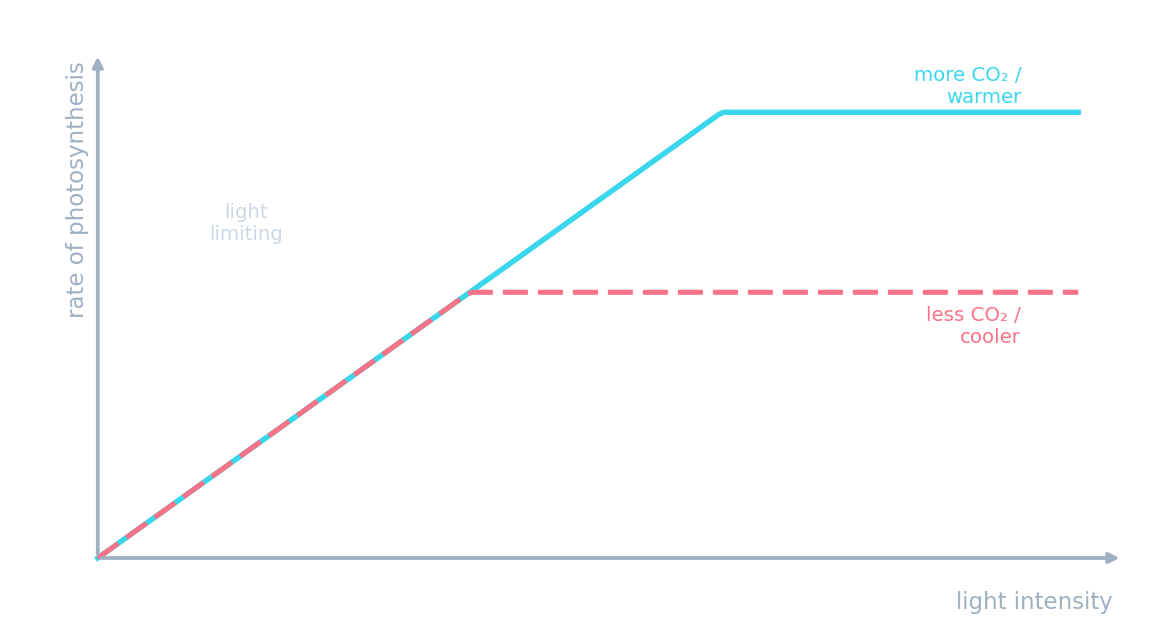

Reading the graph
- Raising light speeds photosynthesis — until another factor becomes limiting.
- Raising CO₂ speeds it — until another factor becomes limiting.
- Raising temperature speeds it — but only to an optimum; too hot and the enzymes denature 变性.
- While the line rises, light is limiting. Where it levels off, something else (CO₂ or temperature) is.
Limiting factors
rate rises, then plateaus
Drag the sliders. More light speeds photosynthesis — until CO₂ or temperature caps it (the plateau).
On a graph of rate against light intensity, where the line levels off:
Difficulty 1/5 · 100 coins + a small bonus on first completion today
While the rate rises, light limits it; once it plateaus, light is plentiful and something else limits the rate.
Why does raising temperature only speed photosynthesis up to a point?
Difficulty 1/5 · 100 coins + a small bonus on first completion today
Higher temperature speeds the enzyme reactions until the optimum; beyond it, the enzymes denature and the rate falls.
Match each factor to its role in photosynthesis.
Difficulty 2/5 · 140 coins + a small bonus on first completion today
Light powers the light reactions, CO₂ feeds the Calvin cycle, temperature controls the enzymes — the scarcest one caps the rate.
Measuring the rate
- Use a redox indicator (DCPIP / methylene blue) with a suspension of chloroplasts: the dye loses colour as they work — test different light intensities or wavelengths.
- With a whole aquatic plant, count the oxygen bubbles given off to compare conditions.
One simple way to measure the rate of photosynthesis is to count the ______ bubbles given off by an aquatic plant.
Difficulty 1/5 · 100 coins + a small bonus on first completion today
Oxygen is a product of photosynthesis; counting (or collecting) the bubbles tracks the rate.
Using limiting factors commercially
- Growers raise yields by removing the limiting factor in greenhouses 温室: adding light, warmth and extra CO₂.
Worked example. On a bright warm day, CO₂ is often limiting. A grower pipes extra CO₂ into the greenhouse, and the rate of photosynthesis — and the crop yield — rises.
You've got it
- a limiting factor = the factor in shortest supply that caps the rate
- three factors: light intensity, CO₂ concentration, temperature
- on a rate-vs-light graph: rising = light limiting; plateau = another factor; too hot → enzymes denature
- measure with DCPIP/methylene blue + chloroplasts, or count O₂ bubbles from an aquatic plant
