Work, energy and power

Wind turbines transfer the kinetic energy of the wind into electrical energy.

Work done by a force

Work 功 is done when a force moves its point of contact along the line of the force. The work done by a constant force $F$ that causes a displacement 位移 $s$ is

where $\theta$ is the angle between the force and the displacement. Only the component 分量 of the force along the displacement does work.

Only the component of the force along the displacement ($F\cos\theta$) does work

Worked example. A child pulls a sledge $5.0\ \text{m}$ across the snow with a rope, using a force of $20\ \text{N}$ at $60°$ to the ground. Find the work done by the rope.

Unit: $\text{J} = \text{N m}$. Work is a scalar 标量.

Special cases:

• force in the same direction as the motion ($\theta = 0$): $W = Fs$, positive work, energy 能量 given to the object.
• force at right angles to the motion ($\theta = 90°$): $W = 0$. The normal contact force 支持力 on a car on a flat road does no work.
• force opposite to the motion ($\theta = 180°$): $W = -Fs$, negative work, energy taken from the object (for example friction 摩擦力).

Positive work ($W = +Fs$): force along the motion (top). Negative work ($W = -Fs$): force opposite to the motion, e.g. friction (bottom)

For an object moving up a slope at angle $\alpha$ to the horizontal 水平, the work done against gravity in rising a height $h$ is $mgh$, while the work done by a horizontal push over the slope length $L$ uses $\cos\alpha$.

Conservation of energy

Energy is never made or destroyed — it only changes from one form to another, or moves from one object to another. In a closed system 封闭系统, the total energy stays constant. This is conservation of energy 能量守恒.

When you write an energy equation, list every form the energy starts as and ends as. Common forms in this syllabus: kinetic, gravitational potential, elastic potential energy 弹性势能, electrical 电能, thermal, sound, chemical energy 化学能.

A ball rolling down a frictionless 无摩擦 ramp 斜坡 turns gravitational potential energy 重力势能 into kinetic energy 动能: $mgh = \tfrac{1}{2} m v^{2}$, so $v = \sqrt{2gh}$. With friction, some of this energy becomes thermal energy 热能 of the ramp and the air.

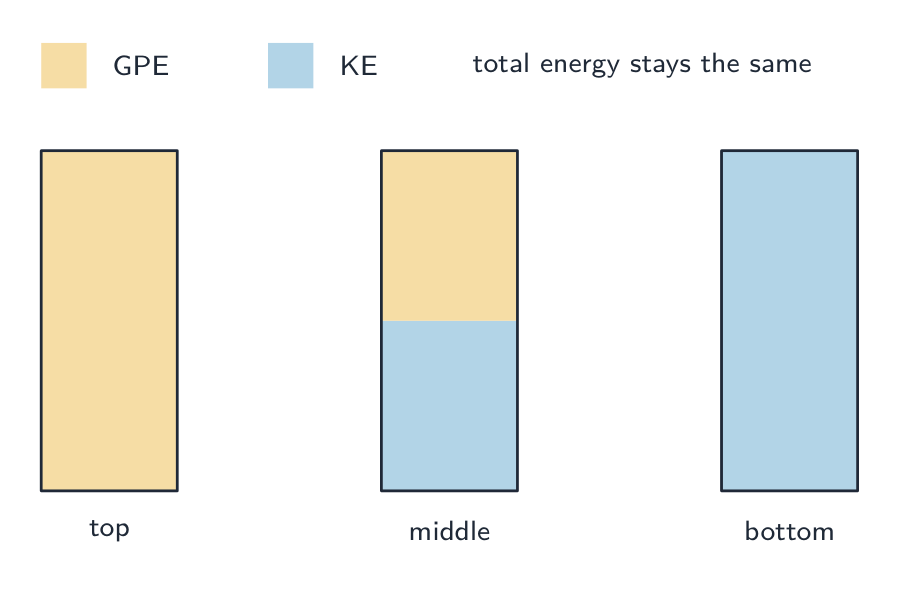

On a frictionless ramp, GPE turns into KE while the total energy stays constant

Worked example. A ball is released from rest at the top of a smooth ramp $1.2\ \text{m}$ high. Find its speed at the bottom (take $g = 9.81\ \text{m s}^{-2}$).

All the gravitational potential energy becomes kinetic energy, so $v = \sqrt{2gh}$ (the mass cancels):

Efficiency

The efficiency 效率 of a system is

The same idea with power:

Efficiency is always less than 100% in a real system, because some input energy becomes "useless" forms — usually thermal energy.

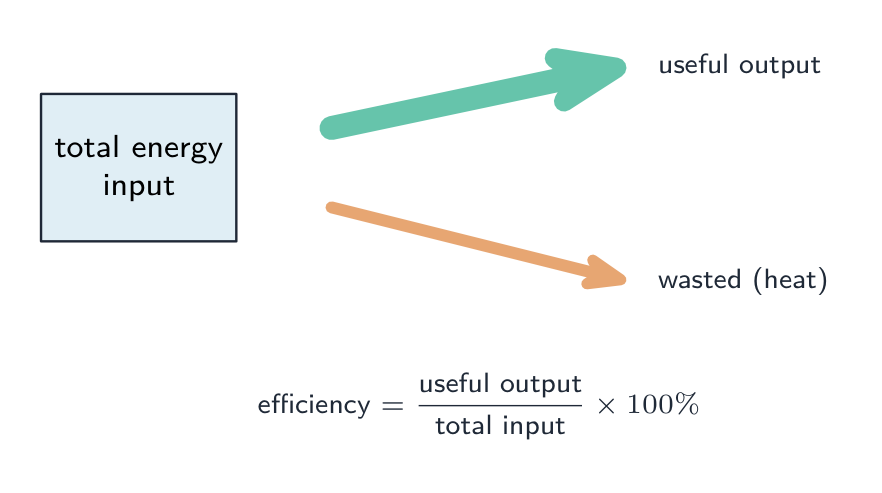

Efficiency: only part of the energy input leaves as useful output; the rest is wasted, usually as heat

For an electric motor lifting a load with efficiency $\eta$ at voltage 电压 $V$ and current 电流 $I$, the useful output power is $\eta V I$. From this you can find a force, a lifting speed, or a tension 张力.

Worked example. An electric motor lifts a $50\ \text{kg}$ load at a steady $0.40\ \text{m s}^{-1}$ while drawing $250\ \text{W}$ of electrical power. Find its efficiency (take $g = 9.81\ \text{m s}^{-2}$).

The useful output power is $P = mgv = 50 \times 9.81 \times 0.40 = 196\ \text{W}$, so

Power 功率 is the rate of doing work, or the rate of transferring energy:

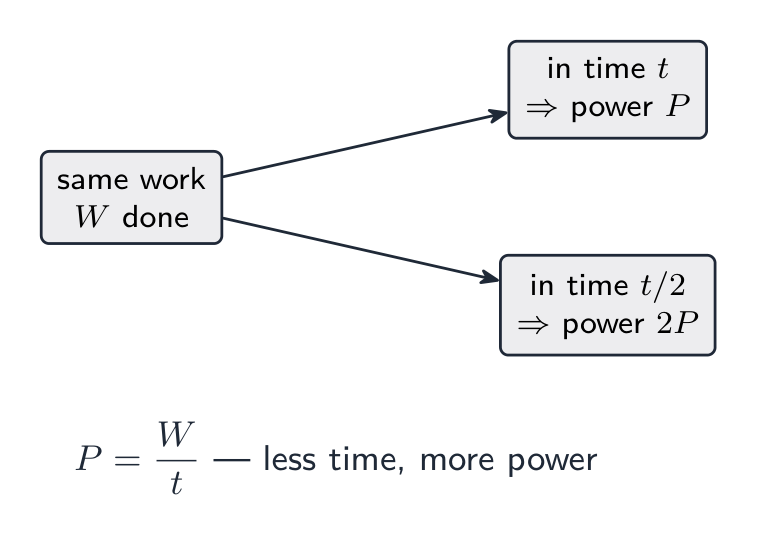

The same work done in less time means more power

Unit: $\text{W} = \text{J s}^{-1}$. Power is a scalar.

Power, force and velocity

For an object moving at velocity 速度 $v$ with a force $F$ along the direction of motion, in a short time $\Delta t$ the displacement is $v\,\Delta t$ and the work done is $F v\,\Delta t$. Dividing by $\Delta t$:

This is one of the most useful results in mechanics.

Worked example. A car travels at a steady $25\ \text{m s}^{-1}$ against a total resistive force of $600\ \text{N}$. Find the output power of its engine.

At constant speed the driving force equals the resistive force, so

• For a car at constant velocity $v$ on a flat road, the engine power must balance the total resistive force: $P = F_{\text{resist}} \cdot v$. If the drag 阻力 grows with $v^{2}$, doubling the speed roughly quadruples the power needed.
• For lifting a weight 重力 $mg$ straight up at constant speed $v$, the useful output power is $P = mg \cdot v$.
• For an aircraft hovering at a fixed height, the lift force equals the weight, and a large power is needed because air must be pushed downwards all the time.

In a uniform gravitational field (close to a planet's surface), the change in gravitational potential energy of mass 质量 $m$ rising or falling through a height $\Delta h$ is

Where it comes from

The work done against gravity to raise a mass $m$ slowly (no change in kinetic energy) through height $\Delta h$ equals the gravitational potential energy gained:

• the gravitational force on the mass is $mg$ downwards,
• the force needed to lift it slowly is $mg$ upwards,
• the work done by this force is $W = F \cdot s = mg \cdot \Delta h$,
• this work becomes $\Delta E_{\text{P}}$.

So $\Delta E_{\text{P}} = mg \Delta h$. To use it you need $m$ and $\Delta h$ (and $g$). You do not need speed or time.

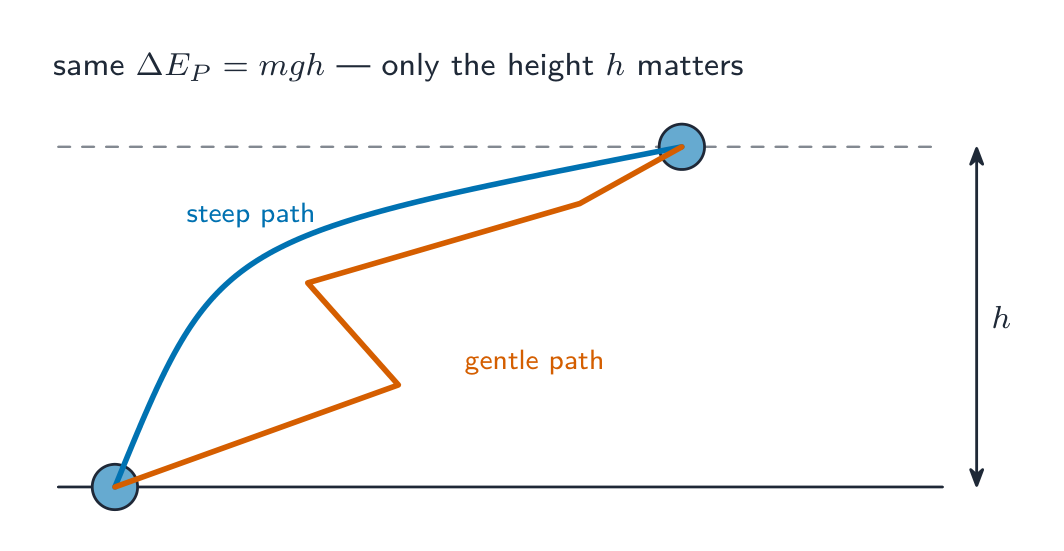

Gravitational PE depends only on the height risen, not the path taken

The kinetic energy of an object of mass $m$ moving at speed $v$ is

Where it comes from

Apply a resultant force $F$ to a mass $m$ that starts at rest. It speeds up evenly from $0$ to $v$ over a displacement $s$. From $v^{2} = u^{2} + 2as$ with $u = 0$,

The work done on the mass is

All this work becomes kinetic energy, so $E_{\text{K}} = \tfrac{1}{2} m v^{2}$.

Kinetic energy and momentum

Combining $p = mv$ and $E_{\text{K}} = \tfrac{1}{2} m v^{2}$:

This is handy when the momentum 动量 is given but not the velocity. For a momentum change from $p_{1}$ to $p_{2}$ at constant mass, the change in kinetic energy is $(p_{2}^{2} - p_{1}^{2}) / (2m)$.

A useful plan for problems that mix forces and energy:

1. Find the start and end states. Write the kinetic and potential energies in each.
2. List any work done by outside forces (friction, a push). Friction usually takes energy out; a push can add it.
3. Conservation of energy: $E_{\text{start}} + W_{\text{in}} = E_{\text{end}} + W_{\text{lost as heat etc.}}$.

Examples:

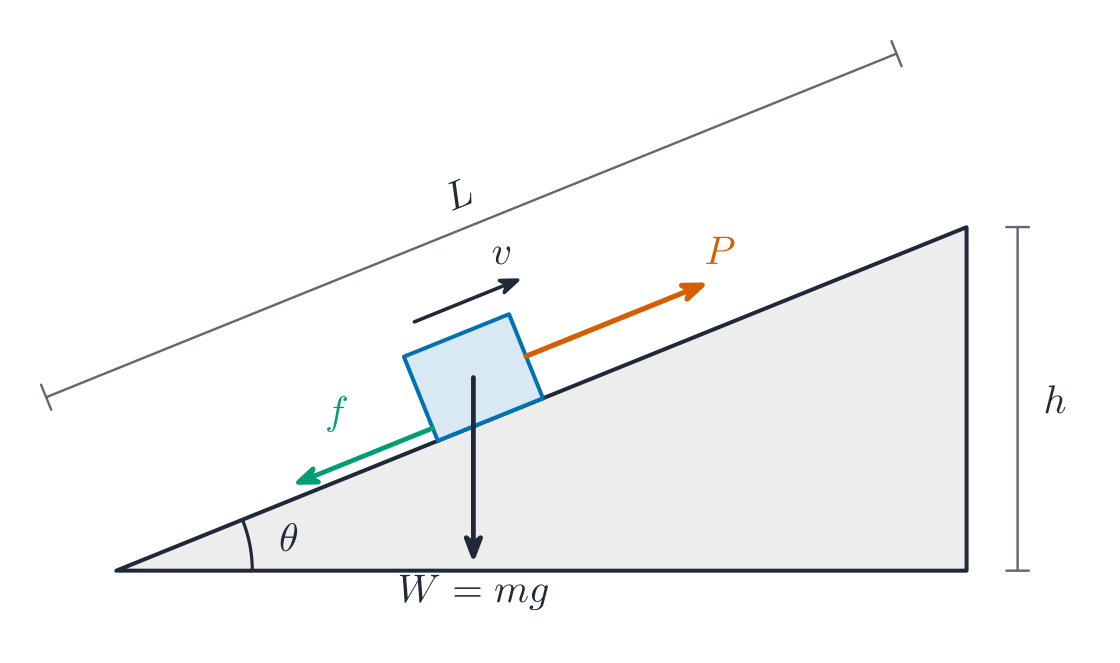

• A box pushed at constant velocity up a ramp of length $L$ rising by $h$: $E_{\text{K}}$ does not change, so the work done by the push goes into $\Delta E_{\text{P}}$ plus the work done against friction.

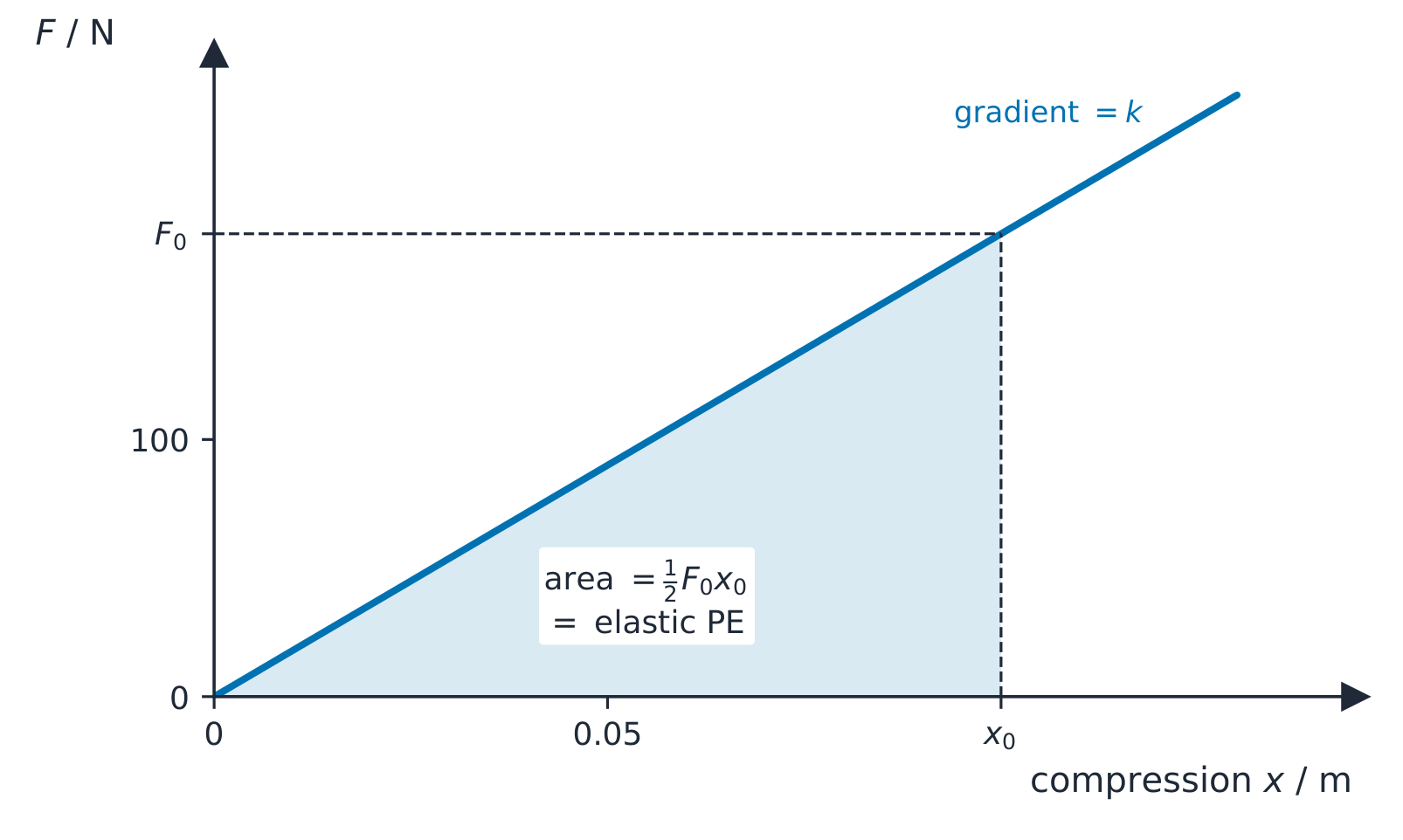

• A block sliding into a spring 弹簧 with kinetic energy $E_{\text{K}}$ on a frictionless surface: at greatest compression 压缩 $x$, all the kinetic energy has become elastic potential energy $\tfrac{1}{2} k x^{2}$ (where $k$ is the spring constant 劲度系数).
• A ball dropped from height $h_{1}$ that bounces to height $h_{2}$: the ratio $h_{2}/h_{1}$ is the fraction of mechanical energy kept, $h_{2}/h_{1} = (v_{\text{up}}/v_{\text{down}})^{2}$.
• A projectile 抛体 thrown to the same height at different angles: the final speed is the same (only the height matters); use components to get its direction.

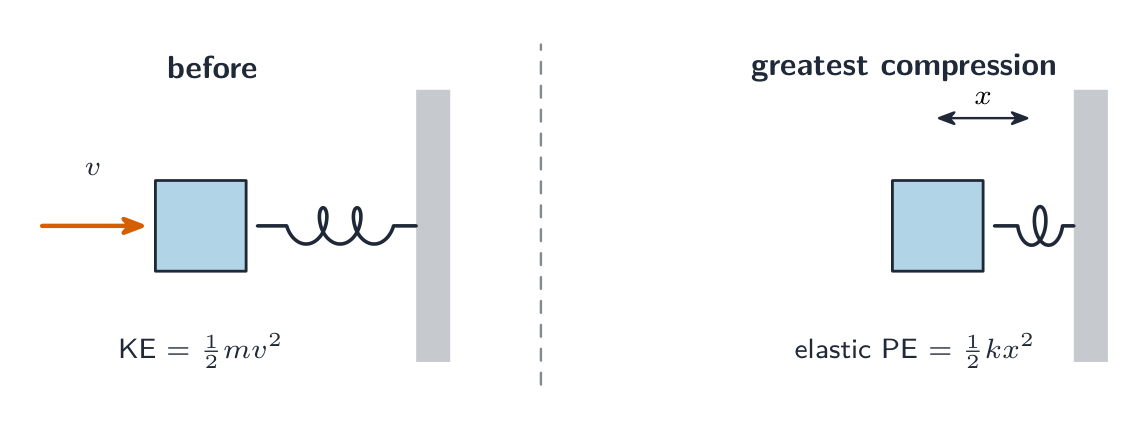

A block's kinetic energy becomes elastic potential energy as it compresses the spring

• Work $=$ force $\times$ distance moved in the direction of the force — use $Fs\cos\theta$ when they are at an angle.

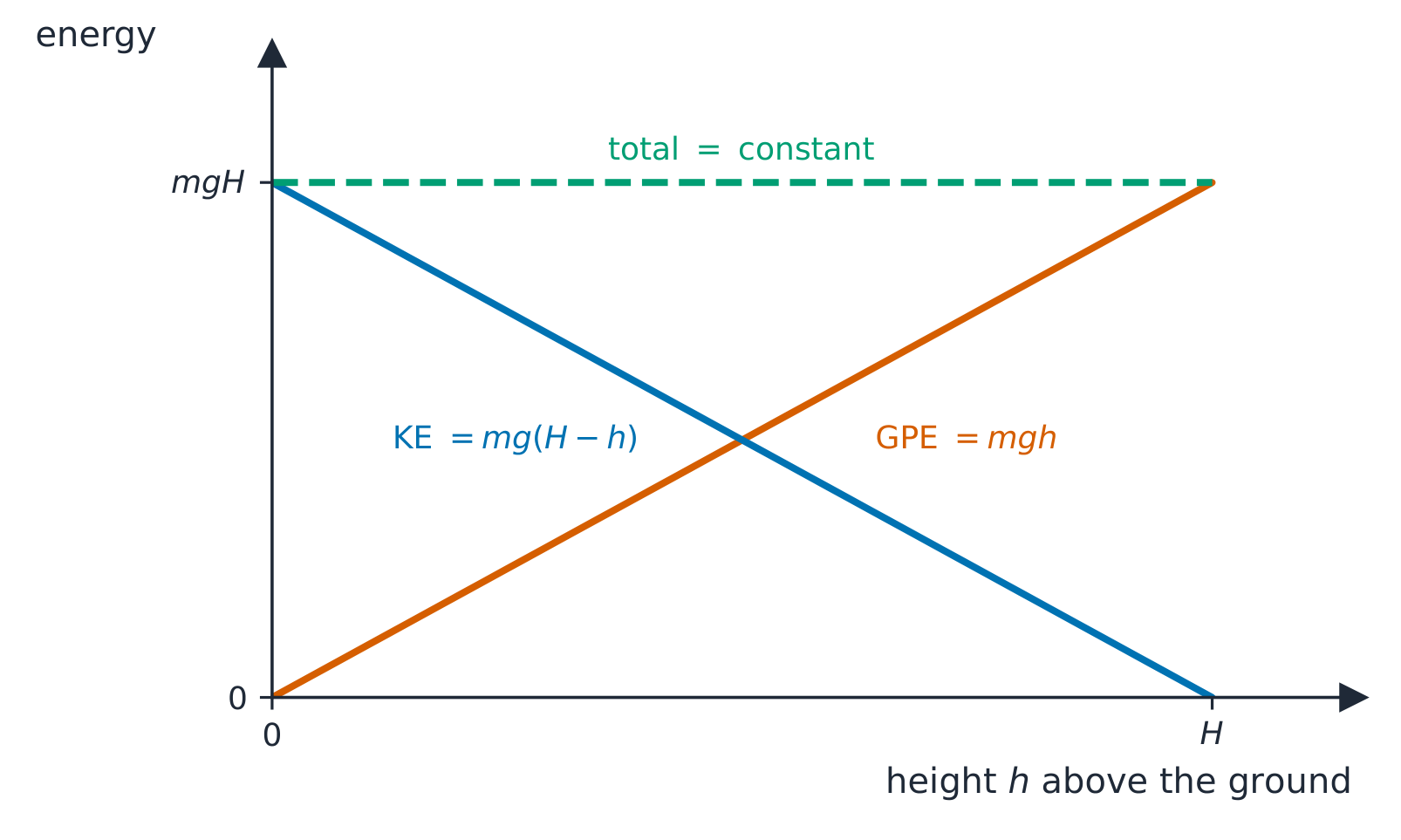

• Use conservation of energy: loss in GPE $=$ gain in KE ($+$ work done against resistance).
• Power $=$ work $/$ time $= Fv$; efficiency $=$ useful output $\div$ total input.
• GPE uses the vertical height gained, not the distance along a slope.
