Processor Fundamentals

A-Level Computer Science · Topic 4

Train
4.1

Von Neumann architecture

Syllabus
Candidates should be able to: Notes and guidance
Show understanding of the basic Von Neumann model for a computer system and the stored program concept
Show understanding of the purpose and role of registers, including the difference between general purpose and special purpose registers Special purpose registers including: • Program Counter (PC) • Memory Data Register (MDR) • Memory Address Register (MAR) • The Accumulator (ACC) • Index Register (IX) • Current Instruction Register (CIR) • Status Register
Show understanding of the purpose and roles of the Arithmetic and Logic Unit (ALU), Control Unit (CU) and system clock, Immediate Access Store (IAS)
Show understanding of how data are transferred between various components of the computer system using the address bus, data bus and control bus
Show understanding of how factors contribute to the performance of the computer system Including: • processor type and number of cores • the bus widthclock speedcache memory
Understand how different ports provide connection to peripheral devices Including connection to: • Universal Serial Bus (USB) • High Definition Multimedia Interface (HDMI) • Video Graphics Array (VGA)
Describe the stages of the Fetch-Execute (F-E) cycle Describe and use 'register transfer' notation to describe the F-E cycle
Show understanding of the purpose of interrupts Including: • possible causes of interrupts • applications of interrupts • use of an Interrupt Service Routine (ISR) • when interrupts are detected during the fetch-execute cycle • how interrupts are handled

Source: Cambridge International syllabus

The fetch-decode-execute cycle

The Von Neumann architecture·诺依曼体系结构 underlies almost every general-purpose computer:

  • a single memory — the Immediate Access Store 立即存取存储器 (IAS) — holds both program instructions and data (the stored program 存储程序 concept).
  • a processor 处理器 (CPU) fetches instructions from memory and runs them one at a time.
  • instructions run in order unless a branch changes the flow.

The stored-program idea is what makes a computer flexible: change the program and you change what it does, with no rewiring.

Explore

Tap the parts of a Von Neumann computer

Explore each block. The CPU (control unit, ALU, registers) talks to a single main memory over the buses — and that one shared memory for instructions AND data is the Von Neumann idea.

Vocabulary Train
English Chinese Pinyin
Von Neumann architecture 冯·诺依曼体系结构 féng · nuò yī màn tǐ xì jié gòu
stored program 存储程序 cún chǔ chéng xù
processor 处理器 chǔ lǐ qì
Immediate Access Store 立即存取存储器 lì jí cún qǔ cún chǔ qì
4.1

The CPU's main parts

All of these parts sit inside one small chip. The diagram later in this section shows how they connect; the photo below shows the real thing.

The underside of an Intel CPU chip on a white background, a flat square covered in a grid of hundreds of small gold contact pads that press onto the motherboard socket A modern CPU: the whole processor is one small chip (here seen from below, showing the contacts)

A square CPU socket on a motherboard, with a grid of tiny pins and a metal retention lever, surrounded by circuit tracks The matching CPU socket on the motherboard: the chip's contacts press onto these pins

Arithmetic and Logic Unit (ALU)

The ALU 算术逻辑单元 does the arithmetic (add, subtract, …) and logic (AND, OR, comparisons). It takes operands from registers 寄存器 and puts results back in a register.

Control Unit (CU)

The control unit 控制单元 decodes each instruction and sends the control signals to carry it out — opening data paths, telling the ALU what to do, and controlling memory reads and writes.

System clock

The clock sends a steady stream of pulses that keep the CPU in step. Each instruction takes a fixed number of cycles, and the clock speed 时钟频率 (e.g. 3.8 GHz) is one factor in performance.

Registers

Registers are tiny, very fast stores inside the CPU. The special purpose registers 专用寄存器 each have a fixed job in the cycle:

  • Program Counter 程序计数器 (PC) — the address of the next instruction.
  • Memory Address Register 内存地址寄存器 (MAR) — the address being read or written.
  • Memory Data Register 内存数据寄存器 (MDR) — the data going to or from memory.
  • Current Instruction Register 当前指令寄存器 (CIR) — the instruction being decoded.
  • Accumulator 累加器 (ACC) — the value the ALU is working on.
  • Status Register 状态寄存器 — holds flags 标志 (carry, zero, negative, overflow) used by branches.
  • Index Register 变址寄存器 — an offset used in indexed addressing.

General-purpose registers 通用寄存器 are used by the programmer for temporary values during a calculation. Movements of data between registers and memory are written in register transfer 寄存器传送 notation — e.g. MAR ← [PC] ("copy the contents of PC into MAR").

Block diagram of the Von Neumann CPU showing PC, MAR, MDR, CIR, ACC, status register, control unit, ALU and system clock, linked to main memory and input/output by the address, data and control buses The Von Neumann CPU: registers, control unit and ALU linked by buses

Vocabulary Train
English Chinese Pinyin
arithmetic and logic unit 算术逻辑单元 suàn shù luó jí dān yuán
register 寄存器 jì cún qì
control unit 控制单元 kòng zhì dān yuán
clock speed 时钟频率 shí zhōng pín lǜ
Program Counter 程序计数器 chéng xù jì shù qì
Memory Address Register 内存地址寄存器 nèi cún dì zhǐ jì cún qì
Memory Data Register 内存数据寄存器 nèi cún shù jù jì cún qì
Current Instruction Register 当前指令寄存器 dāng qián zhǐ lìng jì cún qì
Accumulator 累加器 lěi jiā qì
Status Register 状态寄存器 zhuàng tài jì cún qì
flags 标志 biāo zhì
Index Register 变址寄存器 biàn zhǐ jì cún qì
general-purpose registers 通用寄存器 tōng yòng jì cún qì
special purpose registers 专用寄存器 zhuān yòng jì cún qì
register transfer 寄存器传送 jì cún qì chuán sòng
4.1

Buses

Three internal buses 总线 (sets of parallel wires) connect the parts:

  • address bus 地址总线 — carries the memory address. One-way (CPU → memory).
  • data bus 数据总线 — carries the data. Two-way.
  • control bus 控制总线 — carries control signals (read, write, interrupt). Two-way.

An $n$-bit address bus can reach $2^{n}$ memory locations. The data-bus width sets how many bits move per access (often the word size).

CPU, memory and input/output each tapping the address bus (one-way), data bus and control bus inside the system bus The three system buses connecting the CPU, memory and input/output

Vocabulary Train
English Chinese Pinyin
buses 总线 zǒng xiàn
address bus 地址总线 dì zhǐ zǒng xiàn
data bus 数据总线 shù jù zǒng xiàn
control bus 控制总线 kòng zhì zǒng xiàn
4.1

What affects performance

  • clock speed — more cycles per second.
  • number of cores 核心 — a multi-core CPU runs several threads at once.
  • word size 字长 — a 64-bit CPU handles 64-bit chunks per cycle and can address far more memory than a 32-bit one.
  • amount of RAM 随机存取存储器 — more RAM holds more of the working set; too little forces the OS to page 分页 to disk.
  • cache memory 高速缓存 size — more cache cuts average memory access time.
  • secondary storage 辅助存储器 type — an SSD loads programs far faster than an HDD.
  • bus width and speed — wider/faster buses move data more quickly.

Match the specs to the workload: a quad-core beats a dual-core on parallel work, but higher per-core speed wins on single-threaded work.

Vocabulary Train
English Chinese Pinyin
cores 核心 hé xīn
word size 字长 zì zhǎng
RAM 随机存取存储器 suí jī cún qǔ cún chǔ qì
page 分页 fēn yè
secondary storage 辅助存储器 fǔ zhù cún chǔ qì
cache memory 高速缓存 gāo sù huǎn cún
4.1

Ports

A port 端口 is a physical socket for connecting a peripheral 外围设备:

  • USB (Universal Serial Bus) — general-purpose (keyboards, drives, phones).
  • HDMI (High Definition Multimedia Interface) — digital video and audio to a screen.
  • VGA (Video Graphics Array) — older analogue video output to a monitor.
  • Ethernet (RJ-45) — wired LAN. Audio jacks — headphones/microphone.

Different ports use different signals, so an HDMI cable will not fit a USB socket. USB-C is unusual in carrying video, data and power.

Vocabulary Train
English Chinese Pinyin
port 端口 duān kǒu
peripheral 外围设备 wài wéi shè bèi
4.1

Fetch-Execute cycle

The CPU repeats the fetch-execute cycle 取指-执行周期, one run per machine instruction.

Fetch

  1. the PC's address is copied to the MAR.
  2. the PC is incremented to point to the next instruction.
  3. a read signal goes over the control bus.
  4. memory puts the instruction on the data bus.
  5. it is copied into the MDR, then into the CIR.

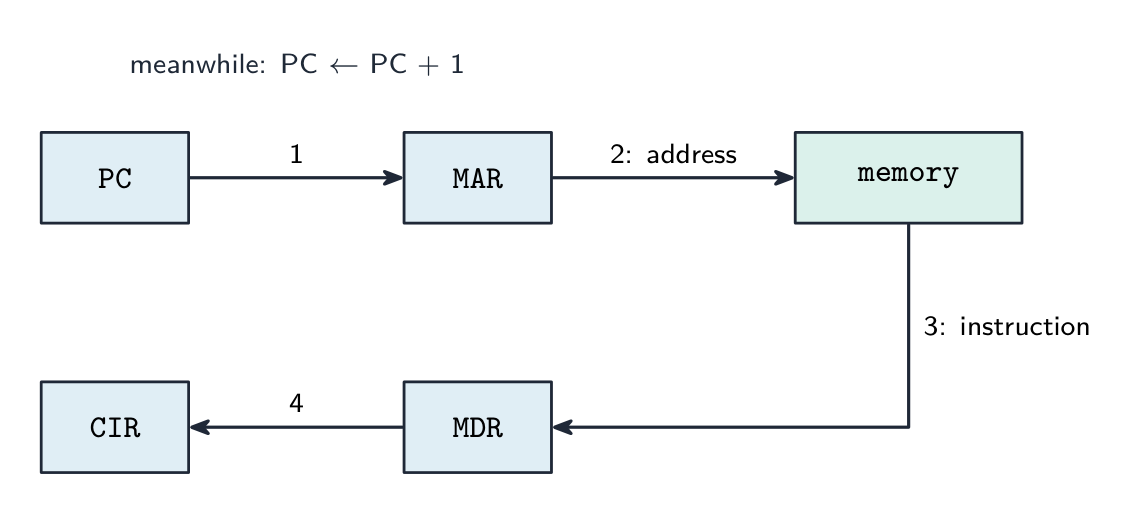

The fetch register transfers in order: 1 the PC's address goes to the MAR; 2 the MAR sends the address to memory; 3 the instruction returns to the MDR; 4 the MDR copies it to the CIR; meanwhile the PC is incremented The register transfers in a fetch: PC → MAR → memory → MDR → CIR, with the PC incremented

Decode

The CU decodes the instruction in the CIR — what operation, and which operands or addresses.

Execute

The CU carries it out: arithmetic/logic goes to the ALU (result to the ACC); a load/store moves data between memory and a register; a branch changes the PC. Then the cycle repeats.

Flowchart of the fetch-execute cycle from START: the fetch stage (PC to MAR, increment PC, read signal, memory to data bus to MDR to CIR), the decode stage, the execute stage, then a check for interrupts that loops back to START The fetch-execute cycle, with a check for interrupts each time

Explore

The fetch-execute cycle

Tap round the loop the CPU repeats billions of times a second. Watch how fetch uses the PC/MAR/MDR/CIR registers, then decode and execute act on what was fetched.

Explore

The fetch–execute cycle

Step through how the CPU runs one instruction — fetch it from memory, decode it, then execute it, over and over.

Vocabulary Train
English Chinese Pinyin
fetch-execute cycle 取指-执行周期 qǔ zhǐ - zhí xíng zhōu qī
4.1

Interrupts

An interrupt 中断 is a signal that pauses the normal cycle so the CPU can handle an urgent event (a key press, a packet arriving, a hardware fault, division by zero, the OS timer).

Handling one:

  1. finish the current instruction.
  2. save the state (PC and registers).
  3. load the address of the interrupt service routine 中断服务程序 (ISR) into the PC and run it.
  4. the ISR handles the event.
  5. restore the saved state and carry on.

Interrupts let the system respond promptly without the CPU constantly checking devices, and are how the OS multitasks.

Flowchart of interrupt handling: the running program is interrupted, the CPU finishes the current instruction, saves its state (PC and registers) on the stack, runs the interrupt service routine, restores the state and resumes How an interrupt fits into the fetch-execute cycle

Vocabulary Train
English Chinese Pinyin
interrupt 中断 zhōng duàn
interrupt service routine 中断服务程序 zhōng duàn fú wù chéng xù
4.2

Assembly language and machine code

Syllabus
Candidates should be able to: Notes and guidance
Show understanding of the relationship between assembly language and machine code
Describe the different stages of the assembly process for a two-pass assembler Apply the two-pass assembler process to a given simple assembly language program
Trace a given simple assembly language program
Show understanding that a set of instructions are grouped Including the following groups: • Data movement • Input and output of data • Arithmetic operations • Unconditional and conditional instructions • Compare instructions
Show understanding of and be able to use different modes of addressing Including immediate, direct, indirect, indexed, relative

Source: Cambridge International syllabus

The CPU actually runs machine code 机器码 — bit patterns, specific to one architecture. Assembly language 汇编语言 is a readable form, with one instruction per machine instruction, written using mnemonics 助记符 like LDD, ADD, JMP. An assembler 汇编器 translates it to machine code.

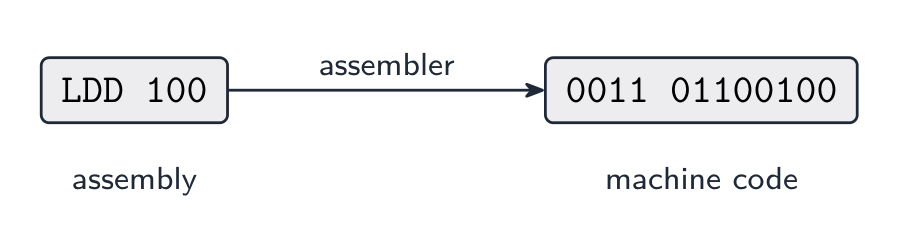

An assembler translates assembly mnemonics into machine-code bit patterns An assembler turns mnemonics into machine-code bit patterns

Two-pass assembler

A two-pass assembler reads the source twice:

  • pass 1 builds a symbol table 符号表: each time a label 标签 (like LOOP:) appears, record its address; no code yet.
  • pass 2 generates code: translate each instruction, and when one refers to a label (like JMP LOOP), look up its address in the symbol table.

Two passes handle forward references 前向引用 (a jump to a label defined later).

Example instruction set

Cambridge uses a small generic set: data movement (LDD, LDM, LDI, LDX, STO, MOV), arithmetic (ADD, SUB, INC, DEC), logic/bit (AND, OR, XOR, LSL, LSR), compare and branch (CMP, JMP, JPE, JPN), I/O (IN, OUT), and END. The exact mnemonics are given in the paper's reference table.

Explore

How a two-pass assembler works

Step through it. The assembler reads your code twice: pass 1 just finds where every label lives, so pass 2 can fill in the addresses — that is how a jump to a label defined later still works.

Vocabulary Train
English Chinese Pinyin
machine code 机器码 jī qì mǎ
assembly language 汇编语言 huì biān yǔ yán
mnemonics 助记符 zhù jì fú
assembler 汇编器 huì biān qì
symbol table 符号表 fú hào biǎo
label 标签 biāo qiān
forward references 前向引用 qián xiàng yǐn yòng
4.2

Addressing modes

The addressing mode 寻址方式 (the modes of addressing) says how the CPU finds the operand:

  • immediate addressing 立即寻址 — the operand is the value in the instruction. LDM #10 loads 10.
  • direct addressing 直接寻址 — the instruction holds an address; the operand is the value there. LDD 200.
  • indirect addressing 间接寻址 — the instruction holds an address that holds another address, which is the data. LDI 200.
  • indexed addressing 变址寻址 — effective address is address + index register; used for arrays. LDX 100 with IR = 5 reads address 105.

(Relative addressing 相对寻址 gives the address as an offset from the PC — used for jumps.)

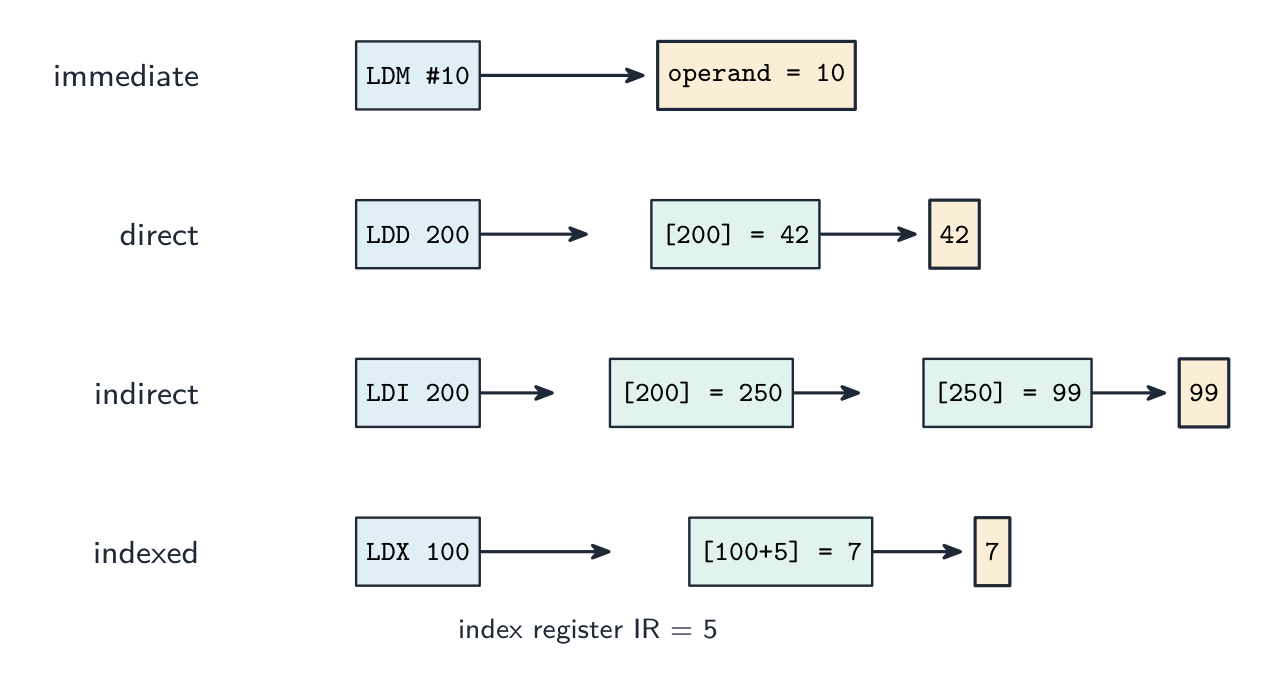

Four addressing modes reaching their operand. Immediate: LDM #10 gives 10 directly. Direct: LDD 200 reads memory location 200 (=42). Indirect: LDI 200 reads location 200 (=250) then location 250 (=99). Indexed: LDX 100 with index register 5 reads location 105 (=7) How each addressing mode reaches its operand — immediate, direct, indirect and indexed

Worked example. Memory holds: location 200 = 250, location 250 = 99, location 105 = 7. The index register holds 5. What is in the accumulator after each of LDM #200, LDD 200, LDI 200 and LDX 100? Follow how far each mode has to look. LDM #200 is immediate - the operand is the number written in the instruction, so the accumulator holds 200. LDD 200 is direct - go to location 200 and take what is there: 250. LDI 200 is indirect - location 200 holds 250, which is another address, so go on to location 250: 99. LDX 100 is indexed - add the index register to the address, $100 + 5 = 105$, and read location 105: 7. Count the hops to keep them apart: immediate 0, direct 1, indirect 2, indexed 1 (once the index has been added).

Vocabulary Train
English Chinese Pinyin
addressing mode 寻址方式 xún zhǐ fāng shì
immediate addressing 立即寻址 lì jí xún zhǐ
direct addressing 直接寻址 zhí jiē xún zhǐ
indirect addressing 间接寻址 jiàn jiē xún zhǐ
indexed addressing 变址寻址 biàn zhǐ xún zhǐ
relative addressing 相对寻址 xiāng duì xún zhǐ
4.2

Tracing an assembly program

To trace it: make a table with columns for the PC, ACC, index register, each variable and any flags. Step through the instructions, updating the table after each; follow branches when they change the PC; stop at END. A common pattern is a loop over an array using indexed addressing.

4.3

Binary shifts

Syllabus
Candidates should be able to: Notes and guidance
Show understanding of and perform binary shifts Logical, arithmetic and cyclic Left shift, right shift
Show understanding of how bit manipulation can be used to monitor/control a device Carry out bit manipulation operations Test and set a bit (using bit masking)
Instruction Label | Opcode | Operand Explanation
AND #n / Bn / &n Bitwise AND operation of the contents of ACC with the operand
AND
Bitwise AND operation of the contents of ACC with the contents of
XOR #n / Bn / &n Bitwise XOR operation of the contents of ACC with the operand
XOR
Bitwise XOR operation of the contents of ACC with the contents of
OR #n / Bn / &n Bitwise OR operation of the contents of ACC with the operand
OR
Bitwise OR operation of the contents of ACC with the contents of
LSL #n Bits in ACC are shifted logically n places to the left. Zeros are introduced on the right hand end
LSR #n Bits in ACC are shifted logically n places to the right. Zeros are introduced on the left hand end
Labels an instruction
Gives a symbolic address
All questions will assume there is only one general purpose register available (Accumulator) ACC denotes Accumulator IX denotes Index Register
can be an absolute or symbolic address # denotes a denary number, e.g. #123 B denotes a binary number, e.g. B01001010 & denotes a hexadecimal number, e.g. &4A

Source: Cambridge International syllabus

A logical shift 逻辑移位 moves all the bits left or right by some places, filling new positions with 0.

  • left shift by 1 (LSL #1) — bits move left, a 0 enters on the right; for an unsigned number this is × 2.
  • right shift by 1 (LSR #1) — bits move right, a 0 enters on the left; for an unsigned number this is integer ÷ 2.

Shifting by $n$ places multiplies or divides by $2^{n}$. Example: 00001011 (11) LSL #100010110 (22).

An arithmetic right shift keeps the sign bit so a negative signed number stays negative. A cyclic shift 循环移位 (rotate) feeds the bit that drops off one end back in at the other end, so no bits are lost.

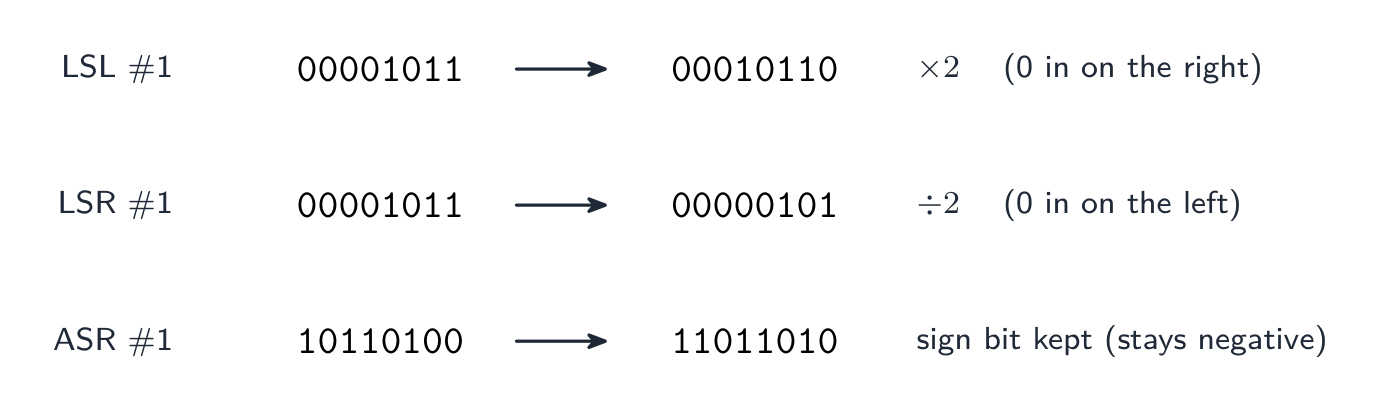

Three 8-bit shifts: LSL #1 turns 00001011 into 00010110 (times 2, a 0 enters on the right); LSR #1 turns it into 00000101 (integer divide by 2, a 0 enters on the left); ASR #1 turns 10110100 into 11011010, copying the sign bit Logical left ($\times 2$), logical right ($\div 2$) and arithmetic right (keeps the sign bit)

Bit manipulation for monitoring/control

Embedded devices often use one bit of a register per signal (e.g. bit $n$ = LED $n$). Using a mask 掩码bit masking — you can:

  • set bit $n$: R = R OR a mask with bit $n$ set.
  • clear bit $n$: R = R AND a mask with bit $n$ clear and the rest set.
  • toggle bit $n$: R = R XOR a mask with bit $n$ set.
  • test bit $n$: R AND the mask, then check if the result is non-zero.

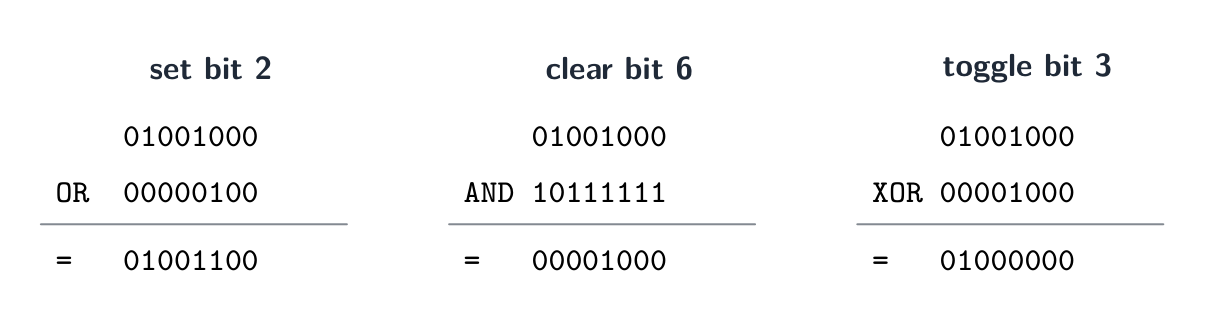

Bit masking on the byte 01001000: set bit 2 with OR 00000100 to get 01001100; clear bit 6 with AND 10111111 to get 00001000; toggle bit 3 with XOR 00001000 to get 01000000 Set a bit with OR, clear it with AND, toggle it with XOR — each using a mask

Bit manipulation is fast, uses little memory, and lets one byte hold up to 8 on/off states.

Explore

Shift and mask the bits of a byte

Pick an operator and watch each result bit. A left shift (<<) moves every bit up one place (×2); a right shift (>>) moves them down (÷2); AND with a mask clears the bits you don't want.

Vocabulary Train
English Chinese Pinyin
logical shift 逻辑移位 luó jí yí wèi
mask 掩码 yǎn mǎ
bit wèi
cyclic shift 循环移位 xún huán yí wèi
4.3

Exam tips

  • Learn the fetch-execute cycle in register-transfer terms (PC, MAR, MDR, CIR, ACC) and what increments the PC.
  • Name each register's job; the address bus is one-way, the data bus is two-way.
  • Distinguish the addressing modes (immediate, direct, indirect, indexed) — a frequent question.
  • Explain how clock speed, number of cores, cache size and word length affect performance.
  • For a binary shift, state whether it is logical or arithmetic; a left shift multiplies by 2, a right shift divides by 2.

Log in or create account

IGCSE & A-Level
