Information representation

The three number systems 数制 you must use:

• denary 十进制 (decimal, base 10) — uses digits 0–9. Place values are powers of ten.
• binary 二进制 (base 2) — uses 0 and 1. Place values are powers of two. Every byte 字节 is 8 bits 位.
• hexadecimal 十六进制 (base 16) — uses 0–9 then A–F for 10–15. Each hex digit 数位 stands for exactly 4 bits.

An abacus represents numbers by place value — the same idea behind decimal, binary and hexadecimal

Conversions

Denary → binary: keep dividing by 2 and record the remainders, read bottom-up. Or subtract the largest place value 位值 (power of 2) that fits.

Example: $558_{10}$: $558 = 512 + 32 + 8 + 4 + 2 = 2^{9} + 2^{5} + 2^{3} + 2^{2} + 2^{1}$. In 12 bits: 0010 0010 1110.

Binary → hex: group the bits into nibbles 半字节 (4 bits) from the right and convert each. 0010 0010 1110 → 2 2 E → 22E.

Hex → binary: replace each hex digit with its 4-bit pattern. Hex → denary: multiply each digit by its place value. 22E $= 2 \times 256 + 2 \times 16 + 14 = 558$.

Worked example. Convert denary 200 to 8-bit binary, then to hexadecimal.

$200 = 128 + 64 + 8$, so the binary is 11001000. In nibbles, 1100 1000 $= 12$ and $8$, i.e. $\text{C}$ and $8$, so the hexadecimal is C8.

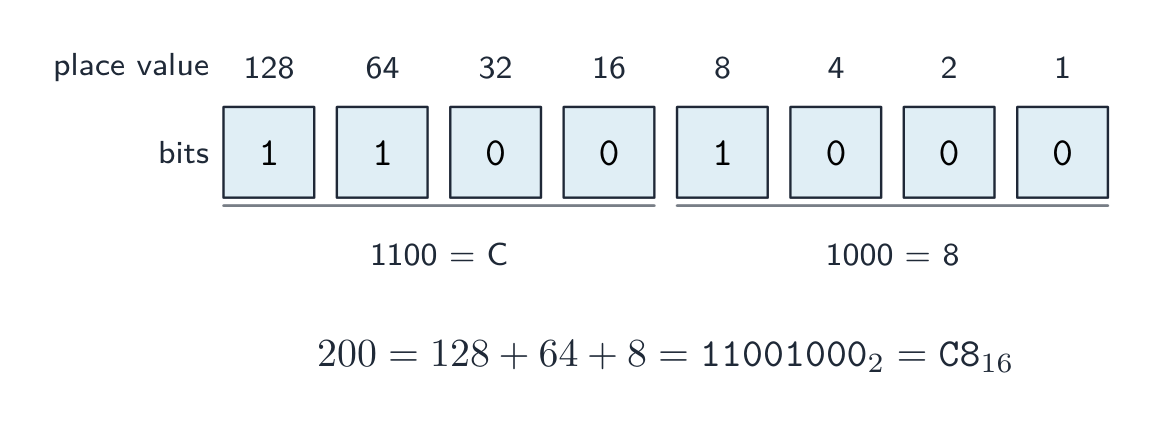

Reading 200 from its place values, then grouping the bits into nibbles to get hex C8

Binary vs decimal prefixes

Two prefix families look similar but differ — decimal (powers of 10) and binary (powers of 2):

So a tebibyte (TiB) is slightly more than a terabyte (TB). A "1 TB" drive holds $10^{12}$ bytes, but an operating system that reports in TiB shows a smaller number.

Binary addition

Add column by column from the right, carrying as in denary:

Overflow 溢出 happens when the result needs more bits than the register 寄存器 can hold — the carry-out of the leftmost column is the overflow bit.

Binary subtraction

The usual way is two's complement 补码 addition: to do $A - B$, form the two's complement of $B$ (invert every bit and add 1), then add, and discard any final carry-out.

To subtract $00011110$ from $01100100$ (unsigned 8-bit):

• two's complement of $00011110$: invert → $11100001$, add 1 → $11100010$.
• add to $01100100$: result $1\,01000110$ (9 bits) — discard the leading 1 → $01000110 = 70_{10}$. Check: $100 - 30 = 70$. ✓

Two's complement signed integers

In an $n$-bit two's-complement number:

• the most significant bit 最高有效位 (MSB) is the sign bit 符号位: 0 = positive, 1 = negative.
• to read a negative number: invert every bit, add 1, then negate.

So $11100010$ is negative; invert → $00011101$, add 1 → $00011110 = 30$, so it is $-30$. This is a signed integer 有符号整数 (unlike an unsigned 无符号 one). The range for $n$ bits is $-2^{n-1}$ to $+2^{n-1} - 1$; for 8 bits, $-128$ ($10000000$) to $+127$ ($01111111$).

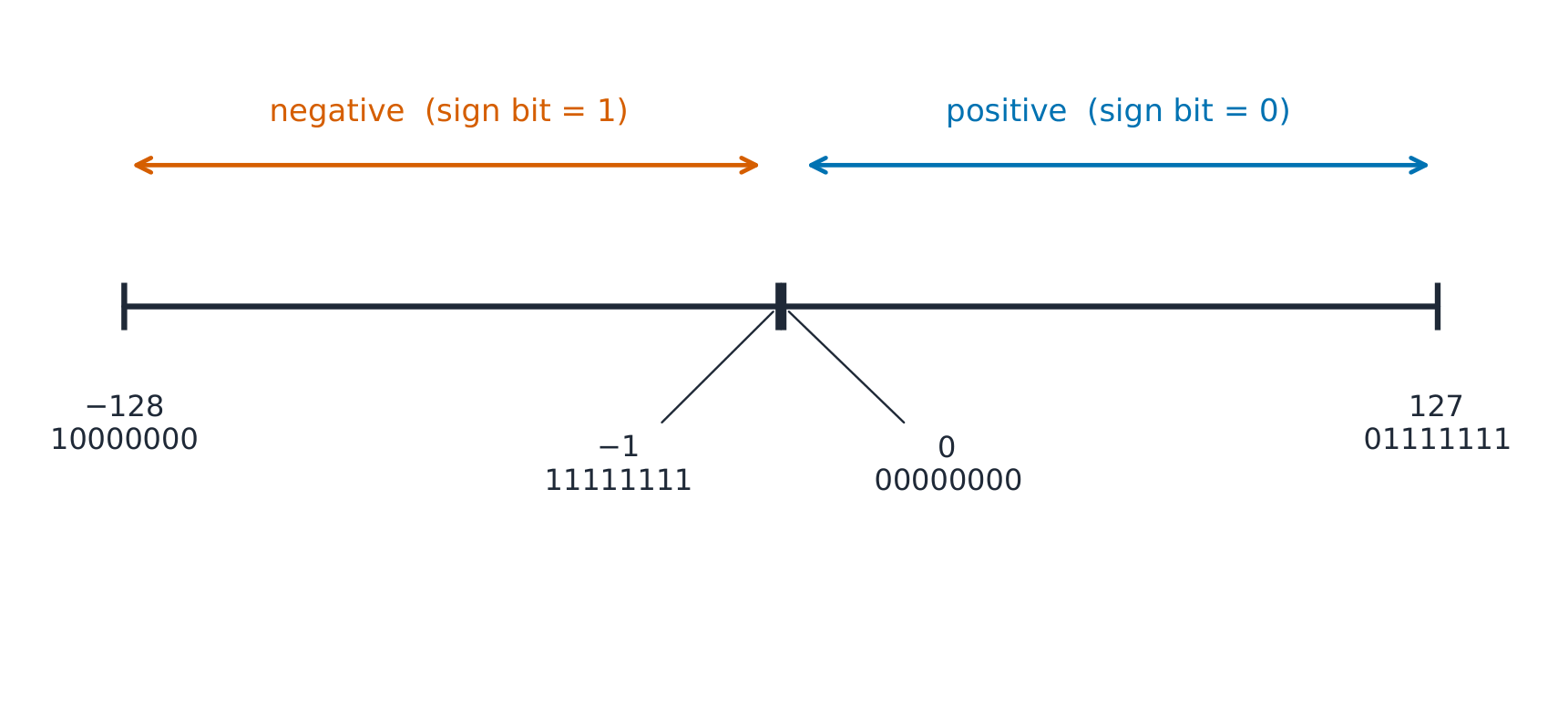

8-bit two's complement: the sign bit splits the range into negative ($-128$ to $-1$) and positive ($0$ to $127$)

Worked example. What denary value does the 8-bit two's-complement number $10110100$ represent?

The MSB is 1, so it is negative. Invert → $01001011$, add 1 → $01001100 = 76$, so the value is $-76$. Check with place values: $-128 + 32 + 16 + 4 = -76$.

Overflow in signed arithmetic happens when the true result falls outside this range — spotted when the sign bit flips wrongly (two positives giving a negative, or two negatives giving a positive).

One's complement

Before two's complement, an older scheme called one's complement 反码 represented a negative number by simply inverting every bit of the positive — there is no "add 1" step.

• $+30 = 00011110$, so in one's complement $-30 = 11100001$ (just the inverse).
• Drawback: it has two zeros — $00000000$ ($+0$) and $11111111$ ($-0$) — which wastes a bit pattern and makes arithmetic awkward.

Two's complement (invert and add 1) removes the negative zero: it has a single zero and lets addition and subtraction use the same circuit. That is why modern computers store signed integers in two's complement, not one's complement.

In BCD 二进码十进数, each denary digit is written as its own 4-bit pattern. The number $93$ is 1001 0011 in BCD — not binary 93 ($01011101$). Each nibble uses only 0–9; patterns $1010$–$1111$ are invalid.

BCD reading: 0010 0111 0101 → 2, 7, 5 → 275.

Use: calculators, digital clocks, and devices that show denary digits — each digit drives a 7-segment display 七段显示器. Currency code often uses BCD to avoid the rounding errors of converting fractions like 0.1 to binary.

A seven-segment display shows one denary digit, often driven by BCD

Hex is a compact way to write binary (1 hex digit = 4 bits):

A byte is two nibbles; each nibble is one hex digit

• memory addresses 内存地址 in low-level programming — 0x7FFE.
• colour values in HTML/CSS — #FF8800.
• MAC addresses — AC:DE:48:00:11:22.

Hex does not change the stored data — it just makes binary easier for humans.

Computers store text as numbers; each character has a numeric code point 码点 set by a character set 字符集.

ASCII

• ASCII uses 7 bits — 128 code points. Basic Latin letters, digits, punctuation, and control codes.
• Extended ASCII uses 8 bits — 256 code points; the lower 128 match ASCII, the upper 128 vary by region.

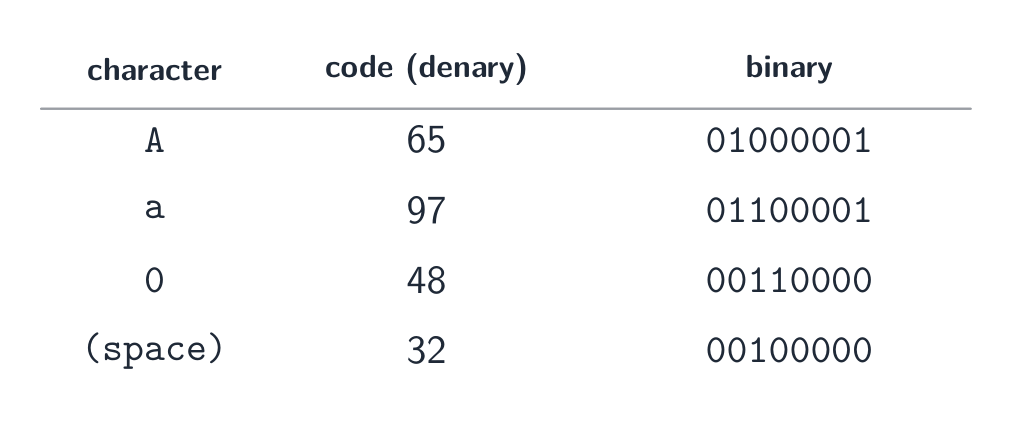

Each character is stored as a number — a few ASCII code points in denary and binary

Unicode

• Unicode is a universal character set covering almost every script, plus symbols and emoji.
• common encodings 编码: UTF-8 (1–4 bytes, ASCII-compatible), UTF-16 (2 or 4 bytes), UTF-32 (fixed 4 bytes).

Why Unicode beats ASCII

• it represents far more characters (every script, emoji); ASCII covers only basic English.
• files are portable with no code-page confusion, and allow multilingual text in one document.
• trade-off: Unicode files are usually larger for English-only text.

A bitmap 位图 image (also called a bitmapped image) stores the colour of every pixel 像素 in a grid. At the start of the file a file header 文件头 records the image's metadata — its width, height and colour depth — so software knows how to read the pixel data that follows.

• image resolution 图像分辨率: the bitmap's own size, width × height in pixels (e.g. 1920 × 1080).
• screen resolution 屏幕分辨率: the width × height the display can show. If an image's resolution is larger than the screen it is scaled down to fit; a low-resolution image looks blocky when stretched onto a higher-resolution screen.
• colour depth 颜色深度 (bit depth 位深度): bits per pixel. 1 bit → black/white; 8 bits → 256 colours; 24 bits → 16.7 million ("true colour").

The same image stored at three resolutions, from high (A) to low (C): fewer, larger pixels mean less detail

File size

Divide by 8 for bytes, by 1024 for KiB, etc. Example: a $3000 \times 2000$ image at 24 bpp is $3000 \times 2000 \times 24 = 1.44 \times 10^{8}$ bits $\approx 17.2\ \text{MiB}$.

Changing settings

• lower resolution → smaller file, less detail (looks blocky when enlarged).
• lower colour depth → smaller file, but smooth shades show banding.
• higher of either → larger file, better quality.

A vector graphic 矢量图形 stores the instructions to draw the image as a drawing list 绘图列表 — an ordered list of drawing objects 绘图对象 (geometric primitives 图元: lines, curves, polygons, circles). Each drawing object has properties 属性 such as colour, fill, line width and position (coordinates). To show it, the program renders 渲染 the drawing list at any resolution needed.

A vector image is built from labelled geometric shapes, each with attributes

Bitmap vs vector

Vector advantage: it scales without losing quality — a vector logo stays sharp at any size, while a bitmap blurs when enlarged. Vector disadvantage: it cannot describe arbitrary pixel detail (photographs).

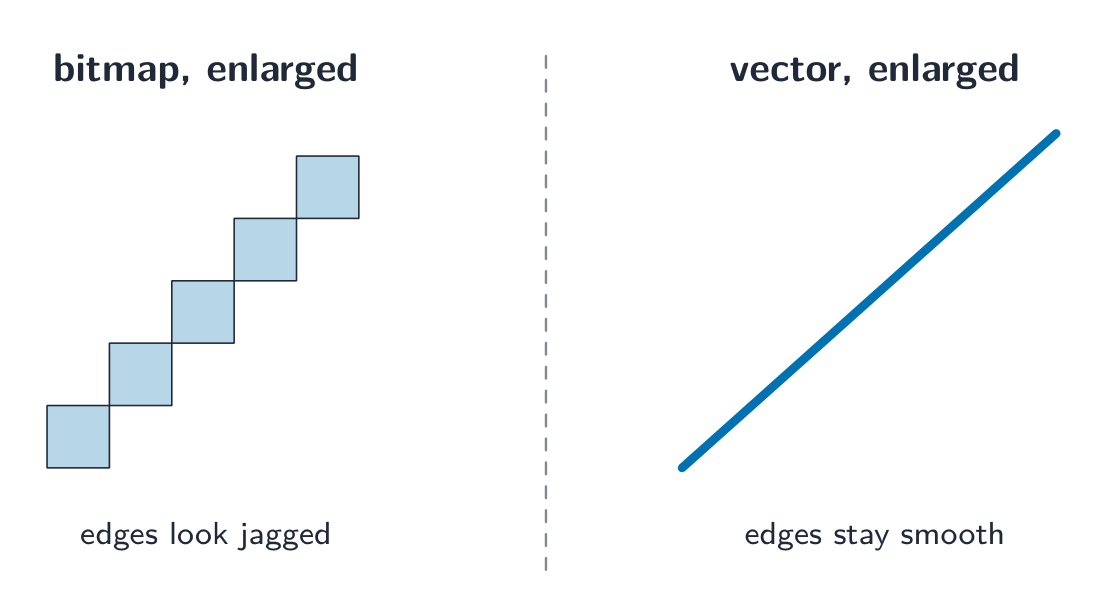

Enlarged, a bitmap's pixels turn jagged; a vector stays smooth at any size

A continuous wave of analogue data 模拟数据 (the sound) is converted into digital data 数字数据 by sampling 采样:

• sampling rate 采样率 — samples per second (Hz). CD quality is $44.1\ \text{kHz}$.
• sampling resolution 采样分辨率 (bit depth) — bits per sample's amplitude 振幅. CD quality is 16 bits.

Sampling a sound wave: its amplitude is read at each time interval

File size

A 10-second stereo CD clip: $44100 \times 16 \times 10 \times 2 \approx 1.8\ \text{MiB}$.

Changing settings

• higher sampling rate → captures higher pitches, larger file.
• higher sample resolution → finer amplitude steps, less quantisation 量化 noise, larger file.
• lower of either → smaller file, clear quality loss.

(The sampling rate must be at least twice the highest frequency you want to keep.)

Compression 压缩 reduces file size, saving storage and transmission bandwidth 带宽. Two kinds:

• lossless 无损 — the original data is recovered exactly (text, programs, ZIP/PNG).
• lossy 有损 — some detail is dropped for much smaller files (JPEG, MP3, video).

When to use which

• lossless for documents, source code, medical images — anything needing exact data.
• lossy for streaming media. Real-time video streaming uses lossy compression because it must send huge amounts of data in real time over limited bandwidth; lossless would not shrink it enough. Raw HD video is gigabytes per minute, so without compression the picture would keep freezing.

Lossless methods

• run-length encoding 行程编码 (RLE): store "the next $n$ values are $x$" instead of repeating $x$. Great for flat areas; useless for noisy data.
• dictionary methods 字典编码 (ZIP, PNG): replace repeated byte sequences with a short reference. Good for text and code.
• Huffman coding 霍夫曼编码: give short codes to common symbols and long codes to rare ones, bringing the average code length near the data's entropy 熵.

Run-length encoding of the letter F in an $8\times8$ black-and-white grid

Lossy methods

• images (JPEG): drop fine detail and colour differences the eye barely sees.
• sound (MP3, AAC): drop pitches we hear less well, and quiet sounds hidden by louder ones.
• video combines spatial 空间 compression (within each frame, like JPEG) with temporal 时间 compression (most frames store only the differences from the previous frame).

Compression methods: lossless versus lossy, with common examples

• Show working for base conversions: denary → binary by place values, binary → hexadecimal in nibbles (groups of 4 bits).
• For two's complement the MSB is negative; to negate, invert and add 1; watch for overflow when the sign bit flips wrongly.
• Distinguish bitmap (pixels; file size $=$ width $\times$ height $\times$ colour depth) from vector (drawing commands; scales without loss).
• Sound file size depends on sample rate $\times$ bit depth $\times$ time — more of each means better quality but a bigger file.
• Compare lossless vs lossy compression and give a use for each.
